7.5 KW 96V ev inverter electric motor controller motor

Supplier: Fuzhou Slider Electronic Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Simon Chen
Price: $282.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

application:	AC asynchronous motor	place of origin; place of origin:	Fujian China
Packaging Details:	Carton (Wooden packing will suffice.)	brand:	slider
efficiency:	0.98	model:	SDJ-7.5KW-9632
Rated current output:	78(AC/A)	Maximum power output:	30KW
Input voltage:	96(DC/V)	Storage temperature:	-40℃ ~ 70℃
port:	Fuzhou Port or other ports you need	Supply capacity:	100000 pieces/month
rated power:	7.5KW	Maximum output frequency:	300 Hz
payment terms:	L/C, Western Union, T/T, MoneyGram, Paypal	Maximum current output:	320(AC/A)
Operating temperature:	-30℃ ~ 55℃

Product Description

AC Motor ControllerSDJ-7.5KW-9632

SDJ series AC controllers are drivers developed for low voltage AC electric vehicles. As a high-reliability, high-torque asynchronous motor drive device, it is designed with four-quadrant vector control, which can precisely control the speed and torque of the motor. Widely used in pure electric passenger cars, low-speed A00-class passenger cars, electric sightseeing cars, electric logistics vehicles, etc.

feature

(1) The controller adopts the international mainstream digital driver German DSP as the core control chip, which builds a good platform for the motor control algorithm.
(2) The power device adopts high-power MOSFET tube, which can realize high-efficiency energy conversion.
(3) Multiple safety protection of CAN interface, lithium battery BMS safety certification management.
(4) Support short-circuit protection (phase-ground, phase-phase, phase-source), overload, over-temperature, and over-voltage protection.
(5) Reliable and flexible regenerative braking technology to improve mileage and meet customer needs.
(6) The steep slope adopts micro-movement technology and gentle slope and gentle slope grasping technology, which has stronger climbing ability, stable slope grasping and stronger starting.
(7) Adopt excellent optimization algorithm and frequency 0 to 300 Hz to reduce noise and vibration amplitude.
(8) Perfect fault protection function, various fault buzzer prompts, easy maintenance.
(9) Adopt CAN-bus technology to reduce wiring, adjustable parameters and online programmable.
(10) Compatible design, smaller size and lighter weight.
(11) Simplify installation and debugging steps.
(12) High reliability and low maintenance cost.

(13) Parameters or software can be customized according to customer requirements.

parameter

Input (DC/V)	96V
Maximum current output (AC/A)	320
Rated current output (AC/A)	78
Maximum output power (KW)	30
Maximum frequency output (Hz)	300
Working ambient temperature (℃)	-30℃ ~ 55℃
Storage ambient temperature (℃)	-40℃ ~ 70℃
Insulation properties	Shell input and output DC1000V, leakage current 0.05mA, insulation resistance 20MΩ
Controller efficiency	0.98
cooling method	Free cooling/Air cooling
Vibration Standard	GB/T2423
control method	Vector control
communication method	were able
IP level	IP67
Weight (kg)	3.5kg
Motor type	AC asynchronous motor

* is the absolute maximum value in the table, which can be adjusted according to the specific requirements of customers

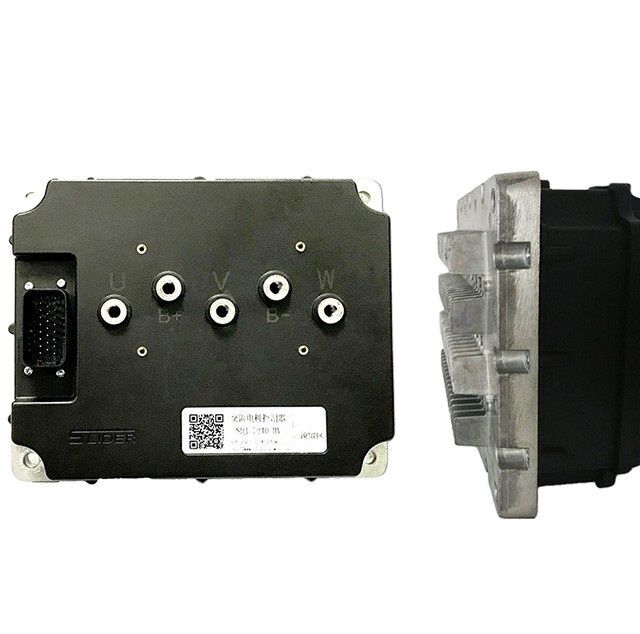

detailed picture

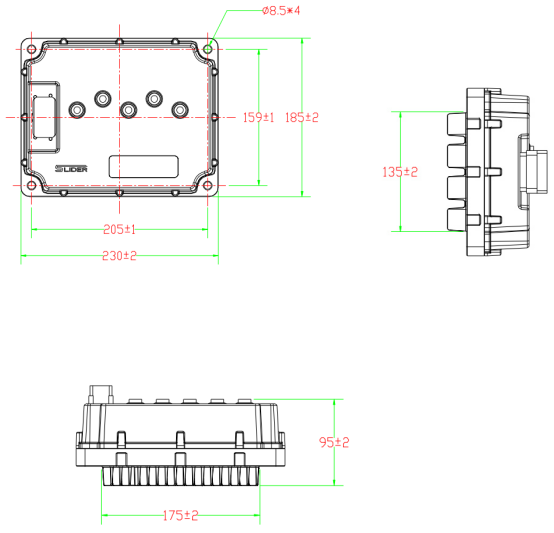

aspect

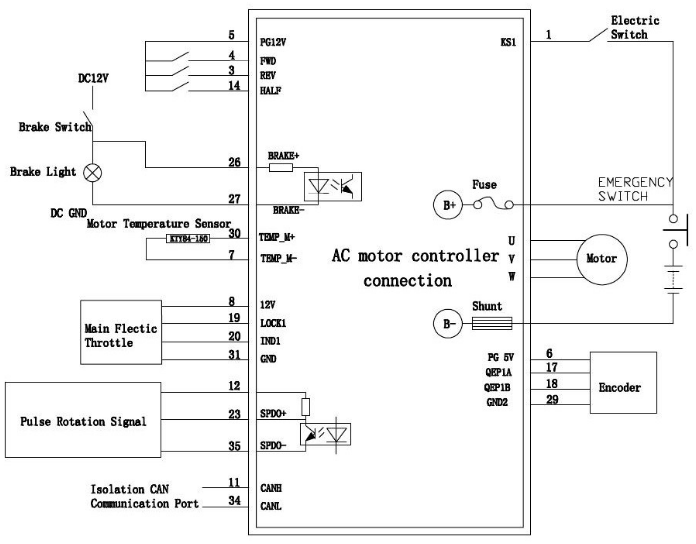

circuit schematic

Common associations with controllers

application

Our controllers are widely used in electric passenger cars, electric golf carts, electric sweepers, electric trucks, electric forklifts, electric pallet trucks, electric mobile scissor lifts, electric sightseeing cars, electric logistics vehicles, etc.electric car.
