10KV 1000W DBD Power Supply Atmospheric Plasma Cleaner Power Supply

Supplier: Beijing Jingyi Daming Electronic Technology Co., Ltd.
Region: Beijing, China
Contact: Ms xiangzhi xu
Price: $1200.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certification:	ISO9001, CE	payment terms:	T/T, Western Union
place of origin; place of origin:	Beijing China	Output frequency:	20~50Khz
Output Power:	1 kW	type:	DBD plasma power supply
Core Technology:	DBD	Supply capacity:	2000 pieces per month
Packaging Details:	Carton	Waveform:	Quasi-sine wave
application:	Plasma cleaner	Source type:	CNC intelligence
brand:	Excellent Chain	port:	Beijing
Input voltage:	AC220±10%V	The output voltage:	10KV
customizable:	Yes	cool down:	air cooling
model:	WT2DBD-10KV	Delivery Details:	1-3 days later
Output current:	0.1A

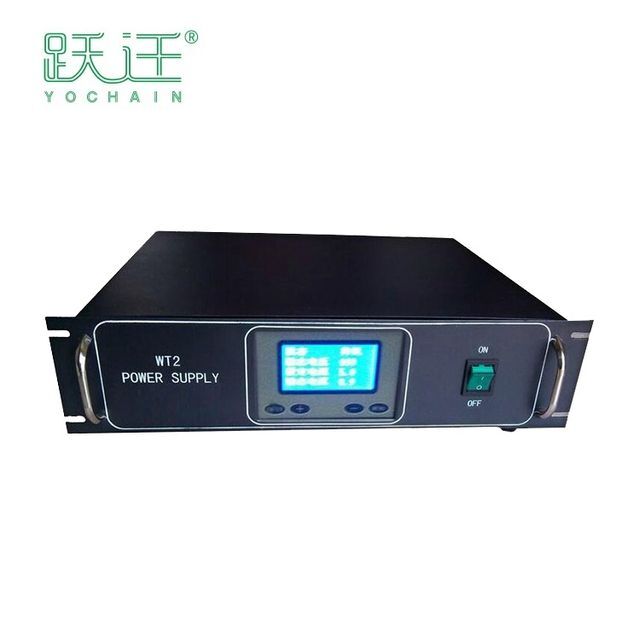

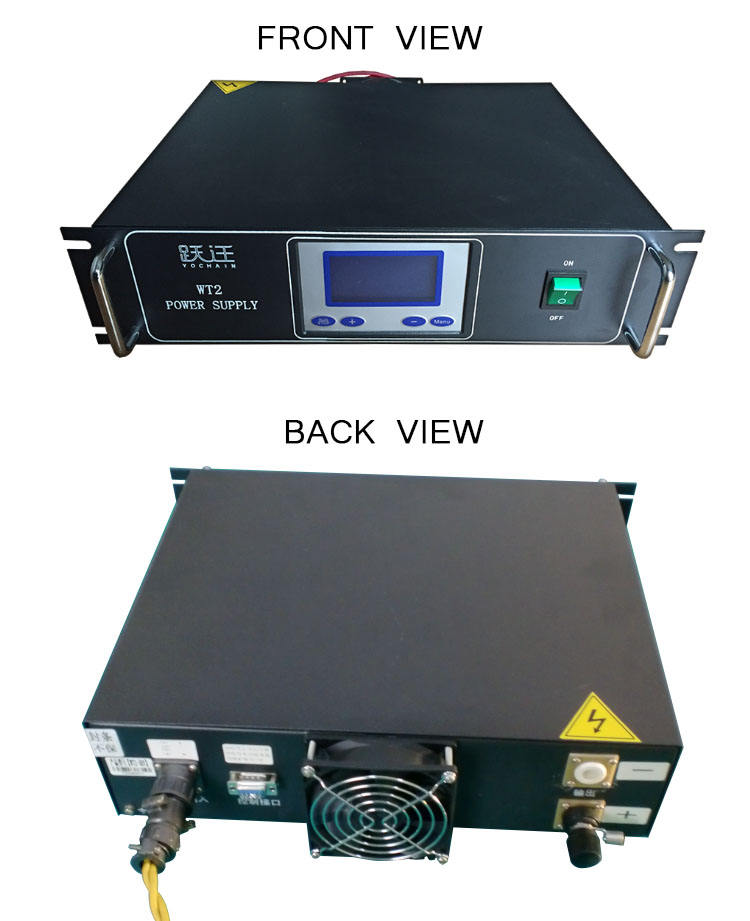

10KV 1000W DBD Power Supply Atmospheric Plasma Cleaner Power Supply

Product Description

Specification:

product name		Dielectric Barrier Discharge Power Supply for Plasma Cleaners
Item Number		WT2DBD-10KV
Input voltage		AC220±10%V
output	strength	1KW
	current	0.1A
	Voltage	10KV
	frequency	20~50khz
	waveform	Quasi-sine wave
output mode		Customized constant voltage, constant current, constant power
Adjustment accuracy		≤1%
efficiency		≥90%
power factor		cosΦ≥0.9
display mode		Chinese and English LCD display
Display content		Working status, output voltage, output current, set value
output protection		Overvoltage, Overcurrent and Offset
input protection		Overvoltage, undervoltage, overcurrent, phase loss
Insulation level		Second
Protection level		IP20
Protection response time		1uS
Input case resistance		≥20MΩ
Output case resistance		≥20MΩ
Input withstand voltage		2000V/1min
Output withstand voltage		3500V/1min
temperature		0~35℃
humidity		≤80%
cooling method		air cooling
aspect		40095370(mm)

application:

Ozone generation, cnc plasma power supply, plasma cleaning and plasma formation.

other products

advantage

1. Company History- more than10Years of power supply experience, 4Annual Alibaba Gold Member
2. Rich production experience- more than10year.
3. Competitive price-- Provide you with ex-factory price. Offer 10% lower than other suppliers of the same price

quality.

4. Fast delivery--1-5sky. Standard products, 7-15 days for customized products
5. Short sampling time--- We can provide you with samples in a short time,1-3 days.
6. Small order accepted--We accept small quantities, trial orders are welcome
7.OEM&ODM service- the design,strength,Logo etc as your requirement.

8. Customized -- if you have special requirements, we can customize it for you!
