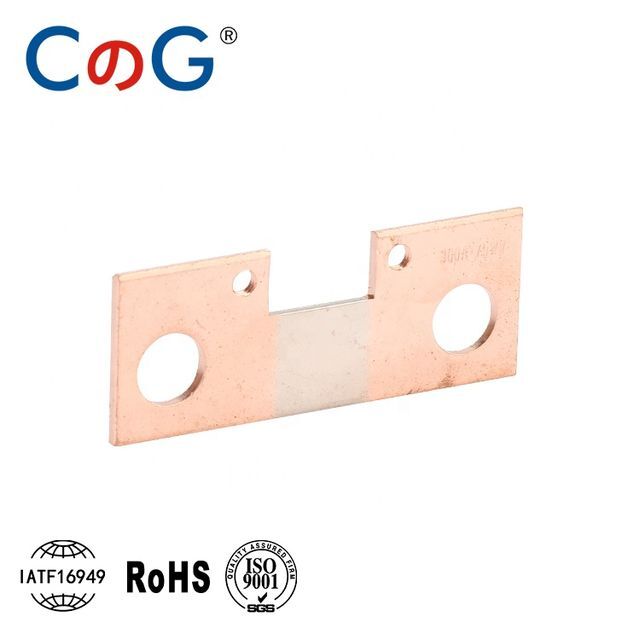

CG FL-P Customized 100A 75mV Shunt Resistor Integrated on PCB 150A 200A 300A 400A 500A Connect to Battery Copper Resistor DC Shunt
- 0.65 50 - 499 pieces
- 0.57 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Packaging Details: | Resistor Shunt Box | type of packaging: | through hole |
| Available media: | data sheet, photo | model: | FL-P |
| Sales unit: | single product | Material: | Copper + Manganese Copper |
| Resistor Tolerance: | 0.1% 0.2% 0.5% 1.0% | technology: | metal alloy |
| brand: | CG | Current rating: | 100A 150A 200A 300A 400A 500A |
| Gross weight per piece: | 0.030 kg | Voltage drop: | 75mV |
| Overload capacity: | 120% of rated current for 2 hours | Supplier Type: | original manufacturer |
| color: | silver and red | Resist: | 1*10^5Ω~1Ω |
| DC: | 003 | website: | www.cnchog.com |
| Single package size: | 5X2X1 cm | Temperature Coefficient: | <50ppm |
| humidity: | ≤95% (35℃) | place of origin; place of origin: | Zhejiang, China |
| rated power: | 0.1-5W | Operating temperature: | -40°C ~+60°C |
| type: | fixed resistance |
Product display
| color | red copper silver |
| current rating | 100A 150A 200A 300A 400A 500A |
| Operating temperature | -40°C ~+60°C |
| voltage drop |
75mV |
| Accuracy class | 0.5 |
| Material | red copper + manganese copper |
| overload capacity | 2H 120% of rated current |

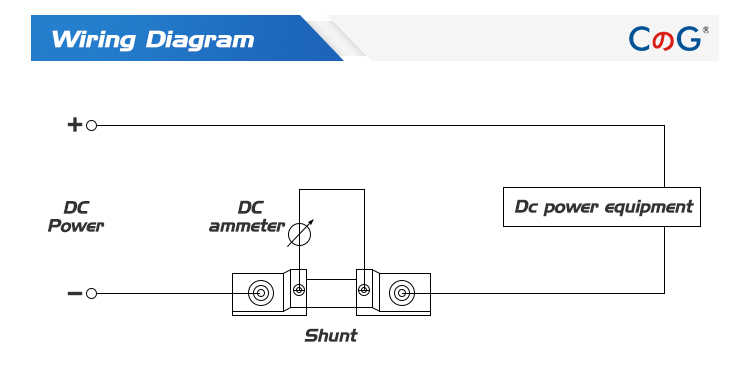

| Function | For multiplying the current measuring range of the measuring instrument. |
| application | For DC digital ammeter |
Comment:
There are many diverters, but the shape can be customized according to customer requirements.
