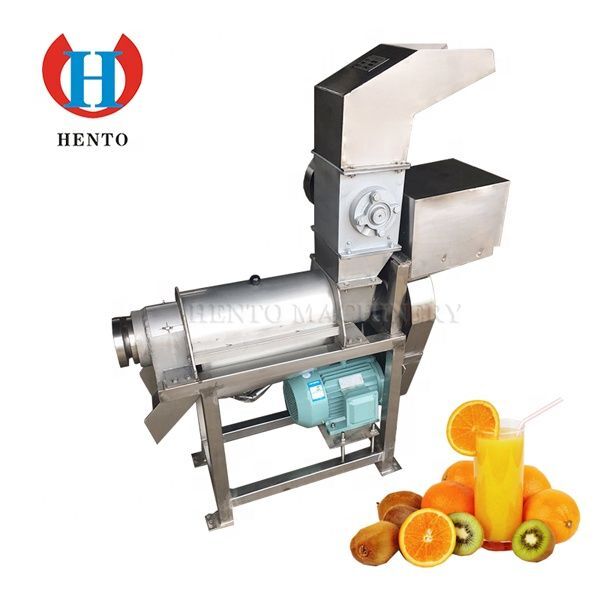

industrial apple pear press juicer

Supplier: Zhengzhou Hento Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Tina You
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Output product name:	Juicer	Core Components Warranty:	2 years
Supply capacity:	200 juicers per month	strength:	2.05kw,2.05kw
Dimensions (LWH):	9003501100mm	Voltage:	220v, 220/380v
model:	HT-PZJ- 0.5, Juicer	weight:	Kilogram
Model:	HT-PZJ- 0.5	Raw materials:	fruit, vegetable, juicer
Application areas:	Snack Food Factory, Fruit Processing Factory, Vegetable Processing Factory, Juicer	Warranty:	2 years
Health status:	new	Applicable industries:	Hotel, Food and Beverage Factory, Farm, Restaurant, Home Use, Retail, Food Store, Food and Beverage Store, Juicer
port:	Any port in China, such as Shanghai, Qingdao, Guangzhou, etc.	Packaging Details:	Fumigation-free wooden box juicer
Mechanical test report:	if	place of origin; place of origin:	Henan, China (Mainland)
Core components:	motor, juicer	Mechanical function:	Juicer
Packaging Preview:		Video external inspection:	if
size:	7803208600mm	Main selling point:	high productivity
payment terms:	L/C,Western Union,T/T,MoneyGram,Juicer	brand:	Gento
Showroom location:	no, juicer	Marketing Type:	normal product
product name:	Juicer

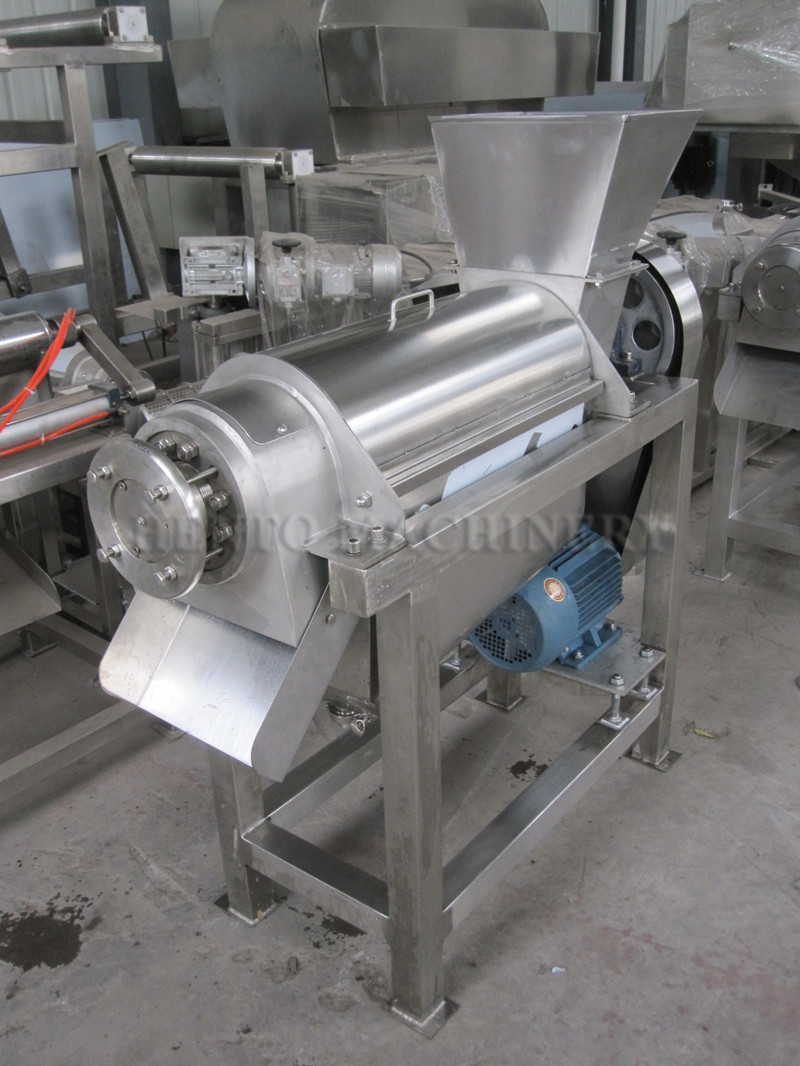

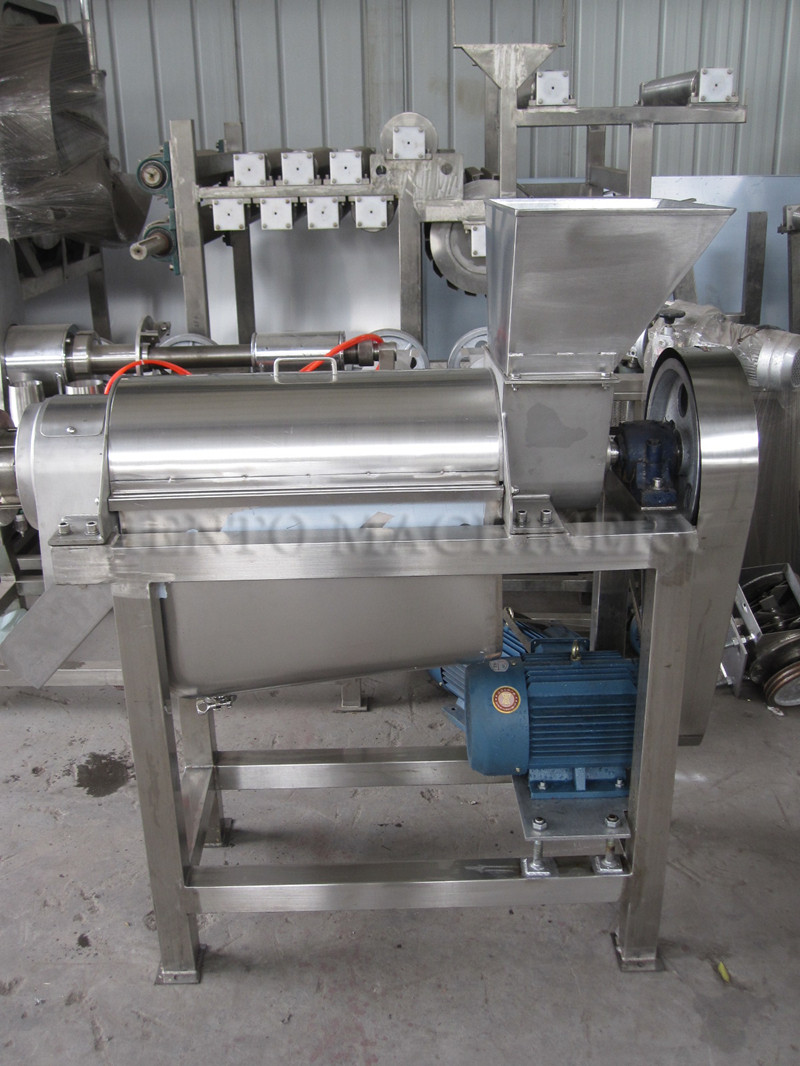

industrial apple pear press juicer

Product Description

This unit is suitable for crushing and juicing all kinds of berries, nuts and vegetables at the same time. It can also boil other larger fruits and vegetables until they are soft and then juicing. (Tomato juice yield reaches 45% to 45%).

The main part of the equipment is the hopper installed on the crushing equipment. There are four sets of flying knives and one set of dead knives on the rotor. The flying knife rotates around its own axis in a stationary knife gap at the bottom. The fruits and vegetables are crushed with a particle size of 2-5mm, and directly enter the screw juicing system to improve the juicing effect. Then do the spiral screw juice extraction, along the bottom slag spiral path, it is expected that the outlet direction will gradually increase, and the spiral distance will gradually decrease. When the material is propelled by a spiral, the volume of the spiral cavity shrinks, resulting in material crushing. The rotation direction of the screw spindle is clockwise from the feed hopper to the slag trough.

The raw material is added to the feed hopper, and under the push of the screw press, the squeezed juice enters the bottom of the juicer through the filter, the waste is discharged through the annular gap formed between the screw and the conical part, and the adjusting head moves the cam in the axial direction Adjust the gap size. Change the size of the gap, you can change the amount of slag.

technical parameter
