10pcs CNMG Tungsten Carbide Inserts Cnc Lathe Carbide Turning Inserts

Click here to contact

Product details

application:	Turning CNC Lathe	hardness:	HRA92
coating:	Multi-CVD coating	Quality Control:	Yes
Material:	Tungsten Carbide	usage:	Cylindrical turning tool
payment terms:	L/C,T/T,Western Union,MoneyGram,PayPal	Serve:	OEM/ODM
Workpiece material:	steel	brand:	Senno

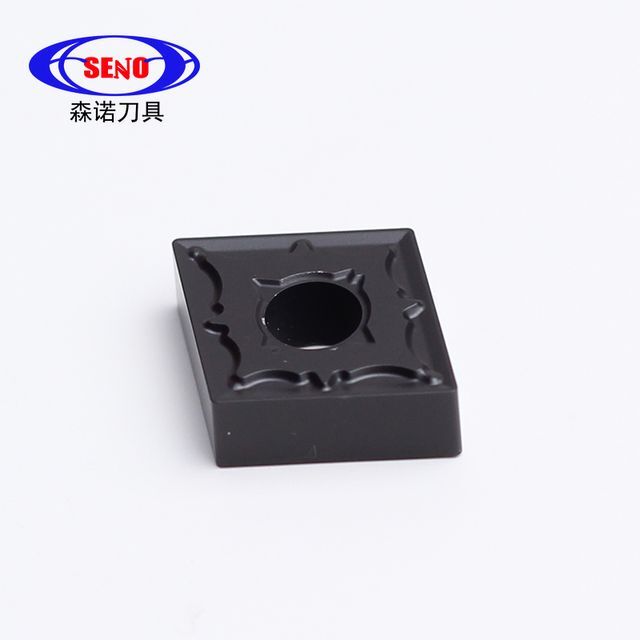

model:	CNMG120404-MP	Inch Code:	CNMG431
port:	All ports in China	color:	Black
Minimum order quantity:	10	place of origin; place of origin:	Hunan, China
product name:	CNC Lathe Carbide Turning Inserts	Supply capacity:	100000 pieces/month
coating:	chemical vapor deposition	Packaging Details:	10 in a box; foam with carton outside
Packaging Preview:

Other popular products

Product Description

10pcs CNMG Tungsten Carbide Inserts CNC Lathe Carbide Turning Inserts

Model	CNMG090304/08	CNMG120404/08/12	CNMG160608/12
grade	SP8025/SP8125/SM8020/SK8010
workpiece	Steel / Hardened Steel / Stainless Steel / Cast Iron
coating	CVD/PVD coating
Minimum order quantity	10
pack	A box of 10
Serve	OEM/ODM

Turning insert grades					Turning insert grades
Sino class	coating	color	work material	application
SP8025	chemical vapor deposition (MT-TiCN+Al2O3+TiN)	Golden	P10-P30	The carbide matrix has good deformation resistance and toughness. The MT-TiCN+Al2O3+TiN coating has a very good surface quality which helps to easily identify wear. Suitable for semi-finishing and finishing of steel.
SP8125	chemical vapor deposition (Multiple TiCN+Al2O3)	Black	P10-P40	The cemented carbide base has mild cobalt content and high cubic content, combined with thick TiCN and Al2O3, and is treated with a special process after coating, which makes the blade have strong wear resistance. Semi-finishing to finishing steel machining is preferred.
SM8020	PVD (Silicon + TiAlN)	purple	M10-M30	The high-Co micro-WC grain substrate maintains the cutting edge strength, the friction coefficient is the smallest, the nano-hardness is good, and the silicon coating has good thermal stability. This grade is ideal for interrupted turning and milling of stainless steel.
SK8010	chemical vapor deposition (Thick TiCN+ textured Al2O3)	Black	K10-K30	The medium-coarse matrix combined with thick TiCN and textured Al2O3 is treated with special coating, which has strong Abrasion resistance. This grade is suitable for high-speed semi-finishing cast iron turning under stable conditions.
