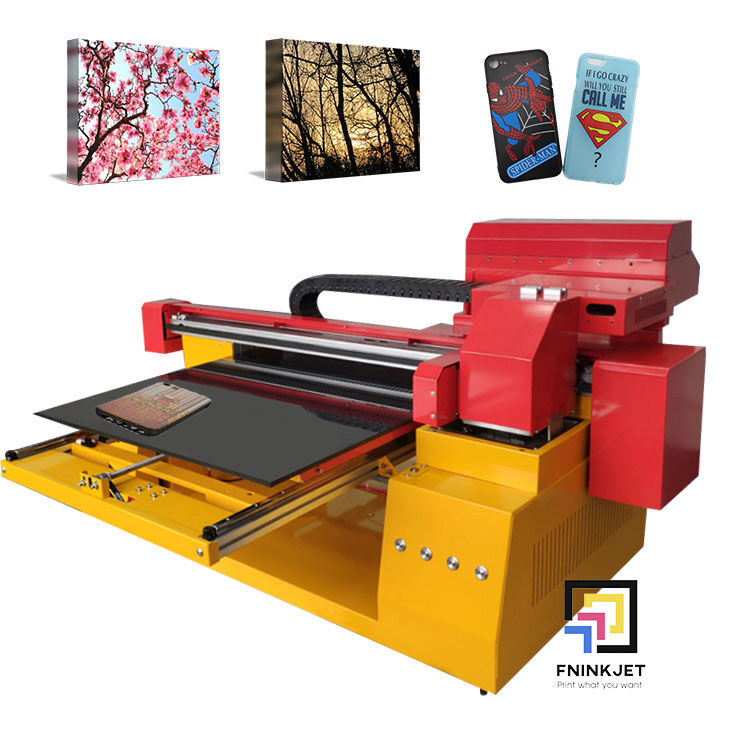

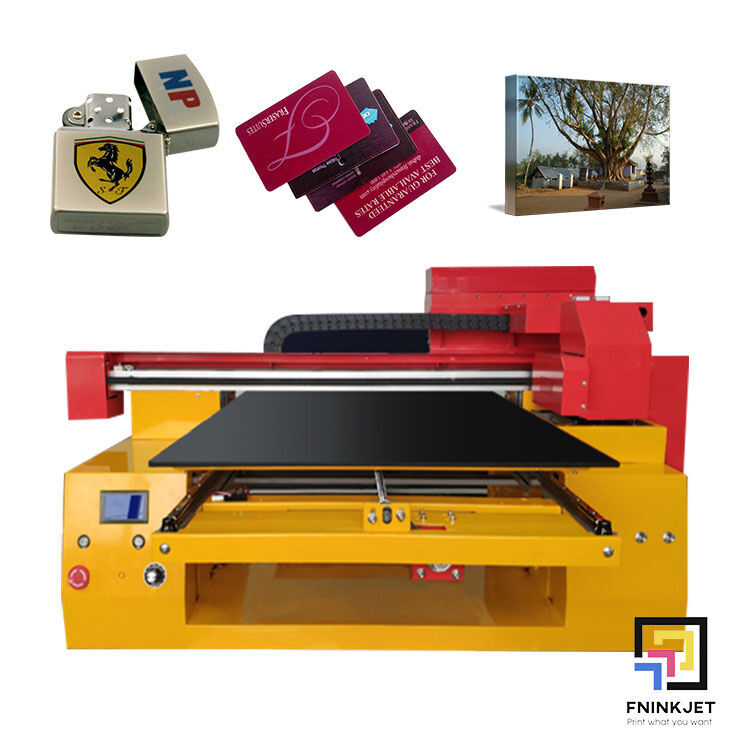

Multicolor Support Embossment Glossy Oil Effect A2 Plus 6560 LED UV Flatbed Printer for Wood Glass Bottle Ceramic Phone Case Acrylic Leather

The UV with 4 versions. Version 1, with the single print head, color is CMYKWW; version 2, with the double print head, color is CMYK+4W; version 3, with double head, vanish function, color is CMYKWW+6Vanish (glossy oil). Version 4, with 3 printheads, supports white and color and glossy oil. For UV DTF, it is the same printer, but we recommend you the double head with vanish version and use UV soft ink, then can do UV dtf.


Model	FN-6560UVY A2 UV printer plus
Printing Technology	One Printer head advanced Micro Piezo 6 color uv inkjet technology
Ink colors (6 colors + Vanish)	Cyan, magenta, yellow, black, white, white; CMYK+4W; CMYK+2W+6Vanish
Printing speed	8pass, 70s/A4 full size
Print head	Epson original XP600 (single head or double head)
Max resolution	2880*720 DPI, 16 pass
transmit data	Gigabit net
Max Printing Size	A2+ (650mm×600mm)
Max thickness	200 mm
Printer head Protection	Intelligent Self Protect System
Ink system	Continue ink supply system with damper cartridge
Ink bottle	6 set Ink Tanks with 500ml or 250ml per bottle
Height adjustment	Semi-automation
Ink consumption	10 ML/SQM
Voltage/ Power	VAC220/110 ± 10 ,50HZ~60HZ,Power ≤ 35W
UV lamp power	50 W
UV lamp Temperature	60 degree(UV lamp surface) UV lamp surface
	40 degree (1cm far from lamp surface)
Working environment	10-35 degrees (50°-95°F), humidity 20~80%
Head Cleaning method	Automatic / Manual
Printer/packing size	110*70*60cm / 122*90*85cm
Net /Packing weight	125kg / 185kg
Printing Software	Ruicai RIPrint, print white and color by one pass
Computer system	Windows system, Gigabit net, network adapter contain below character: Gigabit,GBE,10/100/1000M,RTL8169
Ink Type	UV ink/ Textile Ink/ Edible ink
Language	English, Chinese
Special Remarks	Customized service is available
Standard Enclosure	Software 1 set, power line 1 set, Network line 1set, guidebook 1 set
Application	Phone case / ABS plastic / acylic / metal / glass / ceramic

*Fast speed, 2 times faster than R1390 UV printer.
*Printing speed won't slow down after a long time.
*No ink error and paper jam, no need zero clean.
*No need for coating, print directly, dry soon.
*Print white and color by one pass.
*White ink circulation system, protect the printhead.
*Embossed effect can be printed.
*Resolution 2880*720dpi, no printing line.

Working Process of 6560 A2 UV Printing Machine

Samples display




FninkJet is a flatbed inkjet printer manufacturer with a history of excellence, customer service, and quality craftsmanship. We specialize in UV printers, DTG printers, dtf printers, food printers as well as UV ink, textile ink, dtf ink, and edible ink for both residential and commercial customers around the world.
Think different! Print what you want!
We are a flatbed inkjet printer manufacturer which is located in Shenzhen, China. With 10+ years of printing experience, FninkJet aims to "create, connect, communicate".
Create something unique! Connect everyone with printing! Communicate with clients all over the world!
With the creative developing team, we provide create-oriented unique UV printers, DTG printers, DTF printers, and food printers to all clients. We are committed to providing high-quality, environmental-friendly UV, DTG, DTF, and food printers, and devoted ourselves to technological innovation.
So far more than 1000 clients come from all over the world have chosen FninkJet to be their printing partner, and clients share all their unique work with us, FninkJet printing links everyone as a big family!  We are ready to print! Ready for help, ready for sharing!

1. Q: What can your machine print?
A: For the UV printer can directly print on various materials, such as PVC, Abs, acrylic, wood blocks, glass, leather, TPU, ceramics, mobile phone cases, bottles, lighters, etc. Support embossed effect. For DTG printer, can print on various fabrics with full colors by one pass such as T-shirts, pants, hoodies, hats, socks and with different compositions, like cotton, linen, oxford, flannel, canvas, rayon, synthetic etc. For food printer, can print directly on cake, biscuits, pastries, bread, candy, and edible paper all different food with vivid color. and so on.

2. Q: How long does it usually take for me to receive the equipment?
A: Depends on whether you want to do customization your printer or not, and also depends on the speed of customs clearance and logistics. Normally, if a ship by air only takes about a week, is ship by sea, it will be around one month at least. But we can guarantee to ship the regular machine in less than 5 business days.

3. Q: When can I get an online engineer from you?
A: Contact our sales staff when you have received the printer. We will let our most experienced engineer help you to install your machine and train your staff to use it. Usually, when you are ready, you can contact our sales staff and we will arrange the training immediately.

4. Q: How will my machine be installed once it arrives?
A: The machine has been installed before delivery, you only need to install the printing software, and ink, and do the printing test. Contact the sales, we will arrange an experienced English technician to guide you.

5. Q: How do I test the machine before shipment?
A: Machine test run over 24 hours and we will send test video, and shipping pictures.
