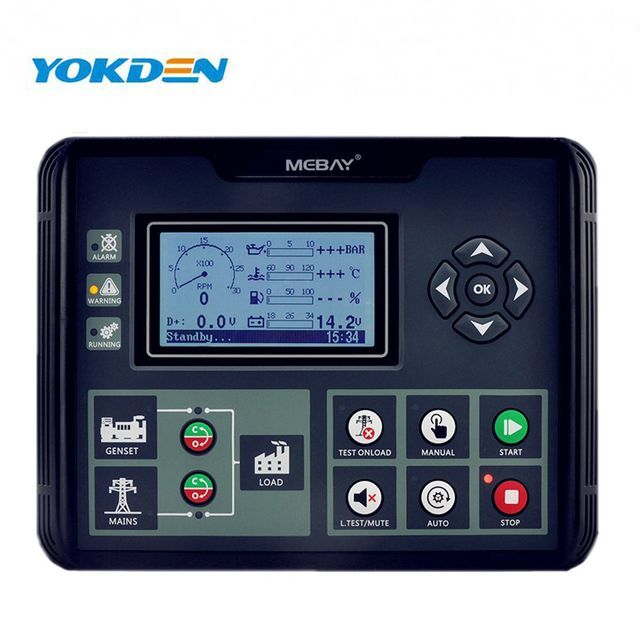

Mebay diesel generator set ATS controller module DC52D
- 75.00 piece
| Computer number: | 0-255 | Fuel Pump Type: | electric |
| Flywheel Teeth: | 0-300 | stock available: | Yes |
| Warranty: | 3 months - 1 year | color: | Black |
| Speed warning: | 1500-4500 rpm | Gross weight per piece: | 1.200 kg |
| weight: | 1 kilograms | Sales unit: | single product |
| Packaging Details: | Carton of Mebay Diesel Genset ATS Controller Module DC52D | Packaging Preview: | |
| place of origin; place of origin: | Chongqing, China | model: | DC52D |
| Single package size: | 30X20X15 cm | type: | Automatically open |
| current: | 9999 | Certification: | Chief Executive |
| product: | Mebay diesel generator set ATS controller module DC52D | brand: | NetEase |
| Work alarm: | Remote start |
Specification | ||
Operating Voltage | DC8V-36V continuous | |
energy consumption | Standby: 24v: MAX 1W | |
Work: 24v: MAX 5W | ||
Rated frequency | 40.0-80.0Hz(50.0Hz) | |
Rated voltage | 80-360V (230V) | |
Rated current | 5-6000A(500A) | |
rated power | 5-2000Kw(276Kw) | |
Rated battery voltage | 8.0-36.0V(24.0V) | |
Rated speed | 500-4500RPM(1500) | |
Protection class | IP54 | |
Dimensions | 210mm*160mm*50mm | |
Panel cutout | 186mm*142mm | |
main feature:
☑ 3.5-inch large-screen LCD, optional language interface (Chinese/English), user language can be set if necessary.
☑ Display indicators and numbers through the UI surface.
☑ Use acrylic material to protect the screen. silicone board;
☑USB interface: Even if there is no power supply, parameters can be set through the USD interface and monitored in real time.
☑With RS485 communication port, the "three remote" function can be realized through the MODBUS protocol.
feature:
HaveFour models under the DC5xD series.
DC50D: for stand-alone automation. Start/stop via remote start signal.
DC52D: On the basis of DC50D, the mains monitoring and AMF (mains/generator automatic switching control) are added, which is especially suitable for the automation system composed of mains and generator sets.
DC50DR: Rs485 interface is added on the basis of DC50D.
DC52DR: Rs485 interface is added on the basis of DC52D.
Generator Controllers for Your Choice | ||||||||
key start controller | ||||||||

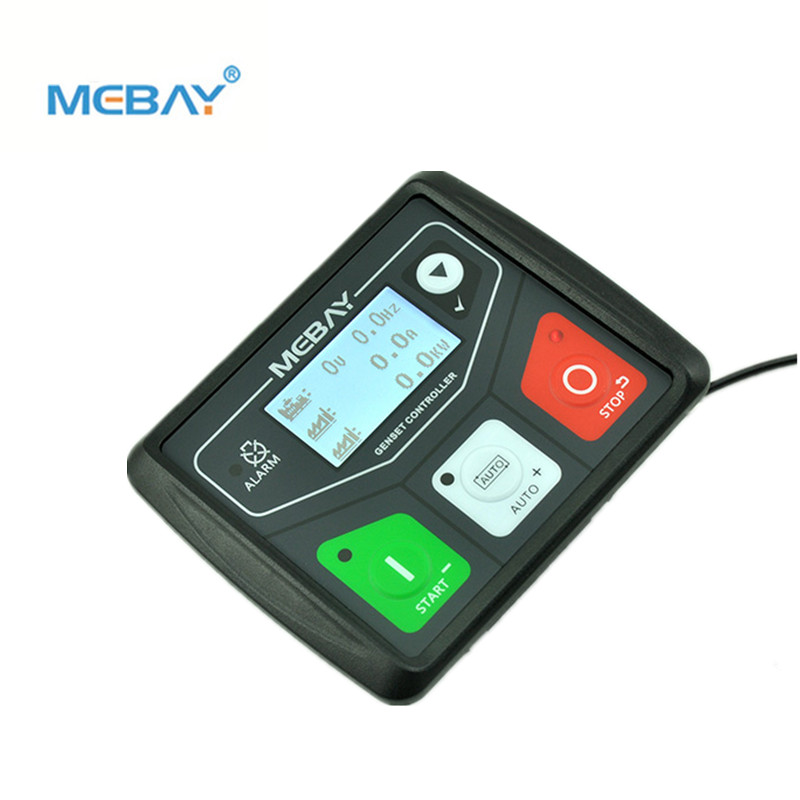

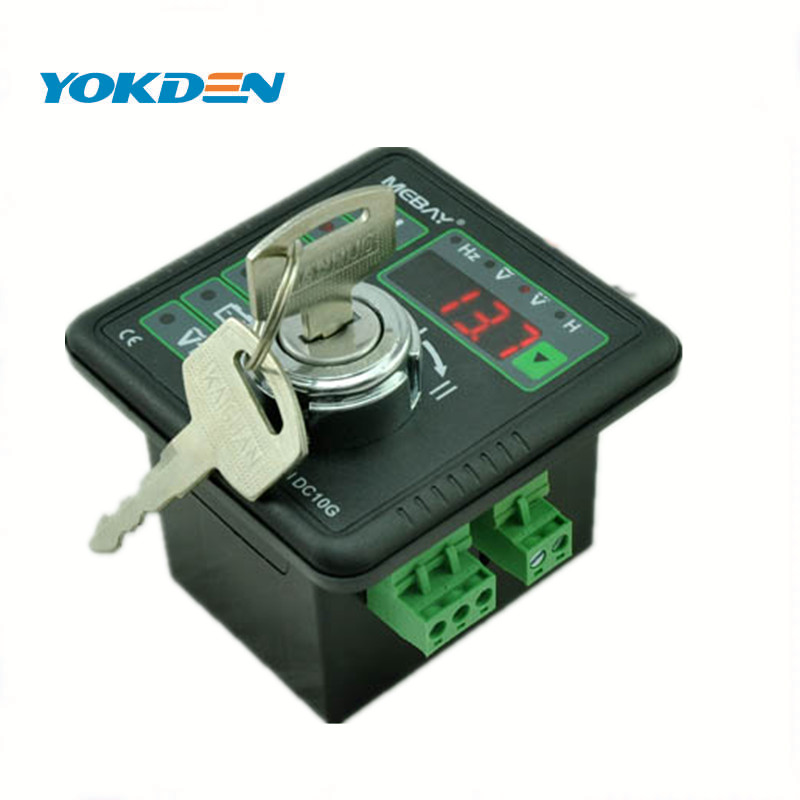

701/702MS | DC10G | DC10K | 501K | 520A | ||||
Auto/Manual Start Controller (Small) | ||||||||

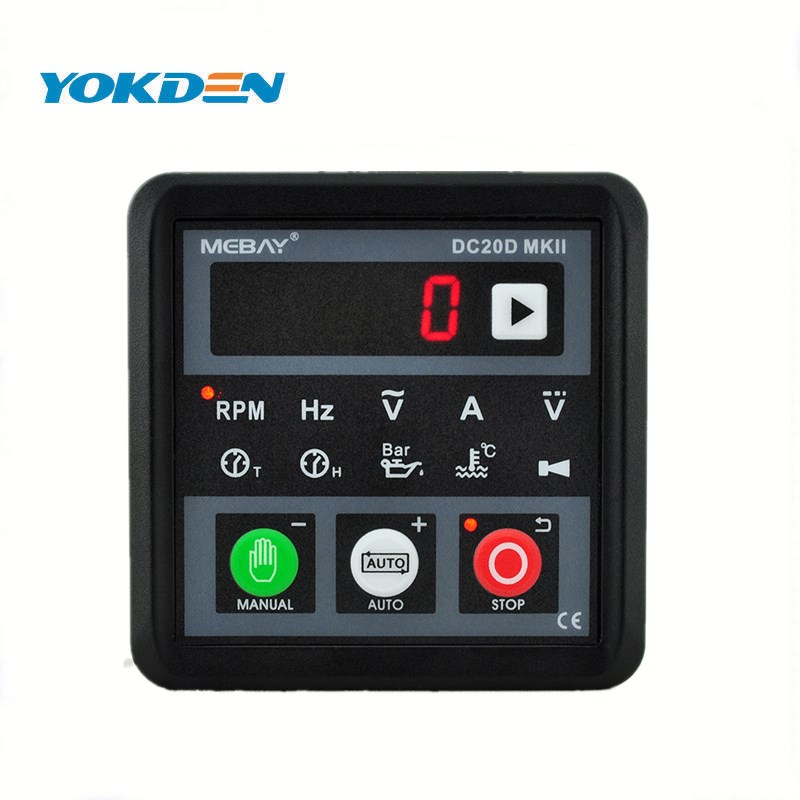

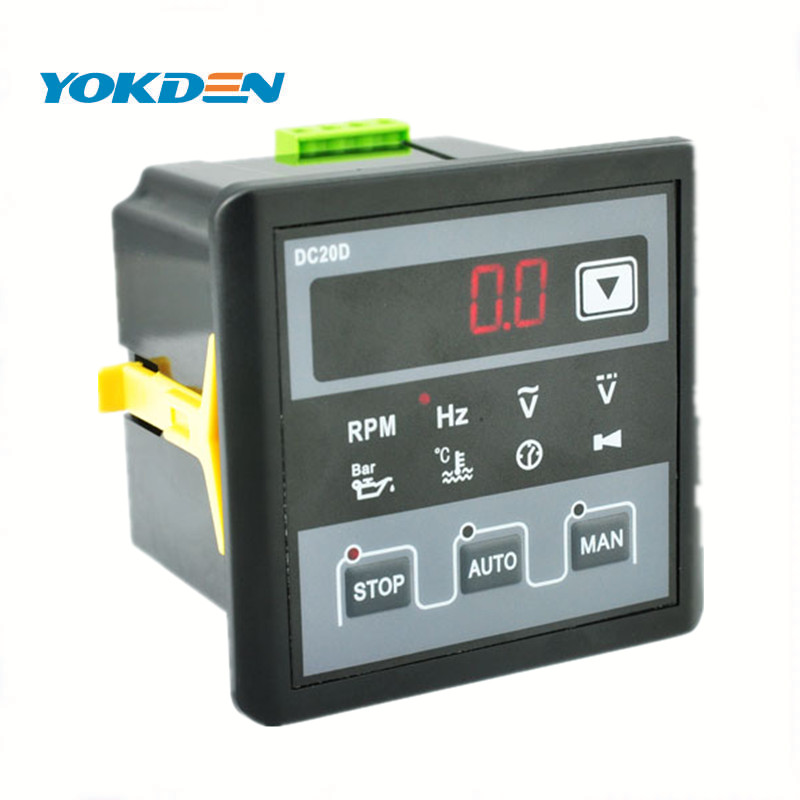

DC20D/DC20D Mkii | DC30D | 701AS | DSE3110 | 702AS | ||||
Automatic/manual start (large size) | ||||||||

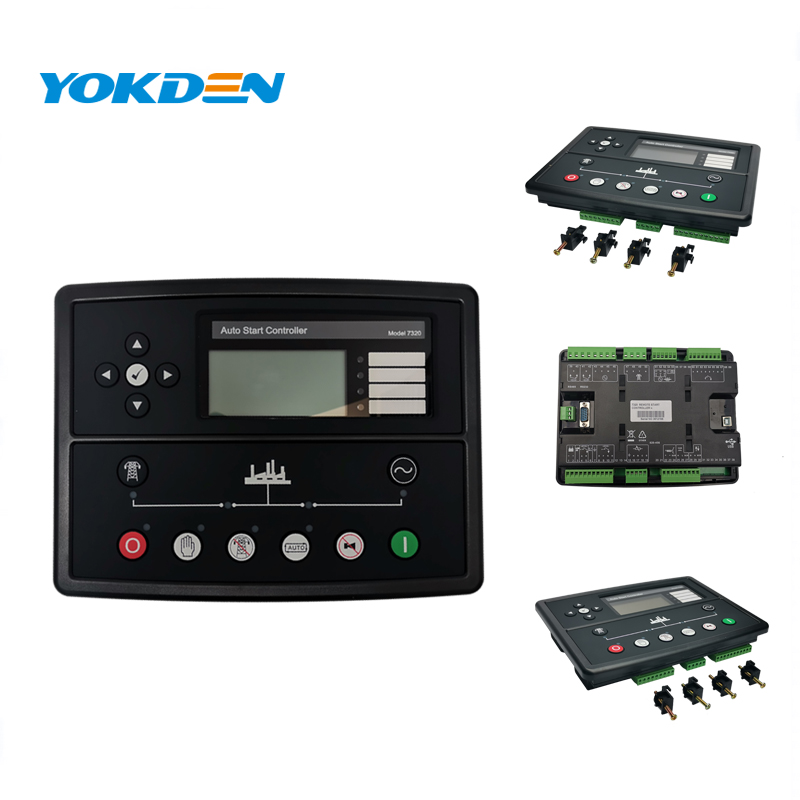

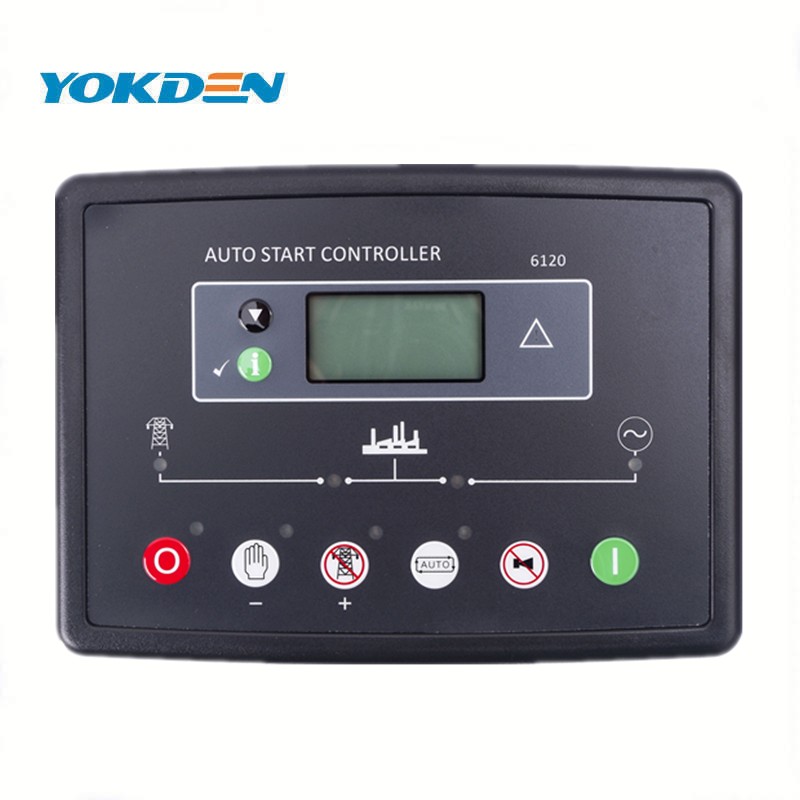

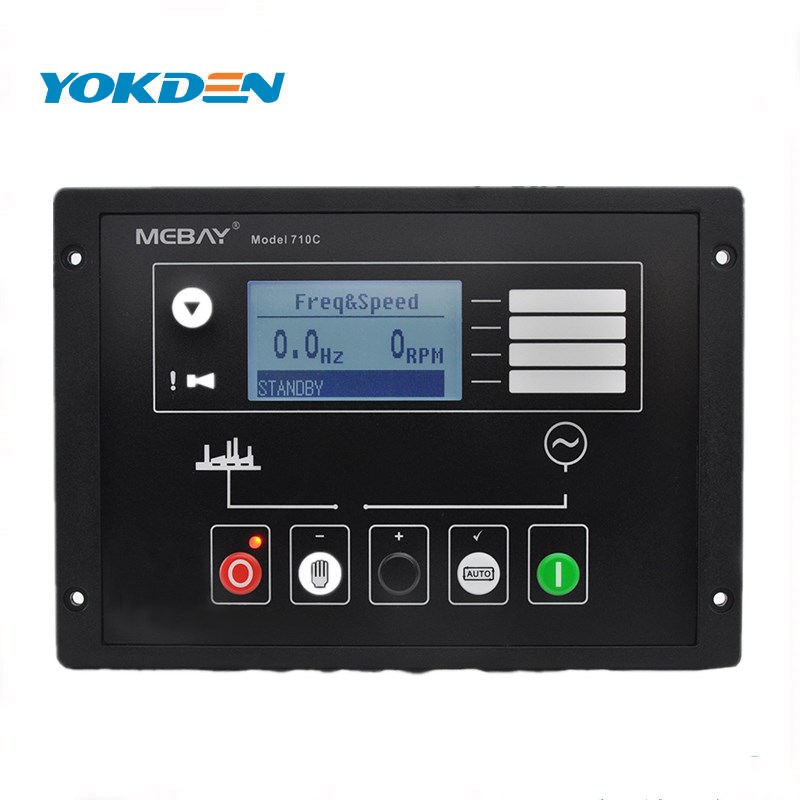

5110/5120 | 5210/5220 | 710/720 | 6110/6120 | 7310/7320 | ||||

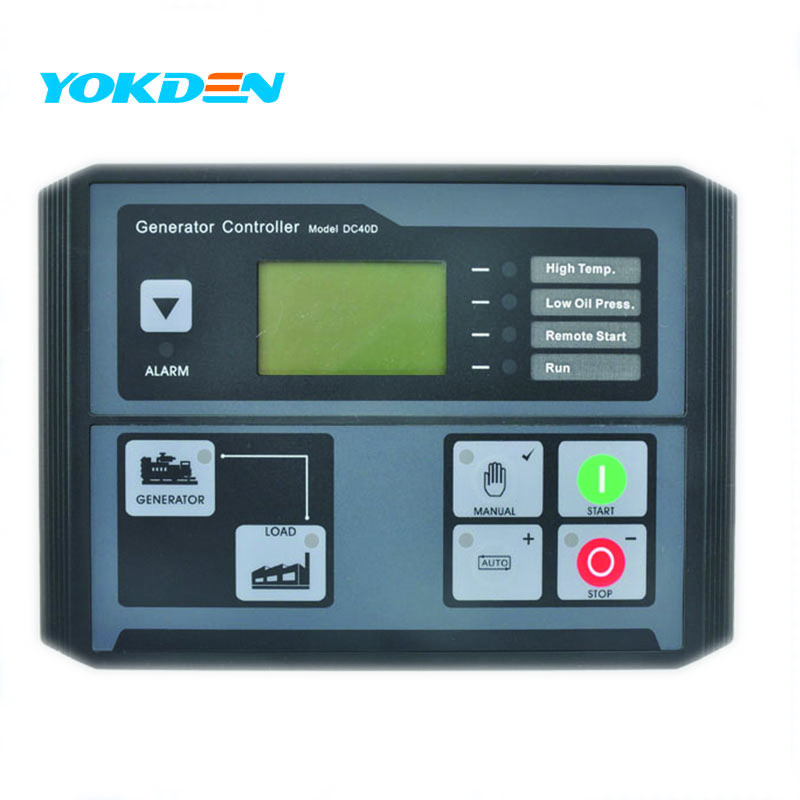

DC40D/DC42D | DC50D/DC52D | DC60D/DC62D | DC70/DC72D | 7210/7210 | ||||
