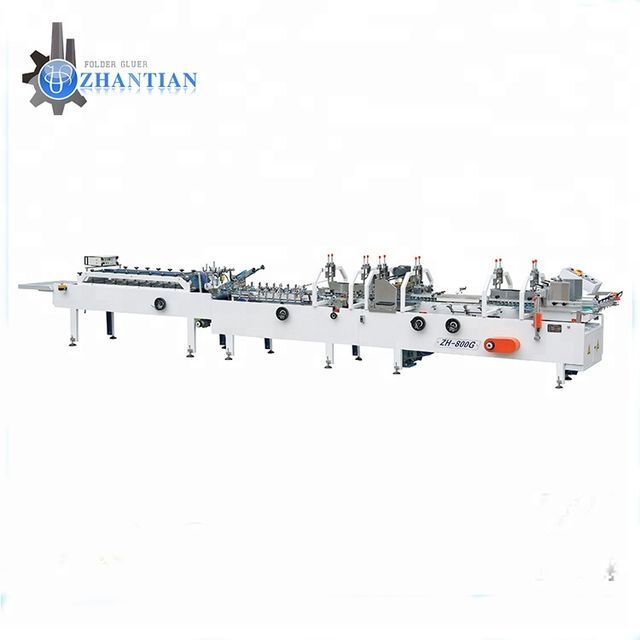

ZH-800g Factory Price High Efficiency Lock Bottom Folder Gluer
-
Supplier: Wenzhou Zhantian Packing Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms MINGYAN XIANG -
Price: $13000.00 / 1 - 1 sets
$12000.00 / 2 - 2 sets
$11500.00 / >=3 sets -
Min. Order: 1 set
| Materials used for packaging: | Metal | Warranty: | 1 year |
| place of origin; place of origin: | Zhejiang, China | brand: | war days |
| speed: | 0~220m/min adjustable | Marketing Type: | New Products 2020 |

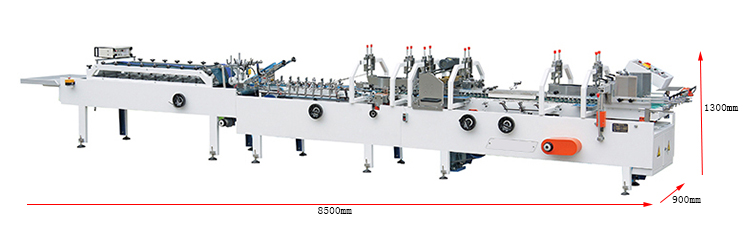

| Packaging Preview: | Dimensions (L*W*H): | 8500*900*1300mm | |
| Applicable industries: | Hotels, manufacturing plants, machinery repair shops, printing shops | Core Components Warranty: | 1 year |
| Main selling point: | high productivity | After-sales service provided: | Engineers can go overseas to service machinery, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support |
| Health status: | new | Box forming: | folded on both sides; folded on both sides; bottom folded |
| type: | glue machine | application: | Food, Medical, Machinery & Hardware |
| Folding method: | 1,2 & 4 fold 180 degrees; 3 fold 135 degrees | Auto grade: | automatic |
| Video external inspection: | Not available | type of packaging: | housing, metal |
| Supply capacity: | 10 sets per month | Glue Type: | Ordinary cold glue |
| cardboard: | 210~700g/square meter | Packaging Details: | 3 packs. Dimensions are as follows: 2700*850*1150mm and 2620*850*1050mm and 2210*850*1150mm. They are packed in iron racks. Stacking is allowed. |
| Mechanical test report: | Not available | Certification: | CE certificate |
| payment terms: | L/C,T/T,Western Union | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Voltage: | AC220V | Feeding method: | continuous feeding |
| Showroom location: | not any | weight: | 2000kg |
| Local service location: | not any | port: | Ningbo; Shanghai |
| product name: | ZH-800g Factory Price Lock Bottom Folder Gluer | Drive Type: | electrical |
| Core components: | programmable logic controller |
|
Specification |
|
|

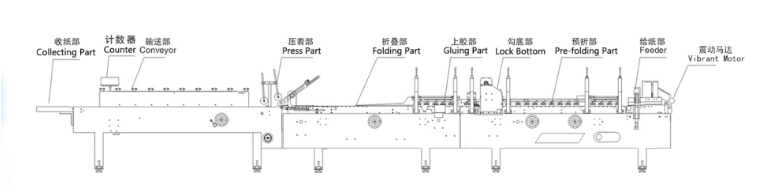

ZH-800g is the most competitive multi-function folder gluer designed by our company, which can fold and glue a variety of simple and complex cartons. The ease of use, favorable price and wide application range of the folder gluer have brought a new leap forward in the field of folder gluer.
It has made an indelible contribution to the field. It combines the characteristics of a variety of folder gluers. It has changed many shortcomings of the lock bottom folder gluer with complex structure, difficult operation and high cost. Facilitate the current fierce competition in the packaging and printing industry
There are few business varieties, and the delivery time is tight. It is an ideal equipment for the packaging and printing industry.
|
|
|
Function |
Single-sided gluing + double-sided gluing + pre-folding + bottom lock |
|
cardboard |
210-700 g/m², N/E/F corrugated box |
|
speed |
0-220m/min |
|
strength |
3.7KW 220V |
|
weight |
2000KG |
|
pack |
3 packs with wooden box |
|
delivery time |
7-21 days |
|
Minimum order quantity |
1 set |
|
port of loading |
Port of Ningbo, China |
|
pay |
3/7 by TT/LC/Western Union |
|
Shipping method |
Sea/Truck/Train/Express |
| Model | ZH-800G | ||||
| Box | line frame | Pre-folded box | Lock bottom box | ||
 |
maximum | (mm) | 600 | 600 | 600 |
| Armin | (mm) | 110 | 160 | 160 | |
| B max | (mm) | 500 | 500 | 500 | |
| B min | (mm) | 65 | 65 | 65 | |
| C max | (mm) | 270 | 270 | 270 | |
| C min | (mm) | 50 | 75 | 80 | |
| D sensitive | (mm) | 7 | 10 | 40 | |
| Emin | (mm) | 6 | 6 | 6 | |
1. Q: What is the machine warranty?
Answer: One year.
2. Q: Does your machine have CE certificate?
A: Yes, issued by Italian institutions
3. Q: What is the production time when placing an order?
A: About 20 days
4. Q: What is the delivery time?
A: 15-30 days after receiving payment.
5.Q: Can your company deliver goods for customers?
A: Yes, just give us the destination sea port or container yard
6.Q: Is the package firm?
A: Yes, all packages are carefully inspected before dispatch
7.Q: What is the after-sales service process?
A: We provide lifetime ASS, please feel free to contact the after-sales department.
8. Q: Are you a manufacturerOr a trading company?
A: We are the manufacturer.
9. Q: Do you haveIs the machine in stock?
A: For standard models, we have a large stock in stock. For special models,
We need 20-30 days to produce for you.
10. Q: Do you checkmachine before packaging?
A: Of course we can. We have QC department to debug the machine before packing
11. Q: What is the payment term?
A:T/T 30% prepayment, the balance paid before delivery.
We also accept payments via Western Union and Letter of Credit.
12. Q: Do you accept factory tours?
A: We very much welcome your visit.
-
