JP Similar to JP Truma D6E CR-12 Caravan & RV High Quality 6kw Diesel Combined Diesel Water Heater Products from Jp China Trade Int'l Co., Ltd.

Product Details

Single package size:	60X49X40 cm	Name:	Caravan D6E heater
product name:	Combi diesel + electric heater D6E air and water heating	gasoline:	Diesel + Electric
Original serial number:	Not applicable	reference number. :	Truma combination
place of origin; place of origin:	Beijing China	car model:	Caravan / RV / Trailer / Camper
quality:	Chief Executive	Package dimensions:	604940cm
size:	523329cm	Parts Box Weight:	5kg
Gross weight per piece:	40.000 kg	Packaging Details:	Parking heater in one carton and spare parking heater in another carton for a total of two cartons
Warranty:	2 years	Packaging Preview:
Minimum order quantity:	1 item	Sales unit:	single product
type:	Air and Water Combination Heaters	Product Size:	524530cm
Heater Package Weight:	21.8kg	brand:	JP heater
application:	RV combination heater

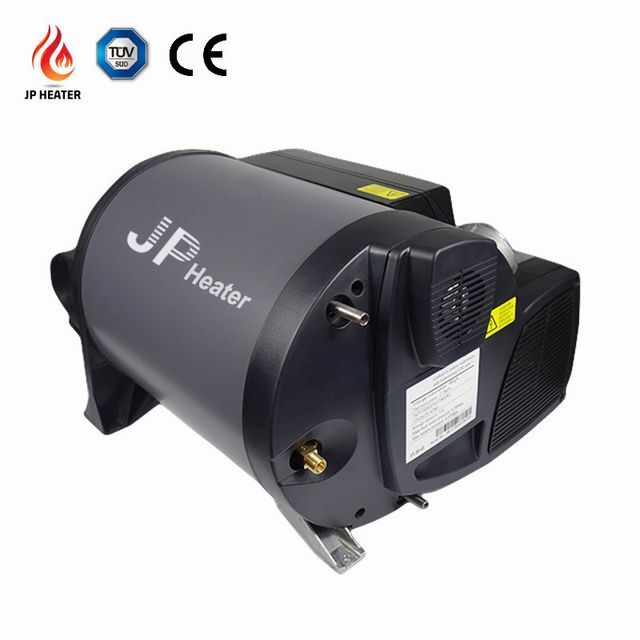

JP CR12 Diesel 12V Hot Air and Water Combination Heater for RVs like Truma

The CR12 diesel combination heater is a heating system specially designed for RVs.
●Heating cabin air and domestic hot water (showers, cooking, etc.).
●It can be used while driving.
●The maximum working height is 4000 meters.
●Working mode:
·Heated air only
·only heat water
·heating air and water
●Power 6KW, support 12V DC, 200V-250V mains power, the fuel is diesel.

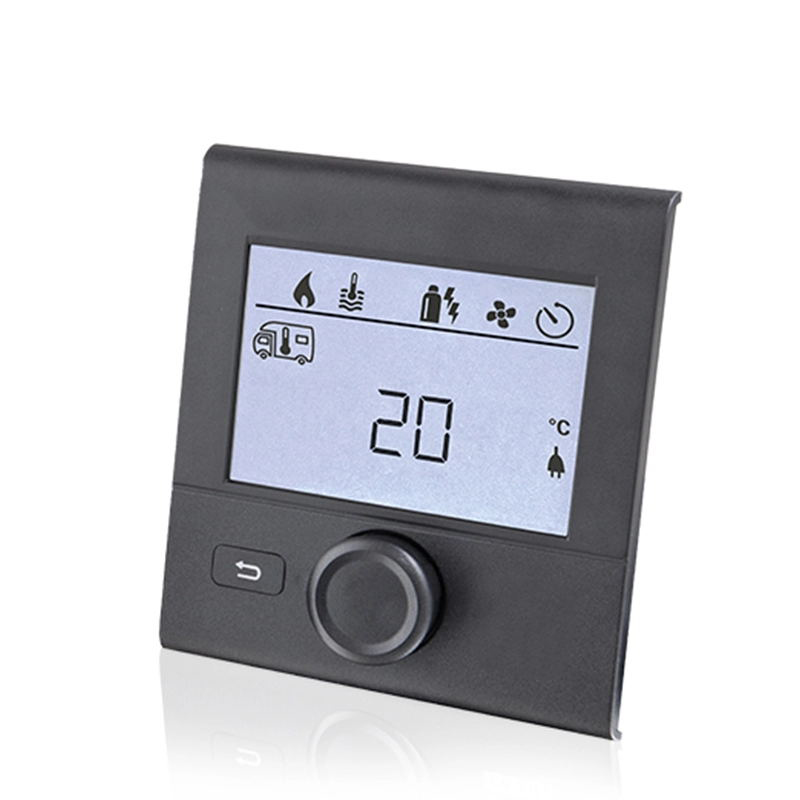

LCD digital control panel

● Monitor working status.

● Check the exact temperature.

● HD display panel.

● Error codes are automatically checked.

Technical Information
as	Truma D 6 E
Rated voltage	DC12V
Operating voltage range	DC10.5V～16V
Short-term maximum power consumption	5.6A
Average power consumption	1.3A
Type of gasoline	diesel engine
fuel thermal power	2000w/4000w/6000w
Fuel consumption	160/320/480 g/h
Quiescent Current	1 mA
Warm air delivery volume m³/H	max 287
water tank capacity	10L
Pump maximum pressure	2.8bar
system maximum pressure	4.5bar
Rated supply voltage	~220V
Electric heating power	900W/1800w
electrical power dissipation	3.9A/7.8A
Working temperature	-25℃～+80℃
working altitude	≤5000m
controller	LCD Monitor
Combination heater weight/dimensions	510×450×300mm/15.6kg(without water)
Package size/weight	Heating box: 600485400mm/21.8kg
Package size/weight		Parts box: 485485260mm/5kg
