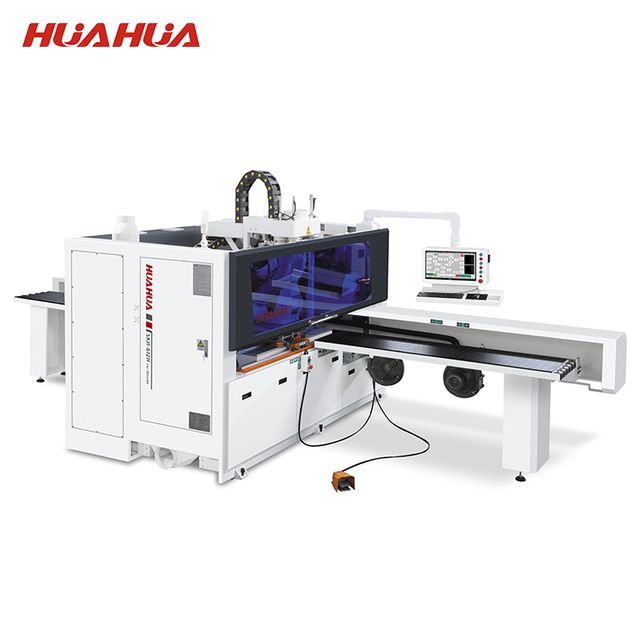

Shunde woodworking cnc furniture multi-boring drilling machine

Supplier: Guangdong Shunde Changsheng Machinery Manufacturing Co., Ltd.
Region: Guangdong, China
Contact: Ms Charlene Chen
Price: $32000.00 / 1 - 4 sets
$28000.00 / 5 - 9 sets
$24000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Data processing:	Self-contained design software, you can also input autocad or other nesting software
frame:	heavy load	place of origin; place of origin:	Guangdong, China
Packaging Details:	Inner foam, outer plastic film, optional wooden box	Packaging Preview:
Name:	Multi-head drilling machine	Main selling point:	easy to operate
Dimensions (LWH):	648028402200mm	Supply capacity:	60 sets/month multi-drilling drilling machines
Core components:	Engines, gearboxes, motors, gears, pumps	Maximum working width (mm):	1200
Marketing Type:	normal product	Type of machine:	6 surfaces
Video external inspection:	if	CNC or not:	CNC
type:	six sides	Applicable industries:	Hotels, building materials stores, manufacturing plants, household, construction projects, advertising companies
Warranty:	1 year	Drill box:	Taiwan 16 Horizonta and 8 Vertical
brand:	Huahua	Voltage:	220V/380V/440V, 50/60Hz
usage:	carpentry	Motor Type:	servo motor
Power (kW):	19.2	air pressure:	0.7-0.8Mpa
Core Components Warranty:	1 year	Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile , UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia
Health status:	new	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Control System:	Taiwan Syntec Control System	Weight (kg):	3500kg
port:	Shenzhen, Guangzhou, Foshan

Product Description

Product Details

21-inch color screen control display

It adopts 21-inch color screen control display, single-arm suspension, easy to operate and saves floor space. Safe and reliable operation, simple and friendly interface, complete operation tips and troubleshooting guide.

Precision drilling box

The CNC drill box independently developed by Huahua is used, manufactured in accordance with international standards, and has been tested by three coordinates to ensure the accuracy.

Double clip feeding

Adopt double clamping mechanism, automatically control the positioning of the feeding plate according to the computer drilling program, and improve the drilling accuracy. Effectively prevent the edge banding tape from being scratched.

Taiwan Xinda servo motor

1. Servo control clamp 2. Fast and precise positioning 3. Clamp moving speed up to 130m/min

Flexible unloading

With automatic lifting and unloading table, a variety of unloading options are available, which is convenient for automatic connection.

Taiwan Shangyin Ball Screw Drive

The ball screw drive is adopted, the screw drive error is within 0.05-0.1MM, and the cumulative error is within ±0.2MM, which improves the service life of the whole machine.

Roller Auxiliary Transfer Table

Prevent paper scratches

Automatic oil filling system

Cylinder type fuel injection system, all guide rails are supplied with independent cylinders to ensure that all guide rails are evenly oiled every time.

Control System	21" PC with Syntec control system with automatic loading and unloading
Processing size scope:	minute. Workpiece width	50mm
		maximum. Workpiece width	1200mm
		maximum. Workpiece length	5000mm
		minute. Workpiece length	250mm
		maximum. Workpiece thickness	48mm
		minute. Workpiece thickness	10mm
Work Stoke and Max. Positioning speed:	X-axis:	5410mm 130m/min
		Y axis:	1700mm 80m/min
		Z axis:	140mm 30m/min
		U axis	5410mm 130m/min
		V-axis	1395mm 80m/min
		Vassis	110mm 30m/min
		an axis:	1235mm 30m/min
		Y 2 axis
		Z 2 axis
TOP drilling unit:	Vertical Spindle	12
		Horizontal Spindle	8
		Drill box motor speed	2800 rpm
		Router motor power	3.5kw speed 18000rpm
Bottom Drill Unit:	Vertical Spindle	9
		Horizontal Spindle	0
		Drill box motor speed	2800 rpm
		Router motor power	3.5kw speed 18000rpm
Other data:	table height	960mm
		total power	19.2kW
		weight	3500kg
		total measurement	648028402200mm

If you are interested in our products. PleaseClick herecontact us.
