Product Details

Flow rate:	optional	Gross weight per piece:	0.500 kg
thing:	R15KV23STH3C4000	Voltage:	250V
Warranty:	1 year	model:	R15KV23STH3C4000
Single package size:	15X12X10 cm	Is it smart:	Do not
Electrical class:	16A	Certification:	Not applicable
Operating temperature:	5 to 95°C	media type:	liquid
Adjustment:	Detachable paddle	Packaging Details:	Box
Material:	Stainless steel	place of origin; place of origin:	Guangdong, China
Sales unit:	single product	brand:	JPCI, the ultimate heat

Product Description

Numbering.	R15KV23STH3C4000
touch	Micro Switch
size and pressure	PN10 & DN 32
flow sensing	Detachable paddle
Install	3/4" male thread
Electrical Ratings	16A & 250V

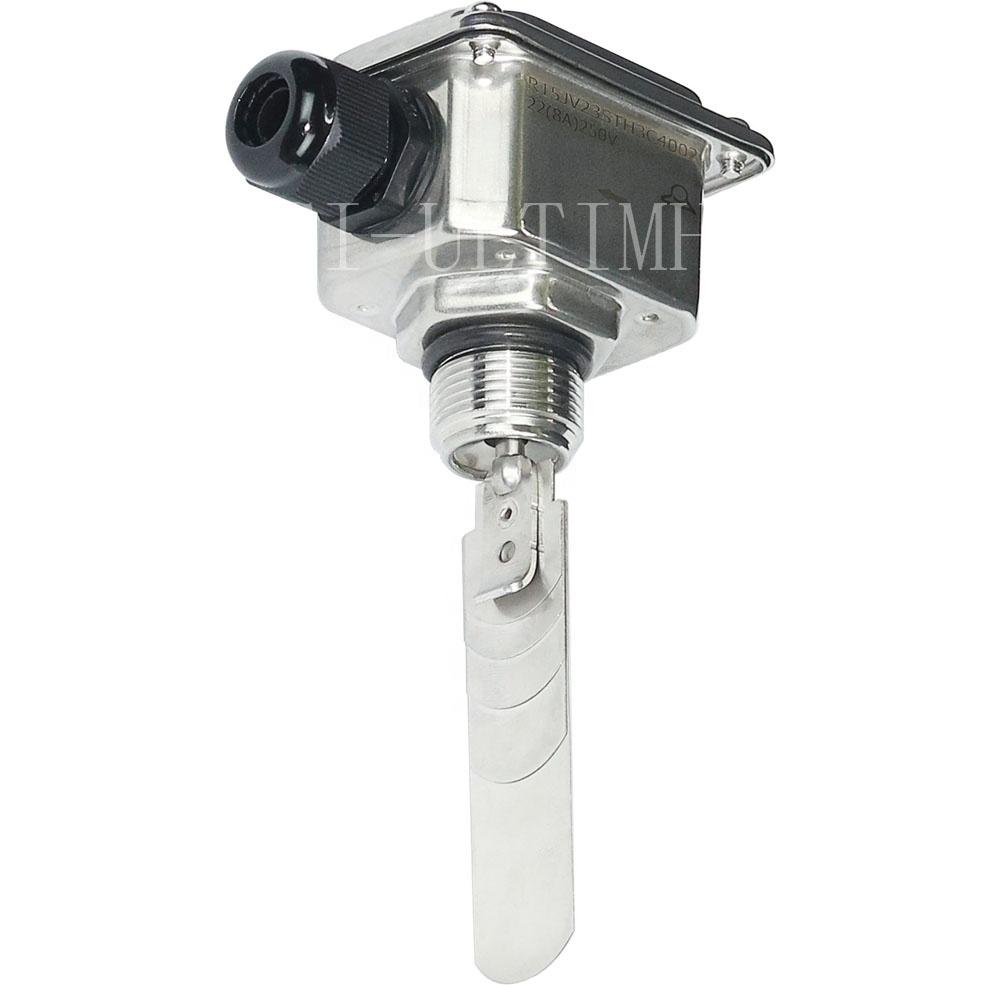

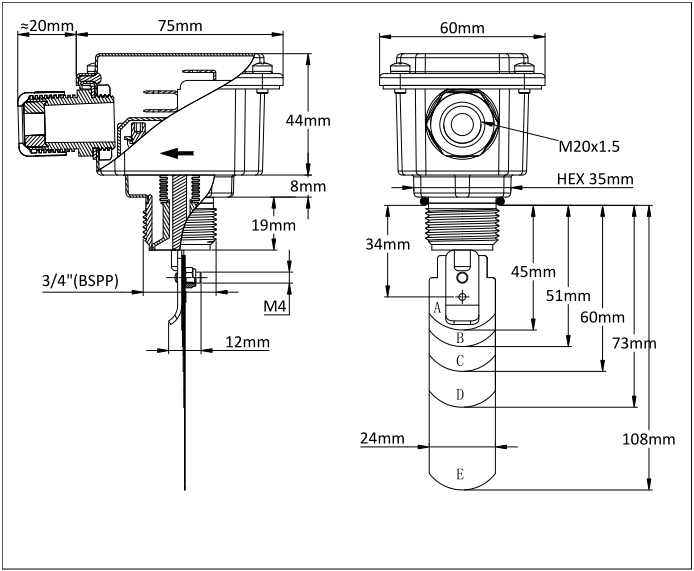

All stainless steel paddle flow switch, 16A snap switch, 3/4" male thread

The main purpose:Water flow detection on water pipesFunctional principle:Balanced paddles, perpendicular to the main stream, actuate the microswitches. Flexible stainless steel bellows between paddle and electric switch.shell:Stainless steel 304, IP69K, IK7.mechanism:100% stainless steel.Paddle Material:Stainless steel.Electrical class:16A resistor, 4A inductor, 230V alt. 50.000 cycles.Electrical contact type:SPDT, turned on or off by flow rise.Applicable liquid:For clean water, potable water and stainless steel compatible liquids.Nominal pressure at 20°C:1MPa (PN10).Nominal diameter:Can be used for pipes with an inner diameter of 32mm and above. The paddles are available in 5 sections of different lengths and can be used on different pipe diameters. Tightening is made of anti-vibration Nylstop nuts.Recommended installation location:Vertical, paddle down. Other positions are possible, but the calibration value relative to the paddle weight will change.Water pipe connection:Male 3/4” (BSPP) and NBR washers. Must be used with BSPP 3/4” female fittings perpendicular to the main pipe.Recommended torque:14 NmLiquid temperature range:5 to 95°C.Ambient temperature range:5 to 85°C.Installation Notes:- Double check the orientation of the paddle: the arrow on the casing must be exactly parallel to the pipe. - There must be a minimum clearance of 5 mm between the tip of the blade and the tube wall opposite the 3/4" fitting. - We recommend using a 18mm length less than or equal to 32mm ID between the gasket seat and the inside of the tube nozzles to avoid clogging the paddles.Accessories:3/4" female PVC saddle for DN40 to DN100 (OD) PVC. Pipes and other fittings: see last section of this catalog.Options:Calibration of special paddles and specified values.notes:In the case of user modification of the propeller set, it is important that the propellers holding the M4 Nylstop nuts are properly tightened with a minimum torque of 1.2 Nm.
