golf printer small a4 size uv flatbed printer

Product details
Printing height:80MMVideo external inspection:if
Single package size:65X56X47 cmSales unit:single product
color:CMYK+WWCore parts warranty:other
Plate type:Flatbed printerApplicable industries:Household, print shop, advertising agency
Resolution:1440 DPItype:UV flatbed printer
operating system:window systemInk Type:UV environmental protection ink
Marketing Type:New Products 2020usage:receipt printer
Packaging Details:wooden boxInk Type:UV ink
brand:NEIXOAuto grade:automatic
Health status:newPrint size:175*330mm
Printing size:175*330mmVoltage:110-220V
place of origin; place of origin:Guangdong, Chinaweight:26kg
Warranty:1 yearCore components:other
Print Head:L805Dimensions (L*W*H):57*48*40
Colors and Pages:PolychromaticGross weight per piece:40.000 kg
RIP software:AcroripMain selling point:automatic
Mechanical test report:ifInk supply system:CISS Damper System
Product Description

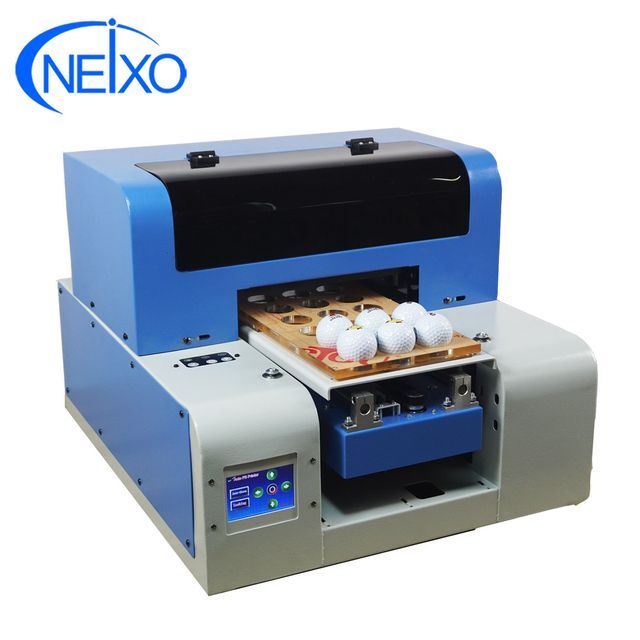

miniature golf uv printer



print samples



advantage

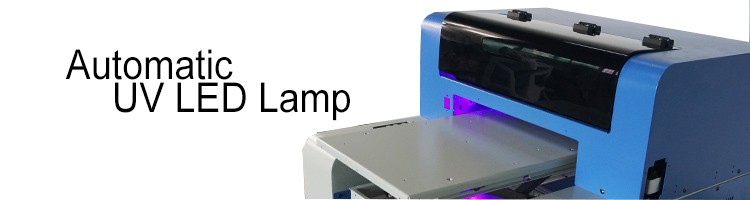

 Automatic built-in UV LED light -Install NX-Automatic overheating protection system and automatic on/off system to most effectively extend the working time of UV LED lights.

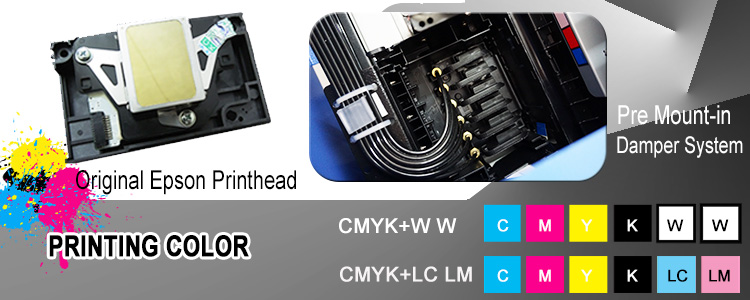

Epson Printhead -

Maximum print resolution: 5740x1440 DPI;

Reliable original Epson printheads for the best print results at the lowest ink cost.

High quality anti-corrosion and pre-installed damper system -toKMake the UV ink flow smoothly from the ink bottle to the print head.All dampers, including internal filters, are used to filter impurities from the ink to protect the print head during printing.

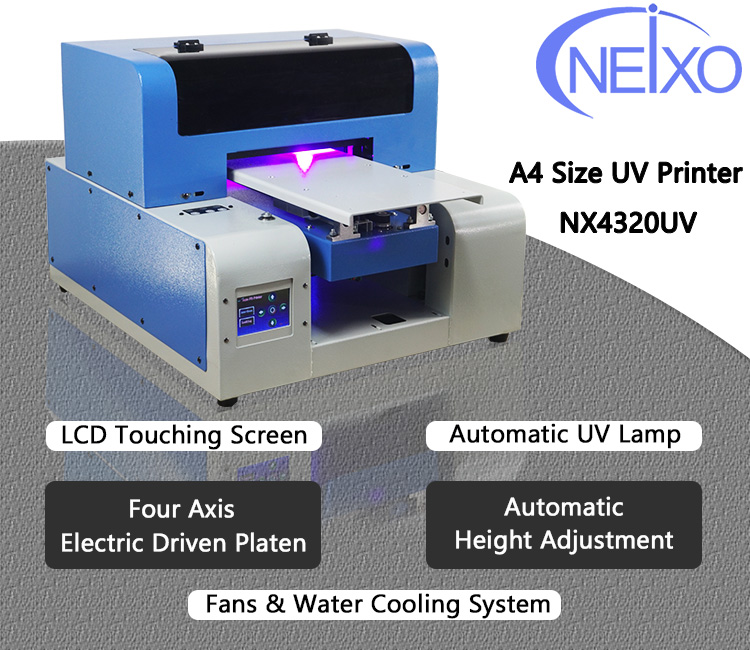

NX43200UV Printer Specifications

Model NX4320UV print head technology Micro Piezo Technology
UV Lamp System automatic switch UV power 60W
UV lamp life 50000 hours UV wavelength 390-400nm
cooling system

Dual cooling system

(water circulation and fan cooling)

controlling software RIP software
ink system UV Damper CISS Ink Refill System maximum. Printing size 175mm*330mm
Print Head Epson L805 print color CMYK+WW
printing speed Full A4 size @1440x720 dpi takes 8 minutes maximum. Media thickness 7CM
ink consumption 15ml/m² (approx. 1250-1500 A4 for 500ml ink set) print resolution RIP(1440*720 ; 1440*1440dpi)
Ink Type UV environmental protection ink Working power 110-220V; 50-60HZ; 100W
For PC socket USB2.0 System Requirements Windows XP/Vista/Win7/WIN8/WIN10
working environment 25-30 degrees Celsius, 50% humidity, no dust net weight gross weight 26KG/38KGS
Printer size 56.5*48*40CM Package dimensions 64.5x58x47CM



3D printing and non-offset printing

Non-offset repeat printingMeet different types of special printing requirements, such as 3D effects.

A special gradient white ink print pattern will createDifferent relief effects (3D effects).





printable product





Packaging and Shipping

Packed in a reinforced wooden box with cushioning material to prevent any damage to the machine during shipping.
