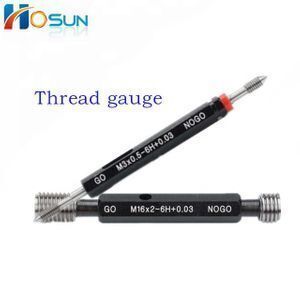

Thread plug gauge GO NOGO Gauge

Supplier: Shenzhen Hosun Precision Co., Ltd.
Region: Guangdong, China
Contact: Ms Candy F
Price: $5.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	T/T,Western Union,Credit card , paypal , Visa;	Accuracy:	6H 6g;
Supply Ability:	1000 Piece/Pieces per Day;	Usage:	Measuring thread size;
Packaging Detail:	Plastic box and carton;	Brand Name:	HY;
Place of Origin:	Guangdong China (Mainland);	Product name:	Thread plug gauge GO NOGO;
Port:	shenzhen;	Application:	Working Gauges;
Type:	Hand Measuring Tools;	Measuring range:	M1 to M100;
Model Number:	M1 to M100;

Product Description

Thread Plug Gauge

Thread plug gauges are used to check inside major diameter and pitch diameter limits on threaded parts

Thread plug gages are available in Helical Coil, NPT , PG Conduit,Straight Pipe, Taperpipe ,etc

Size:
Standard metric size M1-M100 , other size like UNC UNEF UNF ,taper plug gauge , British thread plug gauge etc are availiable

Material :
Made of high performance bearing steel GCR15 , high hardenability, high hardness and fatigue strength, good dimensional stability, and SKD11 material are availiable

Tolerance:
Thread tolerance class: 4,5,6,7,8 ,Thread tolerance internal thread G, H , Default accuracy 6H

Quality Assurance:
Each gages is rigorously tested to ensure that the dimensional data is qualified before leaving the factory, If you still need a calibration certificate from a third-party laboratory, please let us know in advance, this need extra cost

What Thread Plug Check:
GO gauge check the minimum major diameter, the minimum pitch diameter size in a part
NOGO gauge check for the hole not to exceed the maximum pitch diameter size in a part

we can supply

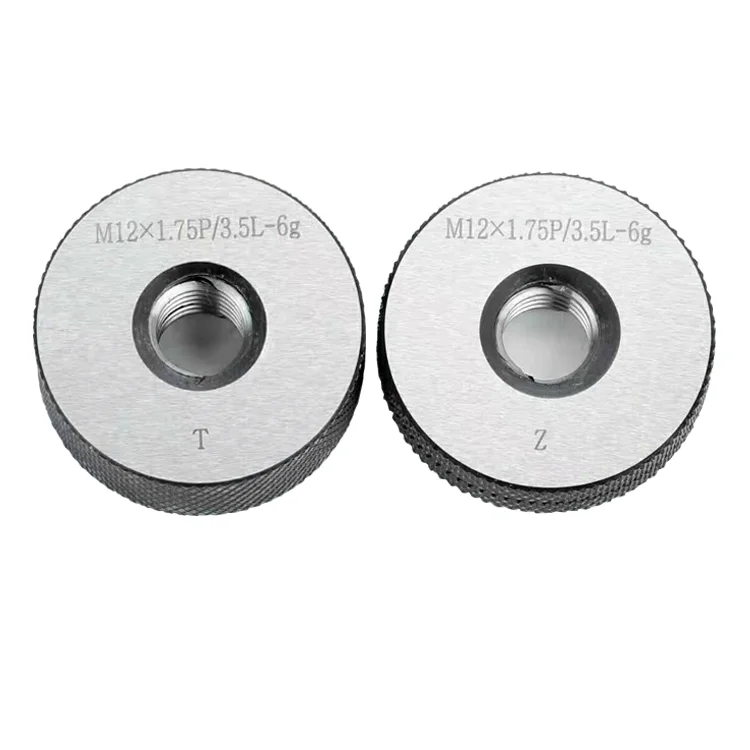

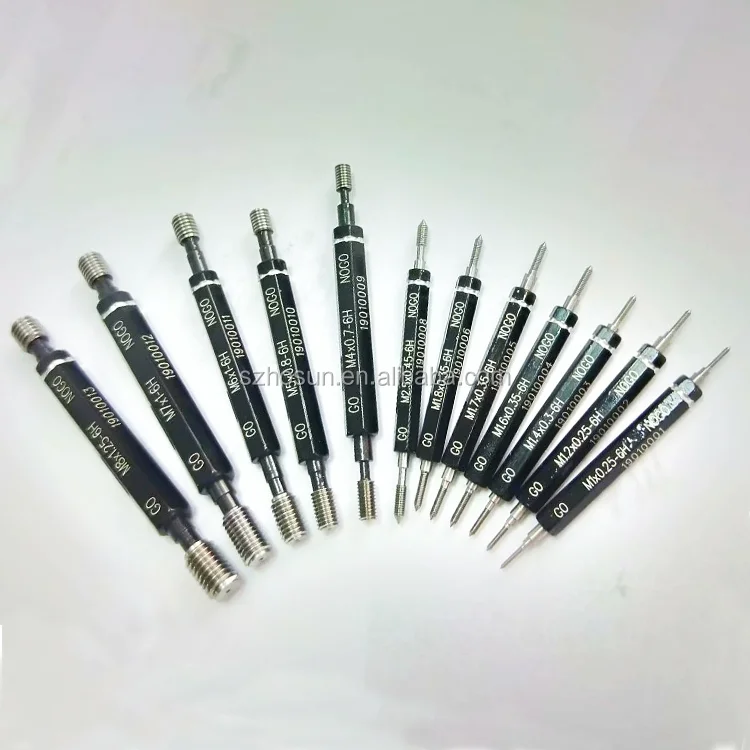

1. Metric thread plug gauge & ring gauge from M1 to M100 ,accuracy 6H, 5H, 6G; 6g, 6h etc

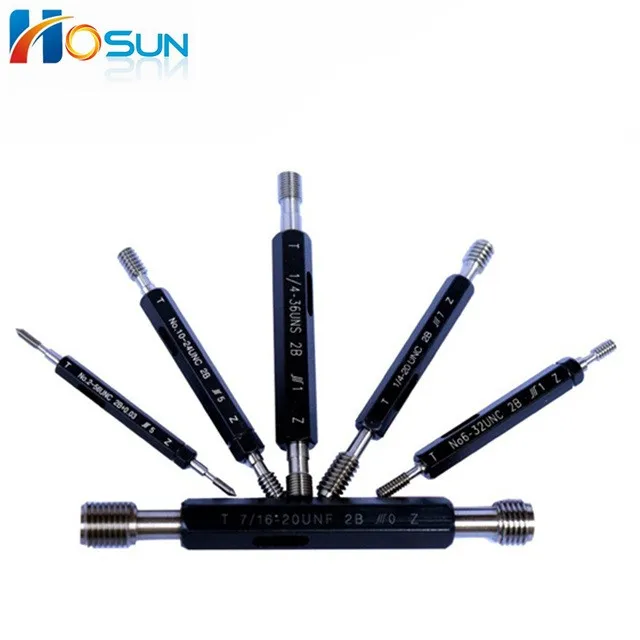

2. US specification thread plug gauge& ring gauge (suitable for US standard) from No.0 – 80UNF ,accuracy 2B, 3B, 2A, 3A (UNC, UNF, UNE, UN, UNS etc) and taper pipe thread series NPT, NPTF, NPSM, ACME, STUB ACME, BUTT, etc

3.UK thread plug gauge & ring gauge (suitable for European countries standard) from size 1/8 – 40 BSW , BSF and taper pipe thread series with G, RC/R, PT, BA etc

4.For thread insert hole check , ST thread plug gauge and TS ZS thread ring gauge

5.For threaded hole positioning and measuring thread hole center distance Thread positioning gauge (thread vertical gauge, thread gauge)

6.Oil Pipe Series Gauge API series

7.Other series thread gauges: Pg, V1, V2, SM

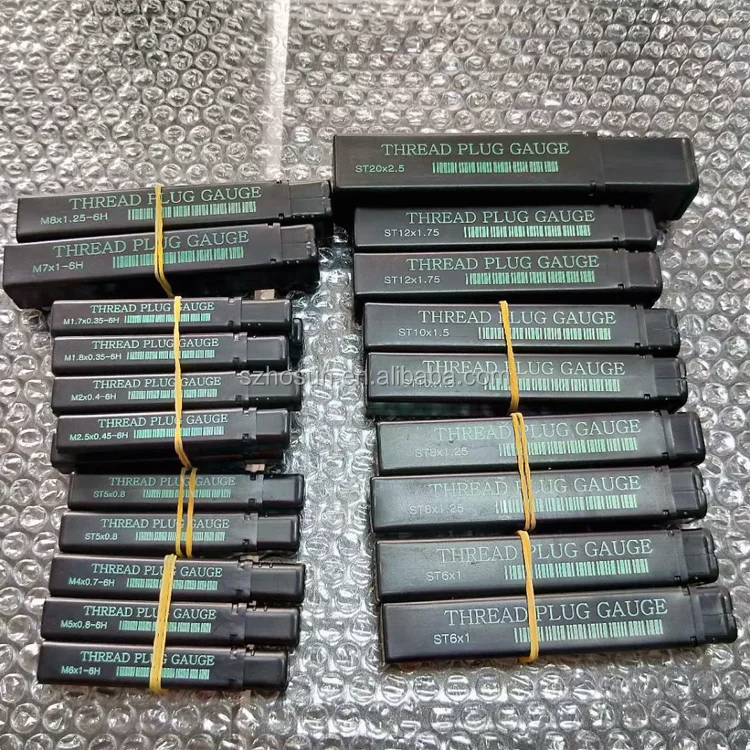

Packing :

Each thread gauge has itself plastic box and then we will use a buggle box pack , last put into carton , when you received the parcel , you will satisfied

Delivery :

Standard sizes are in stock , the leadtime is about 1to 3 workdays

Non-standard sizes need to produce , usually it will take 20 to 30 workdays

We will use the below express to send , so that you can get it soon

Our Service

In our company , you all will have a feeling " customer is god "

No matter pre-sale or after sales , We all try our best to offer the great service

Great service is our mission :

Sincere Communication

Enthusiasm

Patience

Dedication
