Fully automatic hard candy box corner sticking machine

Click here to contact
Product details
type of packaging:caseWarranty:1 year
Dimensions (L*W*H):1650*1300*1960mmapplication:Apparel, Beverage, Chemical, Daily Necessities, Food, Machinery and Hardware, Medical, Textile
Voltage:380V, 380VGas source:10L/min 0.6mpa
Packaging Details:With film, paper, wooden caseplace of origin; place of origin:Guangdong, China
Local service location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya , Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, RomaniaApplicable industries:Manufacturing plants, mechanical repair shops, printing plants, construction works, food and beverage shops, packaging equipment
After Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair servicesMachine weight:920kg
Motor Power:2kWport:Shenzhen
Packaging Preview:Showroom location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Argentina, South Korea, Chile, United Arab Emirates , Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Malaysia, Australia
Auto grade:automaticbrand:Long Xingsheng
Supply capacity:30 sets per monthMinimum box size:L80*W65*H15mm
After-sales service provided:Free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, video technical support, online supportMaterials used for packaging:plastic, paper, wood
Health status:newproduct name:Fully automatic hard candy box corner sticking machine
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGramtype:LS-T430, cartoning machine
Main selling point:high productivityweight:920kg
Maximum box size:L430*W350*H120mmDrive Type:electrical
Certification:EU standardMachine size:L1650*W1300*H1960mm
Product Description

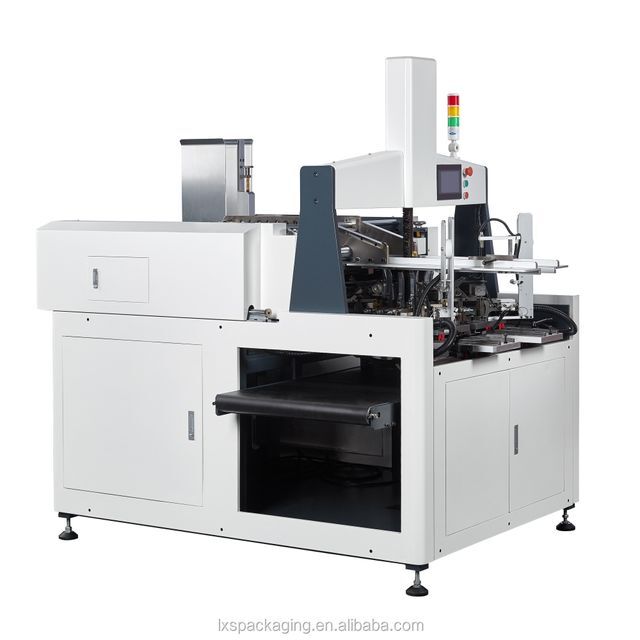

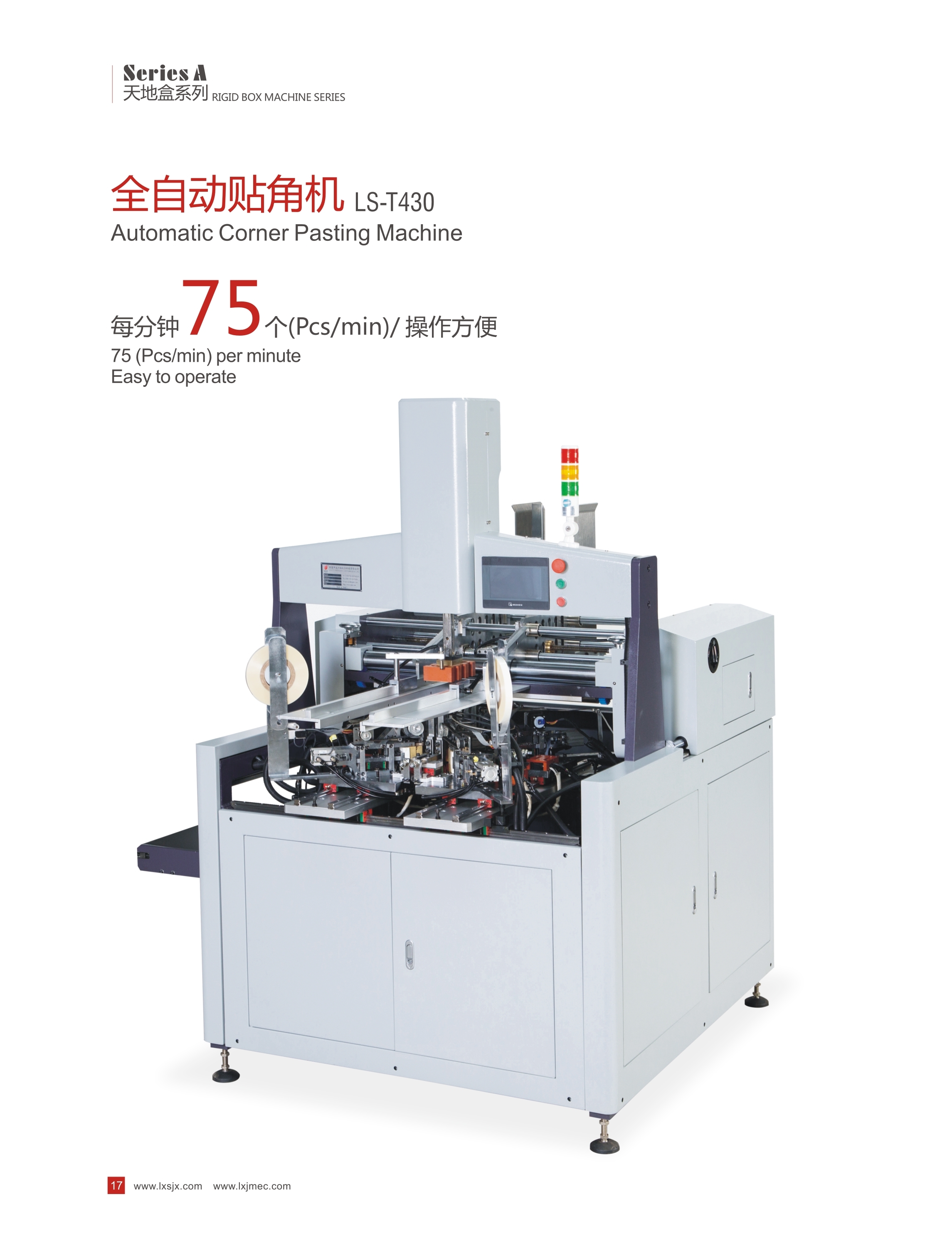

LS-T430 Automatic Angle Sticking Machine
LS-T430 automatic angle sticking machine is suitable for sticking the four corners of die-cut cardboard and V-groove slotted cardboard. The machine adopts the belt conveying method to convey the cardboard to the punching area. Shorten the feeding distance and increase the working speed. It can use paper tape, plastic tape and kraft tape. The maximum working speed is75/min,Ordinary hard box and bevel box can be pasted, and high box can be pasted twice. The whole machine is1650*1300*1960mm.Small and easy to move. Suitable for use with semi-automatic hard box production line.

Prices vary by raw material cost, please contact our sales for the latest prices.
LS-T430 Automatic Angle Sticking Machine Specifications
machine type
LS-T430
Maximum box size
L430*W350*H120mm
Minimum box size
L80*W65*H15mm
Motor Power
2kw/380v
Speed ​​of work
60/min
air pressure
10L/min 0.6Mpa
Machine size
L1650*W1300*H1960mm
machine weight
920kg

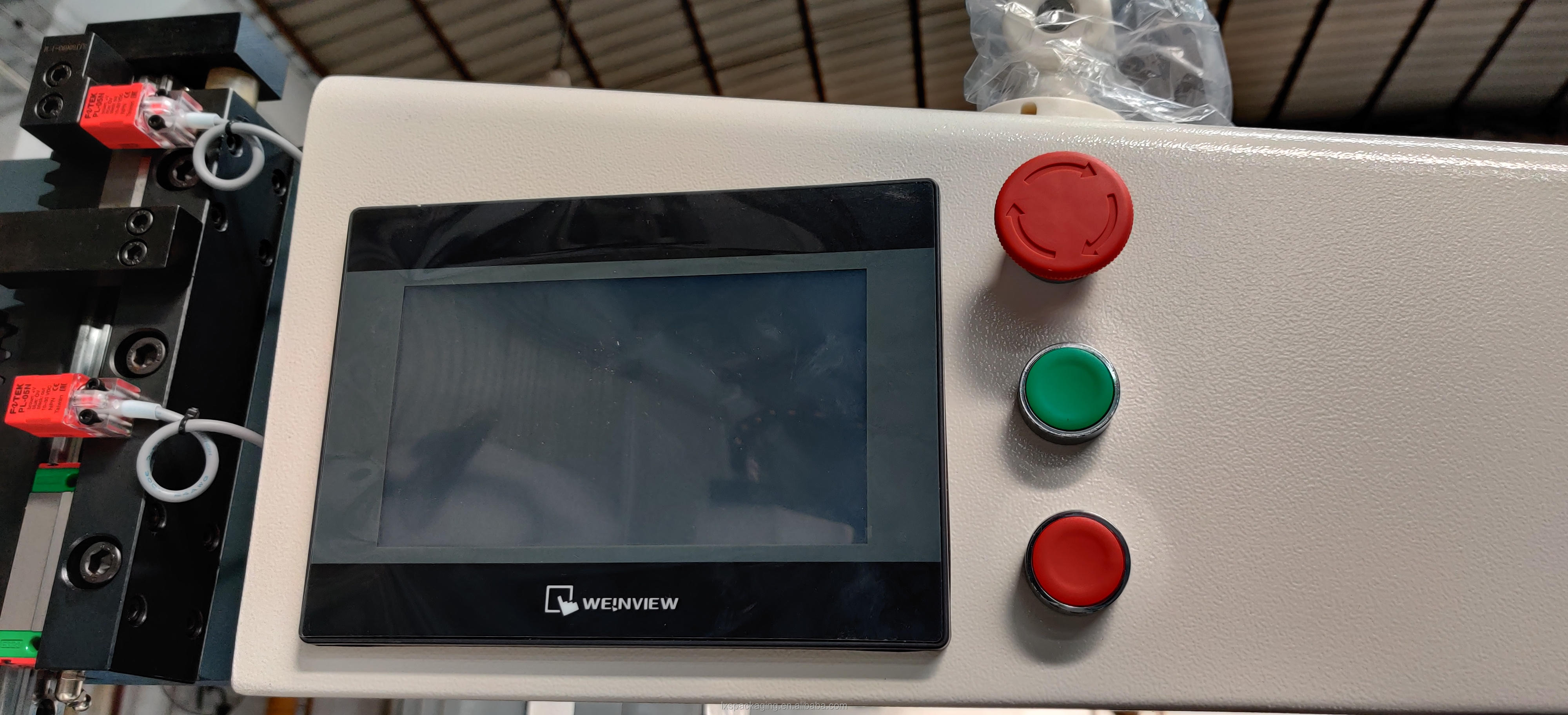

1. Control table

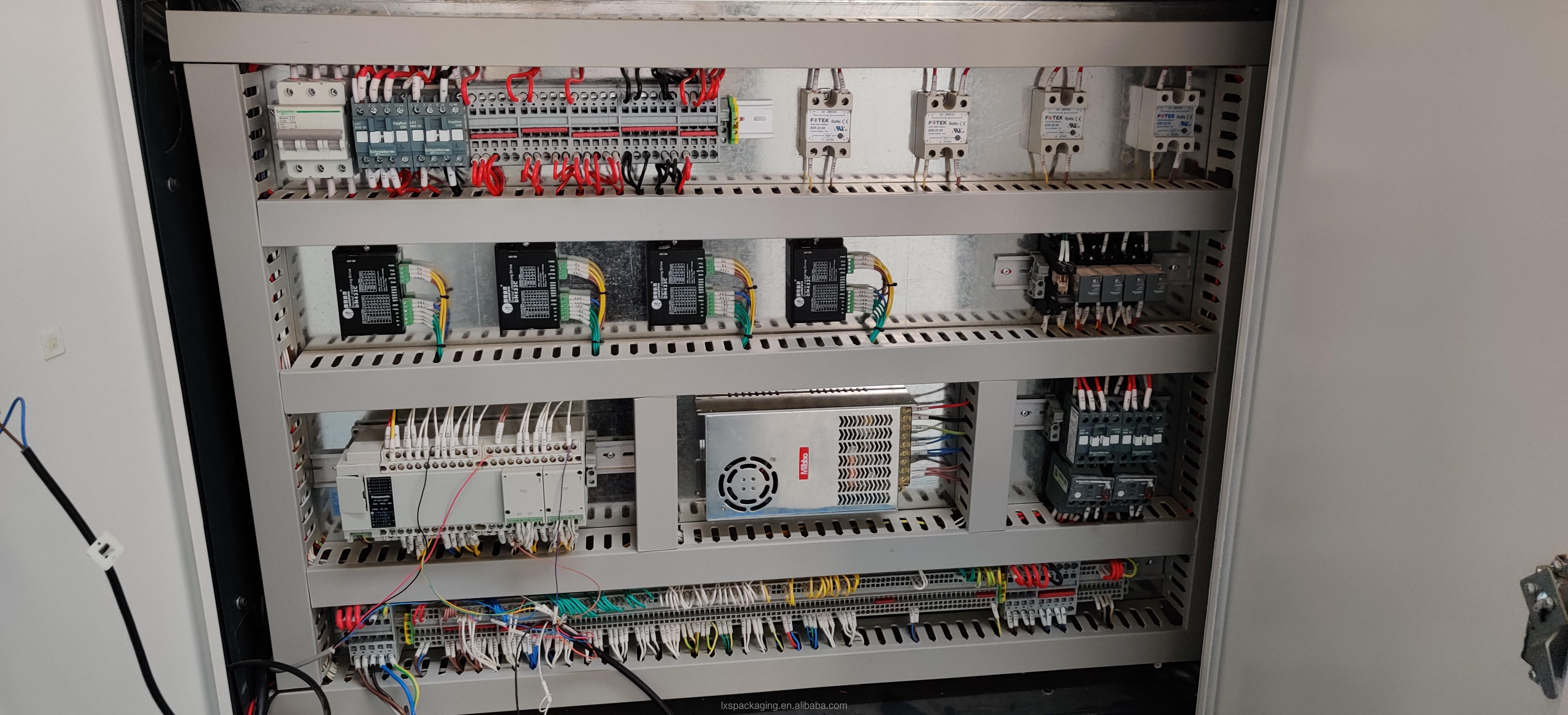

2. Electric box

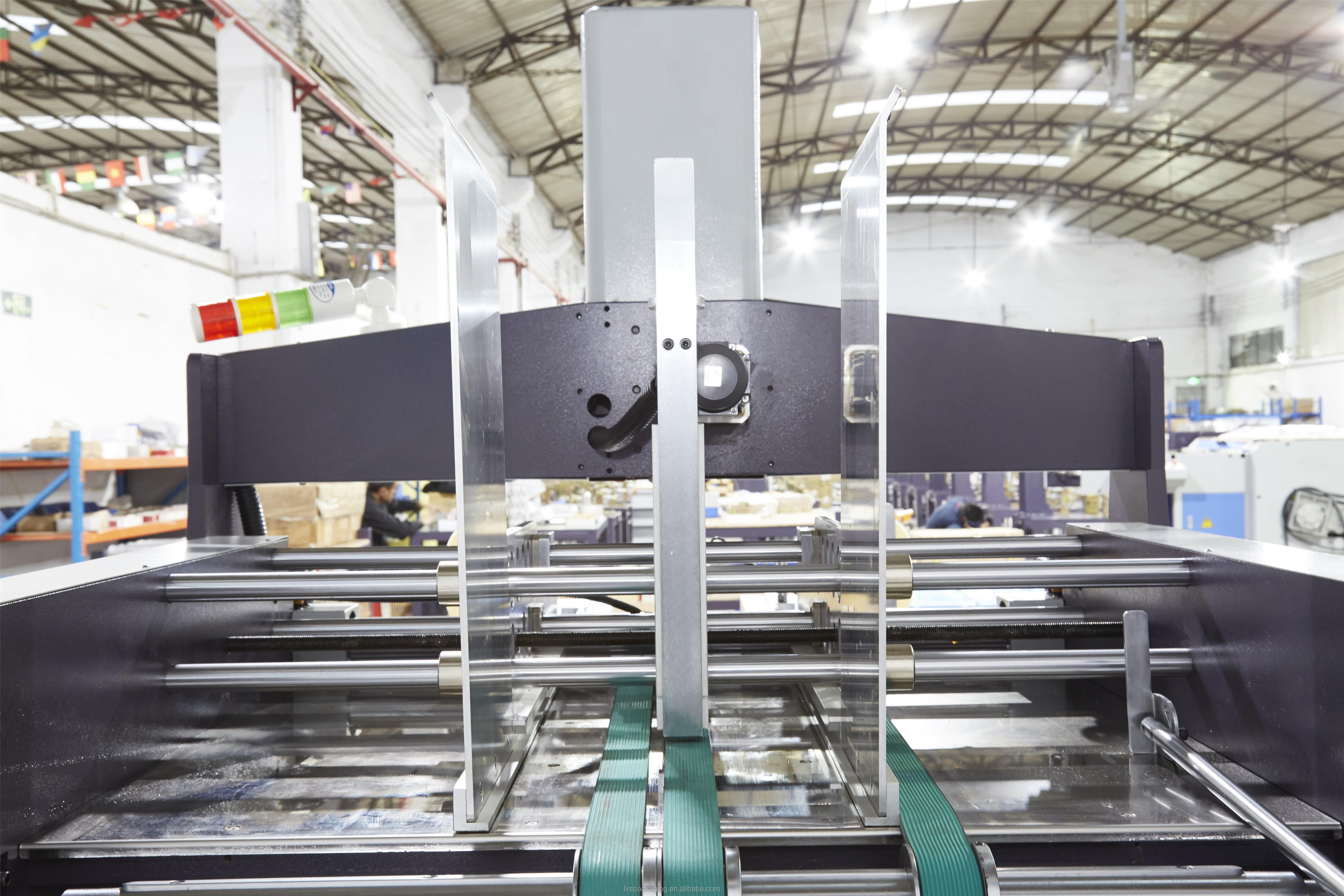

3. Cardboard feeding device.

Slotted or die-cut cardboard is conveyed to the gluing area using a conveyor belt. It feeds steadily and faster.

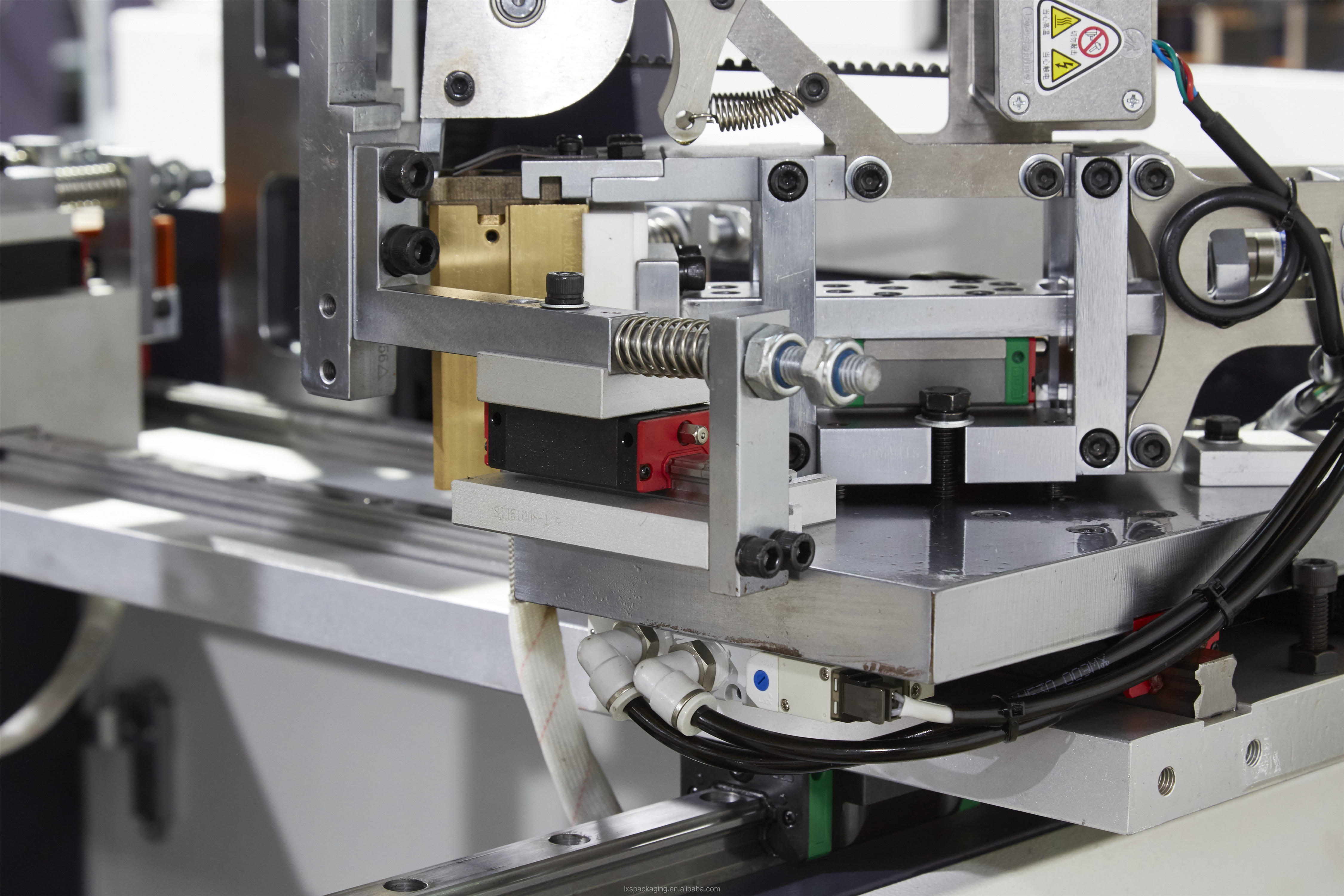

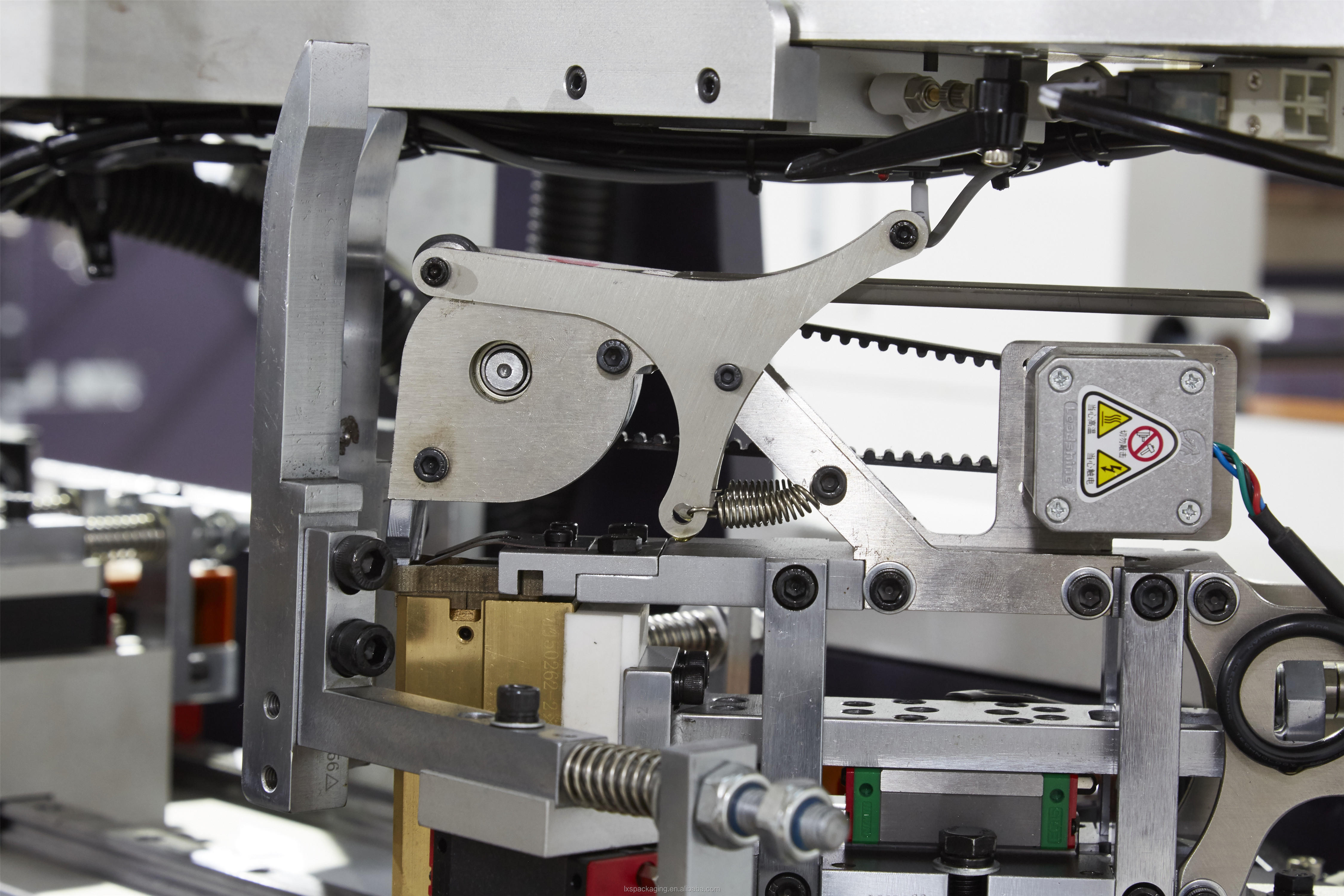

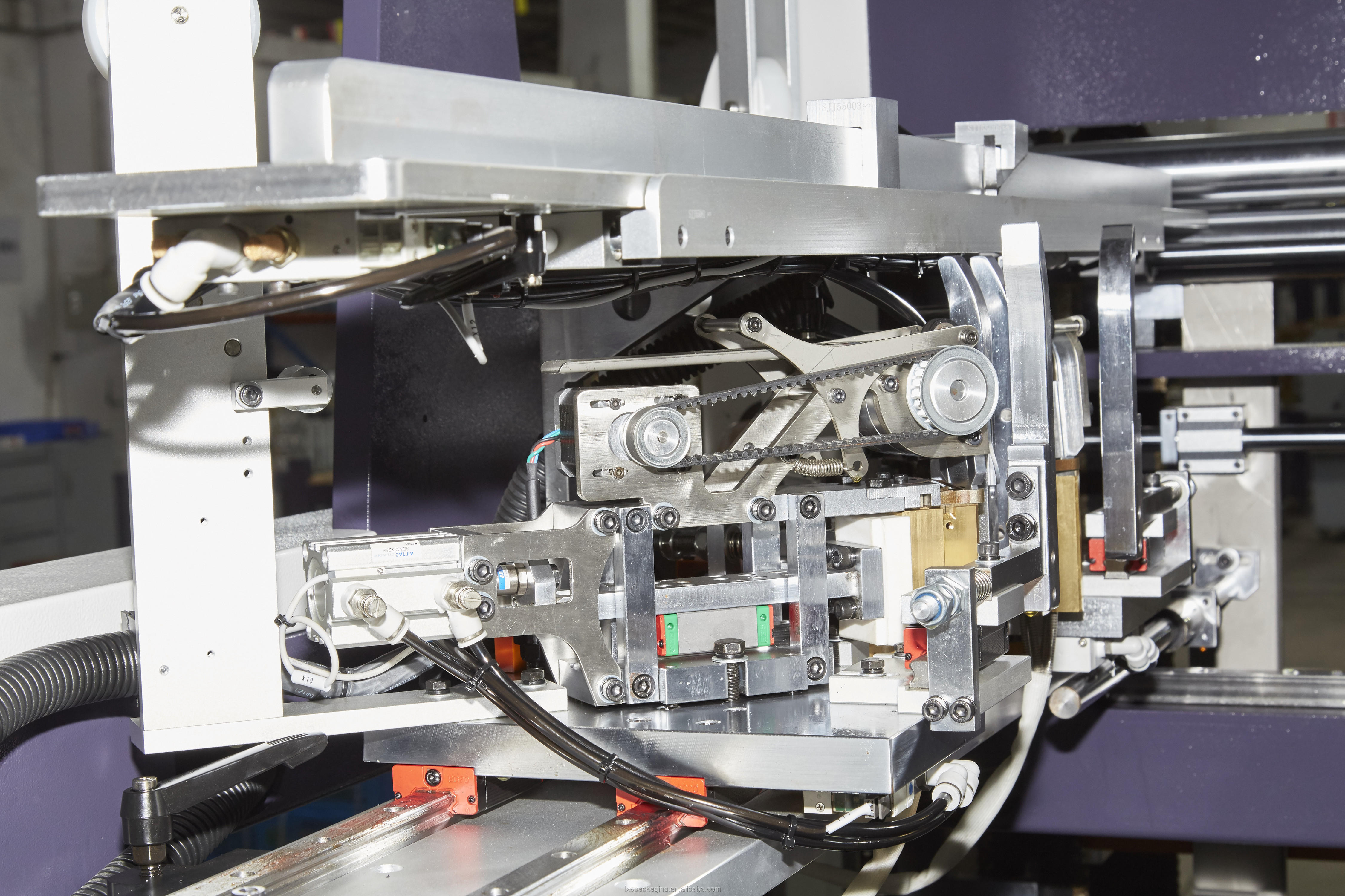

4. Paste area.

It includes heater, tape feeder, cardboard guides. The whole machine has four identical devices to glue the four corners.

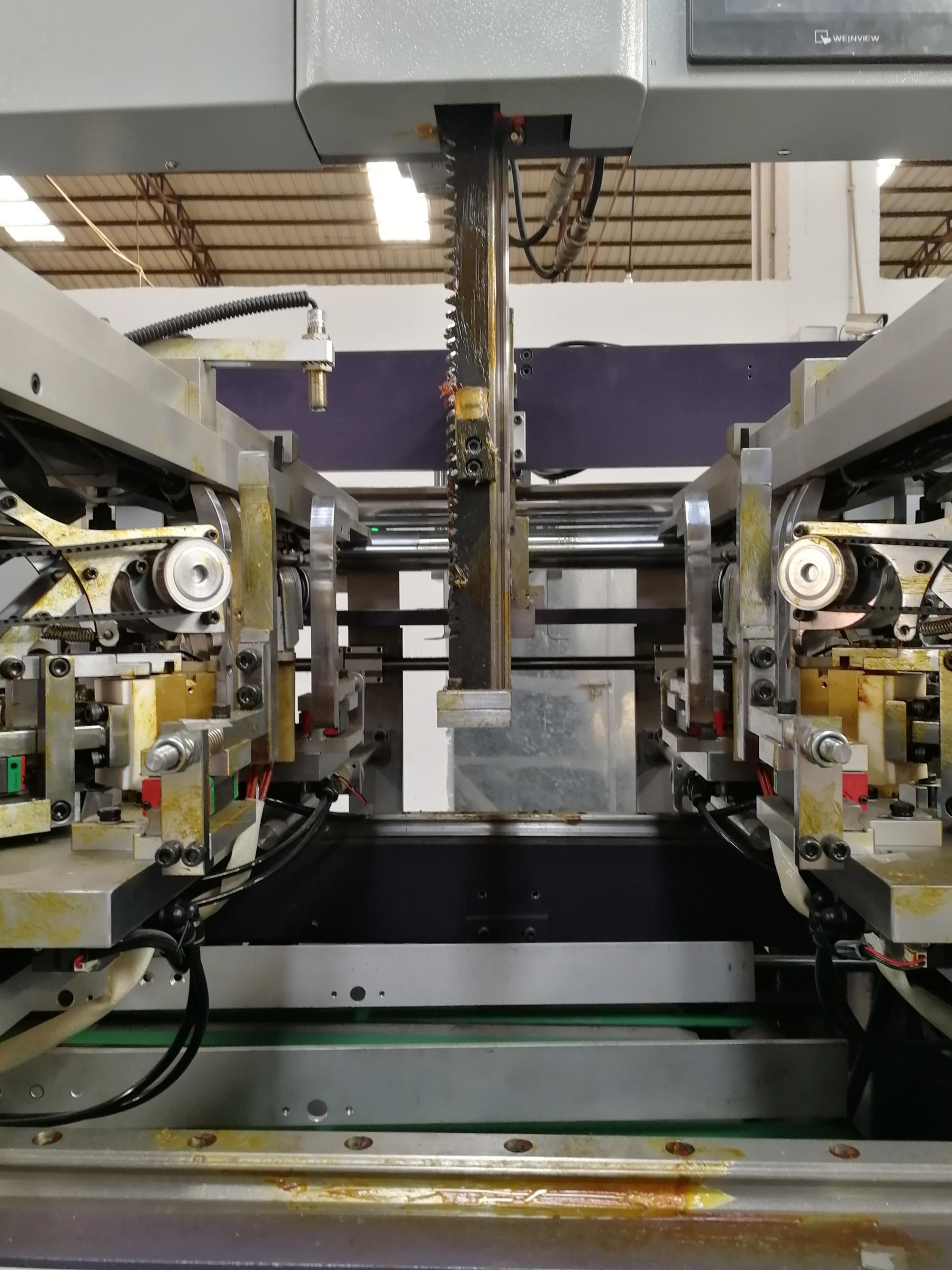

5, punch.

. Press the cardboard into a box shape, then the four corners of the box will be pasted with hot melt tape

6. Grip
Hold the box while sticking the corners of the box.
7. Rails
Rails for gluing seats.
8. Feeding motor
Feed the tape smoothly.
optional features
Small size corner sticking device
50*50*10mm box size custom device.

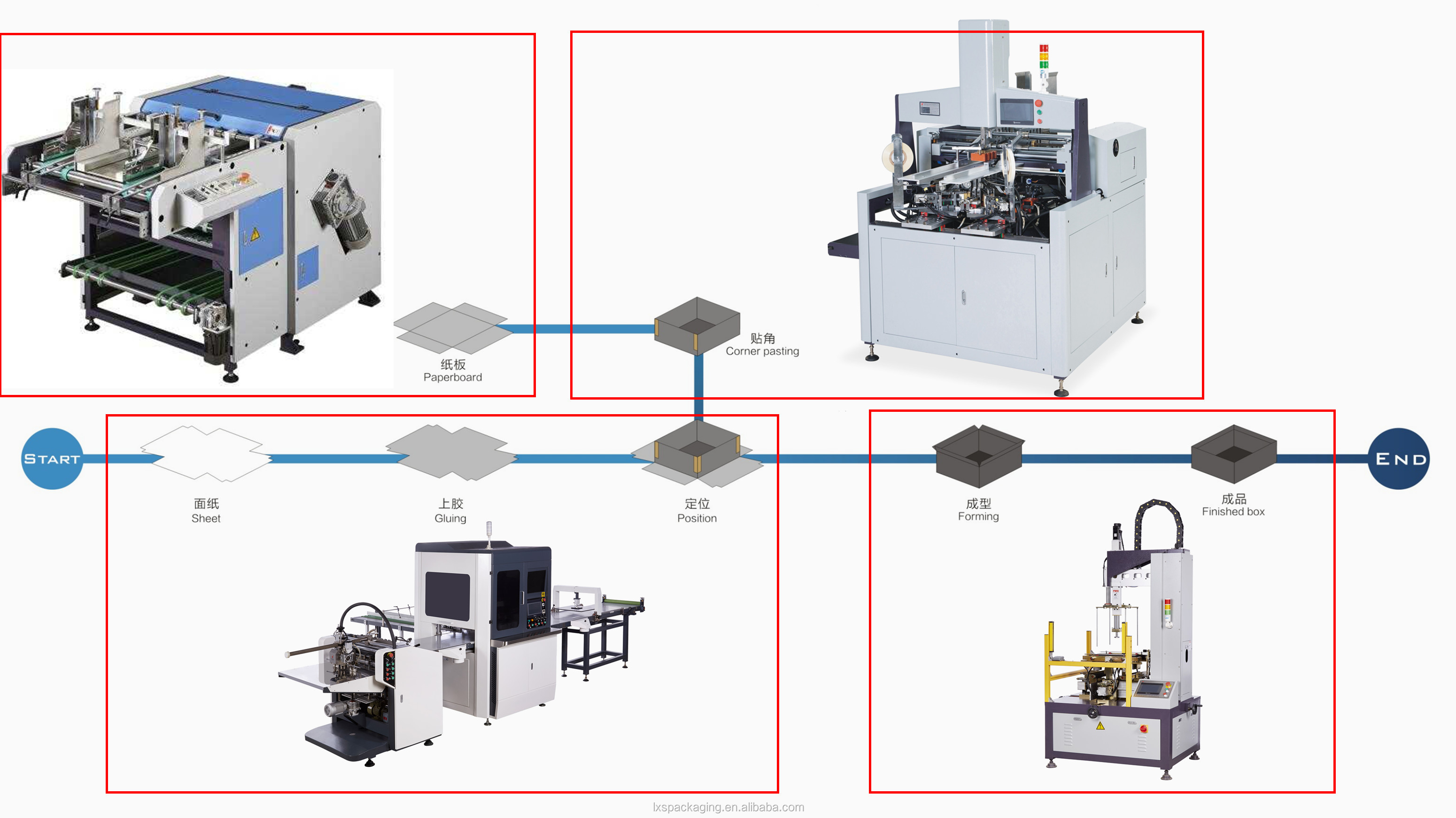

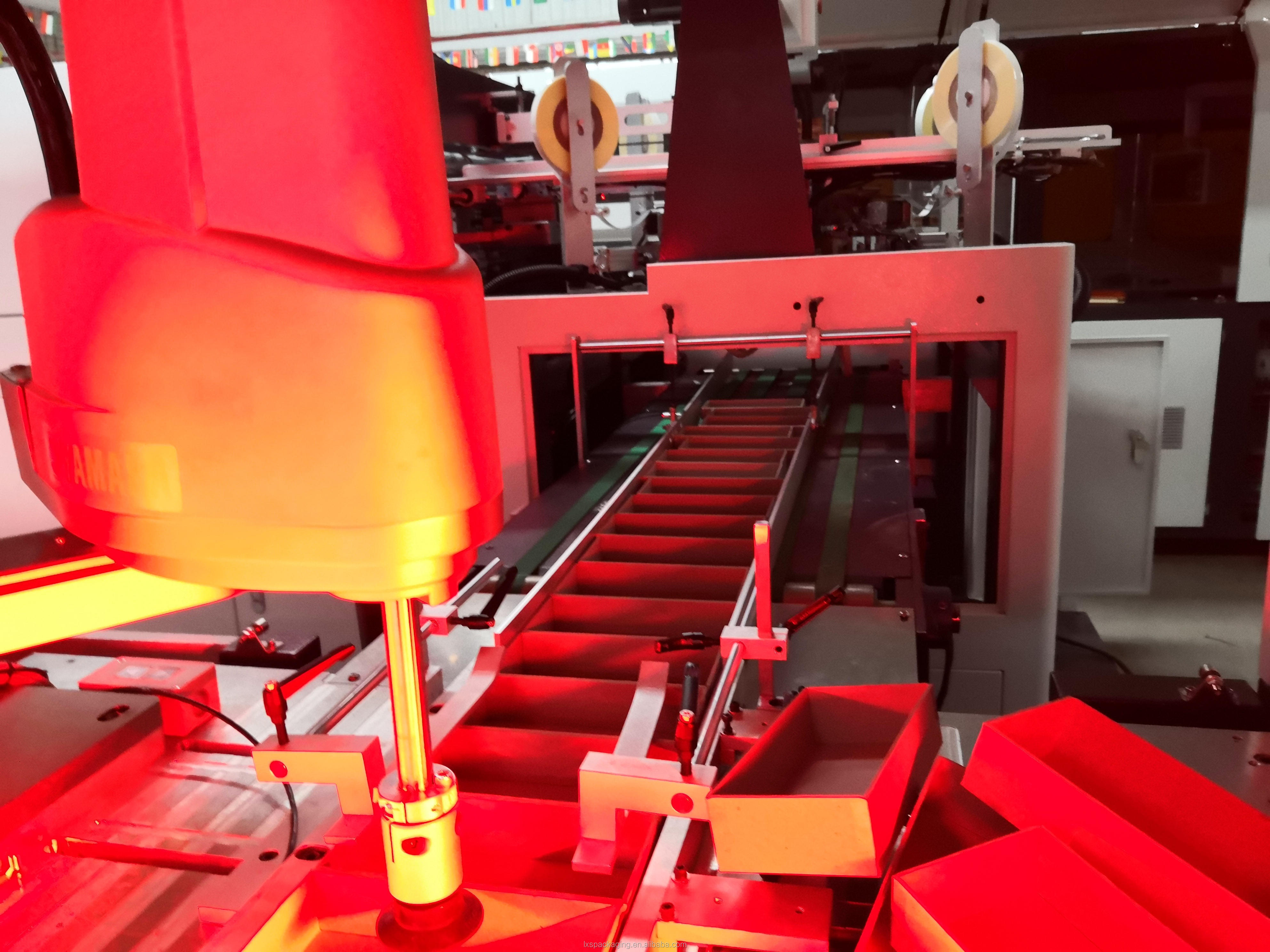

Automatic combination configuration
It can be combined with the positioning machine to improve the automation of the whole line.

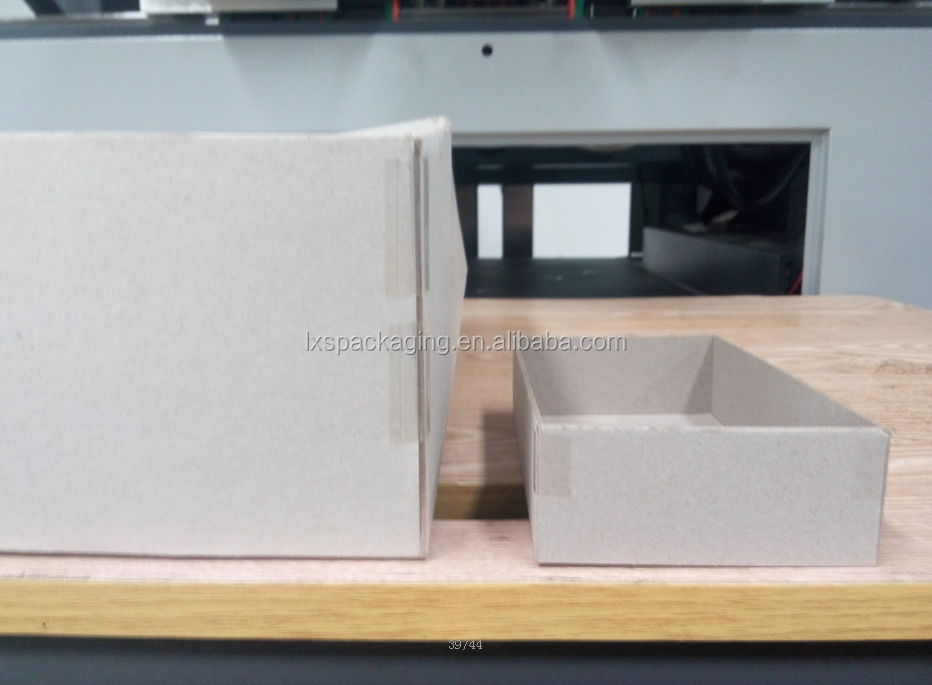

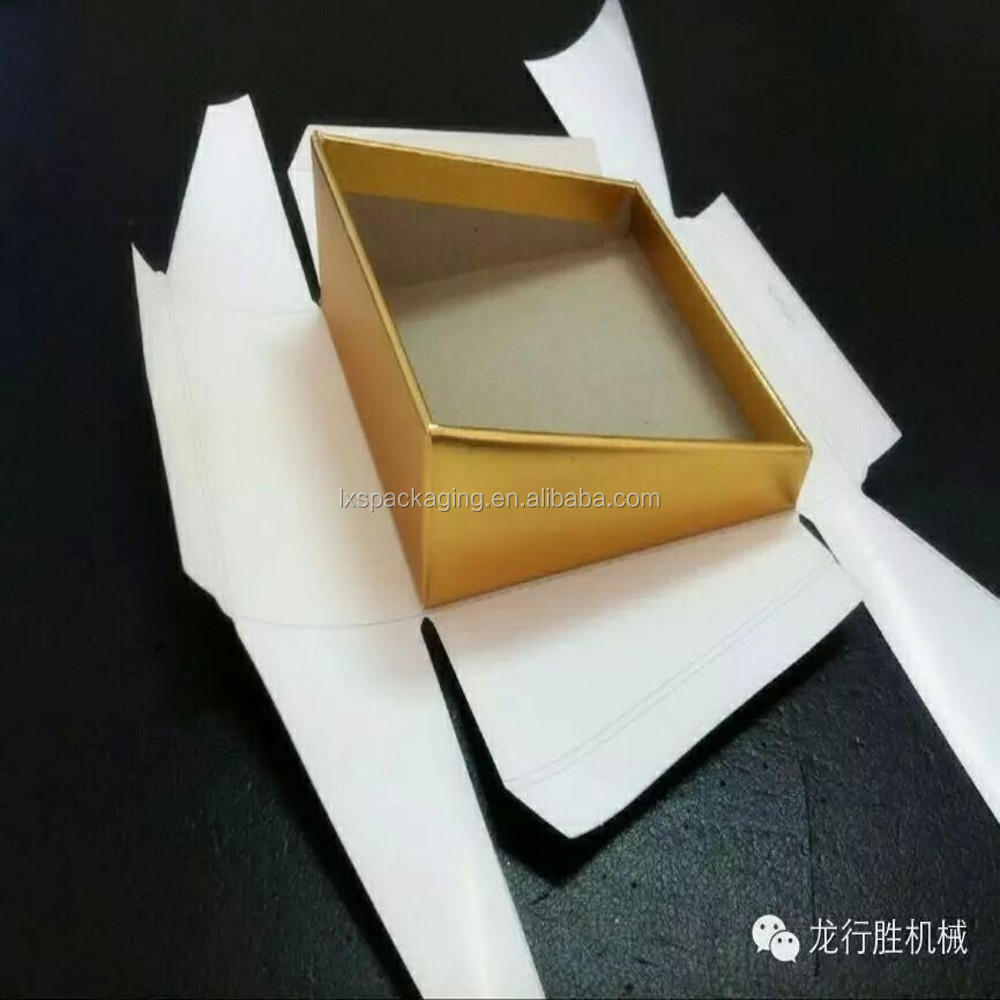

The working range of LS-T430

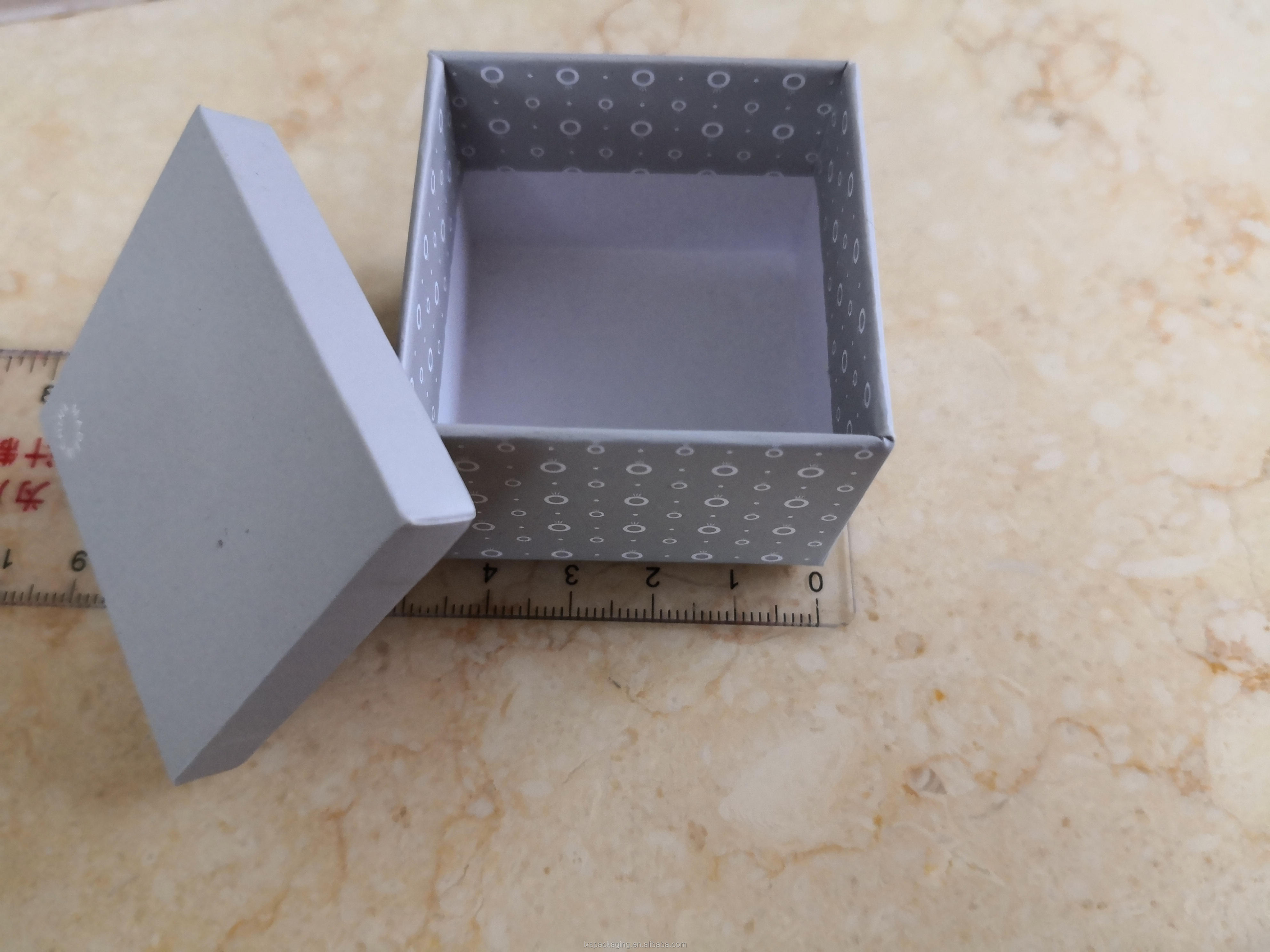

ordinary box
beveled box
No need to modify, just set the paste twice.
high box
Paste twice for the tall frame.

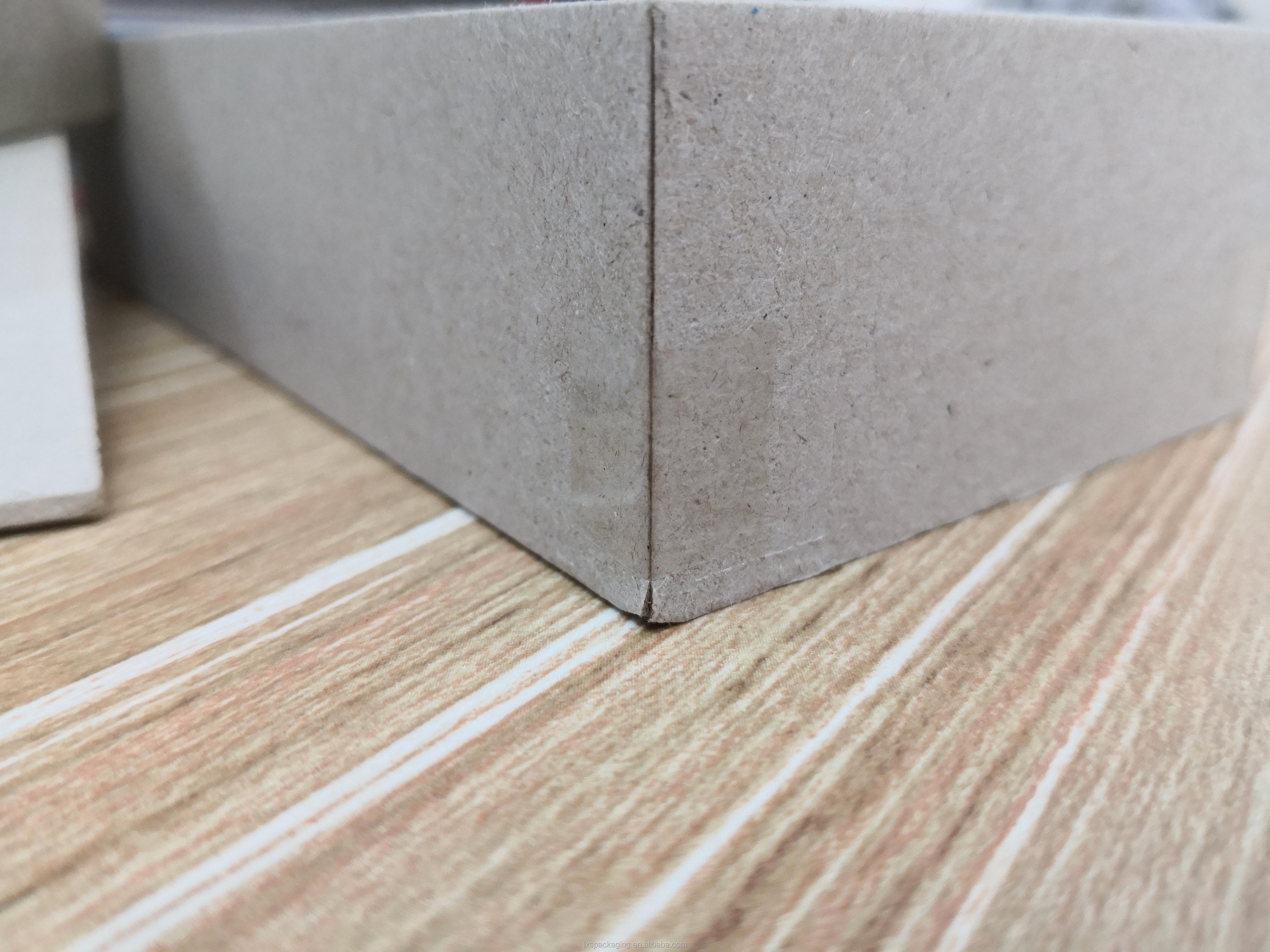

Materials needed for box corners

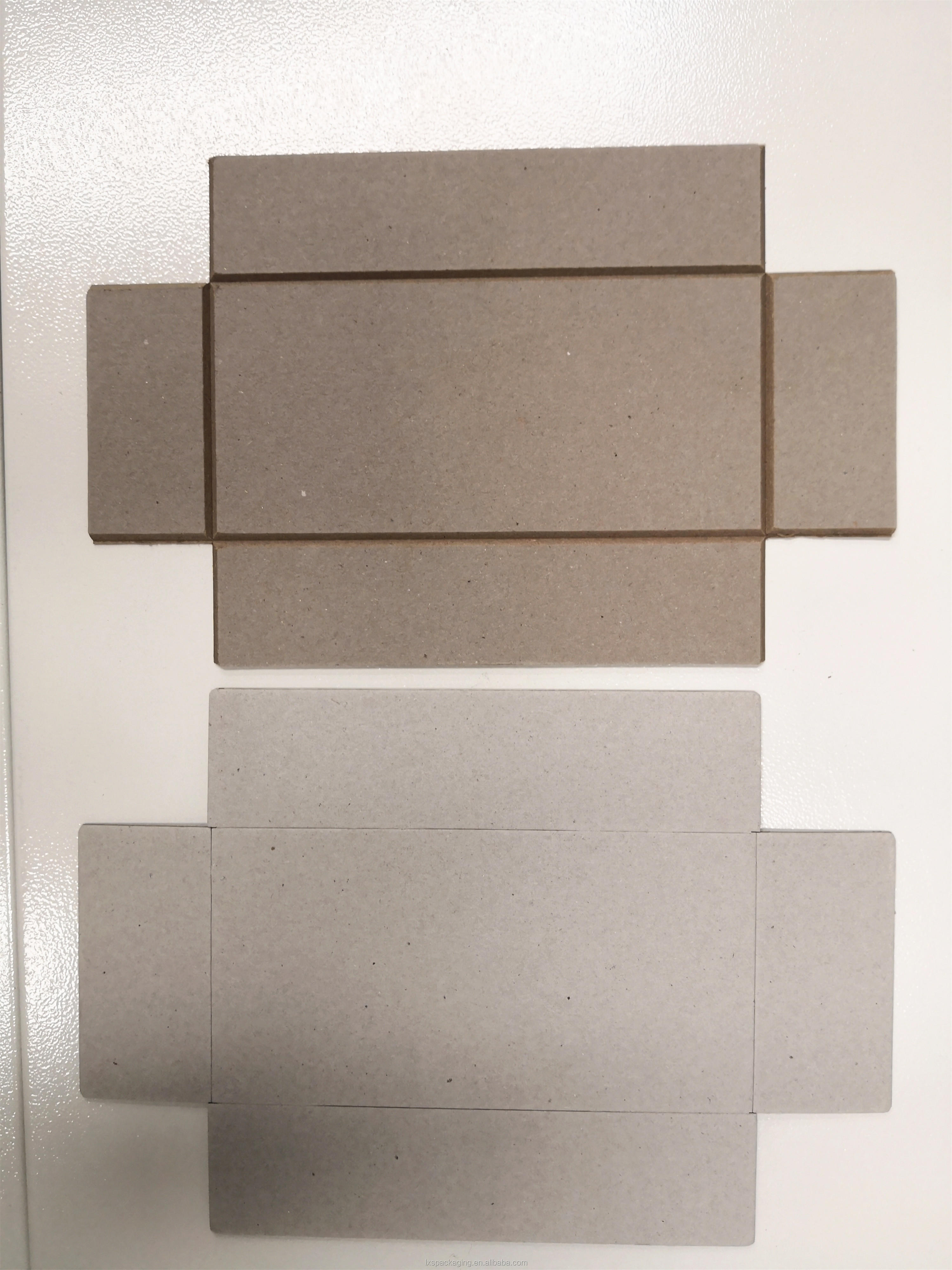

die cut cardboard

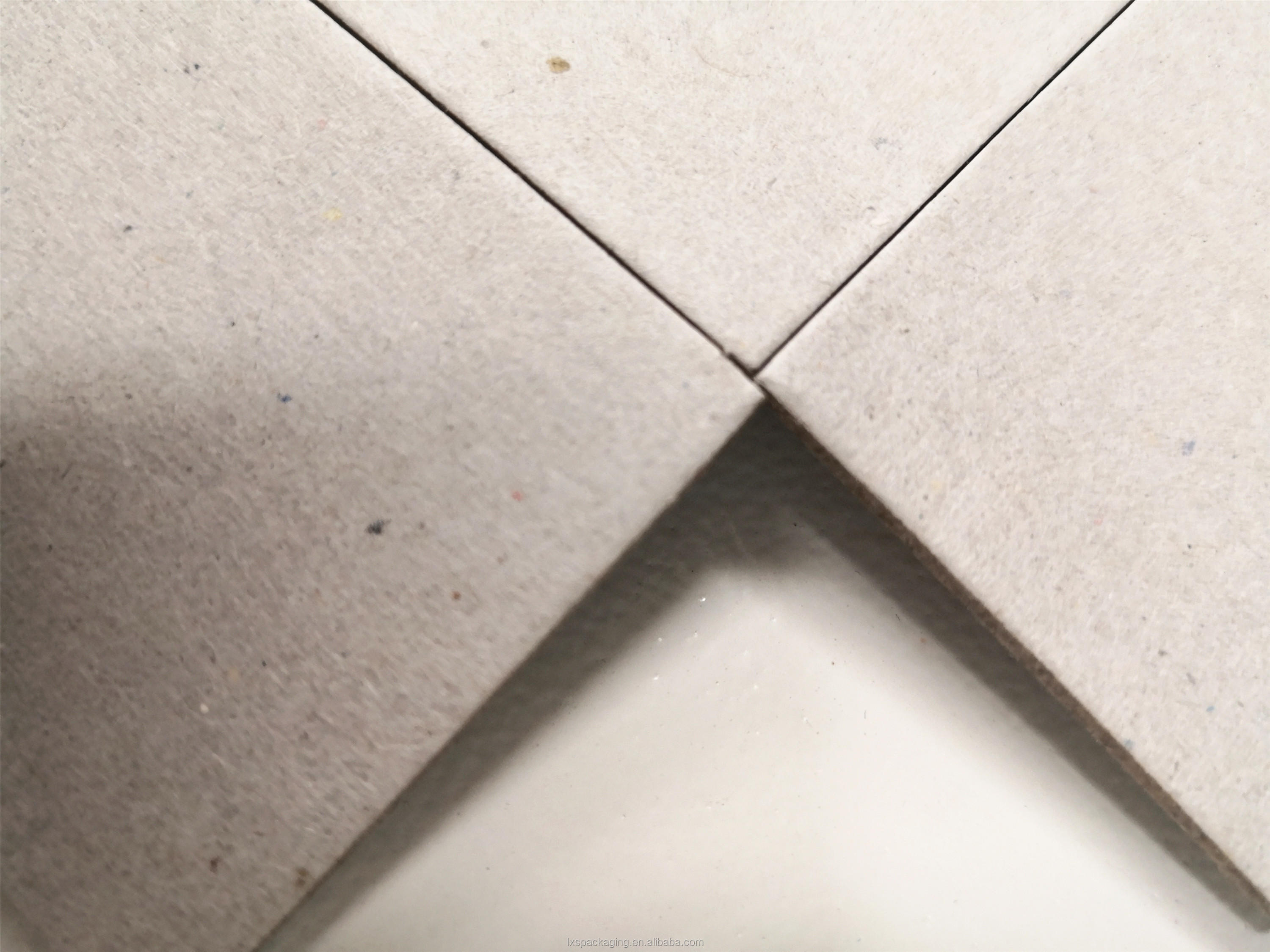

slotted cardboard

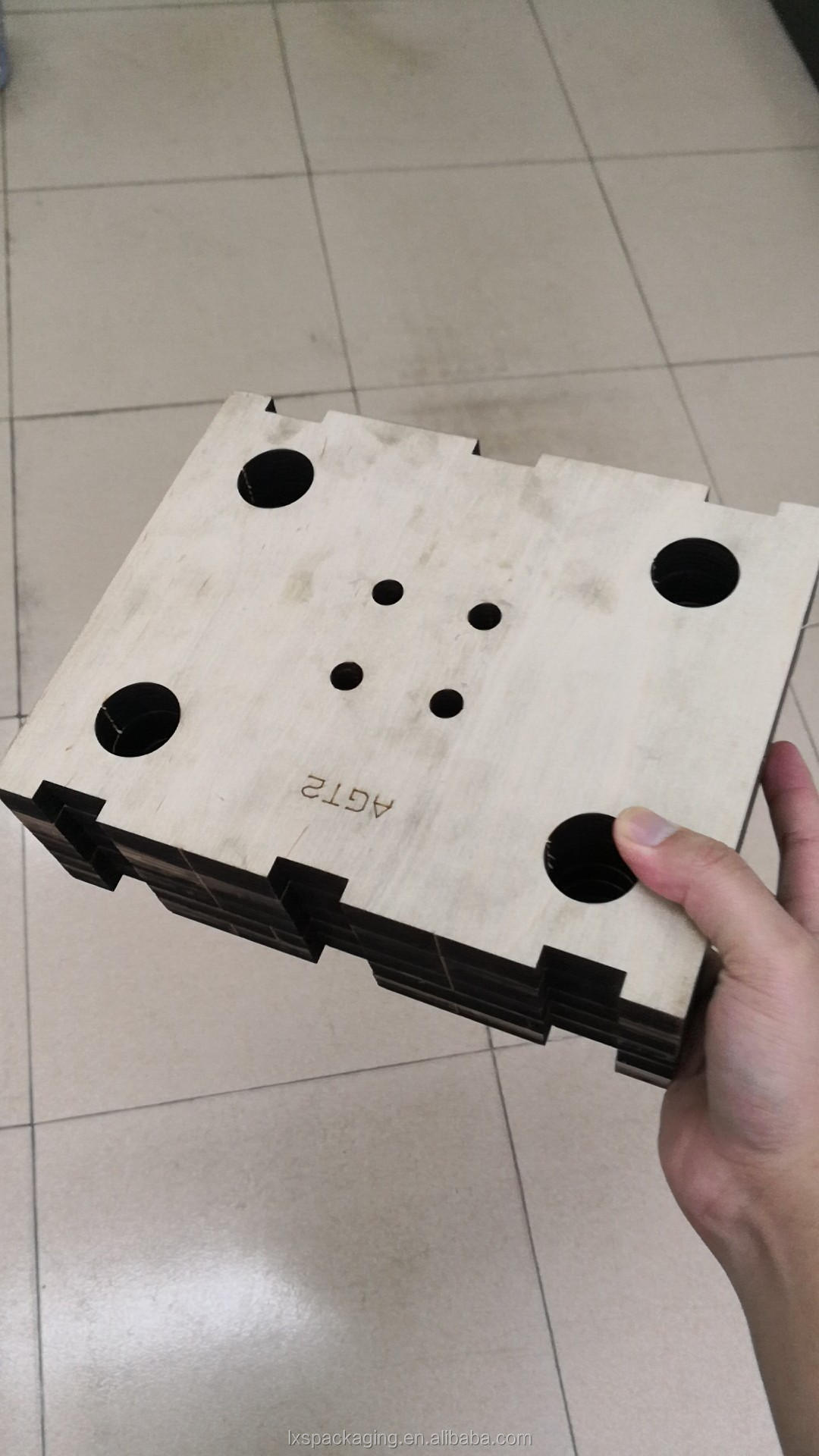

Plastic and wood molds

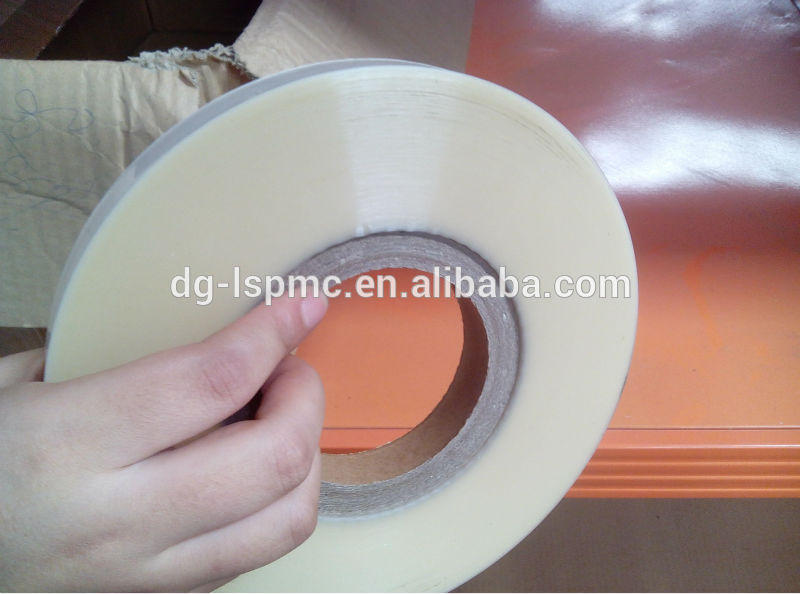

plastic tape

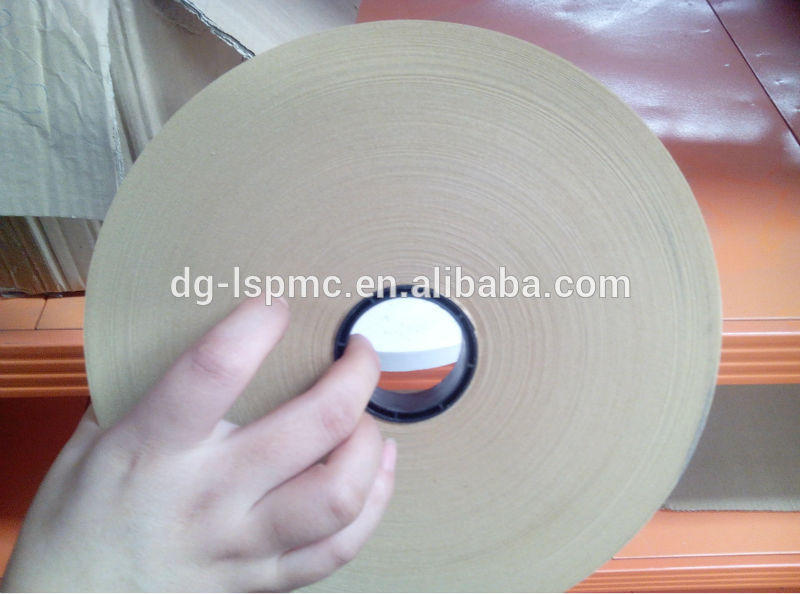

Kraft Paper Tape

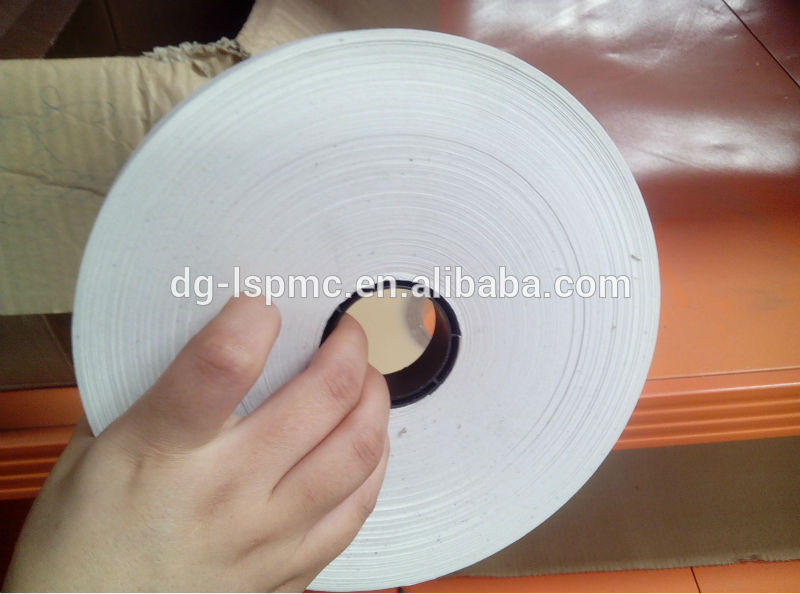

Paper tape

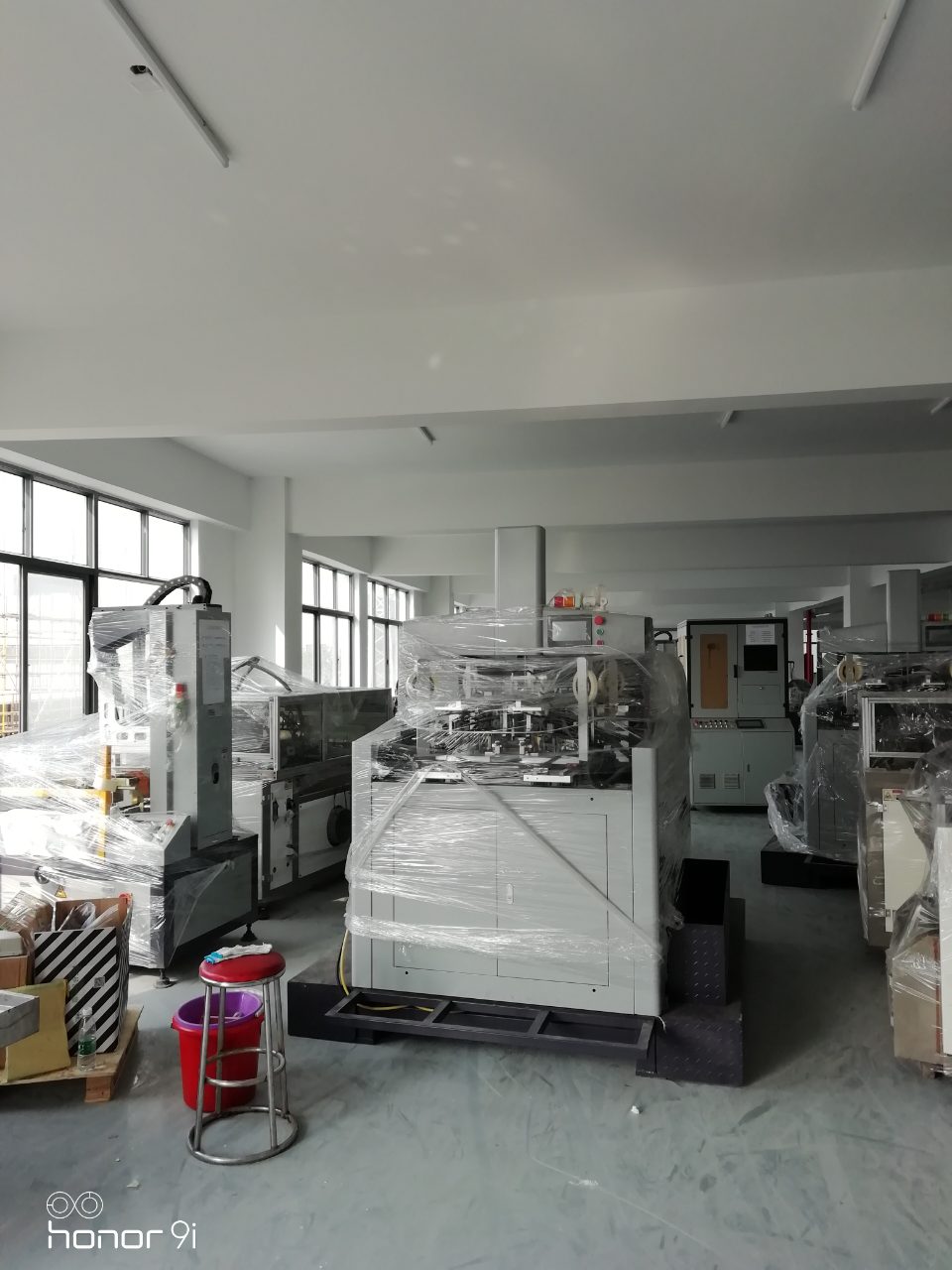

Machine installation
