RT300/RT300A Semi-Automatic Round Box Machine

Supplier: Shanghai SHM International Trading Co., Ltd.
Region: Shanghai, China
Contact: Mr Philias Wang
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	Auto grade:	semi-automatic
Voltage:	220V/380V	Certification:	Chief Executive
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	port:	Shanghai
Packaging Details:	wooden box	Marketing Type:	Hot Products of 2019
Health status:	new	After Warranty Service:	spare parts
Showroom location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile , UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia	Video external inspection:	if
payment terms:	L/C,Western Union,T/T	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Engineering, Energy and Mining, Food and Beverage Stores, Others, Advertising company
Packaging Preview:		weight:	400kg
place of origin; place of origin:	China Shanghai	Mechanical test report:	if
Core Components Warranty:	1 year	Supply capacity:	10 sets per month
Main selling point:	competitive price

Product Description

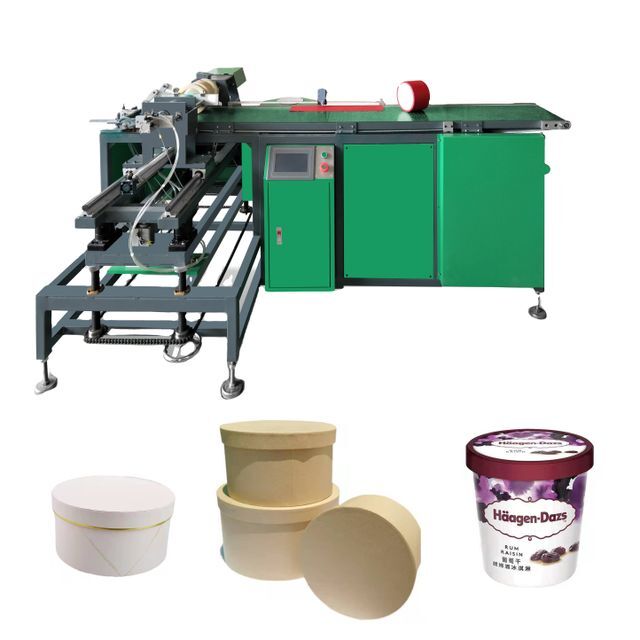

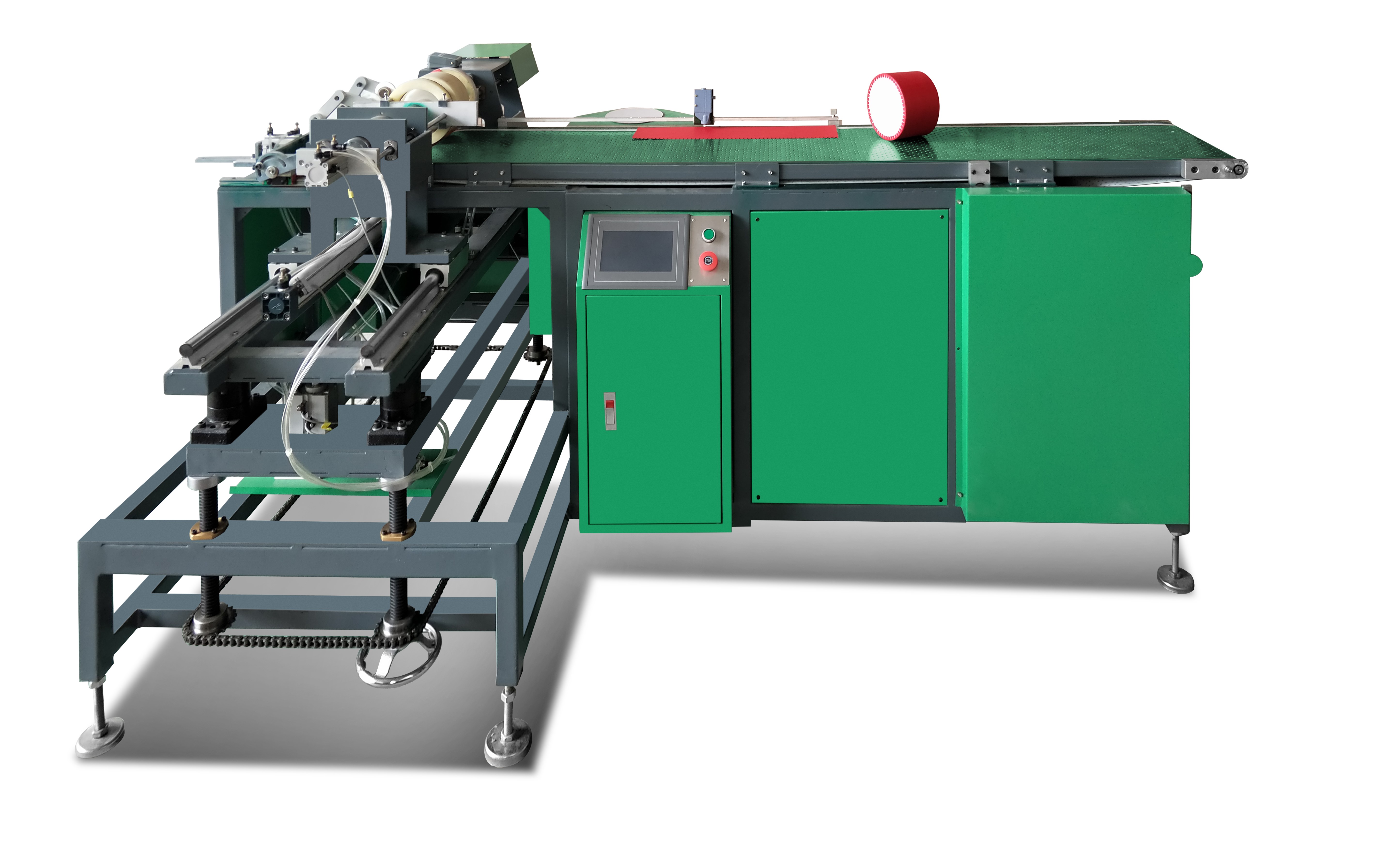

RT300 semi-automatic round box machine

1. Reduce manpower
The machine only needs two people to operate. The speed is 5~8pcs/min (box size will affect the speed).
2, easy to operate, easy to learn and understand.
3. Easy to install.
This machine adopts 220V power supply, which is convenient to connect to the power supply. In addition, the whole machine adopts an overall frame, which avoids the tedious installation and debugging process.
4. Wide range for product size
The machine is available for a wide range of product sizes. Box diameters can be from 70mm to 300mm, including
5. Large scale round box size on the market. We can also manufacture special machines according to customers' special requirements.

Specification

Model	RT300 (without gluing unit)
Maximum diameter of round box	300mm
Minimum diameter of round box	70mm
Round box maximum height	300mm
Minimum height of round box	40mm
speed	4~6 pieces/min
Air	0.5~0.7Mpa
strength	220V 50Hz/1600W
weight	400kg

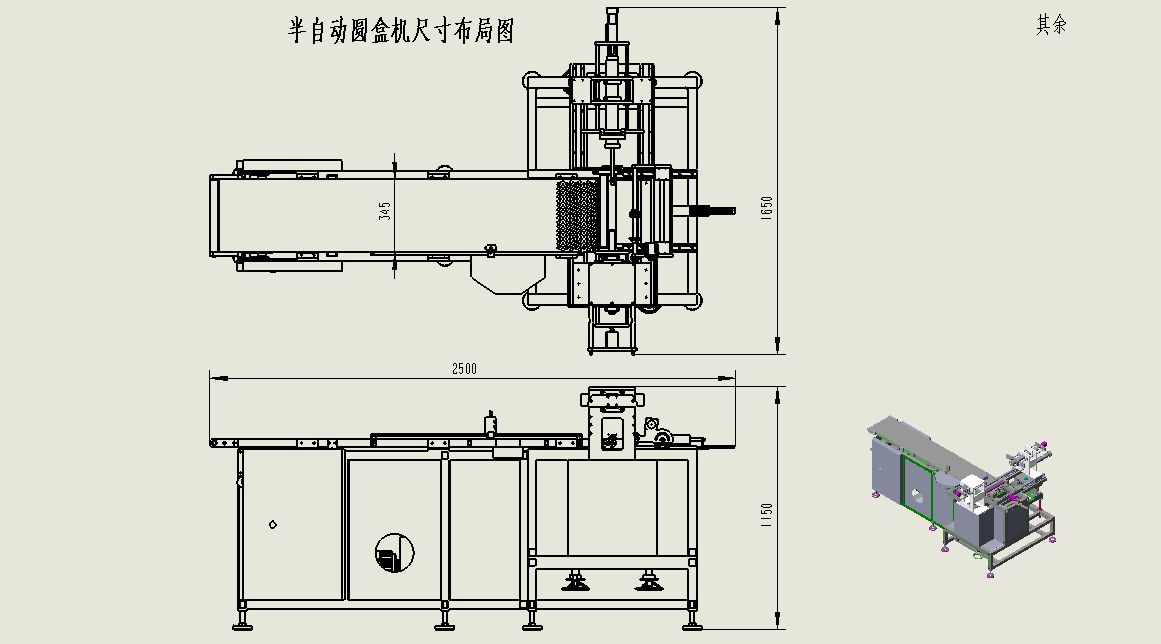

Dimensions (LxWxH)	2500x1500x1150mm
