JRready YJQ-W2A AF8 M22520/1-01 Four-pressure hand crimping tool military specification 12-26AWG

Supplier: Zhejiang Jingrui Instrument & Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Ms Hedy Long
Price: $170.00 / 1 - 4 pieces
$153.00 / >=5 pieces
Min. Order: 1 piece

Click here to contact

Product details

Material:	die steel	ID:	JRready
Sales unit:	single product	pack:	Box
Packaging Details:	Box	product name:	JRready YJQ-W2A AF8 M22520/1-01 Four-tooth manual crimping tool
Minimum order quantity:	1	model:	YJQ-W2A
clamp:	YJQ-W2A	Gross weight per piece:	0.780 kg
Wire crimping range:	12-26AWG (0.128-3.33mm)	standard:	M22520/1-01
quality:	high quality	type:	Four wire presses
Warranty:	3 years	Handle Material:	Soft Grip Plastic
application:	Mil Spec Connector Contacts	place of origin; place of origin:	Zhejiang, China
color:	blue	grade:	DIY, Industrial
Single package size:	29.9X9.8X7.2 cm

The YJQ-W2A has virtually unlimited applications in the specified wire range of 12 to 26 AWG.

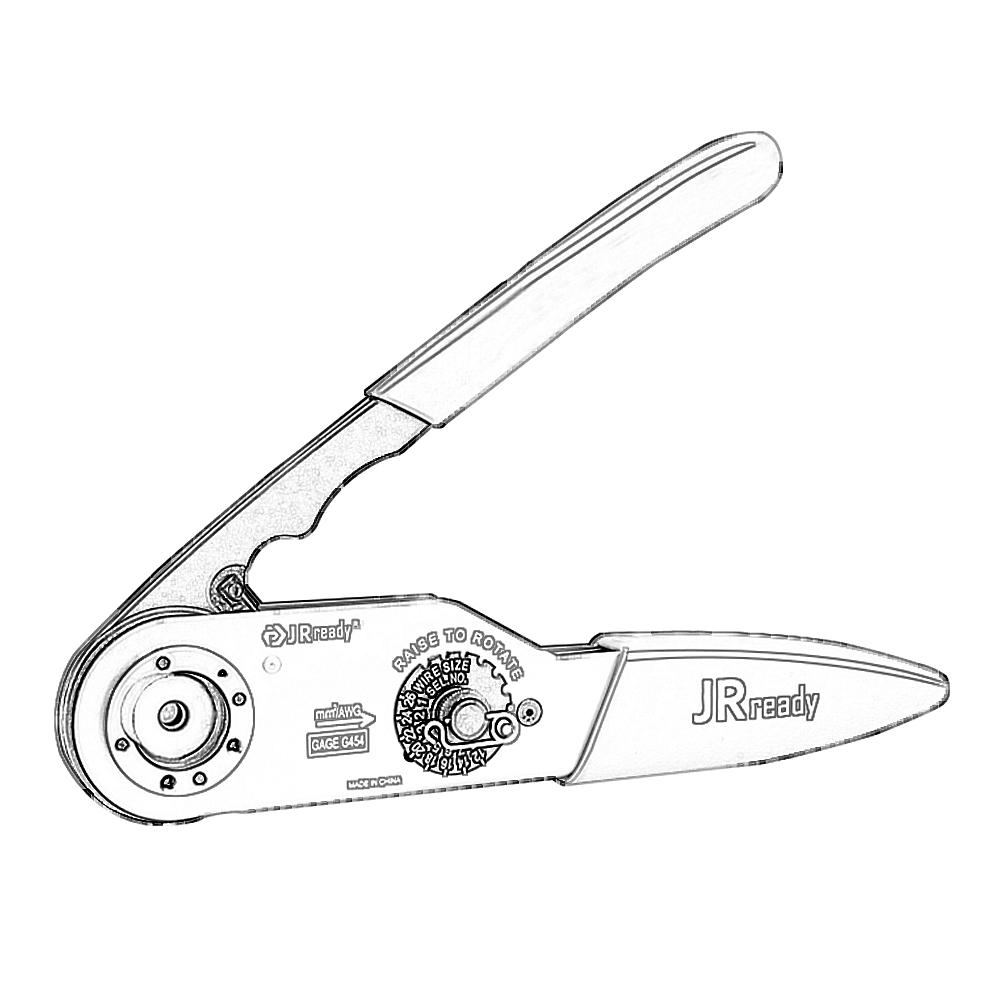

Positive crimp depth is controlled by an 8-position selector knob located on the tool frame.

8 crimps ensure absolute maximum tensile strength for nearly every closed barrel contact. Precision ratchetControls tool cycling in both directions of handle motion. This ensures the same accurate crimp every time.

A well-thought-out design achieves absolute maximum mechanical advantage, and the tool's light weight helps minimize operator fatigue.

PLEASE NOTE: This tool is designed according to MIL-SPEC and manufactured by JRready

Product Description

Specification

thing	value
model	YJQ-W2A
grade	DIY, Industrial
Warranty	3 years
Material	die steel
application	Mil Spec Connector Contacts
Handling materials	Soft Grip Plastic
place of origin; place of origin	China
	Zhejiang
product name	JRready YJQ-W2A AF8 M22520/1-01 Four-tooth manual crimping tool
type	Four wire presses
logo	JRready
clamp	YJQ-W2A
standard	M22520/1-01
color	blue
Wire crimp range	12-26AWG (0.128-3.33mm)
Minimum order quantity	1
quality	high quality
pack	Box
