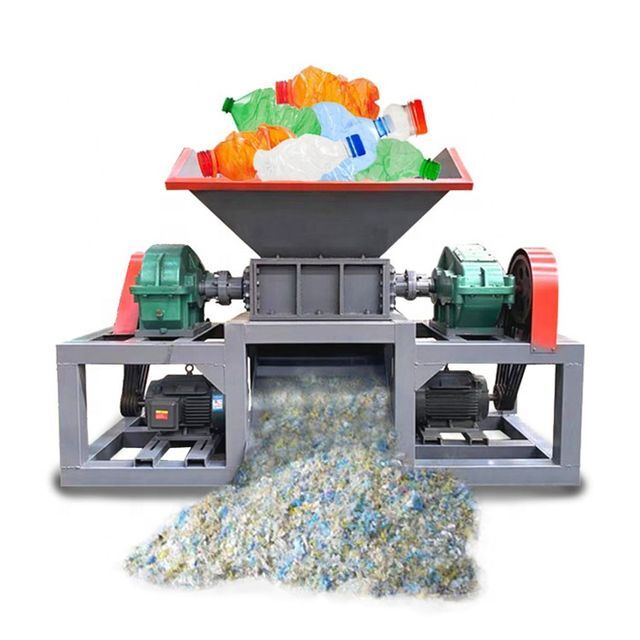

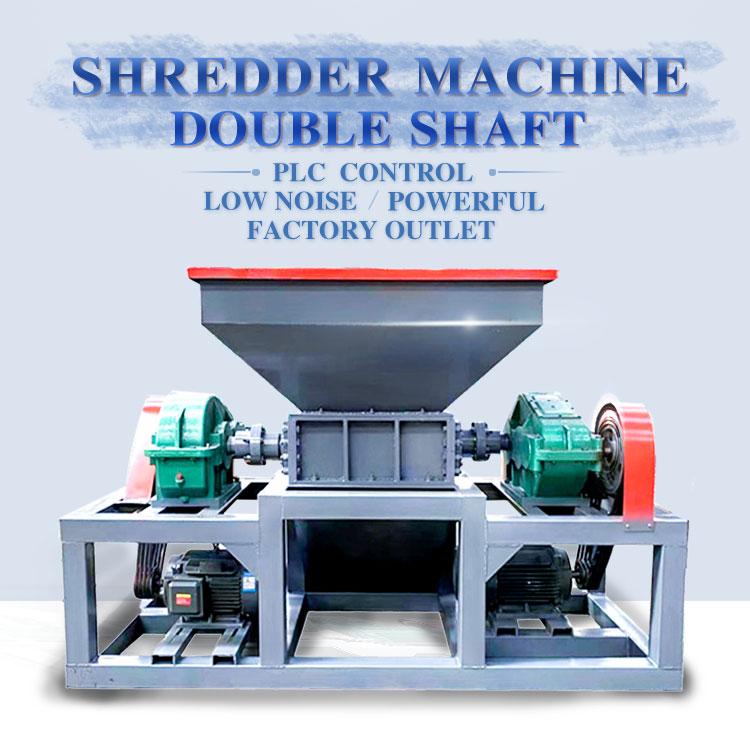

Tube drum bottle film tray plastic shredder recycling machine
- 3800.00 1 - 1 sets
- 3700.00 >=2 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Plastic Type: | PVC,PET,ABS,PP/PE,PE,PP,PC,PMMA,PA,PS | color: | client needs |
| Mechanical test report: | if | Crushing particle size: | 1-6cm |
| Spindle speed: | 12-26r/min | Dimensions (L*W*H): | 1400*600*1400mm |
| Main selling point: | automatic | Marketing Type: | New Products 2020 |
| Production capacity (kg/hour): | 800 - 1000 kg/h | Power (kW): | 5.5 |
| port: | Qingdao Xuchang Guangzhou | Raw materials: | Scrap metal, plastic, waste plastic |
| brand: | Fanson | motor: | 2 motors |
| Packaging Preview: | Showroom location: | not any | |
| Shaft Design: | double, double | Health status: | new |
| Supply capacity: | 50 sets per month | Blade tool diameter: | 140mm |
| payment terms: | Western Union, T/T, MoneyGram | Type of machine: | Plastic Shredder |

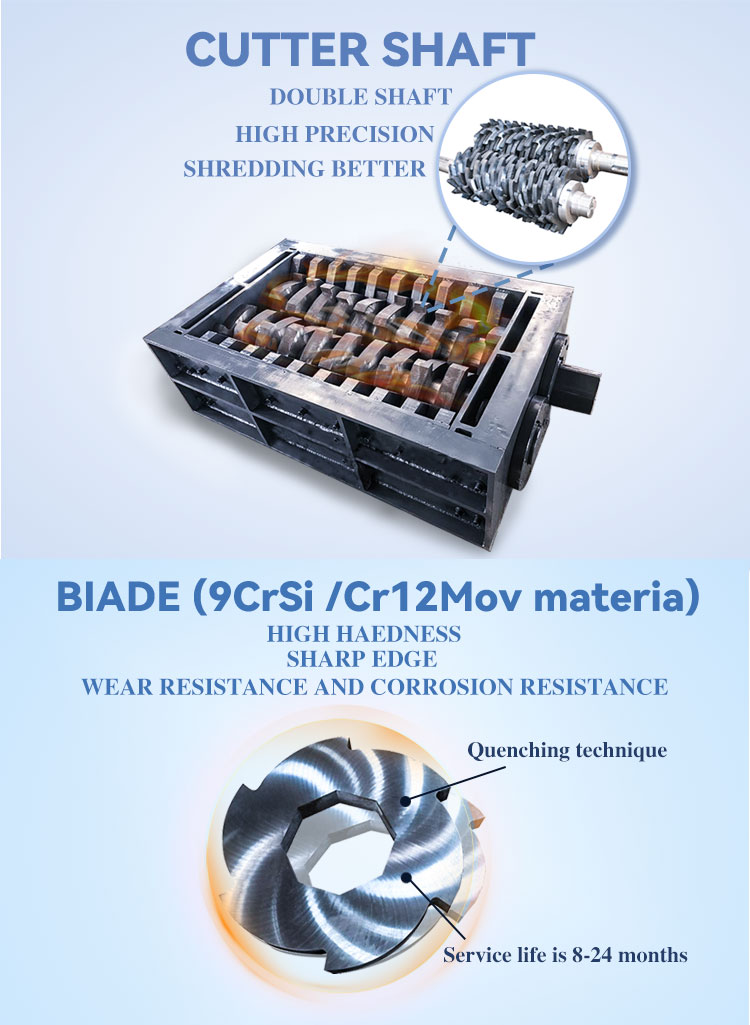

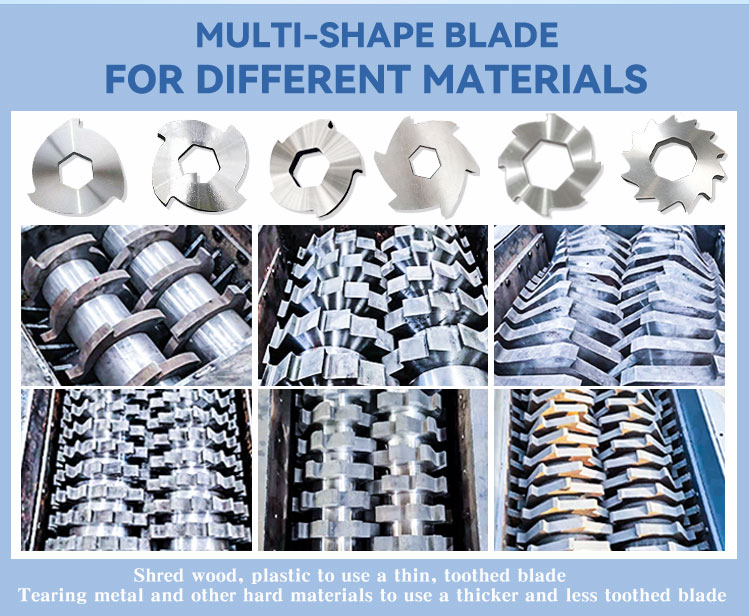

| Blade Cutter: | 18 pcs | Packaging Details: | Machine size (length*width*height): 1430*1500*1200 international standard wooden box small shredder double shaft shredder tube barrel bottle film tray plastic shredder recycling machine |
| Weight (tons): | 1.6 | Feed chamber size: | 300*250mm |
| Core components: | motor | Warranty: | 1 year |
| Core Components Warranty: | 1 year | use: | Plastic Pipe Crusher |
| Voltage: | 380-440V/50-60hz | Maximum production capacity (kg/hour): | 1000 |
| Applicable industries: | Manufacturing plants, recycling industry | Video external inspection: | if |
| place of origin; place of origin: | Henan, China | Blade material: | alloy |

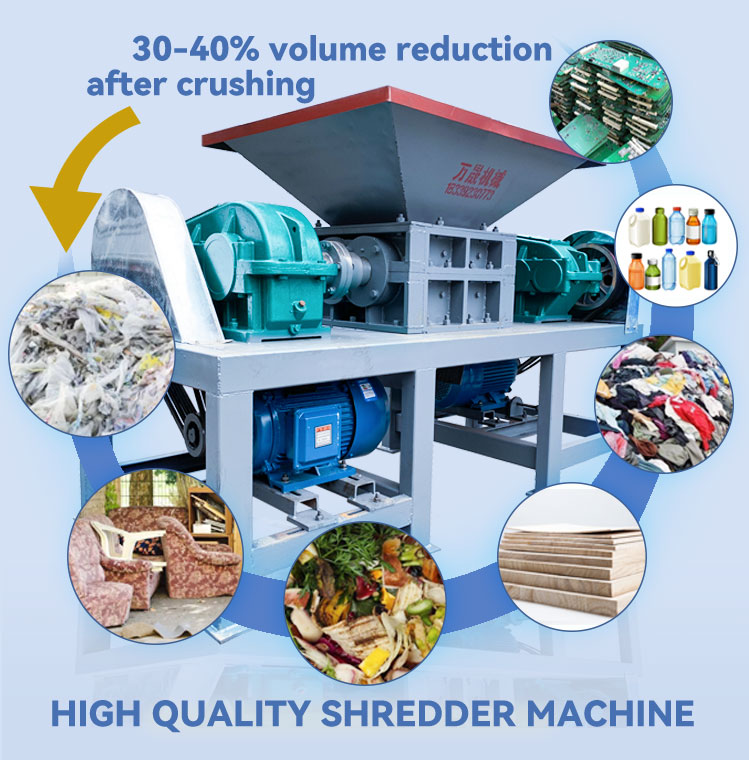

Tube drum bottle film tray plastic shredder recycling machine
product description
Shredders are used as fine machinery and are generally used to process raw materials or leftovers to make them smaller in size. A typical example is the shredding of plastic or rubber scraps, which are used as raw materials for melting and granulation, and for recycling plastic bottles, tires, or trash cans. Shredders are used in the plastic recycling industry, and are often used for the crushing of large-diameter PE plastic pipes, packaging plastic films, large piles of plastic sheets and machine head materials.
Model | 300 | 400 | 500 | 600 |
Silo size (mm) | 300*250 | 400*250 | 500*480 | 600*550 |
Tool diameter (mm) | 140 | 160 | 220 | 260 |
Spindle speed (r/m) | 12-26 | 12-25 | 12-24 | 18-20 |
Motor power (Kw) | 5.5*2 | 7.5*2 | 15*2 | 18.5*2 |
Number of blades (pcs) | 12-30 | 8-20 | 10-25 | 6-20 |
Blade thickness (mm) | 10-25 | 10-25 | 10-25 | 15-50 |
Capacity (kg) | 50-200 | 300-500 | 1500-2000 | 800-1500 |
Output size (cm) | 1-6 | 1-6 | 1-6 | 1-6 |
Dimensions (mm) | 1400*600*1400 | 1800*1500*1600 | 2200*1800*1700 | 2600*2000*1900 |
Weight (kg) | 500 | 1800 | 2200 | 2500 |
