XINKE Makine Logo Kraft Window Bag Printing Machine

Supplier: Ruian Xinke Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Linda Yang
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

model:	XKFD-180/220/280/330/450	Type of machine:	Making Machine
Marketing Type:	2021 latest	speed:	150-300 pieces/min
Mechanical test report:	usable	Main selling point:	High speed/fast delivery
port:	Ningbo Port	Core Components Warranty:	1 year, lifetime service
brand:	Shinco	Machine Color:	supply
Original Equipment Manufacturer:	supply	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Voltage:	380V, 50Hz, three-phase, four-wire	After-sales service provided:	On-site installation, commissioning and training
Supply capacity:	300 sets per month	Core components:	Motors, Pressure Vessels, Pumps, PLCs, Others, Gears, Bearings, Engines, Gearboxes
Material:	Paper	Dimensions (LWH):	9000X3200X1800MM
Packaging Details:	Packing Details: Film pack, then 20ft or 40ft container	Maximum speed:	160/min
weight:	6000kg	Bag Type:	fruit bag
place of origin; place of origin:	Zhejiang, China	Warranty:	1 year
Showroom location:	Egypt, USA, Italy, Vietnam, Peru, Saudi Arabia, Indonesia, India, Russia, Kenya, South Korea, Romania, Bangladesh, Ukraine	Computerized:	Yes
Local service location:	Saudi Arabia	Video external inspection:	if
Health status:	new	Applicable industries:	Hotels, Apparel Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Energy and Mining, Food and Beverage Stores, Advertising Agencies, Construction Works

Product Description

Model	XKFD-180	XKFD-220	XKFD-280	XKFD-330	XKFD-450

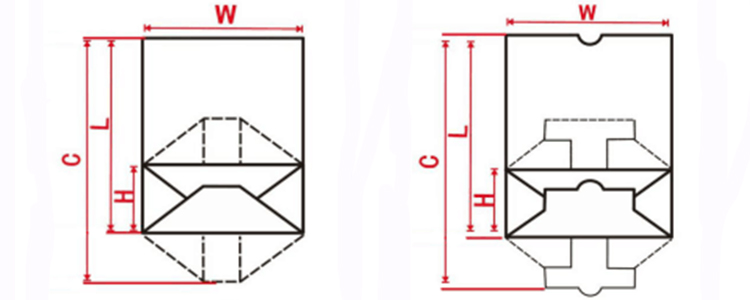

Bag width (mm)	80-180	80-220	100-280	150-330	220-450
Bag length (mm)	150-320	145-320	225-450	220-450	210-450
Bottom width of bag	50-105	60-120	60-160	60-160	80-180
Paper grams (g/m2)	50-130	50-130	60-160	60-160	80-160

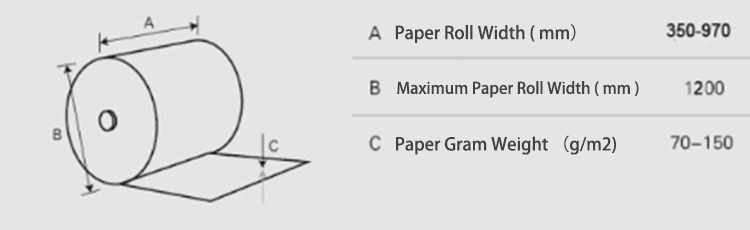

Inner diameter of paper core (mm)	76	76	76	76	76
Maximum discharge diameter (mm)	ɸ1200	ɸ1200	ɸ1200	ɸ1200	ɸ1200
Maximum speed (pcs/min)	200	200	180	160	150
Total power (kw)	10	10	12	12	15
Machine weight (kg)	5000	5500	7000	8000	9000
Machine size (mm)	900030001800	900035001800	1050036001900	1050037001900	1050038001900

product description:

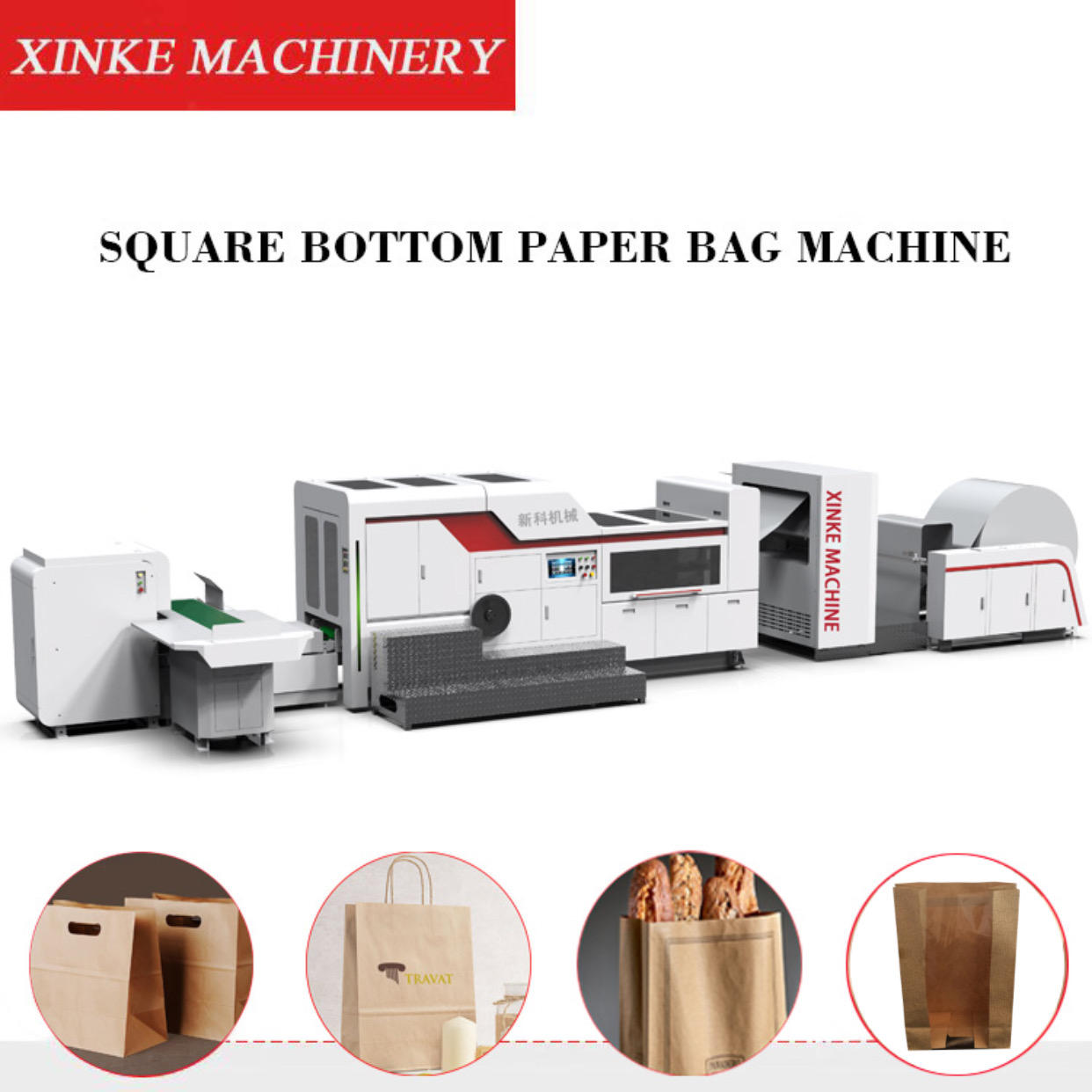

This machine can produce square bottom paper bags at one time using primary color paper or printed web paper. This machine can produce all kinds of paper bags with high speed and high production efficiency. It is an ideal equipment for paper bag production.

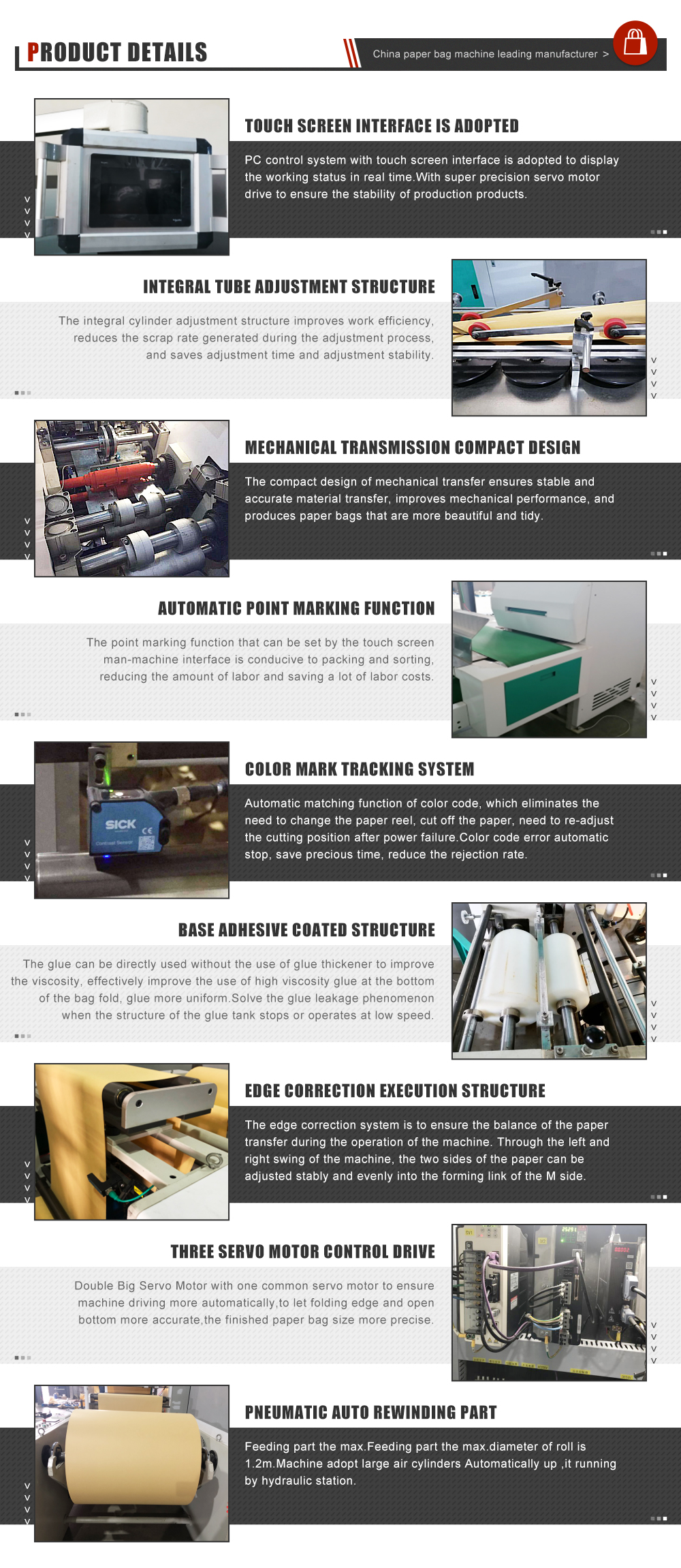

This machine consists of roll paper feeding (hydraulic paper feeding, automatic deviation correction, constant tension), side gluing, printing paper electric eye tracking, base paper feeding, fixed-length traction cutting, bag bottom creasing and opening bottom, bag bottom gluing and folding molding Composition and bag output. The whole machine is controlled by the computer central control system, the touch screen displays, and the servo motor controls the length of the paper bag.

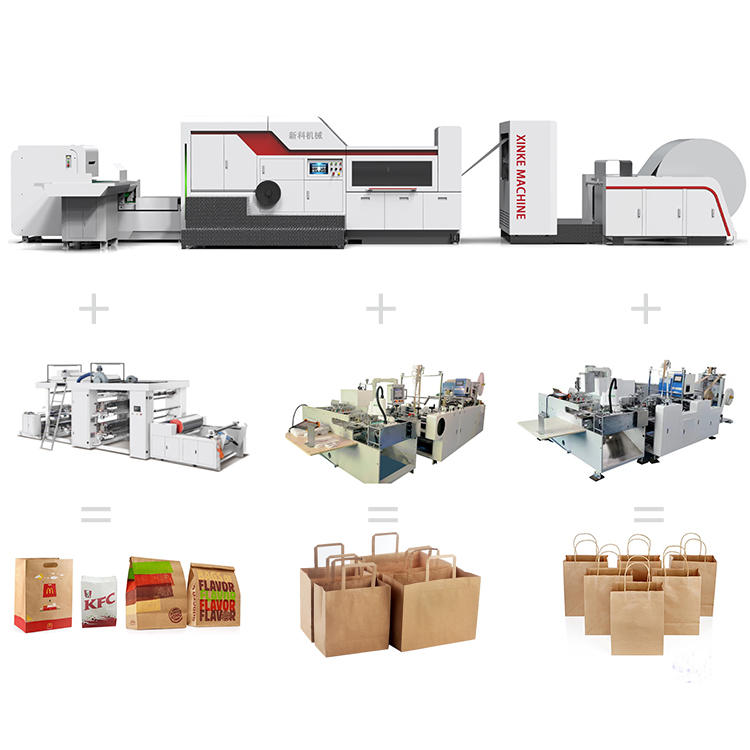

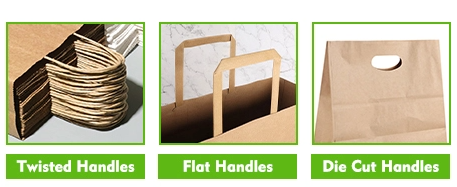

According to customer needs, two/four-color printing press, paper bag window opening device, paper bag hand hole device or paper handle device can be customized.

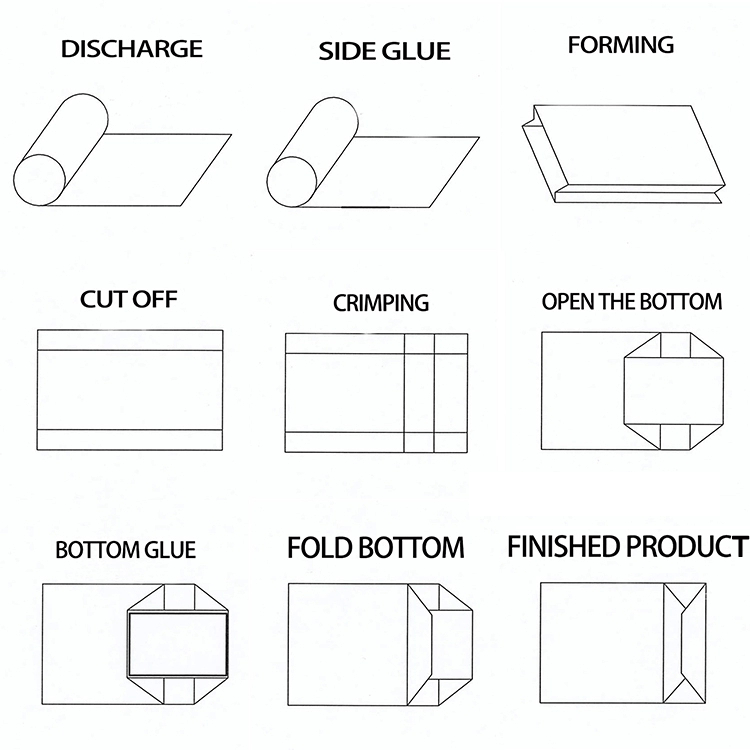

Production Process

you can tell me what you think,

I will match you with the most suitable production line.

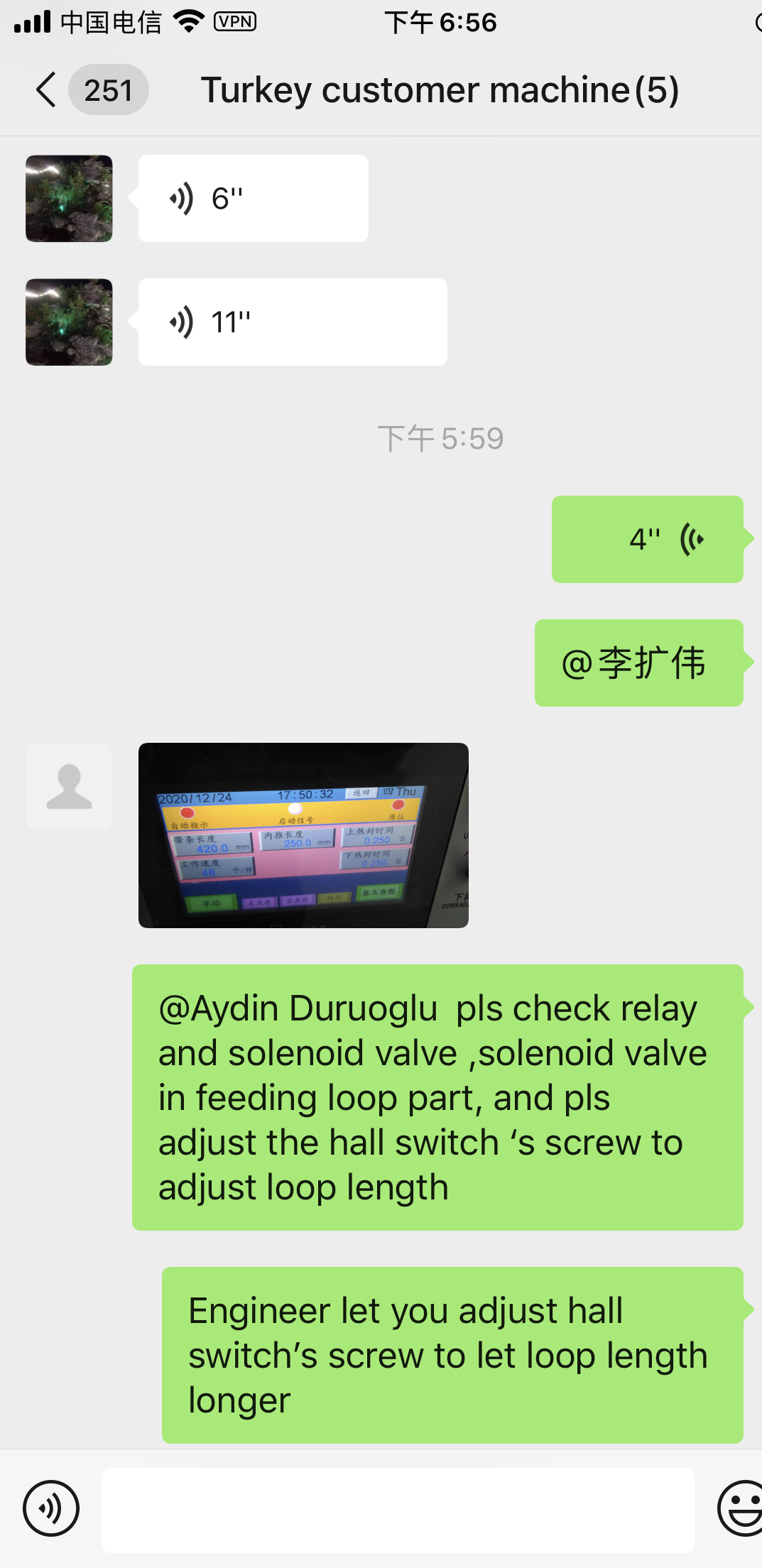

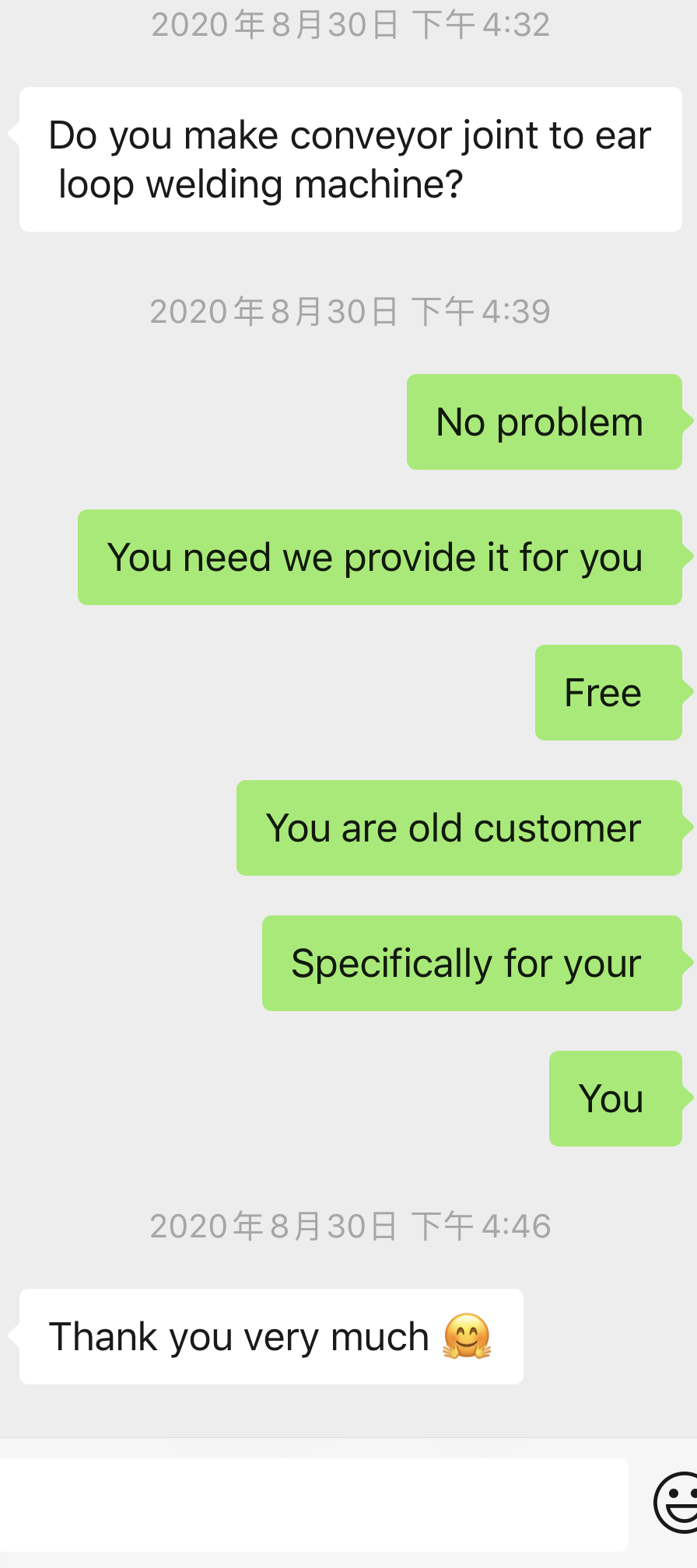

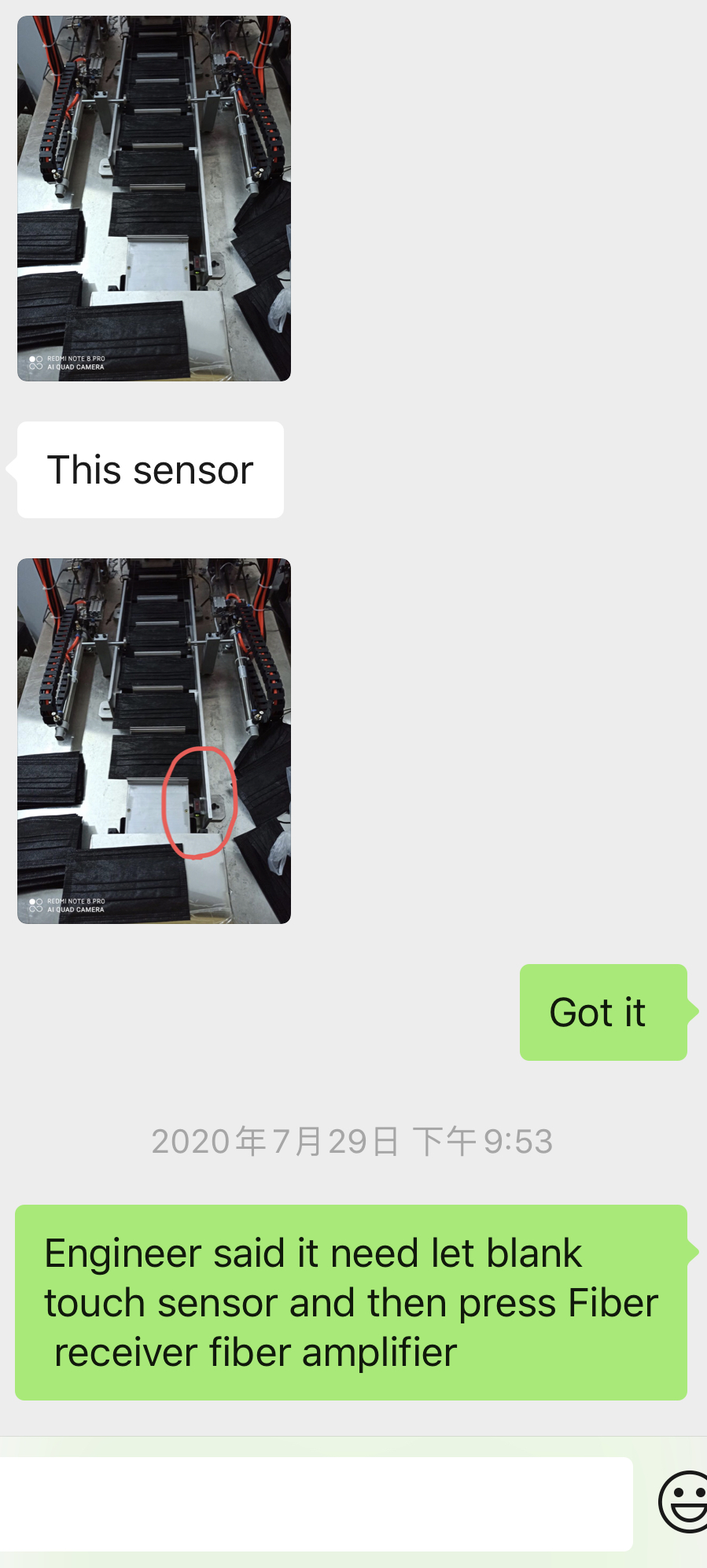

After-sales service

1. Quality commitment: one year warranty, lifetime maintenance, wearing partsFree for 12 months.

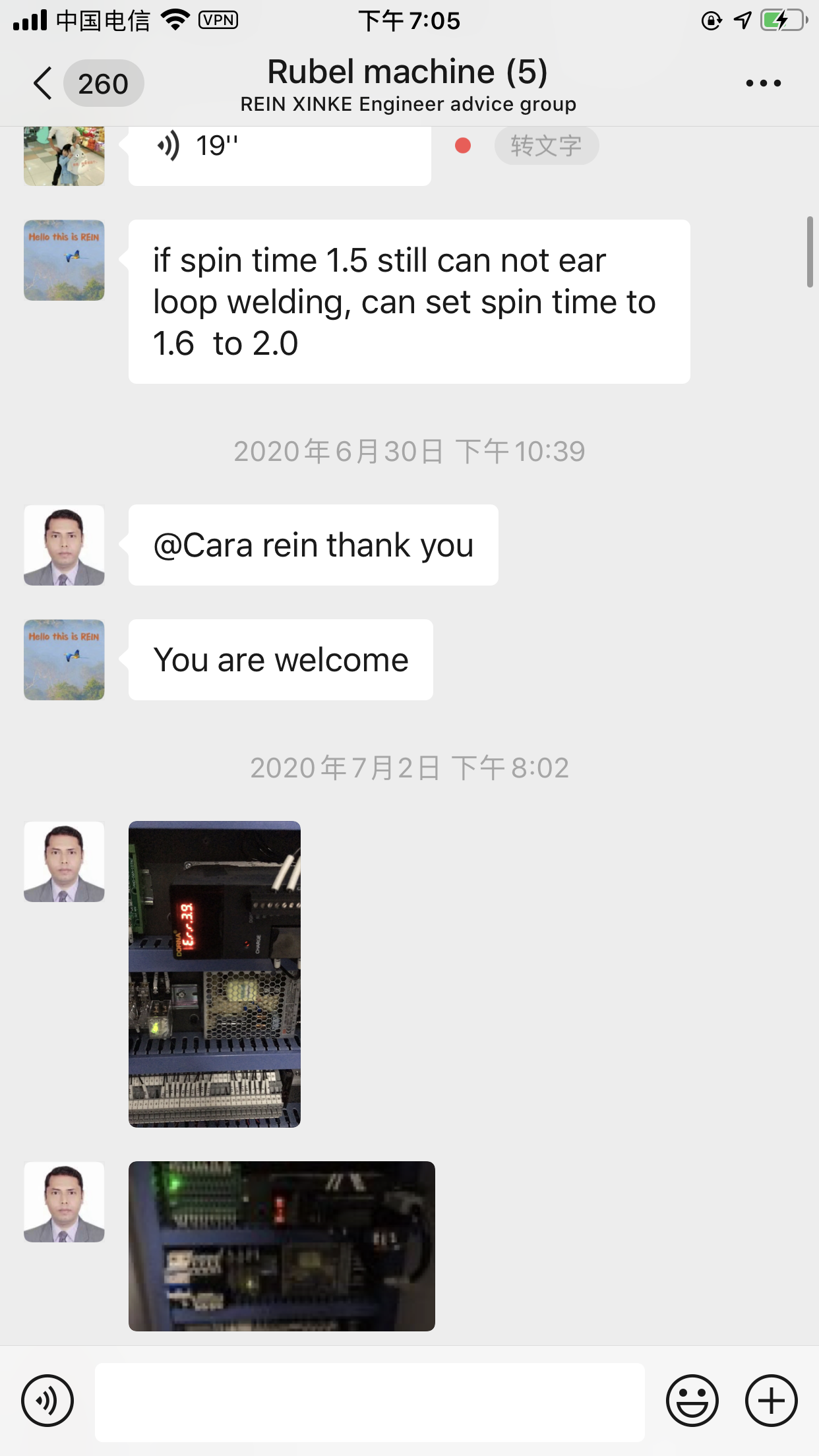

2. After-sales service:24 hours onlineHelp customers solve problems.
3. Operation guide: After the customer receives the goods, the engineer willGuided installation throughout.
4. Machine parts:All machine parts are imported well-known brands, which is convenient for customers to repair and purchase by themselves.

We have a perfect after-sales service team!
