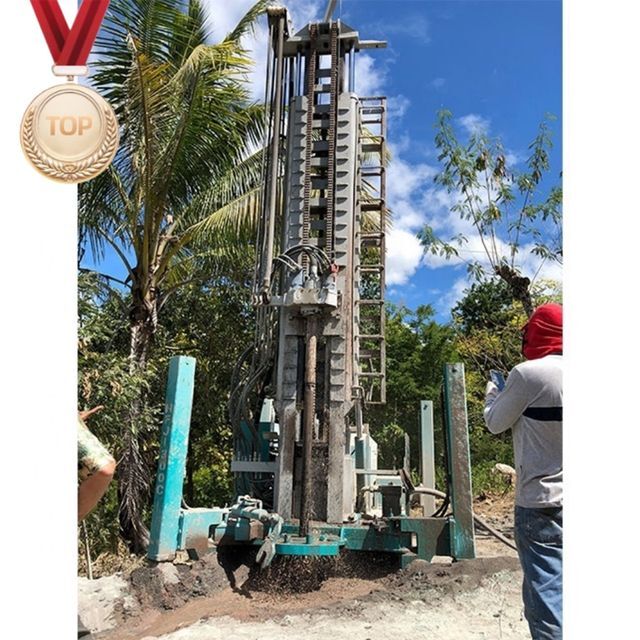

260m/360m/460m/560m hydraulic crawler drilling water well drilling rig mining drilling rig Products from Zhengzhou Hanfa Prospecting Machinery Co., Ltd.

Product Details

maximum. Rotational torque:	4500-6500N.m	Main selling point:	automatic
fluidity:	mobile	Supply capacity:	20 sets per month
Packaging Preview:		payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Core Components Warranty:	1 year	Air consumption:	16-60m3/min
brand:	high frequency	type:	water well drilling rig
spinning speed:	0-90 rpm	Power Type:	diesel engine
Dimensions (LWH):	480020002450mm	Marketing Type:	New Products 2021
Warranty:	1 year	Maximum rotational torque:	8000nm
Working pressure:	1.05-3.5MPa	Mechanical test report:	if
Maximum Lifting Force:	16 tons	Core components:	Motors, pumps, bearings
product name:	300m water well drilling rig	Packaging Details:	Standard export packing or according to your needs
weight:	8500kg	Showroom location:	not any
usage:	well	Voltage:	220v/380v
Walking speed:	3 km/h	port:	Tianjin, Qingdao, Shanghai
Drilling diameter:	105-325mm	Health status:	new
place of origin; place of origin:	Henan, China	Drill pipe diameter:	76/89mm
Applicable industries:	Farm, Home Use, Construction, Energy & Mining	Drilling depth:	Maximum 560m
Video external inspection:	if	Drill pipe length:	3m

If you need a water well rig, please contact us, this is my WhatsApp, you can also send me your inquiry, we will help you make more money.

WhatsApp: +8617739786040

Email: info@hanfagroup.com

Tel: 0086-371-55019599

Water well rig upgrade price unchanged Drilling depth increased

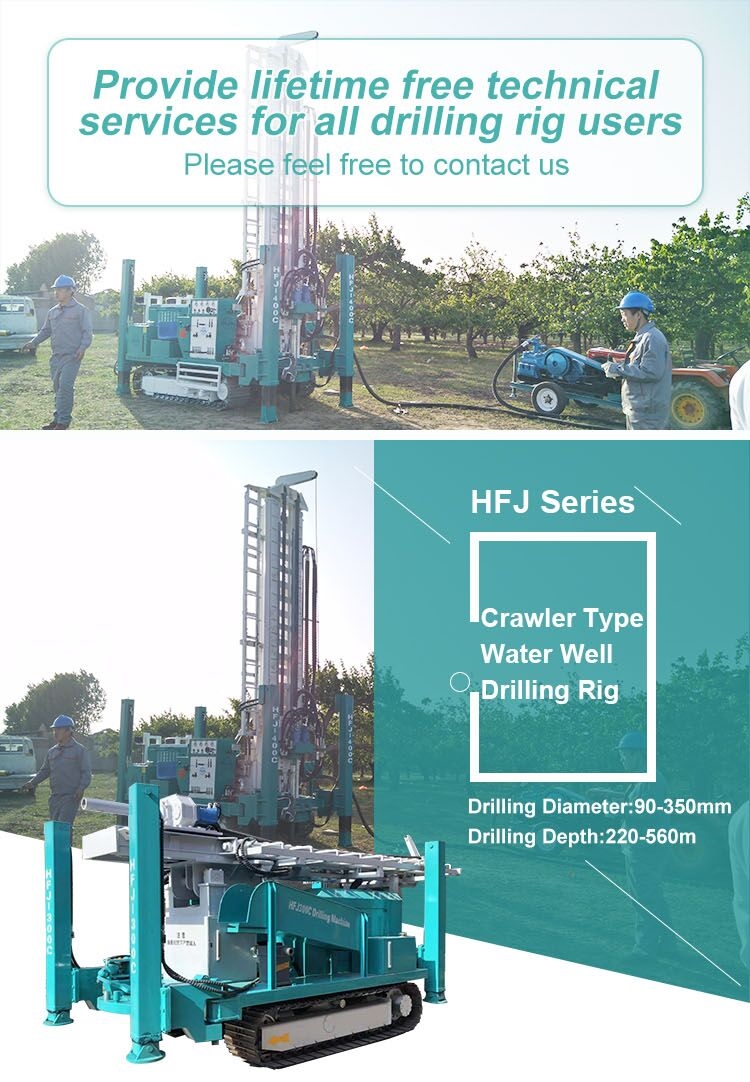

Model (new)	HFJ220A	HFJ260A	HFJ360A	HFJ460A	HFJ560A
maximum. Drilling depth	220m	260m	360m	460m	560m
Drilling diameter	90-254mm	90-315mm	105-325mm	105-350mm	105-350mm
working pressure	1.05-2.46Mpa	1.7-3.0Mpa	1.05-3.45Mpa	1.05-3.45Mpa	1.05-4.5Mpa
Air consumption	16-30m³/min	17-35 m3/min	16-55 m3/min	16-55 m3/min	16-60 m³/min
Drill pipe length	3m	3m	3m/4.5m/6m	3m/4.5m/6m	3m/4.5m/6m
Drill pipe diameter	76/89mm	76/89mm	89/102mm	89/102mm	89/102/114mm
Axial pressure	4T	4T	4T	10T	12T
Lifting force	12T	14T	20T	24T	28T
Lifting speed	2.5m/min	2.5m/min	3.0 m/min	3.0 m/min	3.0 m/min
Traction speed	0.5-5m/min	0.5-5m/min	0.5-5m/min	0.5-5m/min	0.5-5m/min
Lifting speed is fast	18m/min	18m/min	30m/min	25m/min	25m/min
Fast drawing speed	35m/min	35m/min	50m/min	40m/min	40m/min
maximum. Rotational torque	4200-5600Nm	4500-6500Nm	6500-8500Nm	7500-9500Nm	8500-11000Nm
spinning speed	48-70r/min	50-70r/min	60-100r/min	45-120r/min	75-150r/min
Mud pump flow	20L/min (optional)	20L/min (optional)	20L/min (optional)	20L/min (optional)	20L/min (optional)
High hydraulic leg stroke	1.5m	1.5m	1.5m	1.5m	1.5m
Walking speed	2.5 km/h	2 km/h	3.5 km/h	3.5 km/h	3.5 km/h
Gradeability	30°	30°	30°	30°	30°
weight	4.7 tons	5.4 tons	8.5T	10.5 tons	11.5T
aspect	360017002150mm	390017002150mm	480020002450mm	570020002550mm	580022502550mm

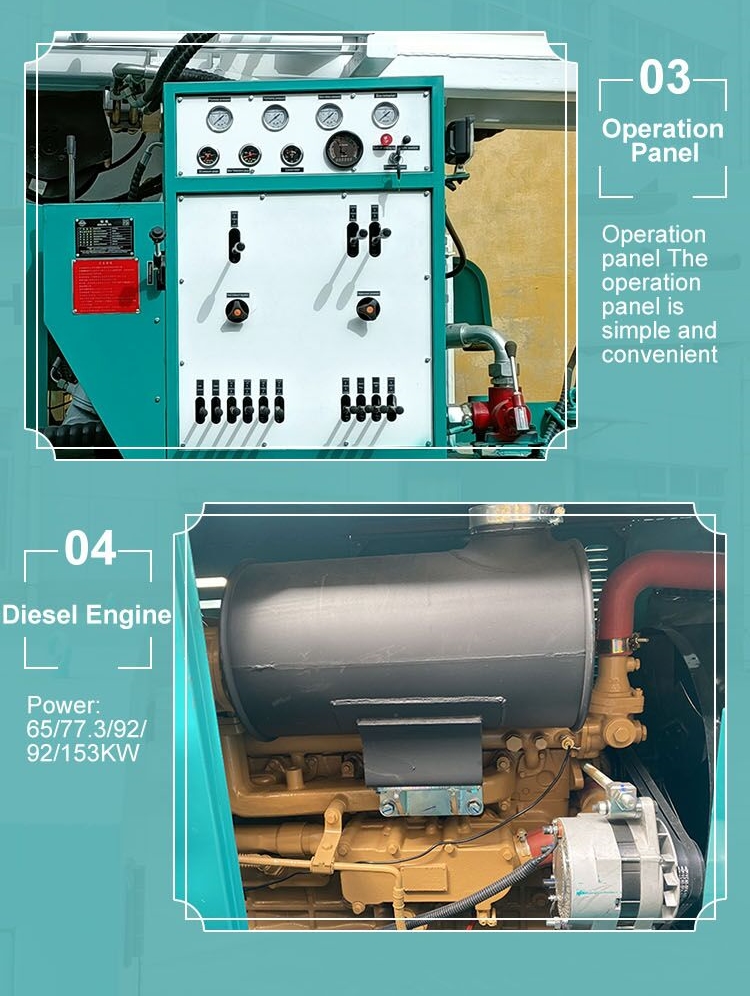

strength	55kW	77.4kW	93KW	94KW (6 cylinders)	153kW
