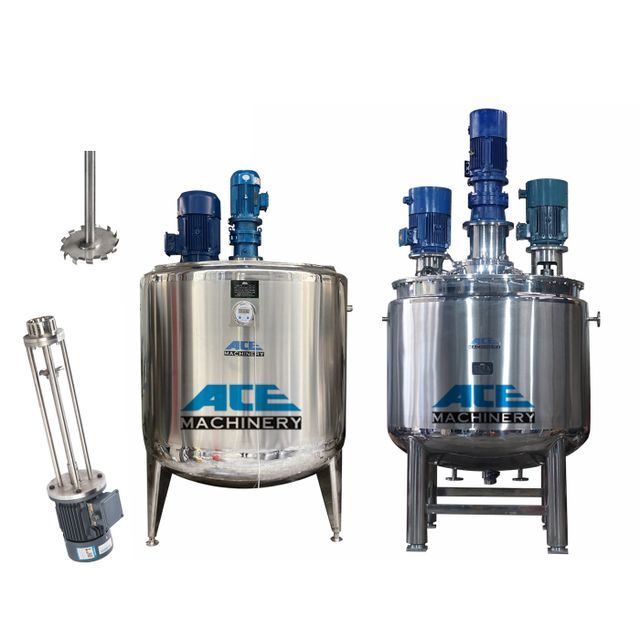

Stainless steel emulsion mixing tank 100l 200l 500l 1000l 2000l 5000l Chemical mixing tank for high cut homogenizers

Stainless steel mixing tank
volume	50L-30,000L
Material	SS304/SS316L
	Jacket: Full jacket, pit jacket, coiled tubing
	Insulation layer: PU/rock wool
	As for the thickness, we can make it according to your requirements.
describe:	Designed according to 3A standards, widely used for conveying viscous media in the food processing, cosmetic and pharmaceutical industries
heating method:	Heating by electricity (oil or water), steam, circulation (hot water or oil)
Configuration:	1. Manhole
	2.CIP spray ball
	3. Adjust the feet
	4. Sight glass
	5. Thermometer
	6. Pressure gauge/vacuum gauge
	7. Breathe
Mixer Type:	Homogenizer or agitator (anchor, frame, agitator with side scrapers, blades, impeller)
Machinery Seal:	Silicon Carbide/Silicon Carbide/EPDM Rubber (Standard)
Stirrer power:	0.55kw -75KW
Sealing Options:	Sanitary single mechanical seal / double mechanical seal with cooling system
Voltage:	220V -480V
motor:	ABB, Siemens, SEW, domestic
Surface treatment:	Internal and external polishing
Available connections:	Clamps, threaded butt welds, flanges
Available standards:	DIN, SMS, 3A, RJT, ISO/IDF
Scope of application:	Dairy products, food, beverages, pharmaceuticals, cosmetics, etc.
Packaging Details:	Export plywood case
Delivery Details:	Usually within 25-30 days after receiving T/T down payment
Note: The capacities of our mixing tanks are all customizable. If you have any questions about our products, please feel free to contact us!

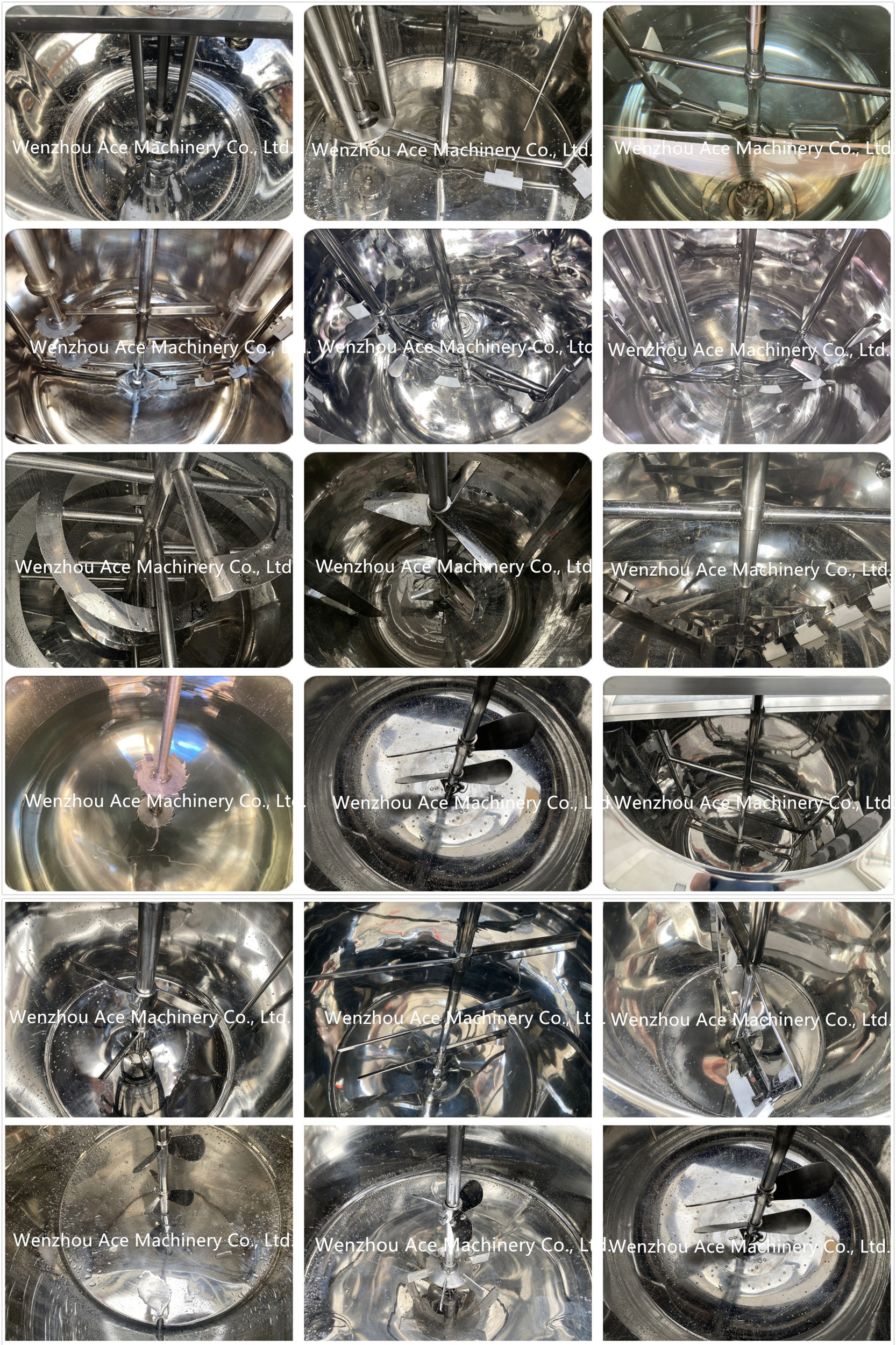

There are different kinds of mixers: (other mixers can be customized)
1. Magnetic stirrer with propeller impeller at the bottom, rotating speed 50-400rpm or 50-800rpm. This blender is for mixing thin consistency, such as eye drops, injections, CIP solutions, water, etc.
2. Top mechanical agitator with propeller impeller, fixed speed 71rpm or adjustable 20-200rpm or special requirements. Such agitators are used to mix syrups, injections, blood, oral liquids, culture media, and the like.
3. Top mechanical agitator with anchor or frame impeller at 10-70rpm. It is mixed with higher viscosity, such as sediment or viscous oral liquid.
4. Top emulsification homogenizer, the maximum speed of small container is 2900rpm, and the maximum speed of large tank is 1480rpm. This type of mixer is for mixing most high viscosity, such as suspensions, oils, fat emulsions, etc.
5. Bottom emulsification homogenizer, the maximum speed of small container is 2900rpm, and the maximum speed of large tank is 1480rpm. This type of mixer is for mixing most high viscosity, such as suspensions, oils, fat emulsions, etc.

Stainless steel mixing tanks can generally be divided into three categories in terms of structure:

1. Single-layer structure. No jacket is required to achieve internal coil heating or cooling, or the electric heating tube can be directly inserted into the stirring tank for heating.

2. Double layer structure. The jacket can be used for heat transfer oil circulation heating, water circulation heating, steam heating and other heating methods. According to the heating temperature, electric heating can be selected if there is no steam boiler, and water bath heating can be selected if the temperature requirement does not exceed 100℃. This structure has no insulating layer, so the heat is volatile.

3. Three-layer structure. With rock wool or polyurethane (PU) insulation and 2mm stainless steel coating, the mixing tank is elegant.

1. The system adopts one-way or two-way scraping wall stirring and frequency conversion speed regulation, which is suitable for different working environments

2. The material can be heated or cooled according to the process requirements, and the heating method can choose steam heating or electric heating according to customer requirements;

3. There are various forms of agitators, suitable for the production of different types of products;

4. The material is SUS304 or 316L stainless steel, and the tank body and pipe are mirror polished;

5. Optional dispersing head or emulsifying head can accelerate the dissolution and emulsification of materials; it integrates high-speed shearing, dispersion, homogenization, mixing and crushing. The emulsification tank also has the functions of heating, cooling, heat preservation and stirring. The tank is designed with inlet and outlet to provide all conditions for the emulsification process

6. The stainless steel electric control box can comprehensively monitor the operation of the equipment, and can display data such as temperature and stirring speed;

application:

Used as mixing tanks, mixing tanks, preparation tanks, fermentation tanks and sterilization tanks.

It is suitable for food, dairy products, fruit juice drinks, pharmaceuticals, chemicals, bioengineering and other fields.











We are experienced in the whole packing and shipping process, we will be responsible for any damage caused during shipping and replace it for customers free of charge.
* Full internal protection with different materials, including bubble bags, foam boards, etc.
* Qualified wooden packaging or carton for different products or according to customer requirements
* Strict packaging process to ensure the safety and integrity of the goods
