Hot Sale Pa2000 Series Low Voltage ABC Cable Accessories Adss Insulated Dead End Anchor Clamps

Supplier: Yongjiu Electric Power Fitting Co., Ltd.
Region: Zhejiang, China
Contact: Mr Andy Wang
Price: $0.18 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

brand:	YOJIU or customized	Destruction load:	20KN
other:	Provide OEM service	model:	YJPA2000
Voltage:	Below 1000V	port:	Ningbo
standard:	International Organization for Standardization	Supply capacity:	500,000 ABC dead end fixtures per month
application:	for wire suspension	Certificate:	International Organization for Standardization
sample:	available	Material:	Aluminum alloy, steel
product name:	Power Tension Abc Cable Clamp	payment terms:	L/C,Western Union,T/T,MoneyGram
place of origin; place of origin:	Zhejiang, China	Youjiu Occupation:	30 years of experience
Packaging Details:	International export standard

Aluminum alloy suspension clamp/YJSEC tension clamp, Aluminum alloy suspension clamp/YJSEC medium and high tension clamp

Product Description

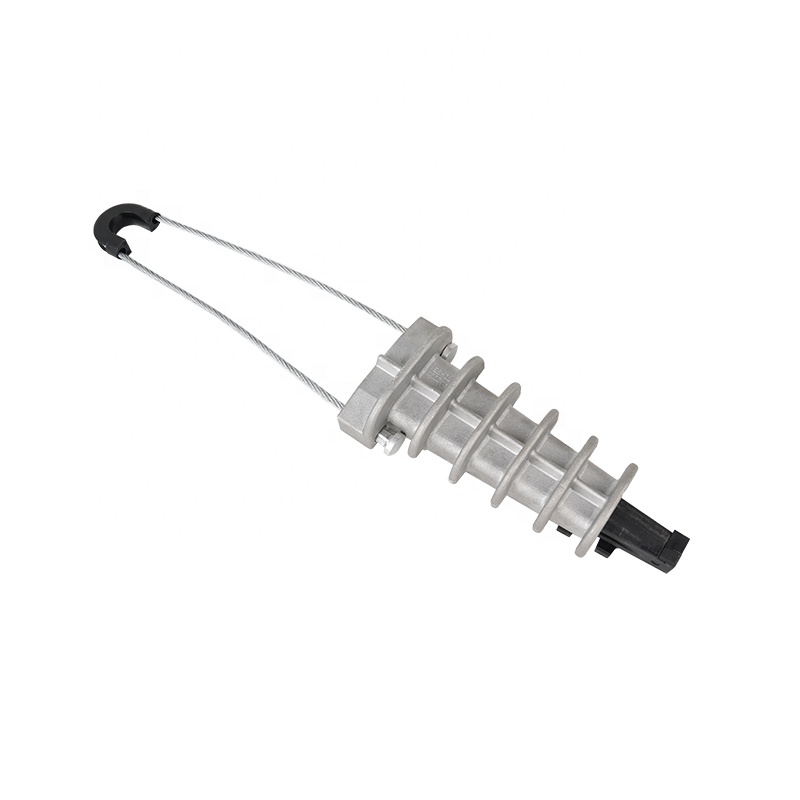

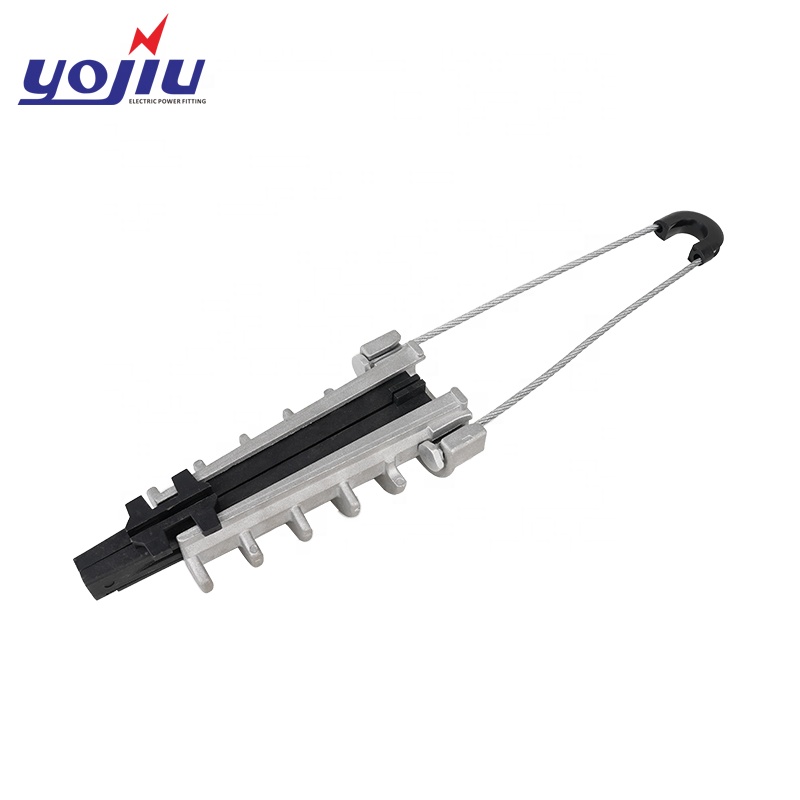

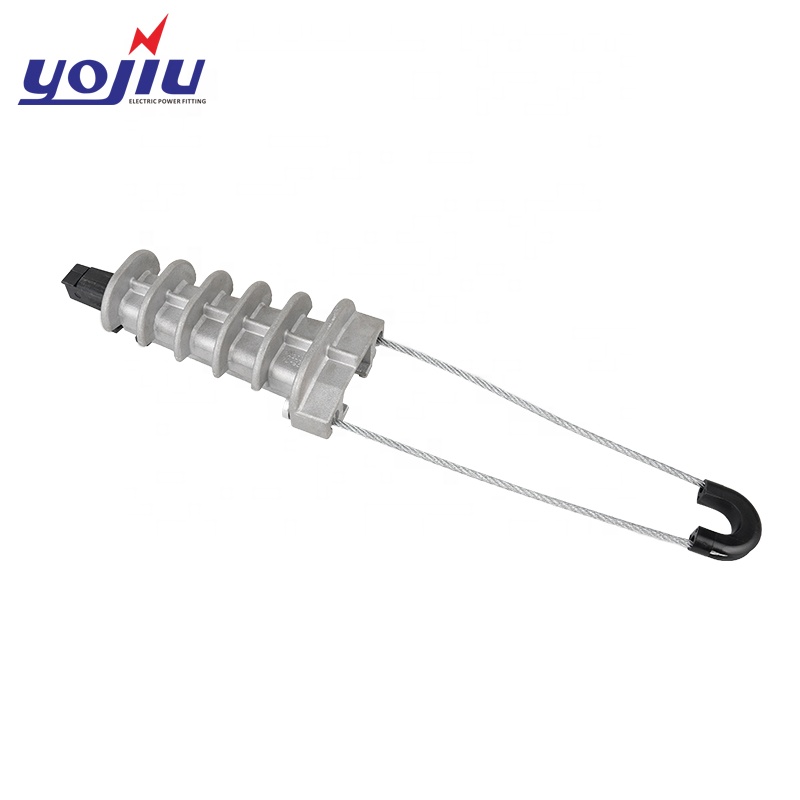

Insulation dead end clamp (Pa2000)

Thisdead end clip(tension clamp,Anchor clip) are characterized by high mechanical stability, reduced dimensions for ease of handling, high mechanical and climatic resistance. The insulating material cable clamping device ensures double insulation of the neutral core and avoids damage to the sheath, fixing parts, without tools. Stainless steel lift loop with two compression marbles on the end, this design allows for easier locking to the body of the clip. They are NFC 33-041 compliant.

aspect

Numbering.	Conductor (mm²)	Messenger Diameter(mm)	Breaking Load (KN)
YJPA1000	25-35	8-11	10
YJPA1500	50-70	11-14	15
YJPA2000	70-95	14-16	20
