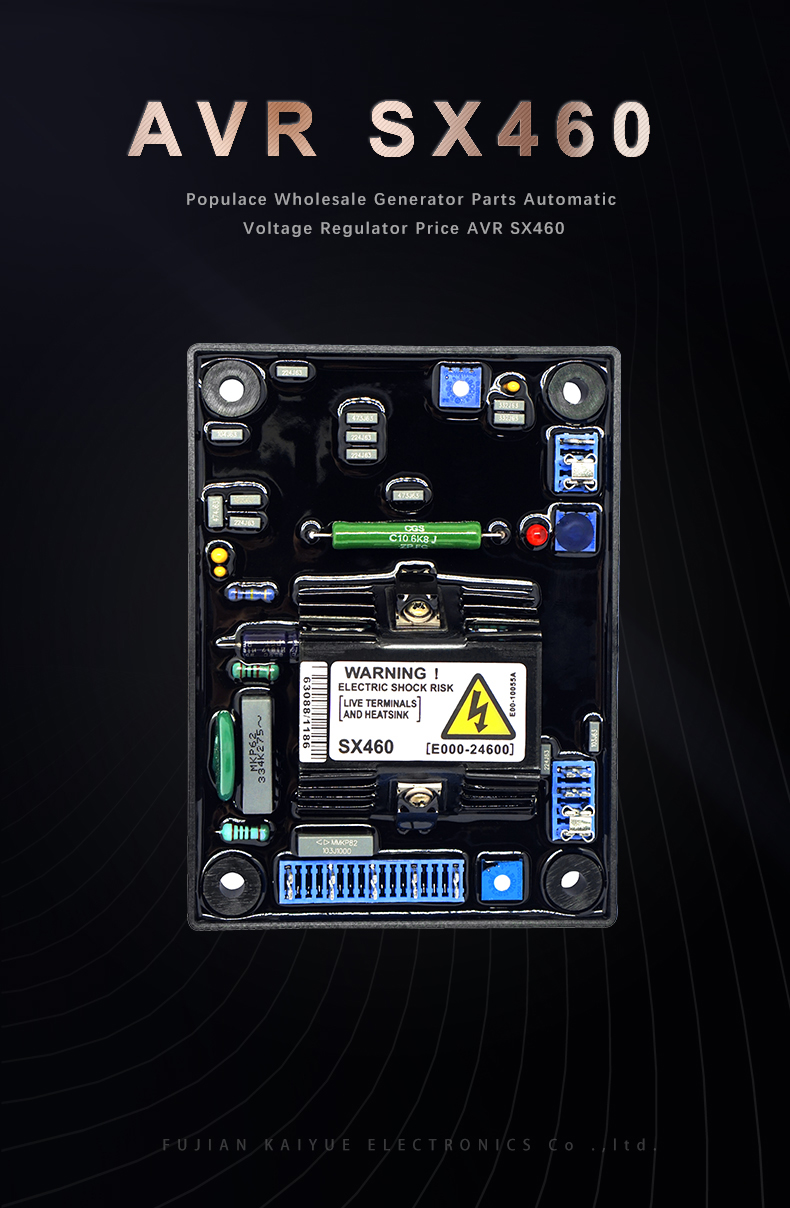

VW Good Price AVR 460 Diesel Wholesale Generator Parts AVR SX460 A 3 Phase Automatic Voltage Regulator AVR SX460 for sale

Supplier: Fujian Kaiyue Electronics Co., Ltd.
Region: Fujian, China
Contact: Ms Kaiyue Chen
Price: $10.00 / 1 - 499 pieces
$7.00 / 500 - 999 pieces
$6.20 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

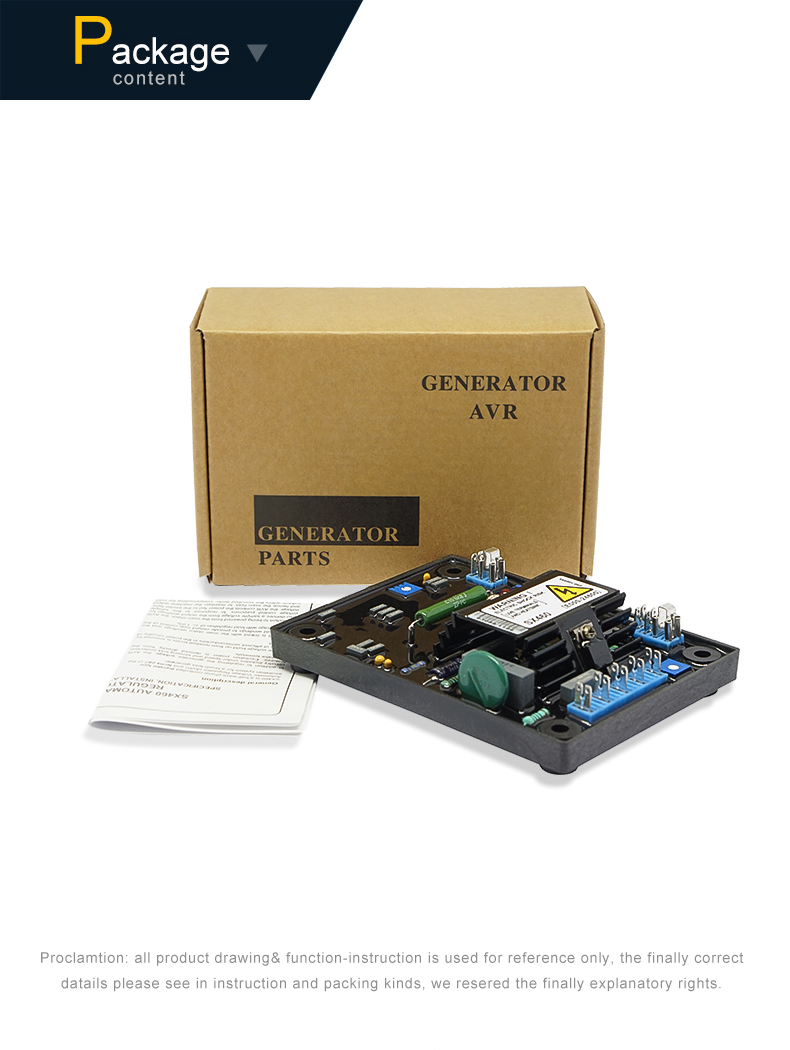

in stock:	1000	Packaging Details:	Standard carton (avr generator spare parts sx460 automatic voltage regulator)
model:	SX460	weight:	0.4kg
Supply capacity:	1000 pieces per month avr generator spare parts sx460 automatic voltage regulator	WhatsApp/WeChat:	+86-18850549530
port:	Shenzhen	payment terms:	Western Union, MoneyGram, PAYPAL
place of origin; place of origin:	Fujian China	Package:	54/box
Packaging Preview:		Certificate:	ISO9001

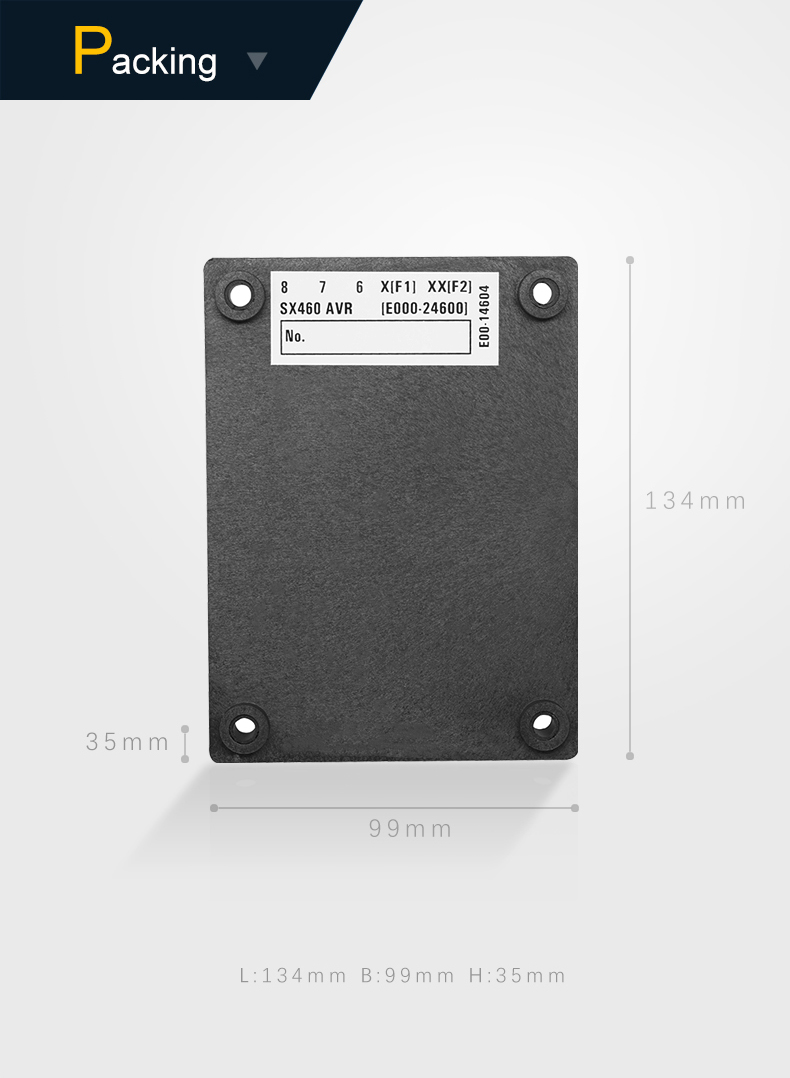

size:	17.5156.5cm	Warranty:	1 year, 3 months - 1 year
brand:	people	Certification:	ISO9001

General Features

Positive voltage build-up from residual levels is ensured by using sophisticated semiconductors in the AVR's power supply circuit. It is connected to the main stator winding and the exciter field winding to provide closed loop control
Load regulation to +/- 1.5% of output voltage
stability adjustment
Underfrequency roll-off adjustment

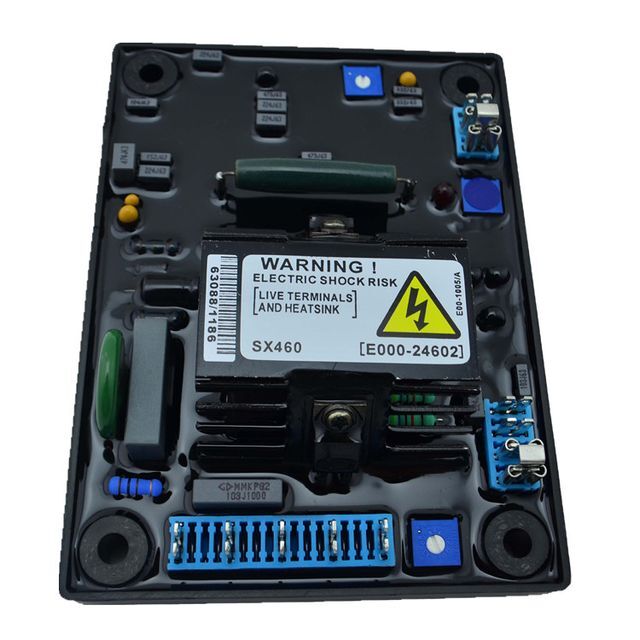

AVR	SX460
inductive voltage	Jumper selectable 120(95-132)VAC, 240(190-264)VAC, single-phase 2-wire
frequency	50-60Hz nominal
Voltage input	90VDC max at 207VAC input
resist	15 Ω minimum
Regulation	<±1% RMS, 4% engine regulation
voltage build up	Residual voltage at avr terminal >5vac
External voltage adjustment	:+/-7% with 1k ohm 1 watt trimmer
Generator power	<150kw
