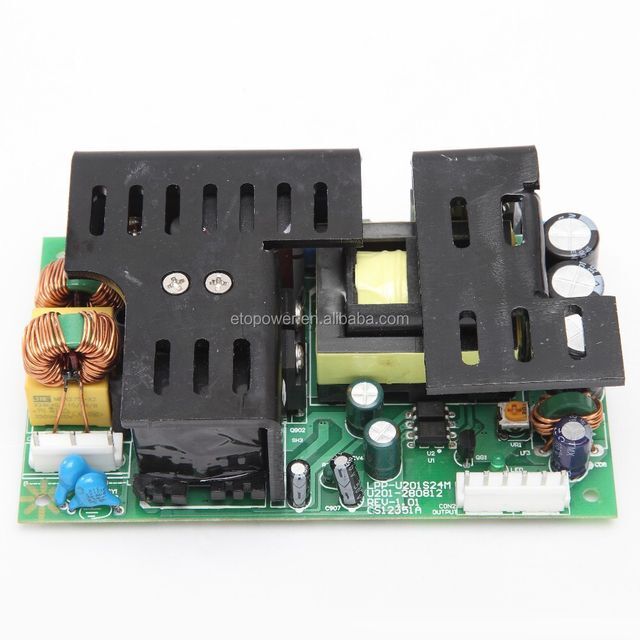

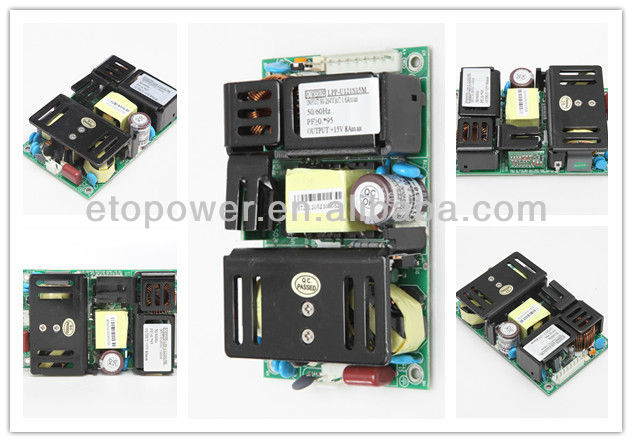

China DC power switch PCB board 200W 12vdc 24vdc for coffee machine

Model

LPP-U201S12A

LPP-U201S24A

enter

Input voltage (V)

100VAC~240VAC

Input current (A)

2A max

Frequency (Hz)

47Hz–63Hz

efficiency

89% typical (230VAC full load)

Inrush current (A)

Cold Star, <70A/230VAC

Leakage current (mA)

<0.75mA/240VAC

output

Output voltage (V)

+12Vac

+24Vac

Voltage regulation

3%

5%

Output current (A)

16.7A

8.3A

Current range (A)

0-16.7A

0-8.3A

Rated power (W)

206.4W

start time, hold time (ms)

Ton≤3000ms,Td≥20ms @230Vac full load

Rise Time (ms)

Typical: 70ms @230Vac full load

Ripple/Noise (mVp-p)

100

150

surroundings

Operating temperature (°C)

-20°C - +70°C (refer to derating curve)

Storage temperature (°C)

-20°C - +80°C

humidity(%)

20% - 90% RH RH non-condensing

Safety/EMC

Withstand voltage (VAC)

I/PO/P: 3KVAC, I/P-FG: 1.5KVAC, OP-FG: 0.5KVAC 1min

safety standard

EN/UL60950-1, GB4943

Electromagnetic Compatibility Standard

EN55022 Class B, EN61000-4-2, 3, 4, 5, 6, 8, 11 GB17626.5 Level3

Protect

Overvoltage protection

>115%-135% of rated output voltage

Overload protection

>105%-150% hiccup mode, automatic recovery

Short circuit protection

locking

Over temperature protection

automatic restart

other

Dimensions L*W*H(mm)

127*76.5*35mm (modifiable)
