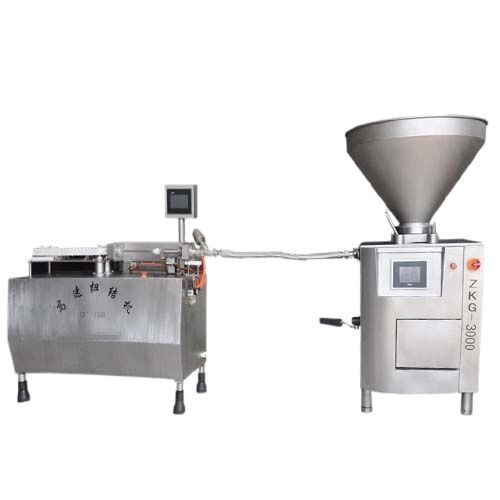

industrial heavy duty automatic machinery sausage filling machine filler trade twist linker com with sausage shears

Supplier: Hebei Me Sport Import And Export Trading Co., Ltd.
Region: Hebei, China
Contact: Ms Emma Jia
Price: $2300.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

strength:	7.9/8.35/9.2/10kw	Supply capacity:	30 pieces per month
capacity:	160/240L/custom	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
weight:	830kg	Core Components Warranty:	1 year
Packaging Details:	Clean up + plastic wrap + wooden box + tray	Dimensions (LWH):	245011801800mm
Packaging Preview:		Function:	vacuum automatic
Mechanical test report:	if	Health status:	new
Voltage:	380V	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
port:	Tianjin	mistake:	±2g
Feature one:	Independent research and development	Feature two:	Improve after-sales efficiency
Name:	Vacuum enema machine	place of origin; place of origin:	Hebei china
Marketing Type:	New Products 2022	application:	sausage filling machine
brand:	Medo	Serve:	24-hour video guidance
Showroom location:	not any	Applicable industries:	Manufacturing Plants, Food and Beverage Plants, Food and Beverage Stores
Material:	304 stainless steel	Filling and twisting speed:	0-600/min
Video external inspection:	if	Warranty:	1 year

product information

product name	sausage stuffing
place of origin; place of origin	Hebei china
Minimum order quantity	1
pay	T/T, L/C, Paypal, Alibaba Insurance

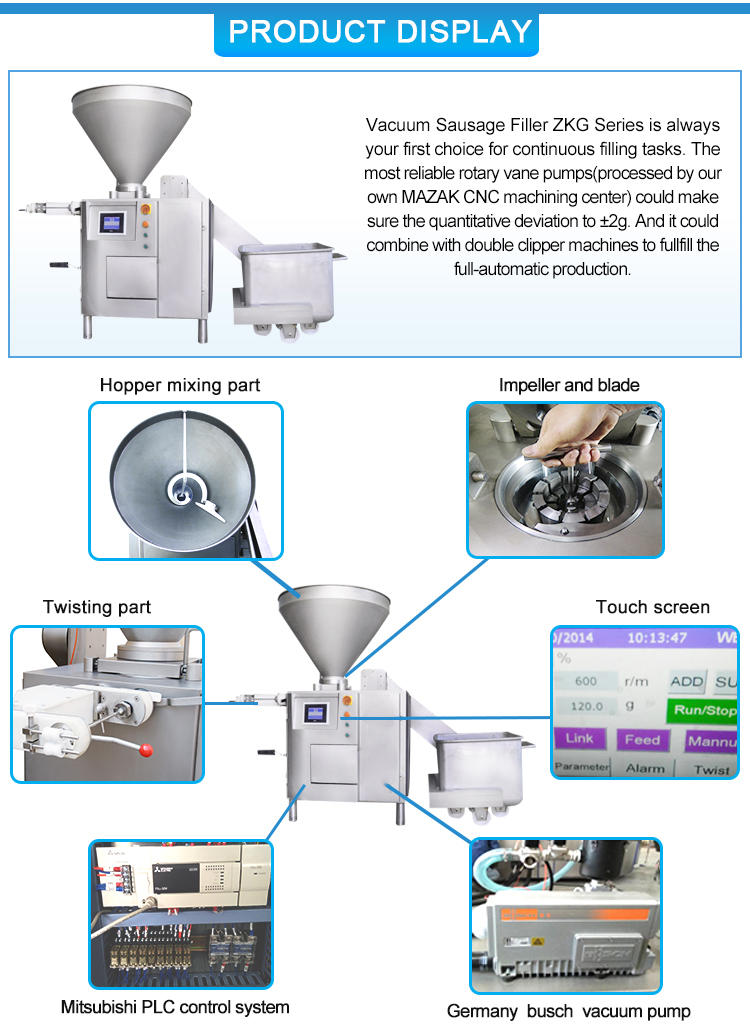

Product advantages

1. Japan Yaskawa or other famous servo motors
2.Swiss ABB waterproof button
3. Mitsubishi PLC control system
4. Touch screen, Taiwan Delta 8.4-inch true color LCD screen
5. German Busch vacuum pump
6. Quantitative deviation: ±2g (minced meat)
7. Twisting speed: 640pcs/min (eg6g/pc) (stepless speed regulation)
8. Size of twisted tube: Φ10, Φ12, Φ14, Φ16, Φ19, Φ22 (3 optional)
9. The impeller, vanes and pump body are designed with high hardness and high wear-resistant stainless steel, and the main body is made of 304 stainless steel

phosphorusproduct features

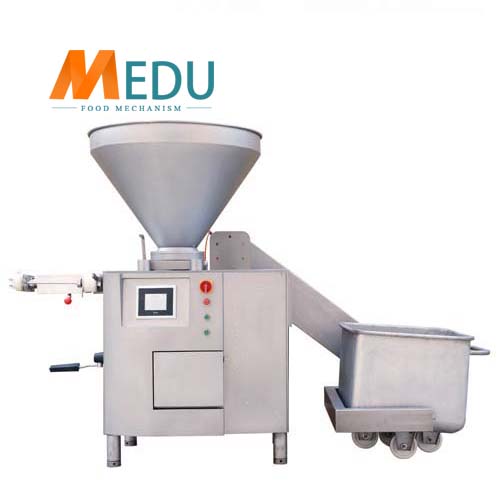

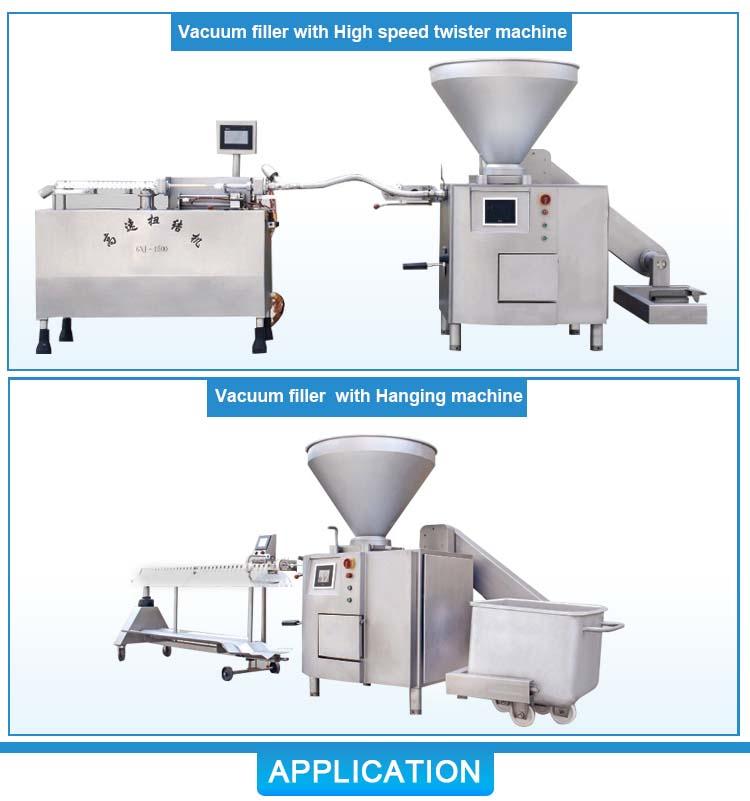

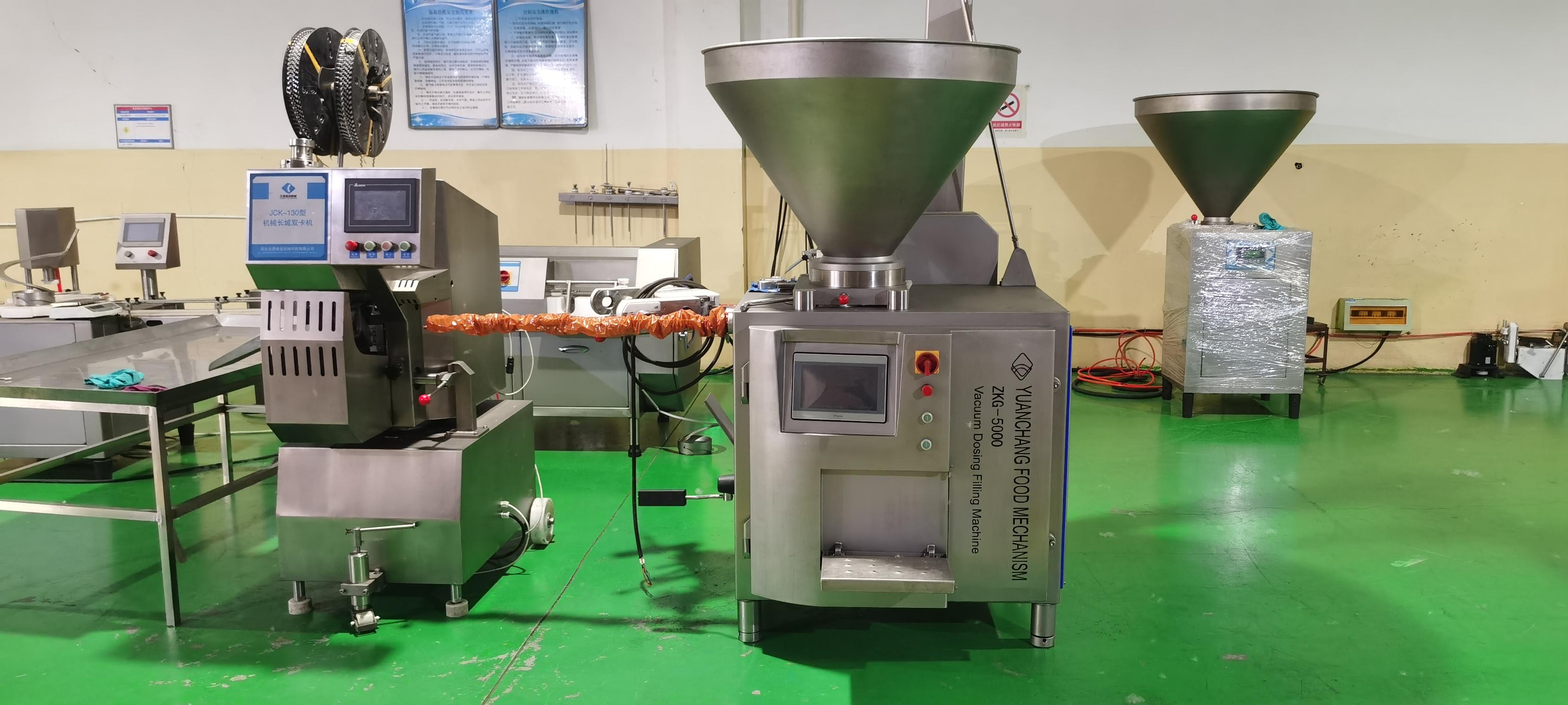

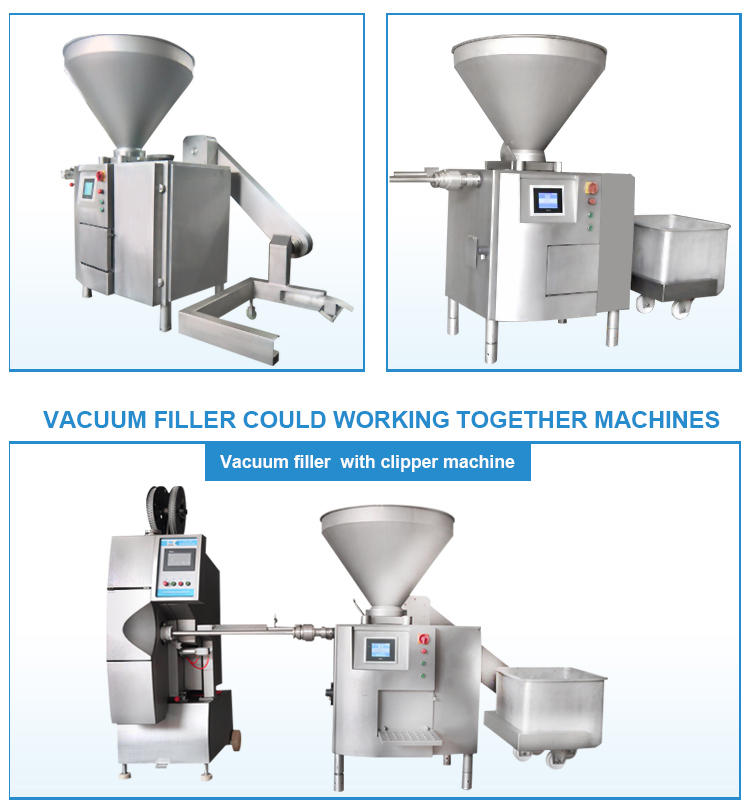

The control system of VQF series vacuum filling machine adopts self-developed numerical control system, 8.4-inch true color LCD screen, special industrial keyboard, waterproof front panel and user-friendly design control interface, which is intuitive and clear. The vacuum filling machine ZKG is composed of a Japanese servo motor, a German reducer and a high-quality vacuum pump. This machine is used for quantitative filling and vacuum high-speed twisting to prevent fat oxidation and protein hydrolysis, reduce the number of bacteria, and prolong product shelf life.

Model	Quantitative range	Filling and twisting speed	mistake	Hopper volume (L)	strength (kilowatt)	Voltage (five)	Weight (kg)	Dimensions (mm)
VQF-3000	6-9999	0-600	±2	160	7.9	380	590	13508611710
VQF-3500	6-9999	0-600	±2	240	8.35	380	630	245011801800
VQF-5000	6-9999	0-600	±2	240	9.2	380	750	245011801800
VQF-7500	6-9999	_0-600	±2	240	10	380	830	245011801800
