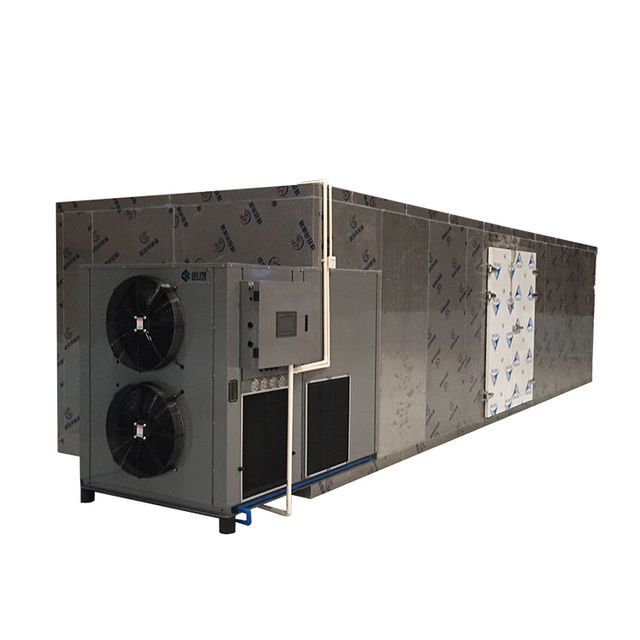

Industrial circulating heat pump tray fish food pasta dryer meat fruit dryer oven 1200kg

Supplier: Guangzhou Kaineng Electric Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Tyler Zhang
Price: $3230.00 /set
Min. Order: 1 set

Click here to contact

Product details

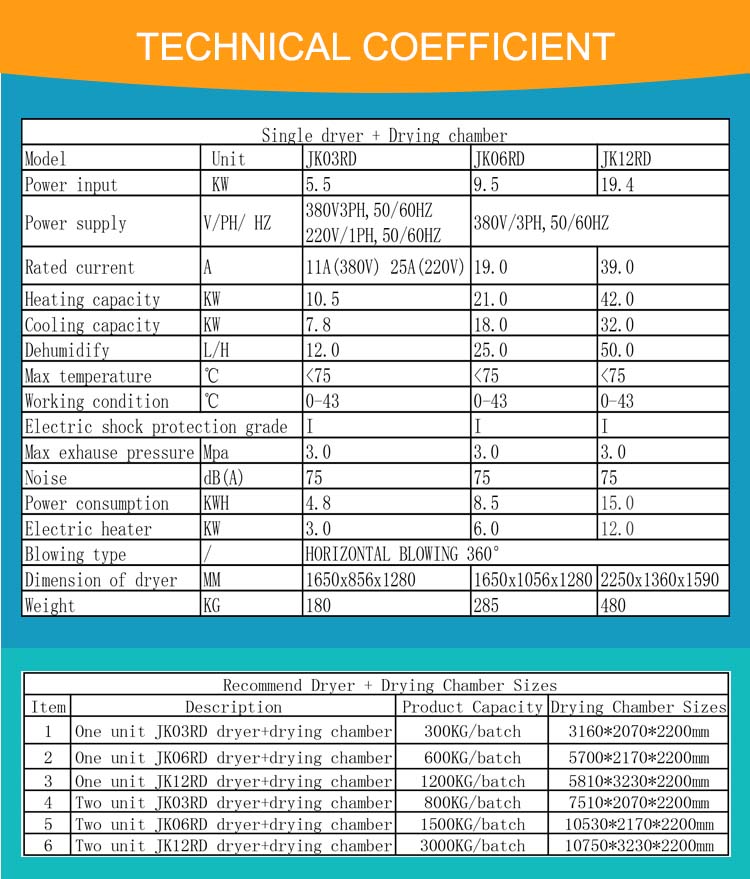

Mechanical test report:	if	Maximum capacity:	100-4000kg/batch
payment terms:	L/C,Western Union,T/T	Dehumidification Ability:	12 liters/hour
Dimensions (LWH):	1650x856x1280MM	Marketing Type:	New Products 2021
Working conditions:	0-43℃	Name:	fish dryer
Health status:	new	Core components:	Pump, motor, PLC
port:	Guangzhou, Shenzhen, Hong Kong	Showroom location:	Sri Lanka
Packaging Preview:		type:	dehumidifier
Evaporation (kg/h):	12/25/50/80/100	brand:	Gimhae
Video external inspection:	if	strength:	5.5KW
Weight (kg):	360	Cooling capacity:	7.8KW
application:	food processing	Heating capacity:	10.5KW
place of origin; place of origin:	Guangdong, China	Packaging Details:	Plywood Fish Dryer
Rated current:	9.6A(380V), 22A(220V)	Function:	Heating/Dehumidifying
Applicable industries:	Hotels, Farms, Food Stores, Food and Beverage Stores, Fish Dryers	Core Components Warranty:	1 year
Warranty:	1 year	Voltage:	220V/380V
Main selling point:	automatic	Supply capacity:	700 catfish dryers per week
heating method:	electro-thermal	Control System:	PLC+touch screen
Material:	201/304 stainless steel/steel, SUS304, SUS316, others

Industrial circulating heat pump tray fish food pasta dryer meat fruit dryer oven 1200kg

Product Description

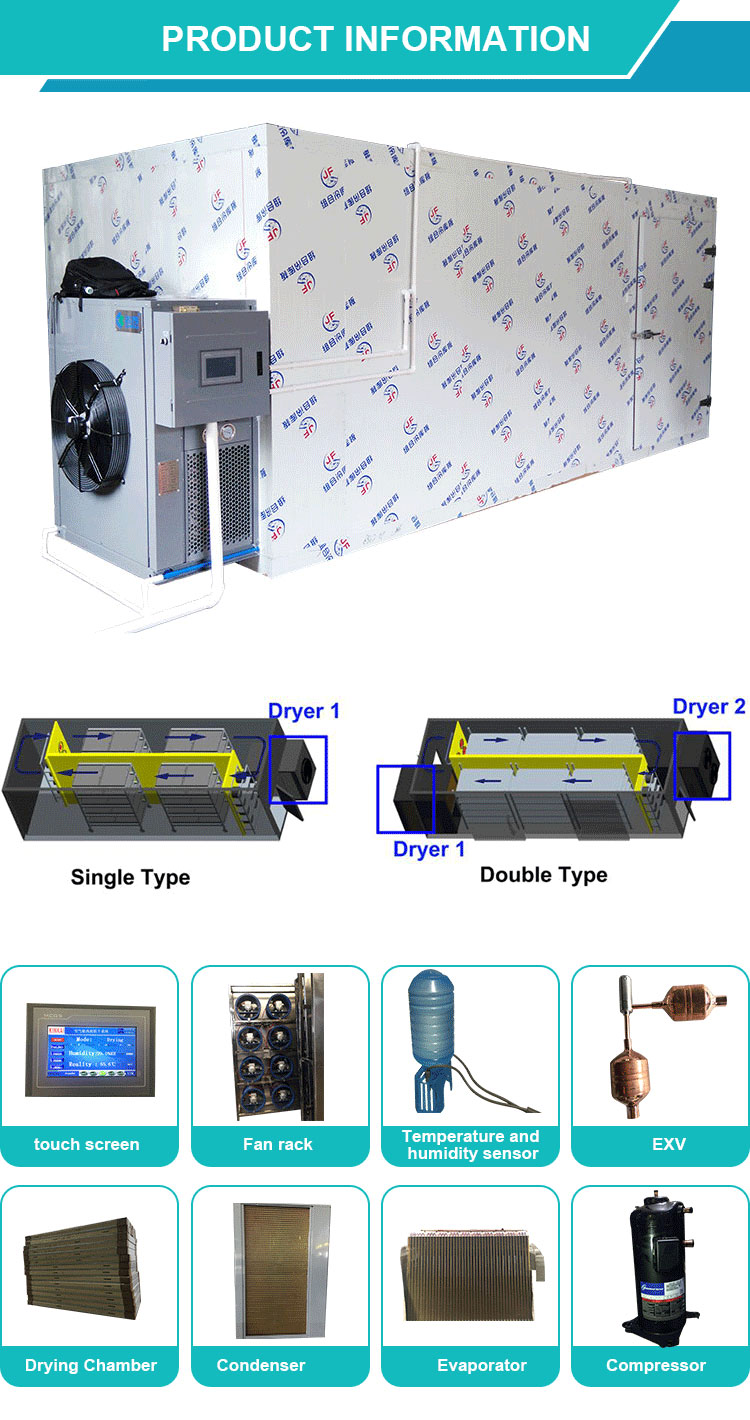

What is KINKAI heat pump brand fruit/vegetable/seafood/herb etc cabinet dryer?

KINKAI brand heat pump dryer actually applies heat pump technology to drying. The heat pump dryer uses the inverse Carnot principle to absorb outdoor hot air and transport it to the drying room to achieve the temperature of the drying room, and cooperate with related equipment to achieve material drying. The main components of the heat pump dryer include a compressor, a heat exchanger, a throttle, a heat absorber-compressor unit, etc. to form a circulation system. It circulates in the system under the action of the refrigerant in the compressor. It makes the gas in the compressor pressurized and heated (the temperature can reach 100 ℃), and the heat is released into the machine -- the high temperature heating drying room air, when it runs outside the machine, it is cooled and converted into flowing liquid, and the liquid is quickly heated and evaporated again. At the same time, the temperature drops to -30℃, 20℃, and the air around the heat sink will continue to transfer heat to the refrigerant. The refrigerant circulation continuously realizes the transfer of heat from the air to the drying room and the air in the room.
