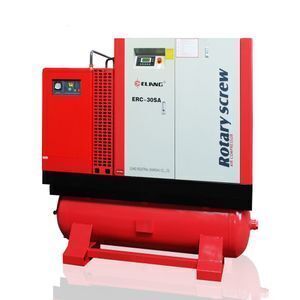

30hp 22kw Easy Operation Combined Rotary Screw Air compressor with Touch Screen

Supplier: Elang Industrial (shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Jack Cao
Price: $2500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Weight:	930kg;	Applicable Industries:	General Industry;
Protection grade:	IP54;	Voltage:	220V / 380V / 440V / Customize;
Driven method:	Belt driven;	After-sales Service Provided:	Field maintenance and repair service;
OEM:	Offered;	Dimension(LWH):	196010702012mm;
Product name:	30hp 22kw Combined Rotary Screw Air compressor with Dryer;	Brand Name:	ELANG;
Payment Terms:	L/C,D/P,T/T,Western Union;	Exhaust oil content:	< 3ppm;
Insulation Grade:	F;	Condition:	New;
Supply Ability:	300 Set/Sets per Month 30hp 22kw Easy Operation Combined Rotary Screw Air compressor;	Certification:	CE/ISO9001/TUV/SGS/ASME;
Configuration:	Stationary;	Port:	Shanghai, any port in China;
After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	18 Months;
Lubrication Style:	Lubricated;	Power Source:	AC POWER;
Mute:	Yes;	Place of Origin:	Shanghai China (Mainland);
Cooling method:	Air Cooling/Water Cooling;	Air end:	Aerzen/GHH/Hanbell;
Application:	General Industry;	Type:	SCREW;
Packaging Detail:	Standard exporting packing for 30hp 22kw Easy Operation Combined Rotary Screw Air compressor with Touch Screen.;

30hp 22kw Easy Operation Combined Rotary Screw Air compressor with Touch Screen

Product Name:
30hp 22kw Easy Operation Combined Rotary Screw Air compressor with Touch Screen
Working Pressure: 7 - 12.5bar (100 - 181psi)
Air Delivery: 2.5 - 3.8m³/min
Motor Power: 22kw/30hp
Type of Driving: Belt Driven
Type of Cooling:
Air Cooling/Water Cooling
Dimension: 1960*1070*2012mm
Weight: 930kg
Output pipe Diameter: 1"

There are more parameters below.

Advantages

Large displacement: Displacement 10% higher than ordinary piston compressor.
Energy-saving: Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
Easy to operate: 24 hours unattended all day work, free load automatically start, full load automatically shut down.
Strong stability:Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.

Model	Working Pressure		Air Delivery		Motor Power	Air tank	Air dryer	Air filter	Type of Driving	Type of Cooling	Dimension(mm)			Weight(kg)	Output pipe Diameter
	psig	bar	cfm	m³/min	kw/hp	m³	Nm³/min	Nm³/min			L	W	H
ERC-10SA	100	7	38.8	1.1	7.5/10	0.3	1.2	1.2	Belt Driven	Air Cooling / Water Cooling	1650	730	1530	680	3/4"
	116	8	35.3	1
	145	10	30.0	0.85
	181	12.5	24.7	0.7
ERC-15SA	100	7	63.6	1.8	11/15	0.5	2.4	2.4			1955	800	1800	785	1"
	116	8	58.3	1.65
	145	10	53.0	1.5
	181	12.5	45.9	1.3
ERC-20SA	100	7	84.7	2.4	15/20	0.5	2.6	2.6			1955	800	1800	810	1"
	116	8	77.7	2.2
	145	10	74.2	2.1
	181	12.5	63.6	1.8
ERC-25SA	100	7	109.5	3.1	18.5/25	0.5	3.8	3.8			1900	1070	2012	910	1"
	116	8	102.4	2.9
	145	10	95.3	2.7
	181	12.5	81.2	2.3
ERC-30SA	100	7	134.2	3.8	22/30	0.5	3.8	3.8			1960	1070	2012	930	1"
	116	8	127.1	3.6
	145	10	113.0	3.2
	181	12.5	88.3	2.5
Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required Motor Protection Class: IP23/IP54/IP55 or as per your required Certification: CE/ISO9001/TUV/UL/SGS/ASME Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok
