Industrial UV Lamp Conveyor UV Curing Machine UV Dryer For Sale

Supplier: Luen Cheong Printing Equipment Ltd.
Region: Guangdong, China
Contact: Mr Michael Ao
Price: $3480.00 / 1 - 1 sets
$3200.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

type:	other	wavelength:	380-420nm
main part:	UK made UV lamps	Video external inspection:	if
Free accessories:	tools and a pc uv lamp	Warranty:	1 year
Voltage:	380V	brand:	Liquid Chromatography
Core Components Warranty:	1 year	After Warranty Service:	Video technical support, online support
Mechanical test report:	if	weight:	340KG
Health status:	new	Certification:	Chief Executive
product name:	UV Lamp Conveyor UV Oven UV Ink Drying UV Curing Machine	Showroom location:	not any
Packaging Details:	The machine will be packed in a wooden case for safety.	Marketing Type:	normal product
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Packaging Preview:
Core components:	PLC, engine, pressure vessel	Application areas:	UV ink for bottle printing, UV ink for flat product printing
Local service location:	not any	Applicable industries:	Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Retail, Printing Shops, Energy & Mining, Advertising Agencies, UV Curing Machine Shops
Supply capacity:	100 sets per month	UV lamp power:	4kW
Auto grade:	semi-automatic	Clamp Material:	Metal
port:	Port of Shenzhen, China	After-sales service provided:	Online support, video technical support
place of origin; place of origin:	Guangdong, China	Conveyor Type:	metal conveyor
Main selling point:	Sustainable	Dimensions (LWH):	21007501810mm

Product Description

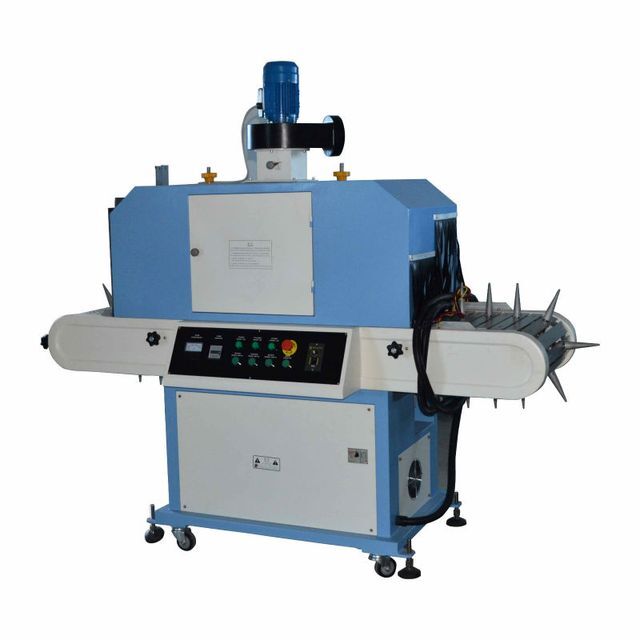

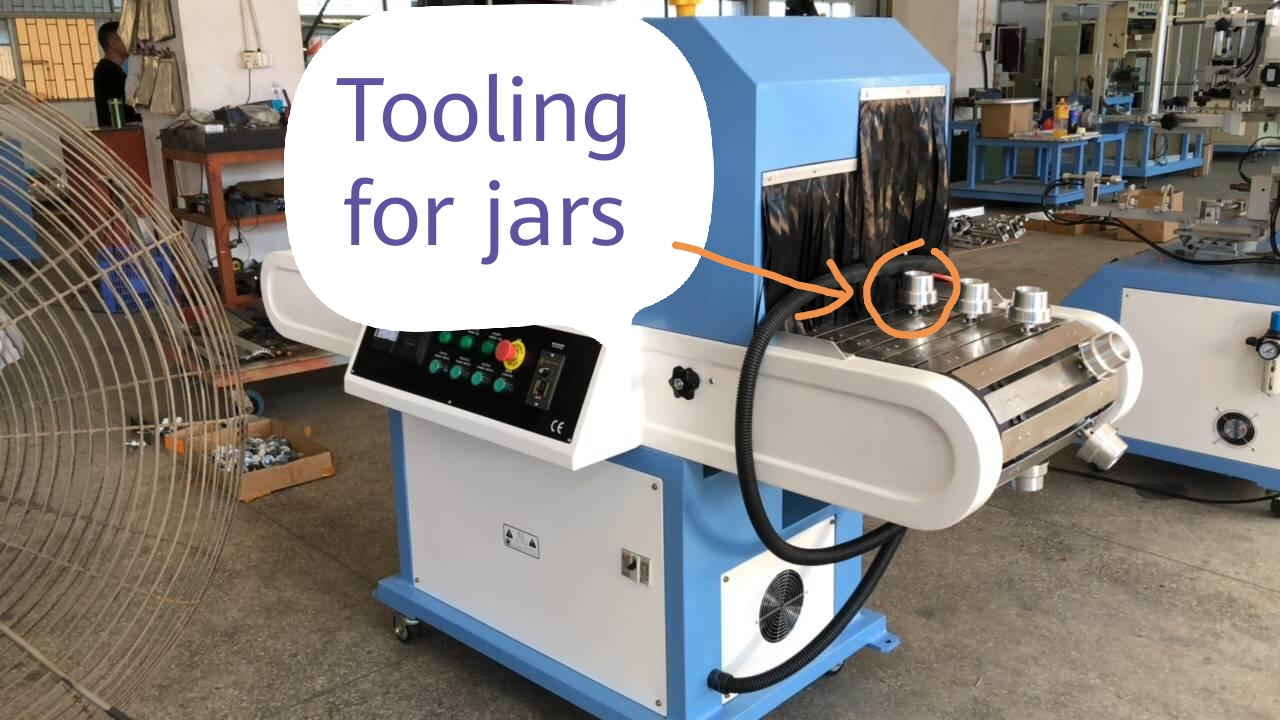

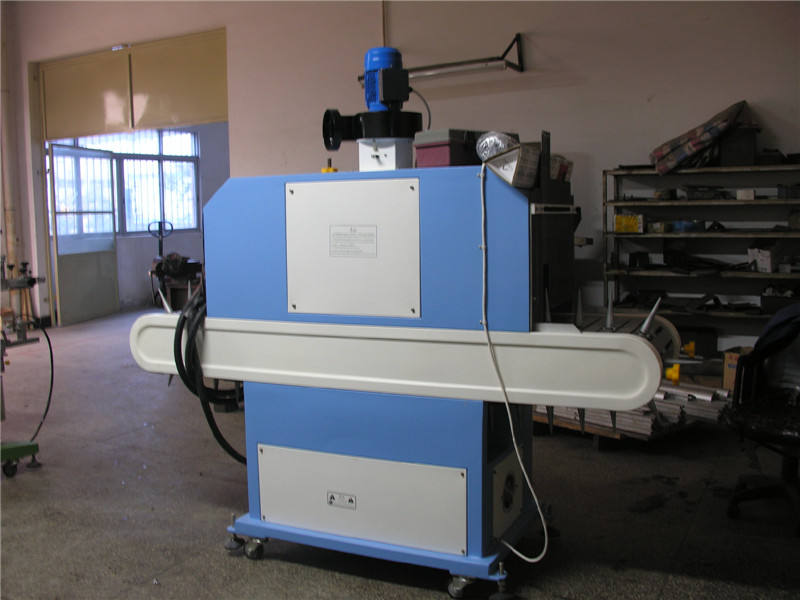

Round/Flat UV Dryer UV Dryer UV Curing Machine

application:

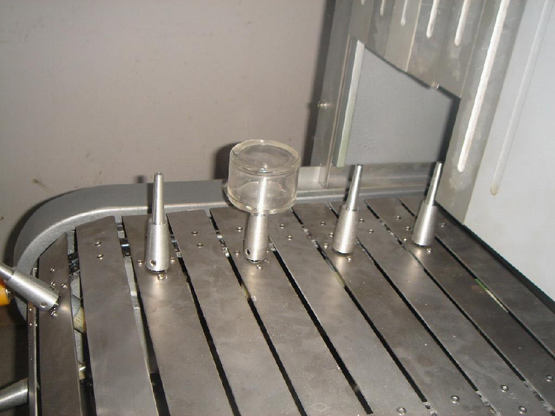

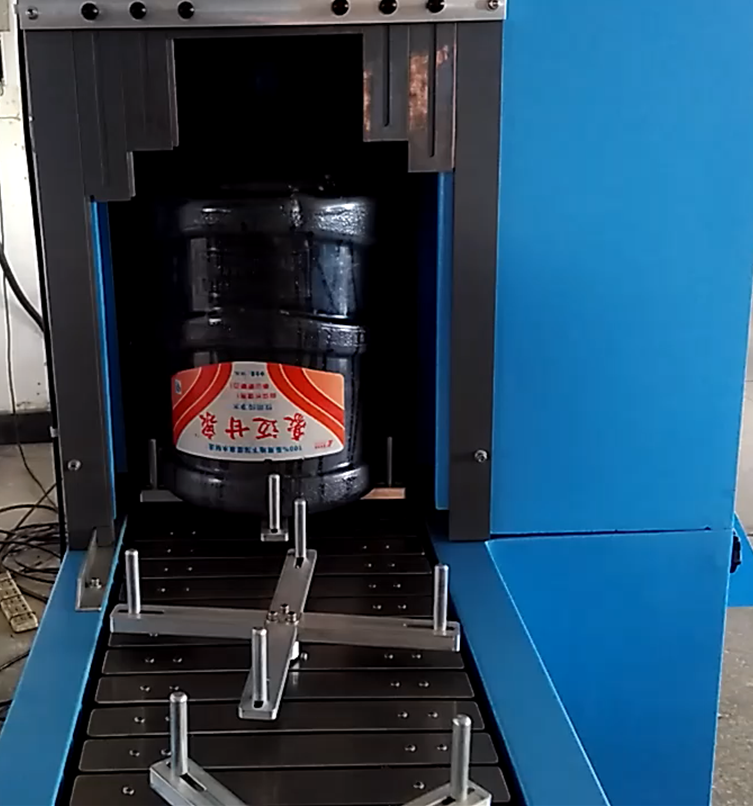

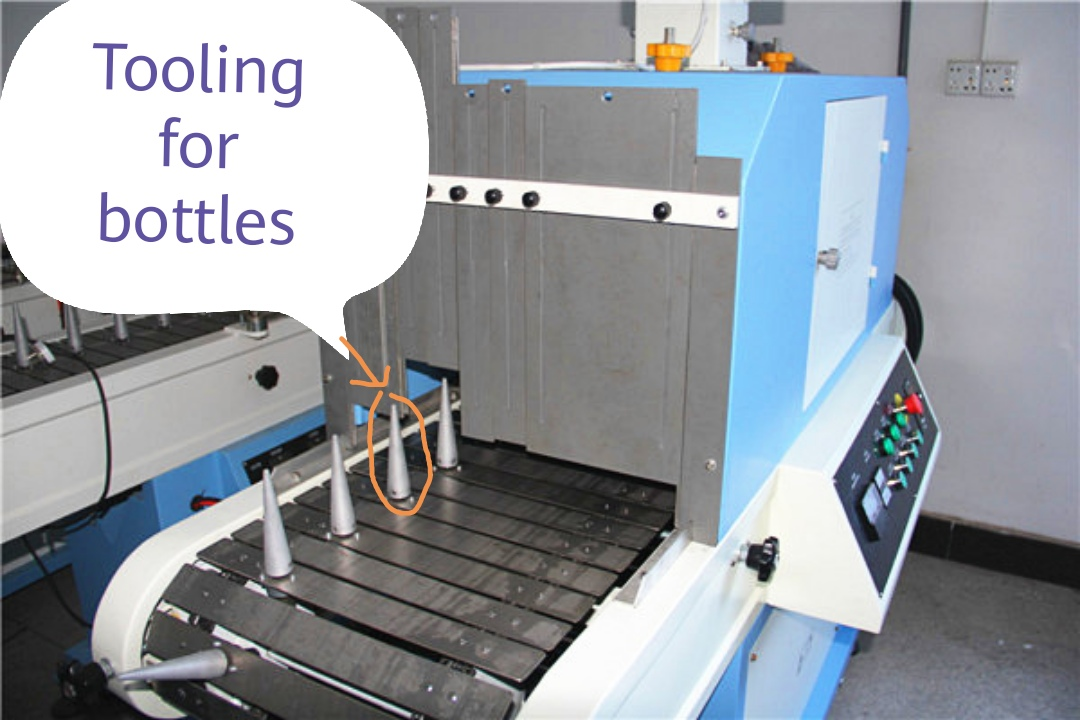

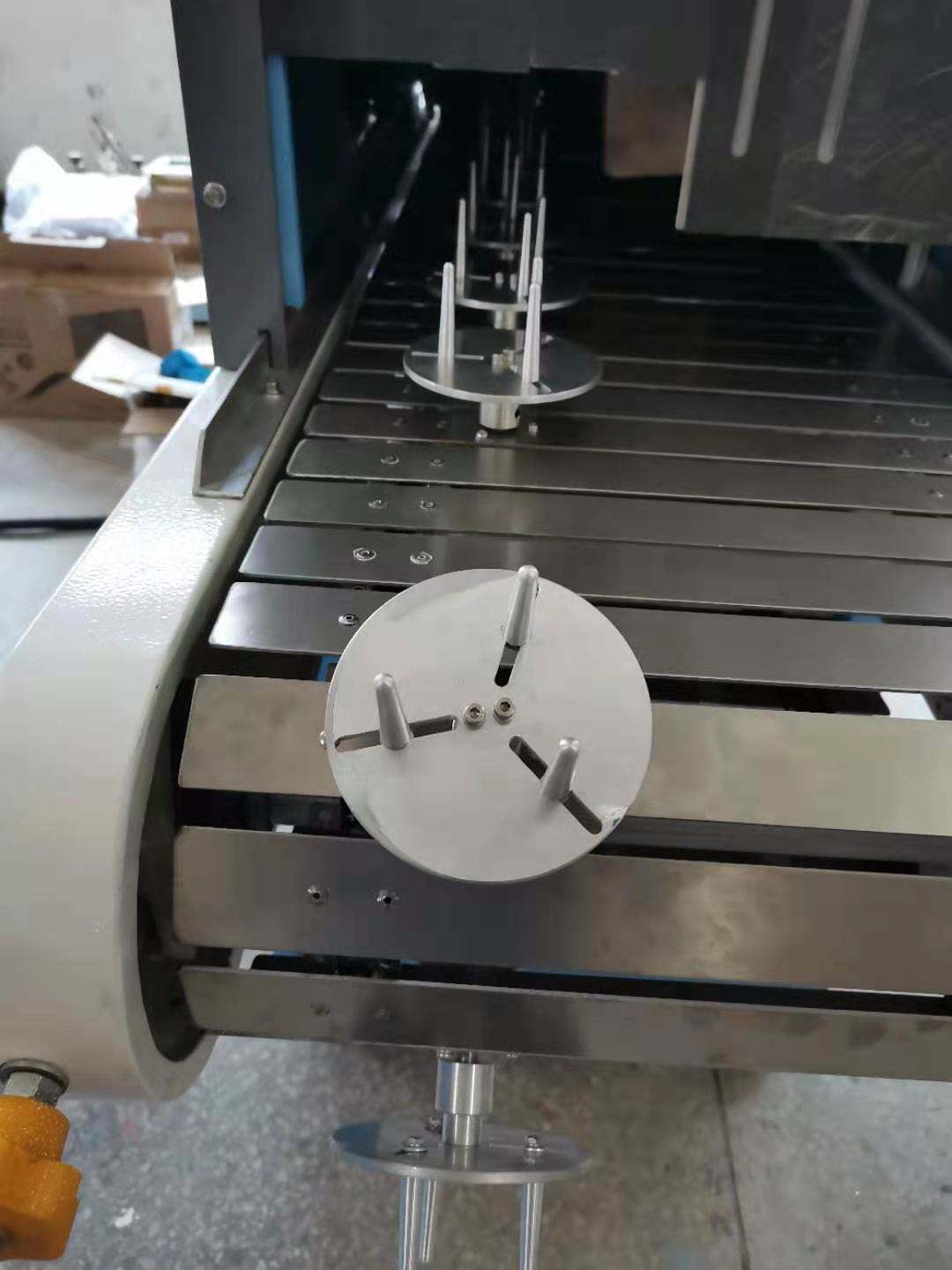

LC-UV4000S2 UV curing machine is mainly used for curing UV inks printed on various surfaces such as bottles and cylindrical objects. Suitable for bottles made of plastic, metal, glass, etc.

advantage:

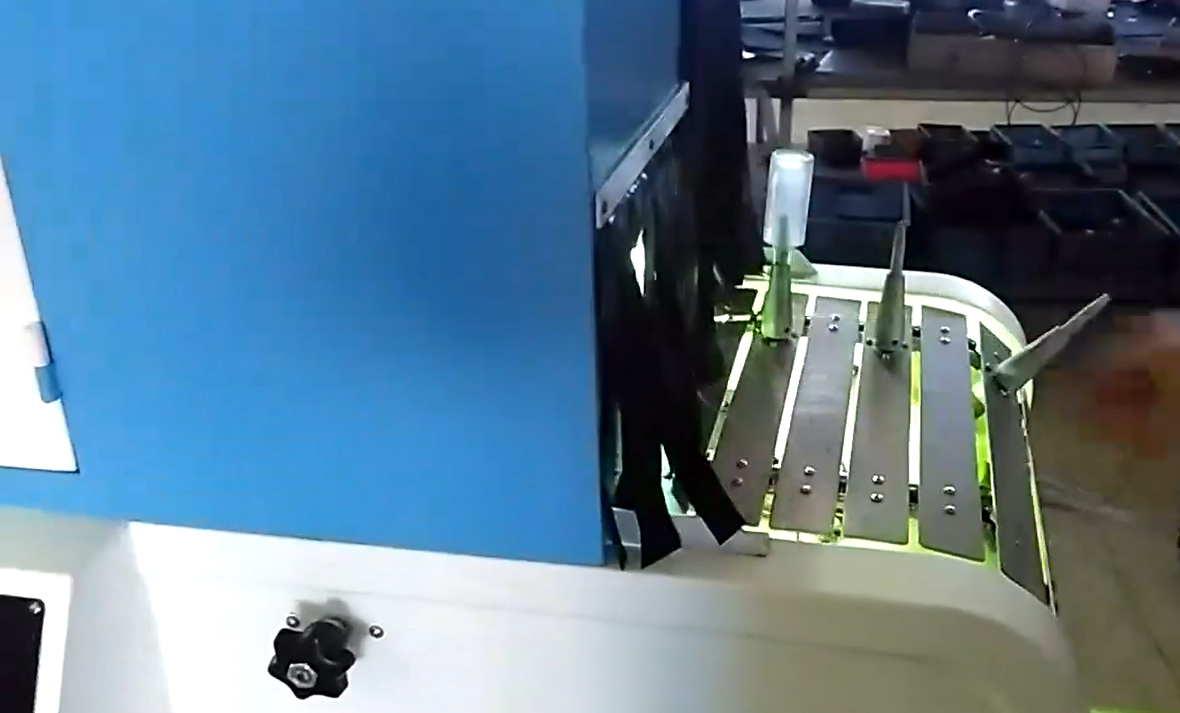

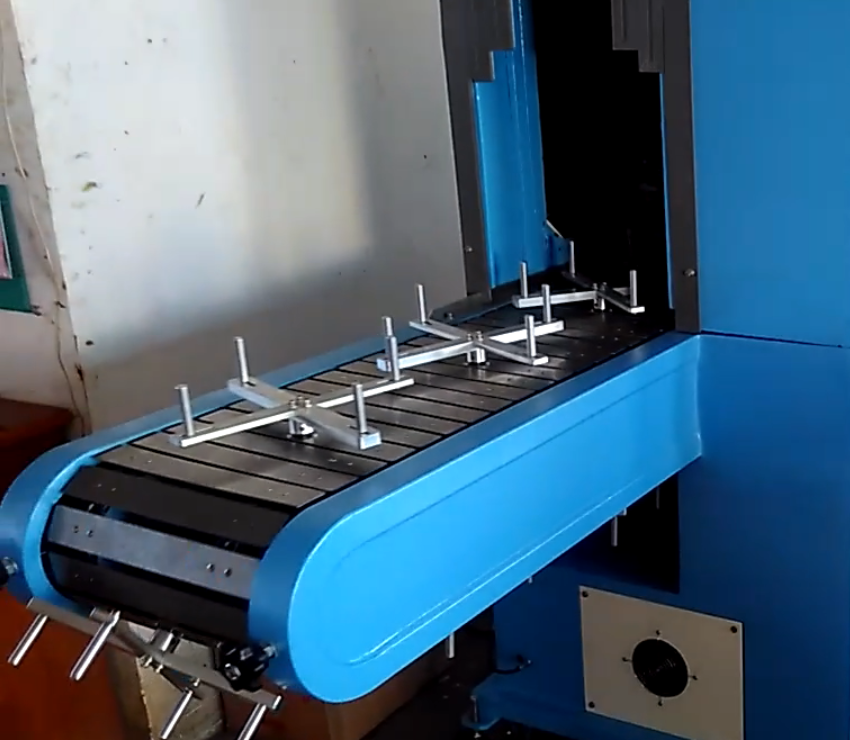

1.UV system independent control, Each lamp can be controlled independently and can be used alternately to prolong the service life of the UV lamp. 2.Teflon conveyor belt, high temperature resistance. 3. Driven by afamous brand motor, Stepless speed regulation, easy to adjust the conveying speed according to product characteristics. 4. TheUV lampUsing high-quality light source, long life, can start instantly, quickly enter normal UV brightness. 5.Taiwan ElectronicsElement (transformer, starter), precise control and long life. 6.ventilation functionQuickly remove heat from the curing chamber; aReasonable airflow cooling systemDesigned to minimize the temperature generated by the light source, reduce product deformation and improve lighting efficiency. 7. UV machine adoptsUp and down reverse suctionAt the same time, for some tissue paper, PVC film, soft PCB, UV silicone, UV glue, it can be UV cured perfectly.

Specification

Model	LC-UV4000S2	LC-UV5000S2	LC-UV6000S2
Max UV curing round bottle height	320mm	320mm	400mm
Maximum UV-cured round bottle width	400mm	400mm	400mm
UV cured product diameter	12-24mm	25-100mm	150-350mm
Workpiece curing size	Cylinder product: 320*400mm			/
transfer speed	0-10m/min	0-10m/min	0-10m/min
(British brand) UV lamp power supply	4KW/PC	4KW/PC	4KW/PC
UV drying product speed	1800-3000PCS/Hr	1800-3000PCS/Hr	1500-2500PCS/Hr
total power	5KW	5KW	5KW
power supply	380V	380V	380V
Machine size	20008001500mm	22006001700mm	24008001900mm
