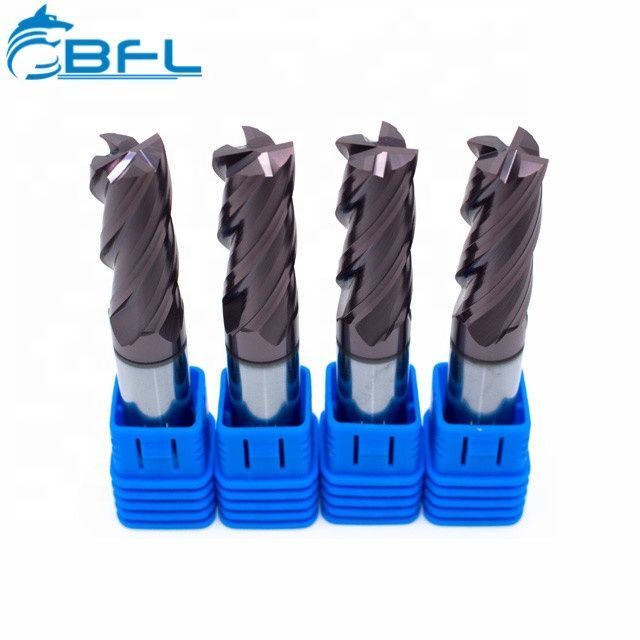

BFL solid carbide end mill CNC tool tool for metal milling cutter milling cutter aspect end mill HRC 45/55/60/70

Supplier: Changzhou North Carbide Tool Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jane E
Price: $2.00 / 5 - 49 pieces
$1.50 / 50 - 99 pieces
$0.99 / >=100 pieces
Min. Order: 5 pieces

Click here to contact

Product details

usage:	high speed cutting	payment terms:	Western Union, T/T, MoneyGram, Paypal
Packaging Preview:		coating:	AlTiN,TiAIN,Naco
flute:	4 flutes	model:	Standard (Flat End Mill)
Packaging Details:	BFL solid carbide end mill CNC cutter tool for metal milling cutter 1, pack one piece in a plastic tube, 10 pieces per set 2, wrap the plastic tube with bubble wrap 3, put the goods wrapped with bubble wrap in a carton	brand:	BFL/custom
transportation:	Sea/Express/Air	Processing type:	Metal/General Purpose
Material:	carbide	control method:	CNC
accurate:	high precision	Custom Support:	OEM, ODM, OBM
port:	Shanghai	place of origin; place of origin:	Jiangsu, China
Supply capacity:	300000 Pieces/Month Solid Carbide End Mill CNC Tool for Metal Mill	Applies to:	Copper, cast iron, carbon steel, die steel, etc.
product name:	BFL Solid Carbide End Mill CNC Tool Tool for Metal Mills	Human Rights Commission:	45/55/60/65

Product Description

1. Product Name: BFL Solid Carbide End Mill Metal CNC Tool
2. Standard size: 4mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm
3. Advantages: high precision, good surface performance
4. Certification: ISO9001:2008, Supplier Evaluation Certificate

product name	BFL Solid Carbide End Mill CNC Metal Tool
Material	Carbide, Solid Carbide, Carbide
Human Rights Commission	45/55/58/60/65/70
Product Category	Solid Carbide End Mills
coating	Altin, Tialn, Tisin, Tin, DLC, Nano, Diamond
Helix angle	10 degrees, 15 degrees, 25 degrees, 35 degrees, 45 degrees, 55 degrees
size	Metric and imperial dimensions according to your requirements
tolerant	h6
apply to	Steel, stainless steel, die steel, die steel, carbon steel, cast iron, copper, etc.

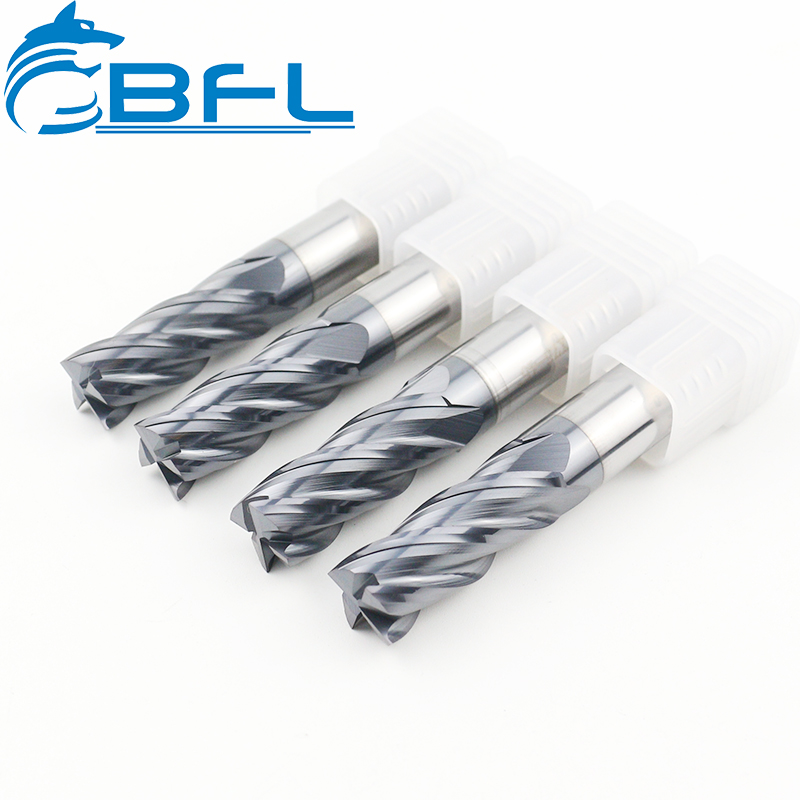

Product display

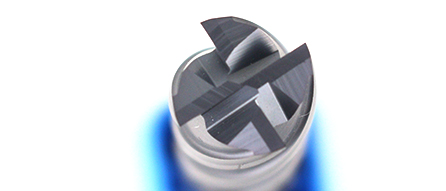

Passivated edges, sharp and wear-resistant

Four-edge milling cutters are mainly used for side milling and face milling. For processing various die steel, cast iron, copper parts, etc.

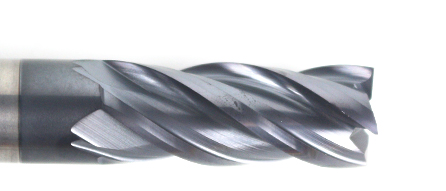

bilateral design

Great chip removal

Helix angle: 35°:The double-edged design with helix angle makes the milling cutter more wear-resistant, reduces product burrs during processing, and makes chip removal smoother

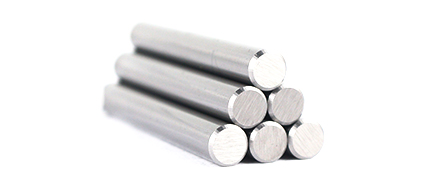

Tungsten steel material

Imported raw materials, ultra-fine grain tungsten steel materials, effectively ensure the quality of milling cutters

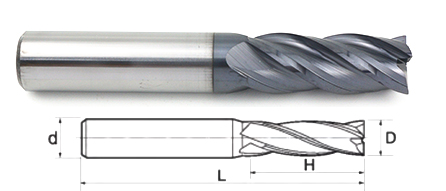

Product parameters

D (cutting diameter)	d (shank diameter)	l (length of flute)	L (total length)
1	4	3	50
1.5	4	4
2	4	6
2.5	4	8
3	3	8
3	4	8
3.5	4	11
4	4	11
1	6	3
1.5	6	4
2	6	6
2.5	6	8
3	6	8
3.5	6	11
4	6	11
4.5	6	13
5	5	13
5	6	13
6	6	15
7	8	20
8	8	20
9	10	25	75
10	10	25
12	12	30
14	14	45	100
16	16	45
18	18	45
20	20	45

For milling machine, CNC, drilling machine, engraving machine. Metal, woodworking, alloy steel, stainless steel, etc. High rigidity, widely used in shallow groove, copy milling and finishing.

customer service

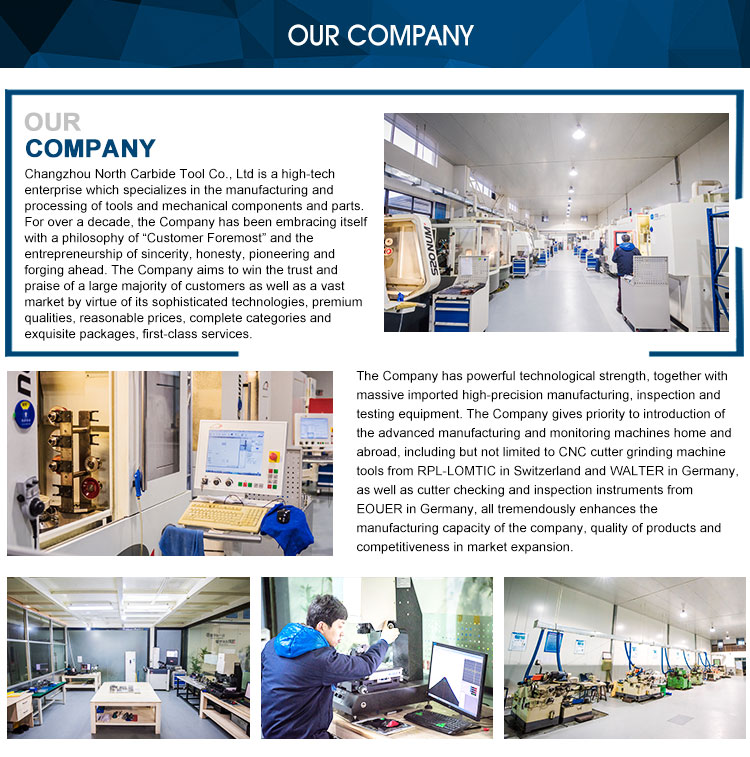

our company

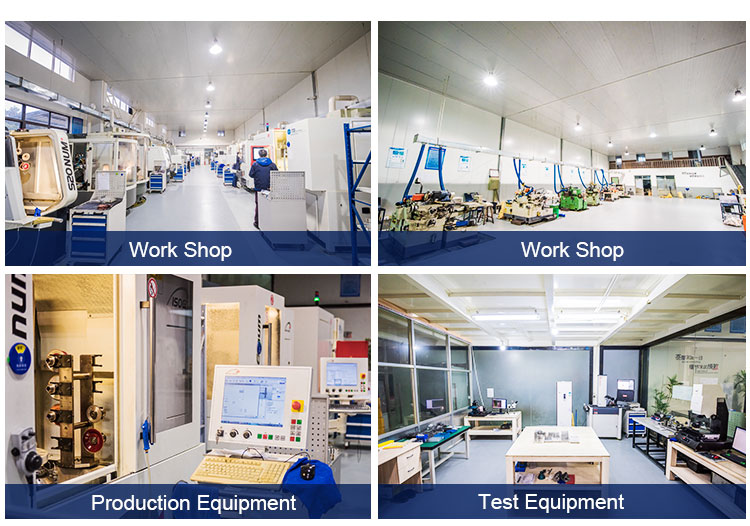

show of power

FAQ

Q: Are you a trading company or a manufacturer?

A: We are professional manufacturer with more than 15 years experience in this field.

Q: Is free shipping available?

A: We don't offer free shipping, but we will give you some discounts if you buy a lot of products.
We have cooperative courier companies that can provide you with the best shipping prices.

Q: Can you send the product to our freight forwarder in China?

A: Yes, if you have a forwarder in China, we are happy to send the product to him/her.

Q: Can you produce special carbide tools?

A: Yes, we can. Since 2013. The main market for our factory has changed from standard end mills to special tools. Special tools according to your drawings and samples.
