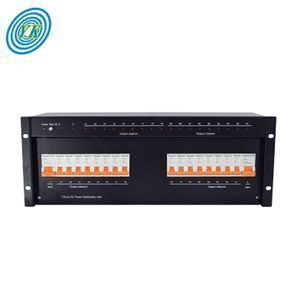

19inch Rack Mounting DC Power Distribution Unit

Supplier: Yucoo Network Equipment Co., Limited
Region: Guangdong, China
Contact: Ms Alisa Luo
Price: $250.00 /set
Min. Order: 1 set

Click here to contact

Product details

Output channels:	12 channel /16 channel/ 18 channel /20 channel for option;	Supply Ability:	10000 Set/Sets per Month;
Dimension:	485mm(L)175mm(D)85 mm(H);	Alarm:	With/without alarm function for operation;
Packaging Detail:	Standard package;	Payment Terms:	L/C,T/T,Western Union,paypal;
Input voltage:	48VDC/24VDC/220VDC/110VDC for option;	Output voltage:	48VDC/24VDC/220VDC/110VDC;
Input Current:	10A,16A, 32A, 63A ,100A,125A for option;	Model Number:	YKDPZ-B;
Brand Name:	YUCOO;	Weight:	6.0Kg;
Input channels:	1 channel / 2 channels for option;	Output current:	10A,16A, 32A, 63A ,100A,125A for option;
Port:	guangzhou/shenzhen;	Place of Origin:	Guangdong China (Mainland);
Product Name:	Power Distribution Unit;

19inch Rack Mounting DC Power Distribution Unit

Product Description

YUCOO NETWORK EQUIPMENT CO., LTD

We Design , We Delelop, We Support! QUALITY IS OUR CULTURE

Website : www.ykpowersupply.com

Features of power distribution unit

1. YKDPZ-B PDU is a DC power distribution system module with 19inch standard structure,

small size , easy to install and use.

2. There is A-B 1ch/2chs input, multi-channels output (max 20chs).

3. Visual-aural alarm when there is failure. LED display running status

4. PDU has excellent performance and reliable quality.

5. Its widely used in Telecom, BTS, Mobile, Unicom, electric power, army, public security, etc

Parameters of power distribution unit:

Model	YKDPZ-B
Input channels	1 channel / 2 channels for option
Input voltage	48VDC/24VDC/220VDC/110VDC or 48VAC/24VAC/220VAC/110VAC For option
Input Current	10A,16A, 32A, 63A ,100A,125A circuit breaker/air switch for option
Insulation resistance	≥30MΩ
Insulating intensity	Input—housing AC1000V,50Hz,1minute Output-housing AC1000V,50Hz,1minute
Output channels	12 channel /16 channel/ 18 channel /20 channel for option
Output voltage	-48VDC/24VDC/220VDC/110VDC or -48VAC/24VAC/220VAC/110VAC For option
Output Current	10A,16A, 32A, 63A ,100A,125A circuit breaker/air switch for option
Alarm	Visual-aural alarm signal. When there is any channel is failed, Red LED ON and buzzer sounds. With/without alarm function for operation
Working environment	Working temperature :0℃~40℃ Related humility :≤90% (+20±5℃) atmospheric pressure:70Kpa~106Kpa
Dimension	85mm(L)175mm(D)85mm(H)
Weight	6.0Kg
Packing:	510mm150mm125mm, 5.5kg

Product details

Customized Range

DC Distribution Unit can customize different specification
Input
Channel	Voltage (Optional)	Circuit breaker/Air switch
2 channels	48/24/220/110VDC or 48/24/220/110VAC	10A, 16A, 32A, 63A ,100A,125A/800A
Output
Channel	Voltage(Optional)	Circuit breaker/Air switch
Can customize 1-36 channels	-48/24/220/110VDC or -48/24/220/110VAC	10A, 16A, 32A, 63A ,100A,125A/800A Optional
Alarming-- With/without alarming function can be option
Rack Mount--2U-6U can customize

Regards as PDU/DC Distribution Unit, We can customized all kind of PDU according to your request
