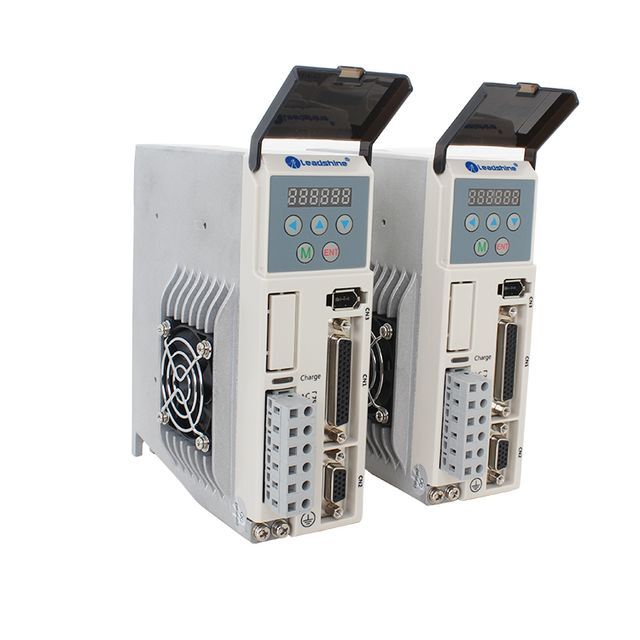

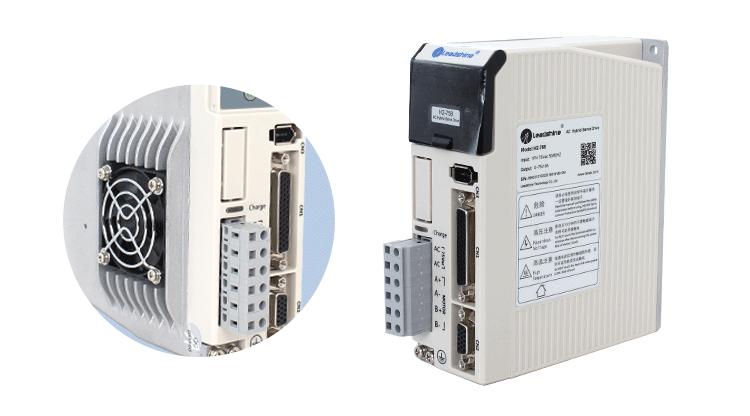

Leadshine H2-758 CNC Cutting Machine Stepper Motor Drive

Supplier: Jinan Yinfan Electromechanical Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms YINFAN CNC
Price: $79.00 / 1 - 4 pieces
$75.00 / >=5 pieces
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	Letter of credit, wire transfer;	Supply capacity:	650 pieces per month;
product name:	Leadshine H2-758 CNC cutting machine driven by stepping motor;	Packaging Details:	The company has a unified corrugated box packaging, with buffer material inside and moisture-proof sealing material outside.
model:	H2-758;	Warranty:	3 months - 1 year;
Voltage:	30-100DC/AC;	current:	4.2A;
Rated speed:	1500 rpm;	port:	Qingdao;
place of origin; place of origin:	Shandong China;	brand:	glow;
Motor Type:	stepper motor;	stage:	3 stages;

Leadshine H2-758 CNC Cutting Machine Stepper Motor Drive

Applicable to all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, wire stripping machine, marking machine, cutting machine, laser imagesetter, plotter, CNC machine, automatic assembly equipment, etc...

Product parameters

Electrical indicators

parameter	sensitive	typical	maximum	unit
Output current	0	-	8	One
Input voltage	50	75	80	vacuum cleaner
logic signal current	7	10	20	Well
Pulse input frequency	-	200	300	kilohertz
Insulation resistance	100	-	-
Alarm output logic current	-	-	100	Well

environment and parameters

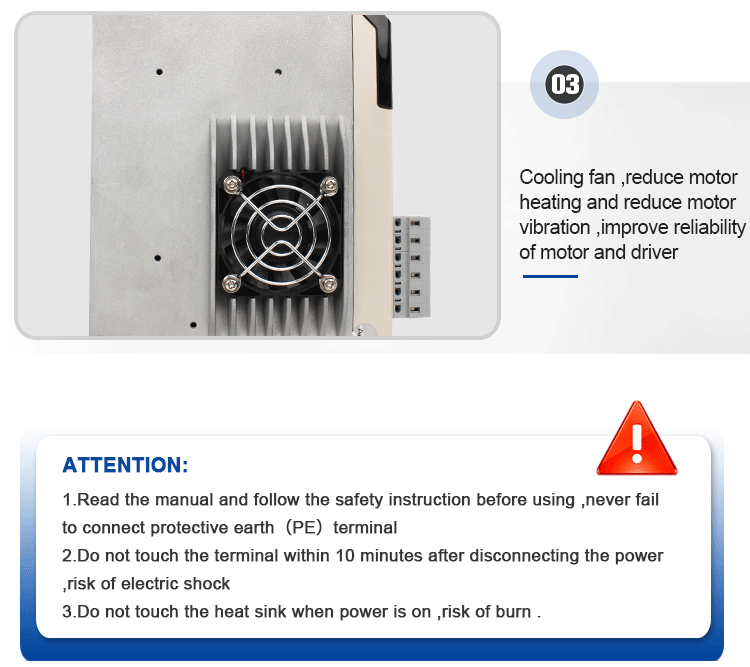

cooling type	Free cooling or forced air cooling
surroundings	place	Avoid dust, oil mist and corrosive gases
	temperature	0°C-40°C
	humidity	40-90%RH
	vibration	10-55HZ/0.15mm
storage temperature	—20°C-65°C
weight	1200 grams
