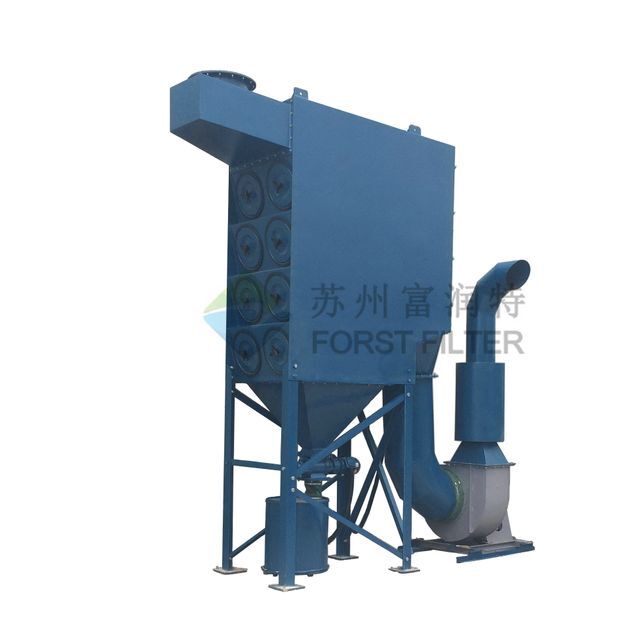

FORST Pulse Jet Air Powder Cleaning Cartridge Filter Industrial Dust Collector

Supplier: Suzhou Forst Filter Co., Ltd.
Region: Jiangsu, China
Contact: Ms Sophia Yang
Price: $2300.00 / 1 - 2 sets
$2000.00 / 3 - 9 sets
$1800.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

color:	blue/grey/custom;	After-sales service provided:	Provide overseas service centers;
weight:	2300 kg;	Packaging Preview:	;
Applicable industries:	Manufacturing plants, mechanical repair shops, food and beverage plants, farms, retail, print shops, energy and mining, food and beverage shops;	State of health:	new;
Core Components Warranty:	1 year;	type:	Cartridge dust collector;
Mechanical test report:	if;	Marketing Type:	New Products 2022;
application:	industrial dust removal;	Minimum particle size:	0.5μ;
Dimensions (LWH):	3063/2275/4513MM;	Video external inspection:	if;
Voltage:	380V/50HZ/3HP;	Packaging Details:	pallet/wooden case;
brand:	Foster filter;	port:	Shanghai/Ningbo/Shenzhen/Tianjin/Qingdao;
Supply capacity:	10 sets per month;	Performance:	High dust removal efficiency;
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Origin:	Jiangsu, China;
dust:	dry dust;	structure:	Pulse jet system;
product name:	Pulse jet air powder cartridge filter industrial dust collector;	Motor Power:	7.5~75KW;
Core components:	PLC, engine, motor, valve, filter;	Showroom location:	Philippines, Pakistan, Spain, South Africa, Australia;
Warranty:	1 year;

Model	unit	Cartridge number	Filtration area (m2)	Power(KW)	Air volume (m³/h)	Dimensions LWH(mm)
SFF2X-8	1	8	80	5.5	5500	1028x2275x3550
SFF3X-12	1	12	120	7.5 or 11.0	8000	1028x2275x3750
SFF3X-18	1	18	180	18.5	13000	1525x2452x3950
SFF3X-24	2	twenty four	240	22.0	18000	2026x2452x3950
SFF3X-36	2	36	360	37.0	24500	3052x2858x3950
SFF4X-16	1	16	160	15.0	12000	1028x2275x4200
SFF4X-32	2	32	320	30.0	21000	2050x2695x4550
SFF4X-48	3	48	180	45.0	32000	3075x2695x4550
SFF4X-64	4	64	640	55.0	43500	4084×2275×4950
SFF4X-80	5	80	800	75.0	52000	5105×2275×4950
SFF4X-96	6	96	960	96.0	62500	6126×2275×4950

feature

1. Equipped with efficient and advanced flame retardant filter element.

2. AutomaticThe filter's pulse jet cleaning method makes the machine work continuously.

3. Large capacity vacuum cleaner ads, easy to remove and dispose of dust.

4. Replace the filter element according to different sizes and applications.

5.Real-time monitoring of machine pressure changes to quickly detect whether the filter is clean

6. Explosion-proof motor and electrical control cabinet ensure the safe operation of the machine

Foster filter dust collectors are popular forConcentrated applications with a large amount of dust such as wood processing, grinding, cutting, feeding, etc.

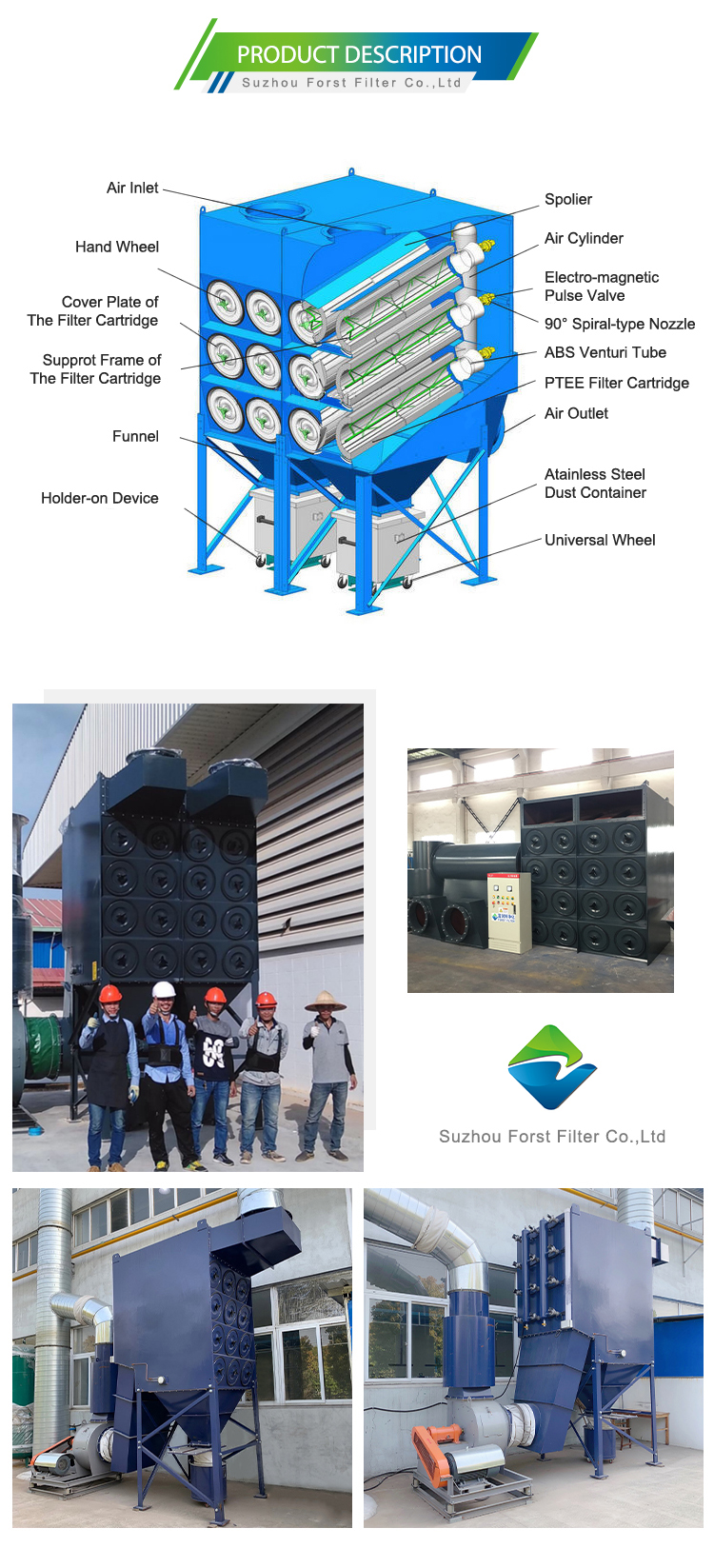

The dust removal system includes complete sets of equipment, Siemens Bader motors, centrifugal fans, and air valves

Rotary valve...etc

The central dust collection system has the characteristics of large air volume, stable structure, filter cartridge installation, and convenient ejection mechanism.It is suitable for production and processing with a large amount of dust.
