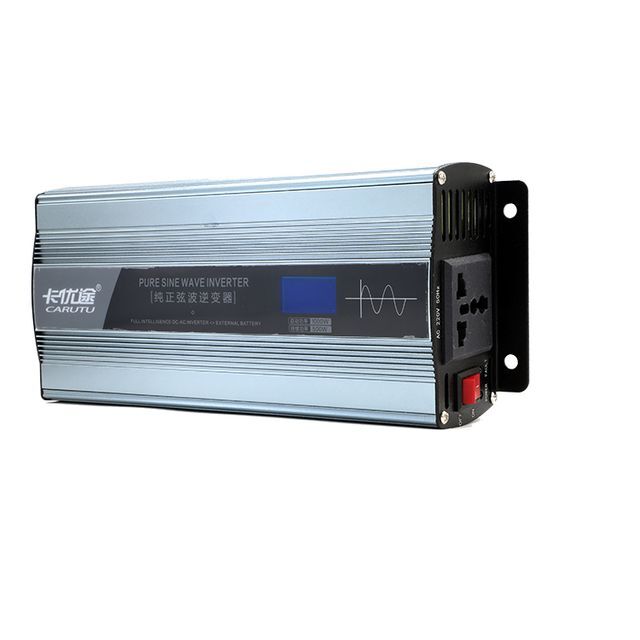

Promotional top quality 12v to 110/120v solar power system home 500 watts pure sine wave inverter with display screen

Supplier: Yueqing Youwang Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms ELLEN ZHONG
Price: $60.00 / 1 - 49 pieces
$58.50 / 50 - 499 pieces
$57.00 / >=500 pieces
Min. Order: 1 piece

Click here to contact

Product details

Model:	CRD-500W;	Port:	Ningbo/Shanghai;
Type:	DC/AC Inverters;	Peak Power:	1000w;
Rated Power:	500W;	OEM:	Accepted;
Output Type:	Single;	Supply Ability:	20000 Pieces per Month;
Application:	Solar Power System Home;	Model Number:	CRD-500;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Brand Name:	CARUTU;
Display:	With Intelligent LCD;	Warranty:	12 months;
Place of Origin:	China;	Output socket:	Universal/Customized;

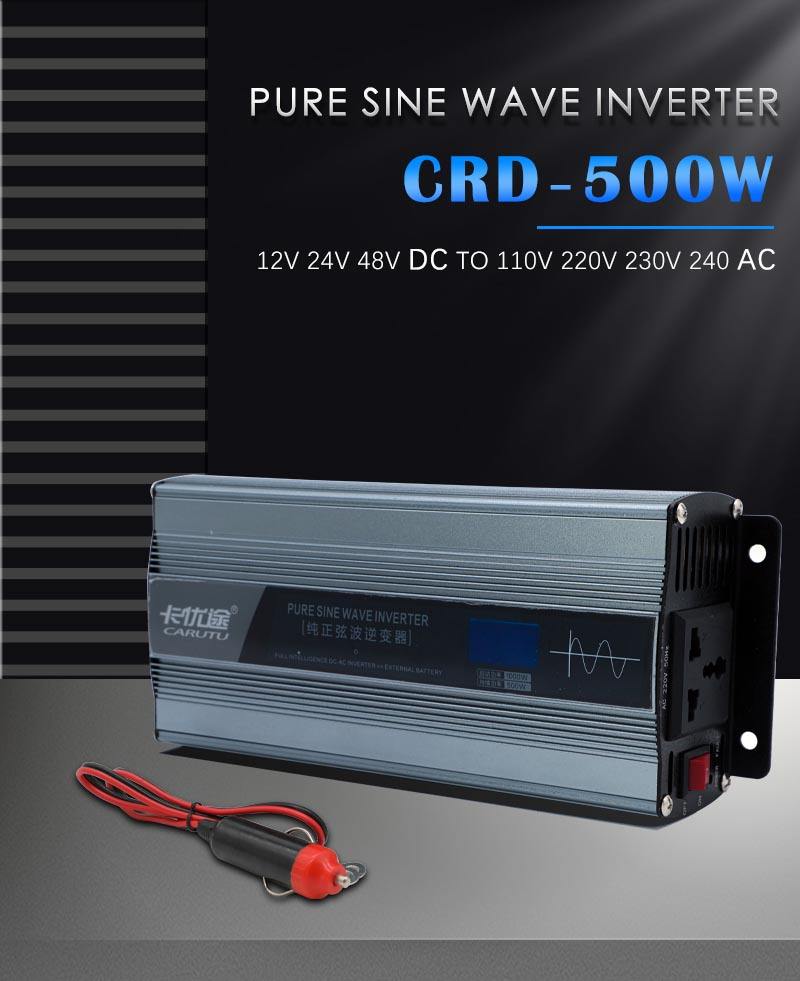

500W Pure Sine Wave Power Inverter for Car Truck RV Adapter DC 12V to AC 220V 230V with LCD Display
Provides 500watt pure sine wave power, 1000watt surge power inverter, convering DC 12 volt to AC 220~230 volt with 1 universal AC
sockets, 1 intelligent cooling fan and 1 LCD display.This travel-sized 500w power inverter with cig lighter plug is ideal for your
road trips, vacations, and camping. And suit for most of 12V car. .Featured with a Intelligent multifunction LCD display,which not
only can let users know AC/DC voltage, power ,temperature etc, but also know failure cause.

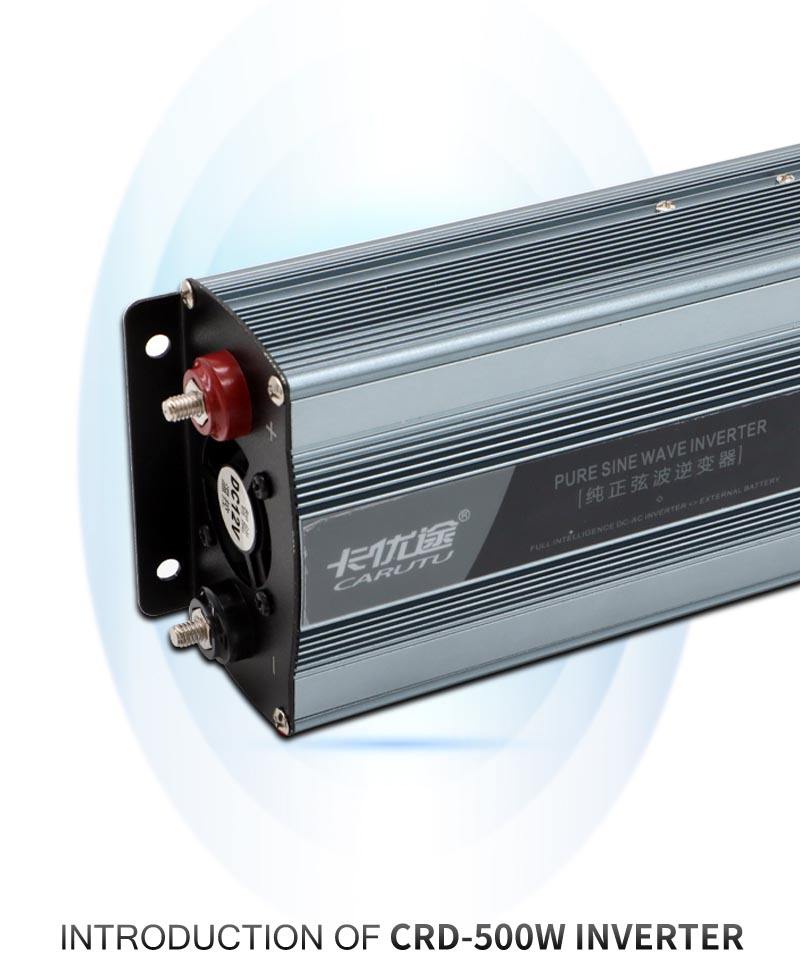

Model:CRD-500W
Output Waveform:pure sine wave
Rated Power: 500W
Peak Power: 1000W
Output voltage: AC100/110/120/220/230/240
Input voltage:DC12/24/48/60/90/110
Frequency:60HZ/50HZ
Size：211*104*70mm
N.W. :0.95KGS.

Model			CRD-500W-12V-L	CRD-500W-24V-L		CRD-500W-48V-L
	AC voltage	100/110/120/220/230/240VAC
	Rated power	500W
	Surge power	1000W(for few seconds)
	Waveform	Pure Sine Wave(THD<3%)
Output	Frequency	50/60Hz±3Hz
	DC voltage	12V	24V	48V
	Voltage range	10~15VDC	20~30VDC	40~60VDC
Input	Efficiency	>87.0%	>90.0%	>90.0%
	Bat.low voltage alarm
	Bat.low voltage alarm		11±0.5VDC	22±1VDC	44±2VDC
	Bat.low voltage shut
	down	10±0.5VDC	20±1VDC	40±2VDC
	Overload	Shutdown,then start automatically.
	Over voltage	15±0.5VDC	30±1VDC	60±2VDC
Protection	Over temperature	Shut-off output voltage, recover automatically after temperature goes down
	Short circuit	Shut-off output voltage, restart to recover
	Bat.reverse polarity	Reverse protection circuit：A reverse protection circuit no burning fuse
	polarity
60V/72V/96V/110V----These specifications can also be customized. These data are from our laboratory.

Features：

Provides 6 kinds of intelligent protection which can protect your electrical equipment considerately. 1. Over Load Protection: When connected load exceeds the inverter rated power watts (W), the inverter will automatically shut down to stop the output. 2. Over Heat Protection: As the internal temperature of the inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment. 3. High-Voltage Protection: When the DC input voltage exceeds the normal range of the inverter will automatically shut down to stop the output voltage is too high note when there may be damage to the machine. 4. Low-Voltage Protection: When the battery or power supply voltage is too low, the inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised. 5. Reverse Protection: When the inverter link reverse to battery, inverter fuse will be blown, without damaging the product itself, you need to replace the fuse.（A reverse protection circuit no burning fuse for 300w, 500w) 6. Short Circuit Protection: When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output

Q: What’s the main differences between a pure and modified sine-wave inverter? A: there are two main differences between a pure and modified sine-wave inverter: efficiency and cost. Pure sine wave inverters are good at two things: efficiently powering devices that use AC, and powering devices like radios that can suffer from interference. But, they can be expensive. On the other hand, a modified sine wave inverter may produce some interference, resulting in a less-than-pure current, but they are less expensive than their pure-sine counterparts. 2. Q: Which type of inverter do i need,pure sine wave or modified sine wave? A: If you are in need of an inverter that is going to power sensitive electronics such as: medical devices, computers, anything with a dimmer/variable speed, heater/heating coil, or just needs clean power; buy the pure sine inverter… On the other hand, if you need temporary power while tail-gating, camping, road-trips or to charge your laptop/two-way radios, power fans, run a blender, power a microwave, etc., the modified sine wave inverter is smart and affordable choice If you are not sure which one is suitable for your appliances, please contact with us. 3. Q: How to choose an inverter? A:For Inductive Load : If connecting with inductive loads (e.g. Compressor, Pump, old CRT TV, Refrigerator, Ice conditioner, Air conditioner, Relays,Fluorescent lamp, Vacuum cleaner), please choose inverter whose rate power is 3-7 times higher than the load's rate power. For example, for a 150w refrigerator, please choose a 1000w inverter or higher; for a 800w air conditioner, please choose 2500w inverter or higher. For Resistive Load : If connecting with resistive loads (e.g. Computer, LED TV, Fan, Scanner, Fax machine, Duplicator, Sound system, Juice extractor, Heater, Electric cooker, Coffee maker, microwave, crock pot), please choose inverter whose continuous power is a little higher than the load's rate power. For example, for loads near 700w, it's better to choose inverter with continuous power more than 800w.
