Automatic scrap metal cutting machine Gantry Shears for recycling industry

Supplier: Henan Shanjie Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Guo manman
Price: $28000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	Customizable;	Key Selling Points:	Automatic;
Condition:	New;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Qingdao,Shanghai,Tianjin;	Warranty:	1 Year;
Supply Ability:	100 Sets per Month;	Place of Origin:	China;
Cutting thickness:	0-200mm;	Rated Power:	7.5kw, 18.5kw;
Weight (KG):	11000;	Marketing Type:	New Product 2020;
Max. Cutting Force (Ton):	1.5;	Packaging Detail:	1, Small size equipment is packed by wooden case which delivery by LCL shipping . 2, Big size equipment is nude packing which delivery by full container load,small parts will be packed into wooden case. 3, Special packing requirement as customers requirement .;
Material / Metal Processed:	Brass / Copper,ALLOY,Carbon steel,Aluminum,Stainless Steel;	Core Components:	PLC,Gearbox;
Name:	Hydraulic Shearing Machine;	Application:	Industrial Metal Cutting;
Showroom Location:	None;	Video outgoing-inspection:	Provided;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Cutting material:	Metal Stainless Steel Carbon Steel Aluminum;
Applicable Industries:	metal shearing and recycling;	Warranty of core components:	1 Year;
Shearing frequency:	4-6/min;	Machine Type:	Gantry Shears;
Machinery Test Report:	Not Available;	Control system:	START Control System;
Weight:	11t;	Power (kW):	18.5;

Automatic scrap metal cutting machine tool for recycling industry

Product Description

Heavy-duty hydraulic shears are suitable for compressing and cutting thin & light materials, production and living scrap steel, light metal structural parts, scrap car body, wheel hub, old home alliances, plastic non-ferrous metals(stainless steel, aluminum alloy, copper, etc), or used to compress and bale the above mentioned materials.

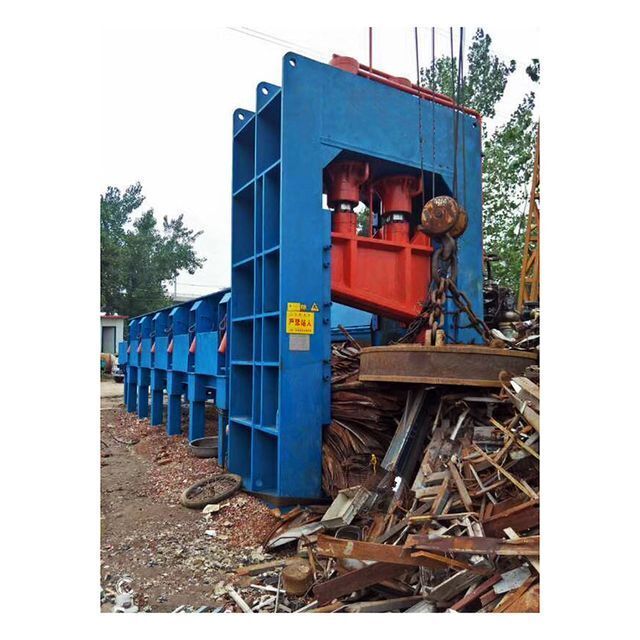

The gantry shear is composed of a frame, a hydraulic cylinder, a hydraulic power system and an electrical system. In the working principle, it passes through the automatic feeding bin, that is, after the material is grabbed to the loading bin, the scrap is automatically sent to the knife edge by the conveyor belt.The feeding speed can be adjusted by the speed regulating motor.
There are side extrusion cylinders on both sides of the bin. Large scraps such as scrapped cars cannot be cut by the gantry shears. The scrap can be squeezed and reduced by the side squeeze cylinders, and then sent to the cutting edge through the conveyor to cut.

Product parameters

Type	Max.Cutting fore	System pressure(Mpa)	Bin size(mm)	Blade lenght (mm)	Capacity	Shearing frequency (times/min)	Power (kw)	Weight (T)
XTL-200T	200	≤25	70016002300	1200	2.5-3	4--6	2*18.5	11
XTL-400T	400	≤25	50001300500	1400	4-5	4--6	2*45	19
XTL-600T	600	≤25	55001500700	1600	8-10	4--6	3*45	30
XTL-800T	800	≤25	60001700800	1800	15-20	4--6	4*45	38
XTL-1000T	1000	≤25	600019001000	2000	20-25	4--6	5*45	60
XTL-1250T	1250	≤25	800021001500	2200	25-30	4--6	6*45	88
