3 Ways Pneumatic Suction Chain Cutter Device With over-lock Machine (with YAMATO)

Supplier: Grand Precision Industrial Ltd.
Region: Guangdong, China
Contact: Mr Kimstem Wu
Price:
Min. Order: 1 piece

Click here to contact

Product details

Automatic Grade:	Semi-Automatic;	Delivery Detail:	One week;
Packaging Detail:	Carton Packaging;	Condition:	New;
Payment Terms:	T/T;	Port:	zhongshan/Hongkong;
Warranty:	1 year;	Model Number:	CA112-1-P-F-SC( yamato);
Supply Ability:	500 Unit/Units per Week;	Brand Name:	GRAND;
After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	ISO9001:2008;CE;UKAS Certificate;
Place of Origin:	Guangdong China (Mainland);

Advantages of sewing machine installing chain cutter dust suction device?
1, work site clean
2, equipment clean
3, does not require any operational requirements, novices can be quickly reached the level of skilled
4, save sissors threads workers
5, to improve the production efficiency 20%

GRAND brand Chain cutter dust suction device works: air compressor pressure generated by the vacuum generator after amplification (or small vacuum motor) produces powerful suction, the former Qiebu inhalation trash, after priming package after the completion of the sewing inhalation internal sutures knife, aim to achieve by trimming blade reciprocates.
Effect: provincial lines, job site clean, equipment cleaning, save costs and improve productivity.

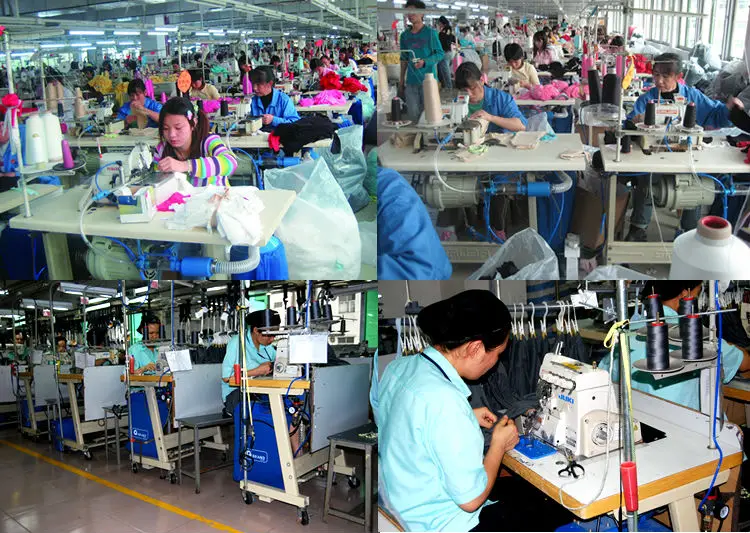

Application: Suitable for all brands of sewing sewing machine supporting the use of the installation.

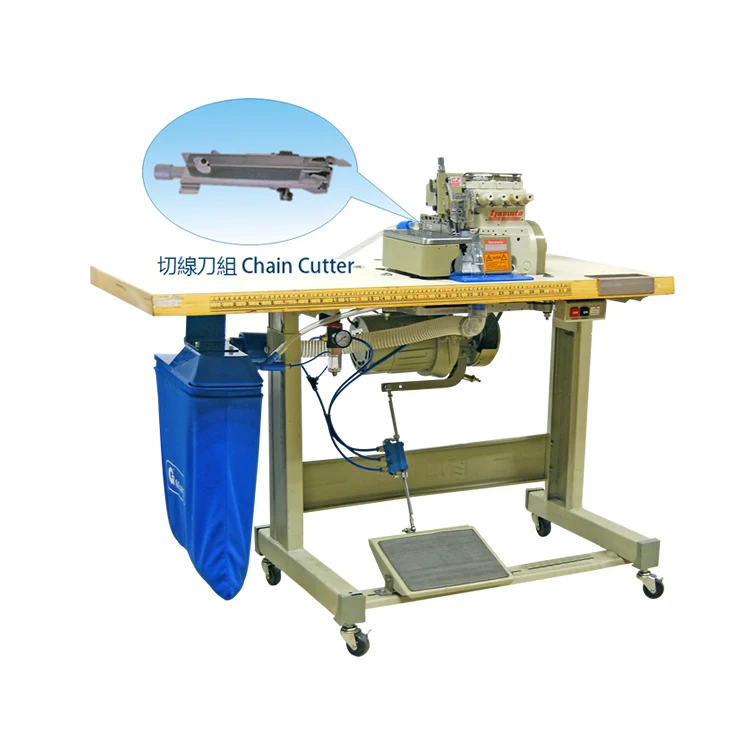

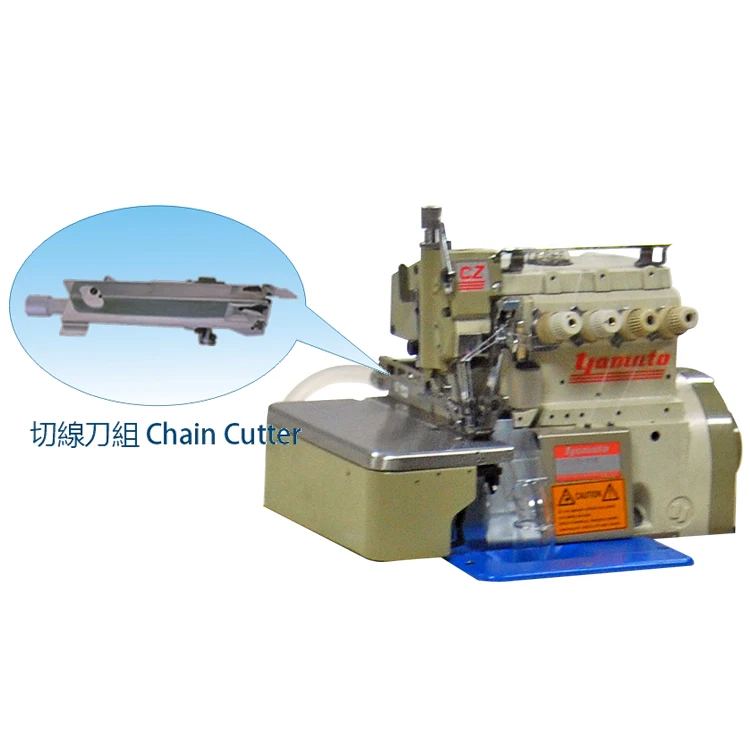

YAMATO CZ over-lock machine Configure & installation diagram :

Pneumatic suction dust collector kind Legend:

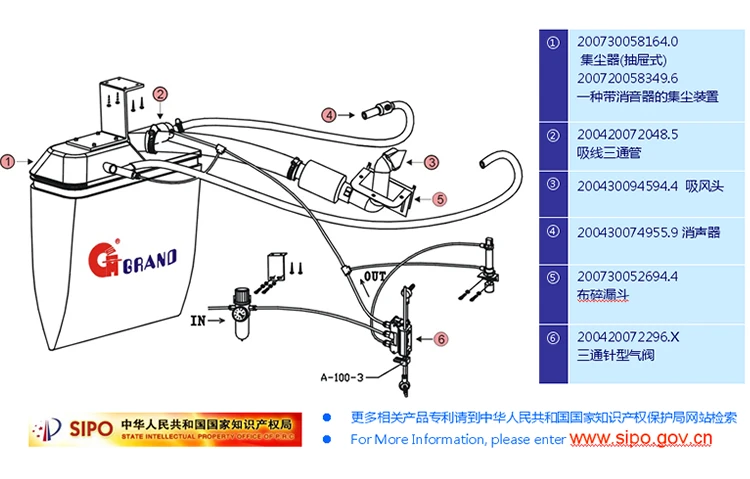

Suction device product patent description:

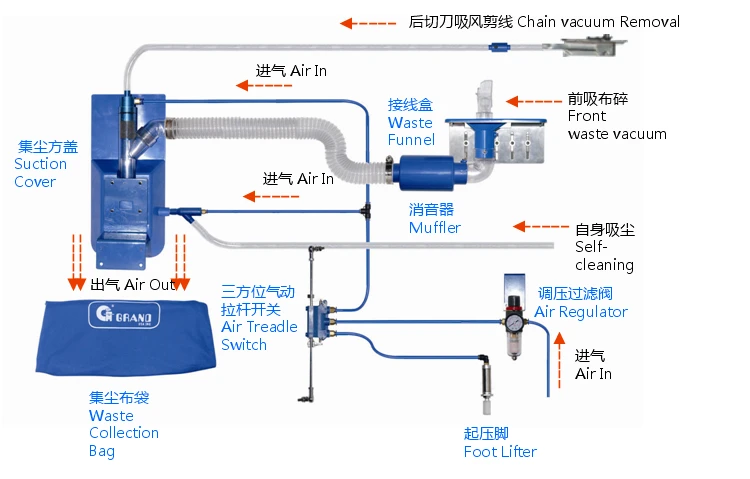

Description of Key Components:

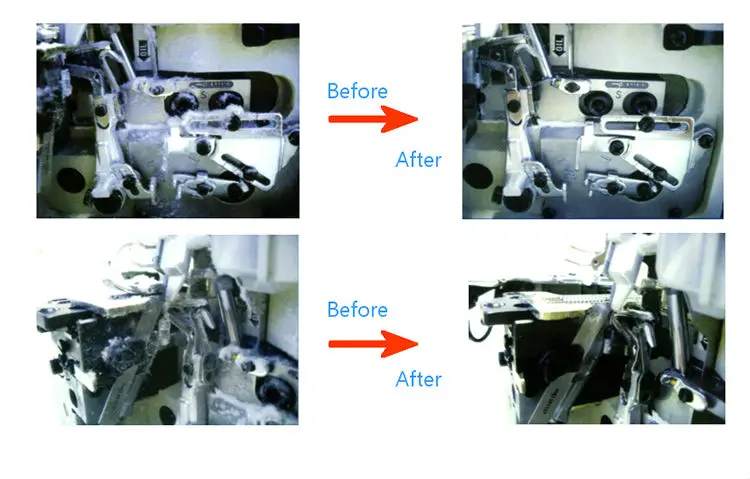

SC Self-cleaning application effect:

Name:	3 Ways Pneumatic Suction Chain Cutter Device With over-lock Machine (with YAMATO over-lock machine as an example:front waste + chain vacuum removal + foot lifter + Self-cleaning)
Model:	GA112-1-P-F-SC- YAMATO Derived Model: GA111-1 1 way (front waste or chain vacuum removal) GA111A-1 1 way front waste GA112-1 2 ways (front waste + chain vacuum removal) GA112-1-P 3 ways (front waste + chain vacuum removal + foot lifter)
Description:	This series of products applies to thread-cutting and suction for overlock sewing machine in Garment manufacturing company. The device should be used with a central gas distribution (or mini air compressor). It can be custom made into three model. 1 way (front waste or chain vacuum removal, you can choose one of them), 2 ways (front waste plus chain vacuum removal) , 3 ways (front waste plus chain vacuum removal plus foot lifter). This device is primarily driven by pneumatic components. Air source comes through the valve,then pushes air component working well. Thread and scraps of cloth are sucked by this device. When you press the foot lifter, valve automatically reset, device will be power off due to short of air source. This small size device has effective thread-cutting and suction function, which is easy to operate and can keep workshop clean.

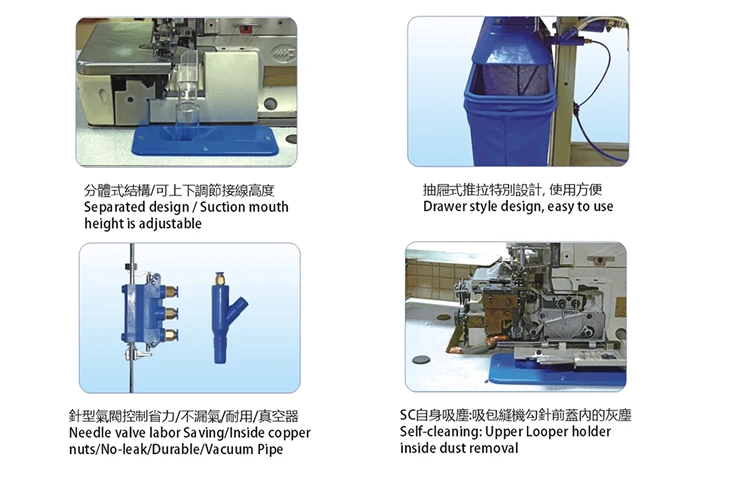

Feature:	1.Venturi operates when treadle pressed; 2. PL controller operates when treadle heeled; 3. Can be used with any kind of over-lock or inter-lock machine; 4.Air regulator assembly is optional; 5.Self-cleaning is optional(upper looper dust removal)

Scution Device Order Guide:GA 11 2 -2 - P - D - F - SC\GE 10 2 -2 - BL
GA/GE	GA means Air Action GE means Electirc Action	1/2/4	1 means fabric suction bag 2 means round plastic bucket 4 means iron box
10/20/30/11/21/31	10 Means Round Style Suction Cover for Overlock M/C 20 Means Round Style Suction Cover for Flatlock M/C 20 Means Round Style Suction Cover for Feed Off Arm M/C 11 Means Square Drawer Suction Cover for Overlock M/C 21 Means Square Drawer Suction Cover for Flatlock M/C 31 Means Square Drawer Suction Cover for Feed Off Arm M/C	S/S2	S means single solenoid valve S2 means doubel solenoid valves
		P	P means cylinder(foot lifter)
		D	D means Full-submergence bracket
		F	F means air regulator(Filter)
		SC	SC means upper looper dust removal(self-cleaning)
1/1A/2	1 Means 1 way chain removal only 1A Means 1 way waste vacuum only 2 Means 2 ways chain removal+waste vacuum	BL/HB	BL means Brushless Motor Scution HB means Suction Brush Motor

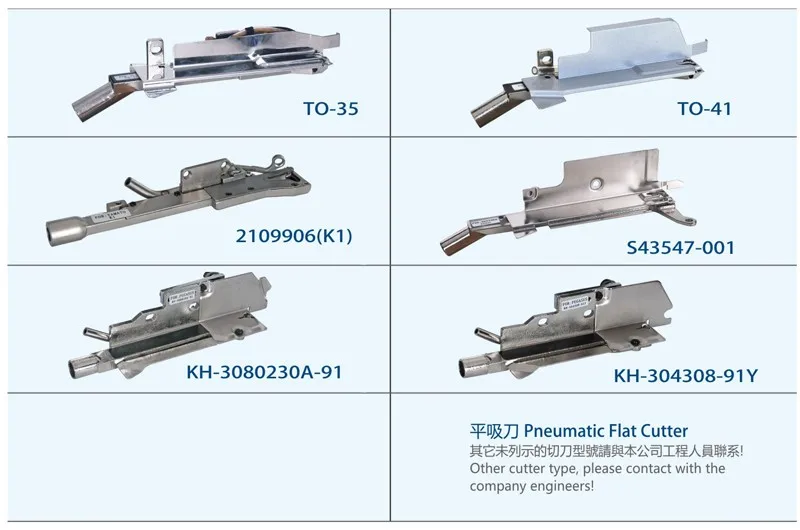

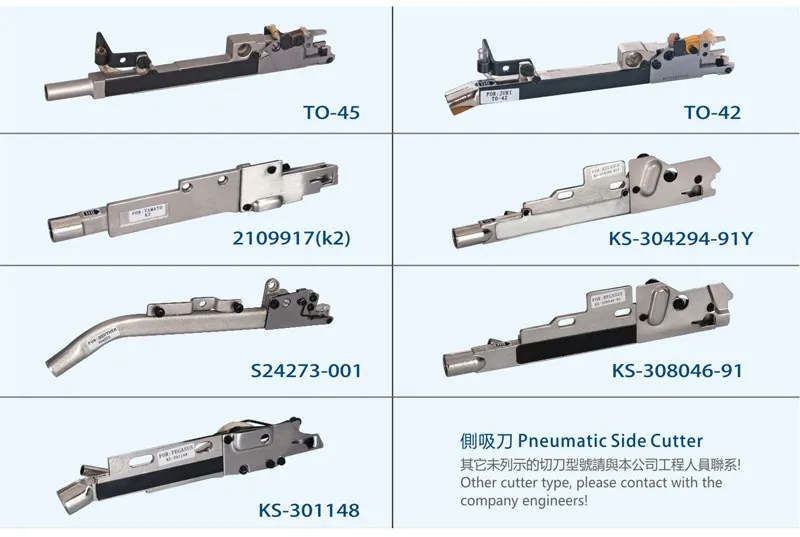

Chain Cutter Optional:

MACHINE BRAND	CHAIN CUTTER MODE	MACHINE MODEL
JUKI	TO-45 \ TO-42 (Side)	MO-2514, 3314 \ 3714, 3914, 6714, 6914
JUKI	TO-35 \ TO-41 (Flat)	MO-2516, 3316 \ 3716, 3916, 6716, 6916
YAMOTO	2109917(K2) (Side)	AZ-8003, AZ-8020, CZ-6003, CZ-6125
YAMOTO	2109906(K1) (Flat)	AZ-8500, AZ-8600, CZ6520, CZ6500
BROTHER	S24273-001 (Side)	N11, N21, V61
BROTHER	S43547-001 (Flat)	N31, V51
PEGASUS	KS-308046-91 \ KS-30429A-91Y (Side)	EX5214, MX5214 \ M752, M852
PEGASUS	KH-308020A-91 \ KH-304308-91Y (Flat)	EX3216, MX3216 \ M732, M832
SIRUBA	KS-301148 \ KS-308046-91 (Side)	737, 747F, 747D, E52 \ 988-504, 747K
SIRUBA	KH-301235 \ KH-308020A (Flat)	757F, 757D, 767F, E32 \ 988-516, 757K
KINGTEX	SS023 \ KS-308046-91 (Side)	SH7004 \ UH9004
KINGTEX	SS035 \ KH-308020A (Flat)	SH7005 \ UH9005
