Product details
Packaging Detail:20FT 30 units, 40FT 64 units;Material:1.5mm galvanized sheet;
Size:2700*1000*900mm;Use:ATV Trailer;
Wheel:22*11-8;COLOR:Customizable;
Brand Name:SINOLINK;OE NO.:Requirement;
Port:seaport;Payment Terms:L/C,T/T;
FENCE:30CM height;Supply Ability:300 Units per Month;
Place of Origin:Shandong, China;Max Payload:500kgs;

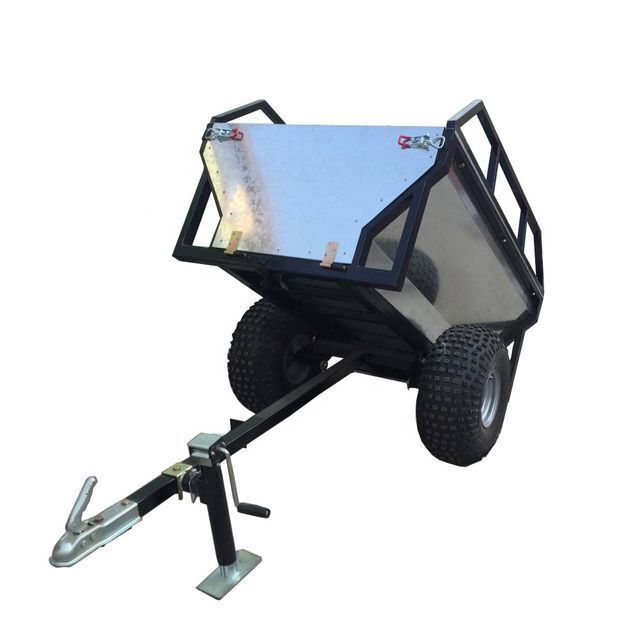

ATV Wood Chipper Shredder Machine

Durable versatile single axle trailer with a load capacity of 500 kg is great and affordable solution for everyday jobs around the property. Trailer is designed for ATVs and UTVs equipped with a 50 mm / 2'' hitch ball. With an extra wide low-pressure off-road tires trailer does no damage to the terrain and is easily maneuverable between the trees, allowing access to places outside the reach of larger trailers.

Product Application

ATV Towable Wood Firewood Log Timber Trailer with 2 rubber tires.  Could be attached with ATV series vehicles.

Main Features

1) 1.5mm galvanized sheet box with 500KGS loading capacity

2) 2 Rubber tires to walk

3) 50mm Diameter connector / Jack optional

Overall size
2700*1000*900mm
Box size
1500*950/520*450mm
Packing size
1650*1100*850mm
Box material
1.5mm galvanized sheet
Surface Finish
Powder coating (colors optional),plating or galvanizing
Draw bar length
800mm
Draw bar material
50*50*2.5mm
Loading capacity
500 kg
Net.Weight
110kg
Tire size
22*11-8
Fence
30cm height ( 2 types optional)
Quantity of tires
2
Quantity
20FT 30 units,  40FT 64 units

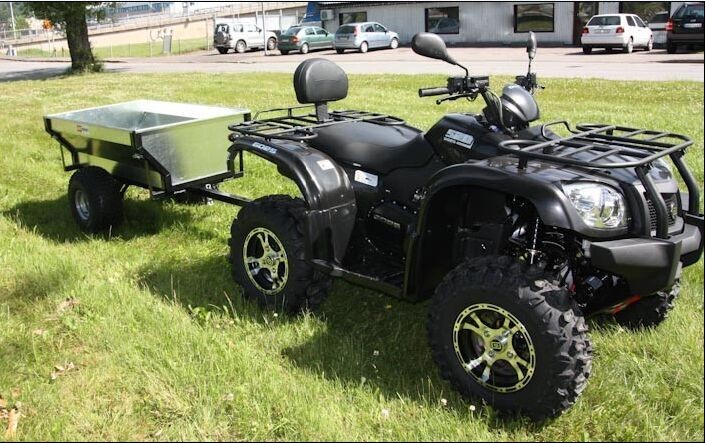

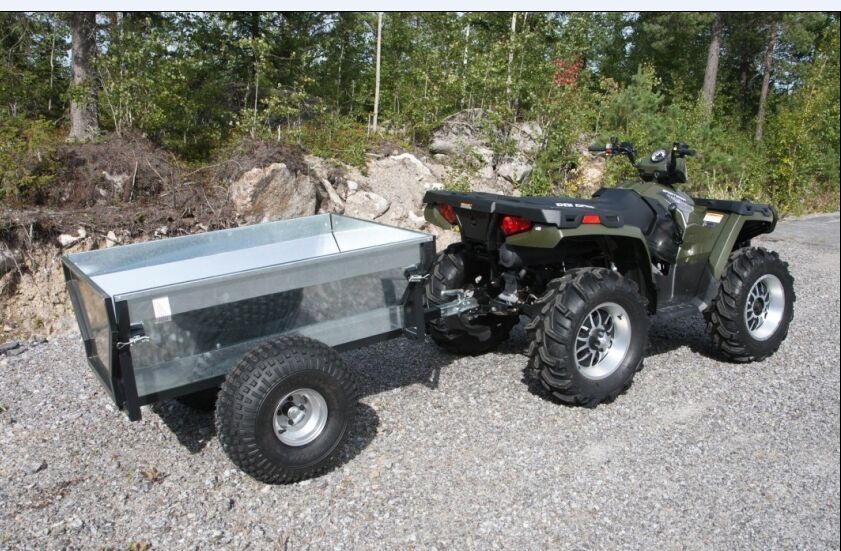

It could be attached with ATV Series Vehicles.

For many kinds of topography.

2 rubber tires(22*11-8)





500 kgs Loading capacity
1.5mm galvanized sheet box material


2 Types Fence Optional(30cm height)


2 Types Fence Optional(30cm height)
