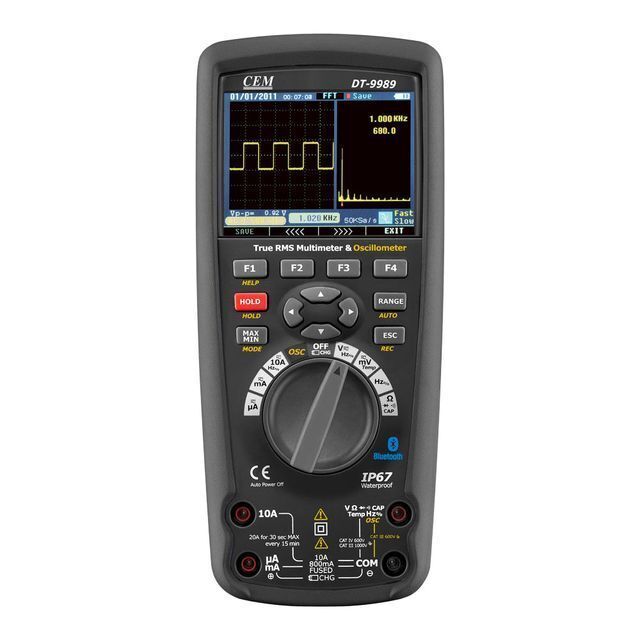

CEM DT-9989 50000 counts 2 in 1 High Accuracy Professional Digital Multimeter with Oscilloscope and Calibration

Click here to contact

Product details

Dimensions:	220mm x 96mm x 60mm;	Port:	shenzhen;
Measuring Capacitance Range:	10mF;	Waterproof:	IP67;
Measuring Voltage Range:	1000V;	Supply Ability:	500000 Pieces per Month;
Package Preview:	;	Measuring Resistance Range:	50MΩ;
Packaging Detail:	wooden case or other security package;	Frequency:	10MHz;
Payment Terms:	L/C,T/T;	Place of Origin:	Guangdong, China;
Model Number:	DT-9989;	Bandwidth:	20MHz;
Data logger:	yes;	Brand Name:	CEM;
Safety Conformance:	EN61010-1 CAT IV 600V, CAT III 1000V;	Style:	Professional Oscilloscope Multimeter;
LCD size:	3.5 Inches Color LCD;	Measuring Current Range:	10A;
Warranty:	1 year;	Real time sample rage:	50MS/s;

Remark : $20 is the price of accessories, not the price of instruments

Specifications	DT-9989
Oscilloscope Functions
Display Size	3.5" color LCD; 320 x 240 pixels
Bandwidth	20MHz
Real time sample rate	50MS/s
Risetime	10ns
Channels	1
Vertical Sensitivity	50mV to 200V/div
Vertical Resolution	8 bits
Trigger Mode	Free Run, falling edge, rising edge
Trigger Source	Internal
Trigger Coupling	AC/DC
Input impedance	1MΩ/200pF
Max Input Volatage	1000V(peak)
Cursor Measurement	Voltage and time/ Frequency
True RMS Multimeter Functions
Function	Maximum	Max,resolution	Accuracy
Voltage DC	1000V	1μV	±(0.025% + 5)
Voltage AC	1000V	1μV	±(0.4% + 40)
Current DC	10A	0.01μA	±(0.15% + 2)
Current AC	10A	0.01μA	±(0.6% + 5)
Temperature	-50ºC to 1000ºC	0.1ºC	±(1.0% + 2.5ºC)
Resistance	50M	0.01	±(0.05% + 2)
Capacitance	10mF	0.001nF	±(1.0% + 5)
Frequency	10MHz	0.01Hz	±(0.005% + 1)
Diode and Continuity	Yes
PC Interface	yes
Power Supply	6 hours Li-ion rechargeable battery; AC daptor/charger
