Wholesale nachi bearing price list high quality high precision nachi bearing 6204

Supplier: Jinan JiaRuiDa Mechanical&Electrical Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Zhentang Wang
Price: $0.60 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Bore Size:	1 - 20 mm;	Seals Type:	ZZ,RS, 2Z, 2RS1, 2NR,ZNSE,LLB, DDU,NR, N;
Payment Terms:	L/C,Western Union,T/T,MoneyGram,Paypal;	Ball:	Chrome Steel;
Number of Row:	Single row;	Supply Ability:	100000 Pieces per Month Nachi Bearing 6204;
Services:	OEM customized services;	Clearance:	C2,C3,C4;
Noise level:	Z1, Z2, Z3;	Size:	20x47x14 mm;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops;	Place of Origin:	Shandong, China;
Certificate:	ISO9001:2008;	Cage:	Iron Cage;
Samples:	Available;	Type:	BALL;
Structure:	Deep Groove;	Stock:	Large;
Material:	Chrome Steel;	Model Number:	nachi bearing 6204;
Port:	Qingdao,Guangzhou, Tianjin,Shanghai;	Packaging Detail:	1. Industrial packaging: plastic bag/plastic tube + kraft paper + carton + plywood pallets 2. Commercial packing: 1pc/plastic bag + color box + carton + plywood pallets 3. As the clients' requirement;
Precision Rating:	P0, P6,P5,P4 P2;

Wholesale nachi bearing price list high quality high precision nachi bearing 6204

brands banner

JRDB banner

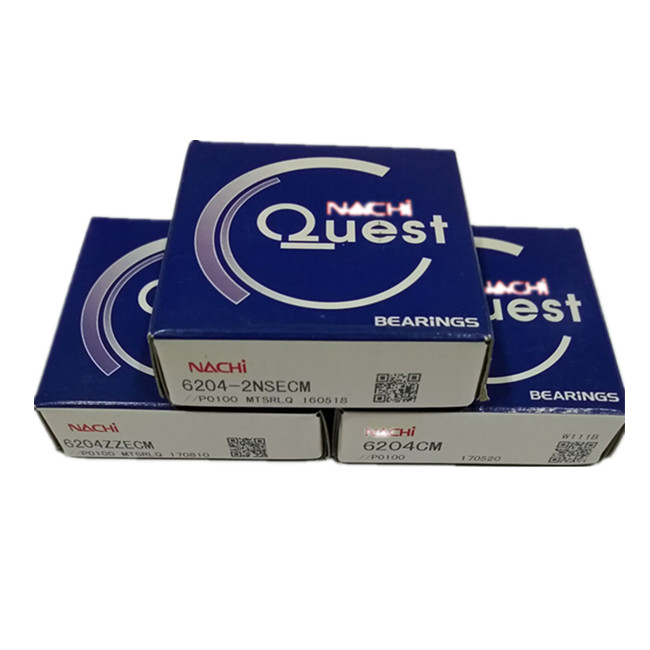

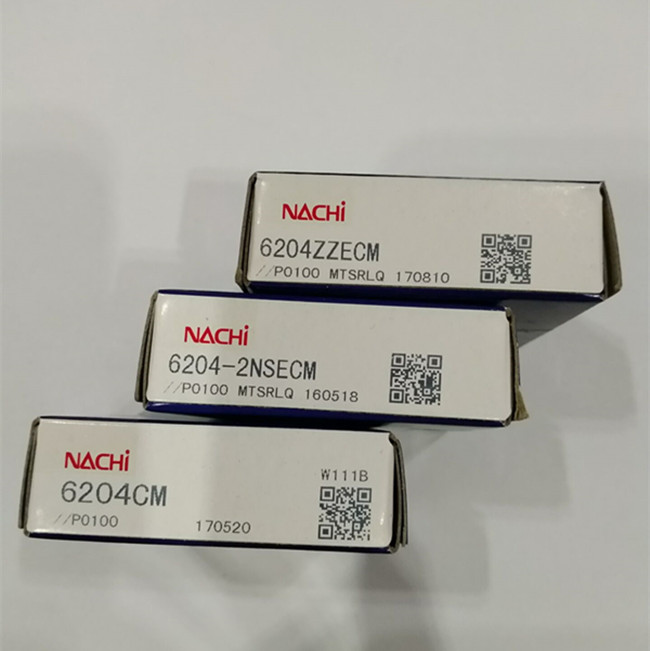

Nachi bearings are famouse for its high quality high precision in the bearing line.

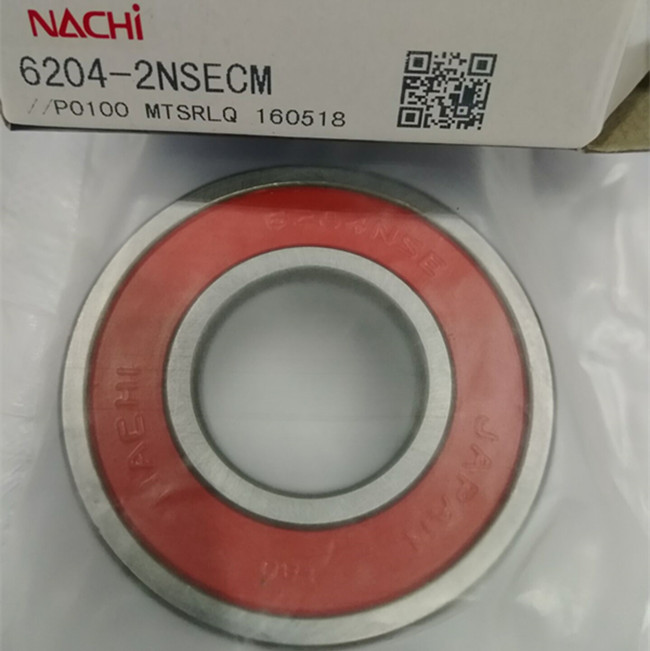

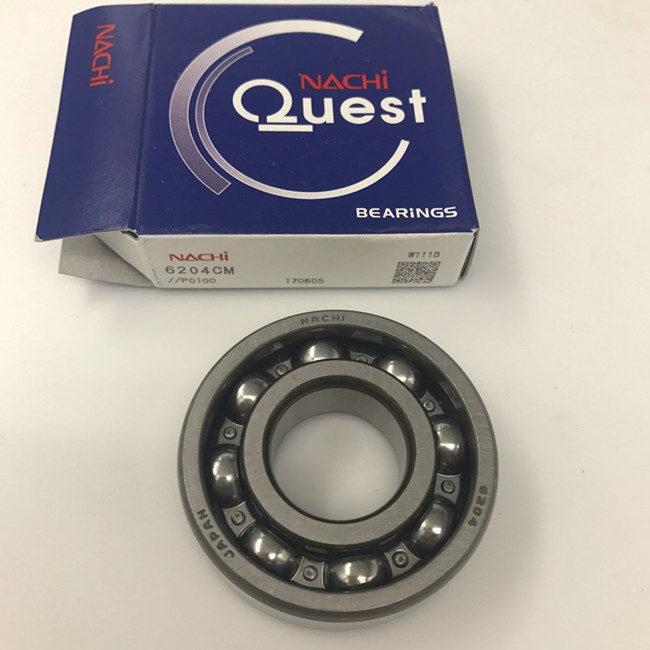

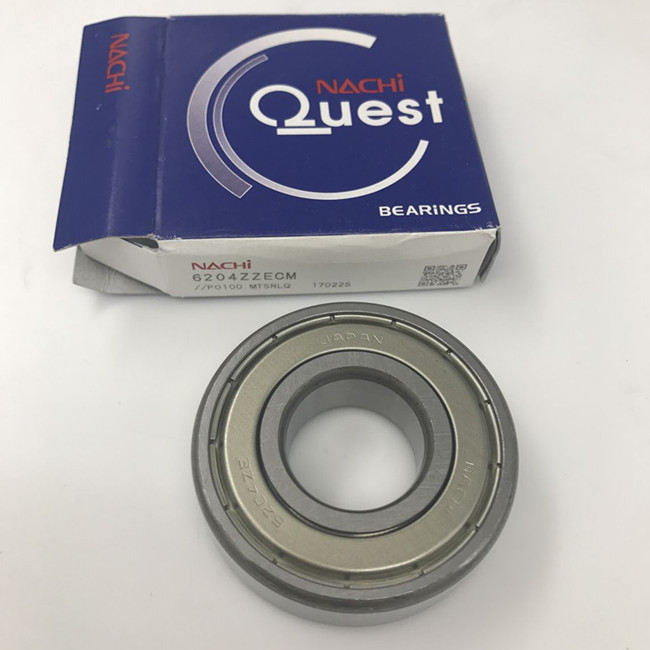

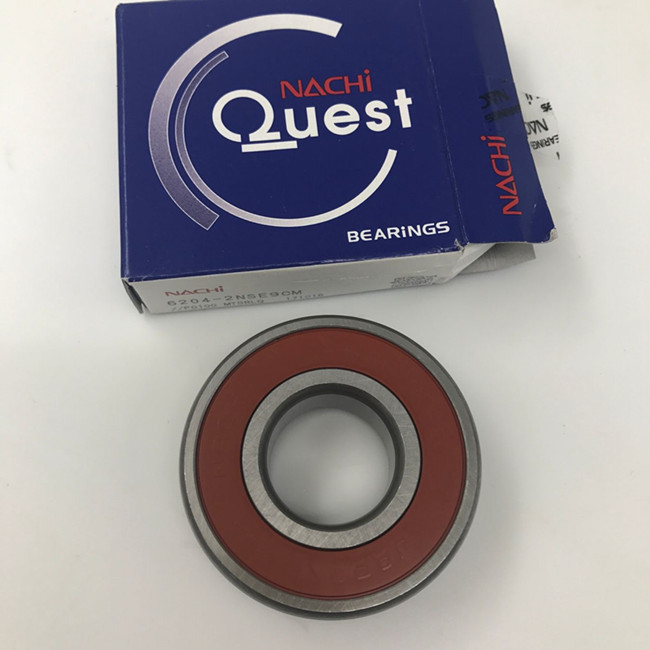

Nachi deep groove ball bearings have different seals like open, zz iron seal and 2rs rubber seal.

Nachi deep groove ball bearings used in Robot systems, lathes, tools, automobiles, large equipment and many other application.

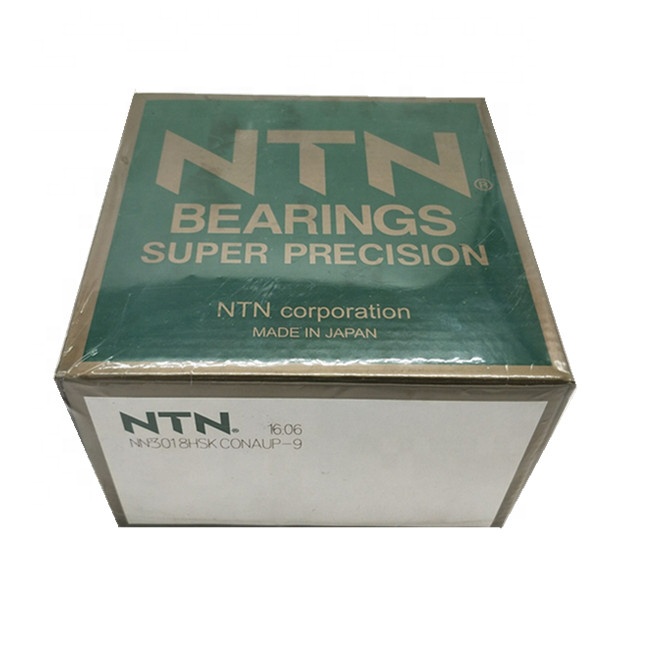

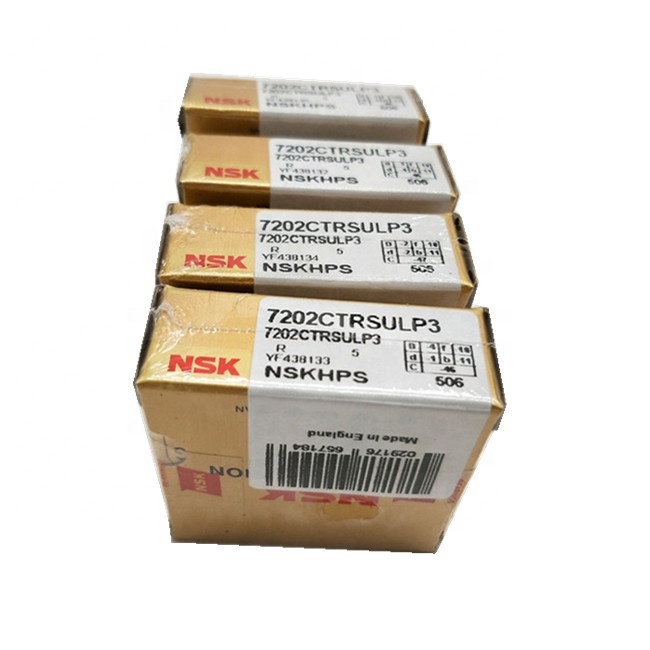

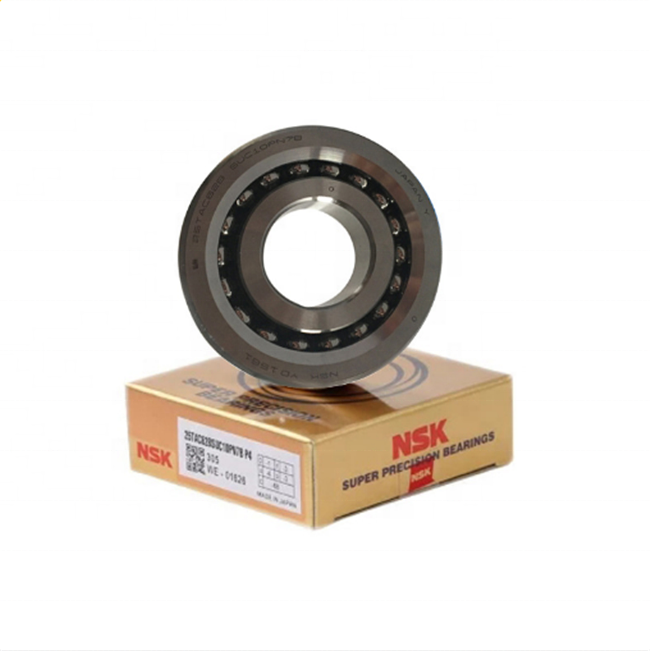

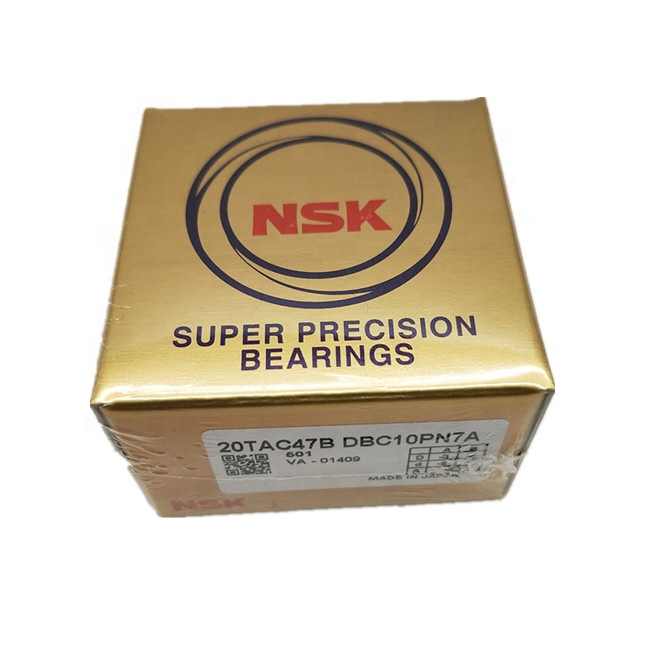

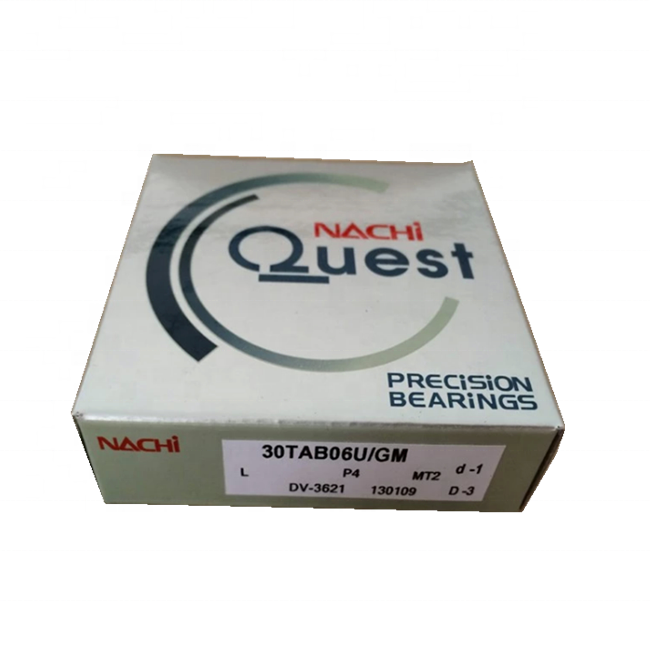

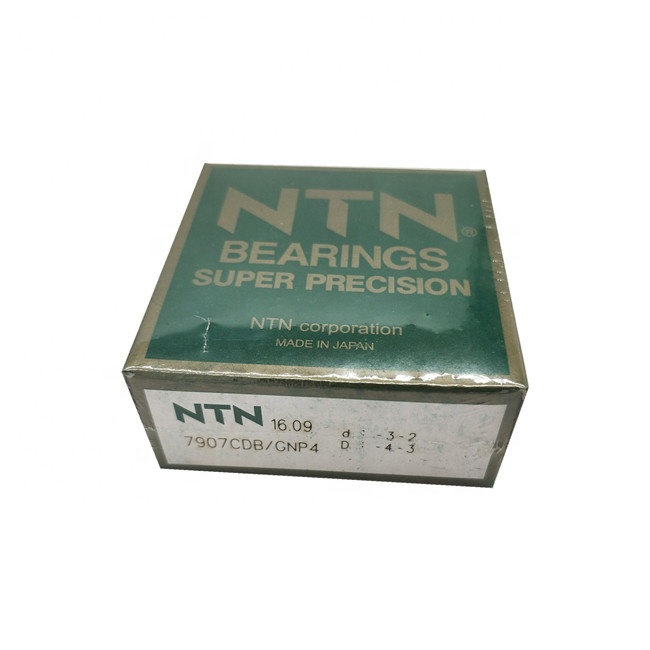

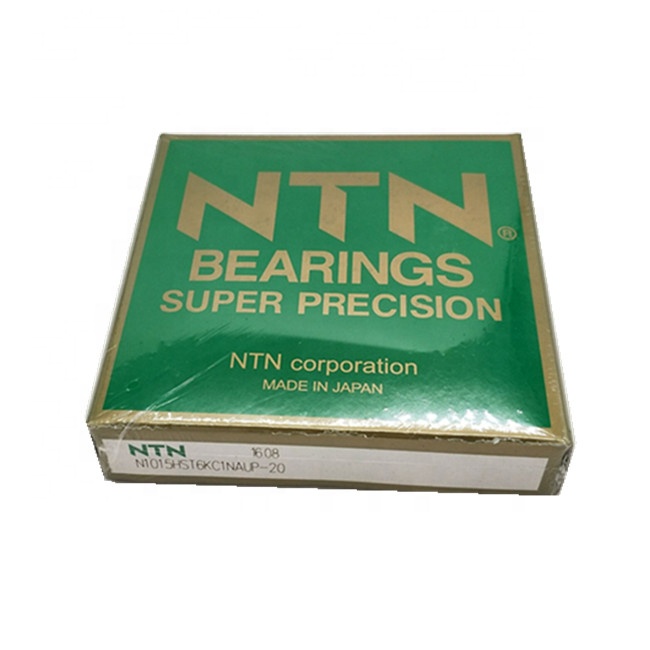

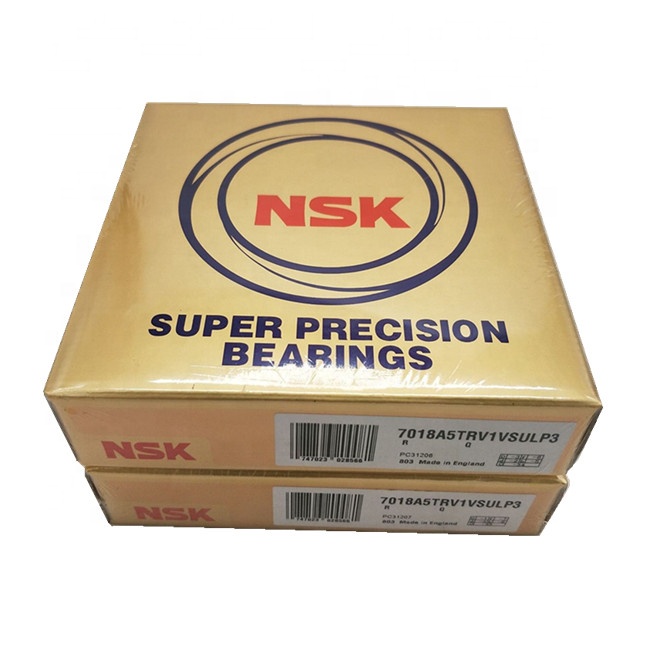

Our company prvide Nachi different model NO. bearings. Besides that, we also provide other brands like NSK, KOYO, NTN, IKO, THK, NMB, ZWZ, HRB and so on. Welcome send your inquiry.

Bearing No.	principle dimensions (mm)				limiting speeds(rpm)		basic load ratings(kn)		mass (kg)
Bearing No.	d	D	B	rsmin	Grease	oil	dynamic	static	approx
623	3	10	4	0.15	50000	60000	0.63	0.218	0.0033
624	4	13	5	0.2	40000	48000	1.3	0.485	0.0055
625	5	16	5	0.3	36000	43000	1.88	0.68	0.0067
626	6	19	6	0.3	32000	40000	2.34	0.885	0.0085
627	7	22	7	0.3	32000	37000	3.35	1.4	0.013
628	8	24	8	0.3	31000	36000	4.0	1.59	0.017
629	9	26	8	0.3	30000	35000	4.55	1.96	0.020
6200	10	30	9	0.6	25000	30000	5.10	2.39	0.032
6201	12	32	10	0.6	22000	26000	6.10	2.75	0.037
6202	15	35	11	0.6	19000	23000	7.75	3.60	0.045
6203	17	40	12	0.6	18000	21000	9.60	4.60	0.064
6204	20	47	14	1.0	16000	18000	12.8	6.65	0.108
6205	25	52	15	1.0	13000	15000	14.0	7.85	0.127
6206	30	62	16	1.0	11000	13000	19.5	11.3	0.22
6207	35	72	17	1.1	9800	11000	25.7	15.3	0.267
6208	40	80	18	1.1	8700	10000	29.1	17.8	0.367
6209	45	52	19	1.1	7800	9200	32.5	20.4	0.416
6210	50	90	20	1.1	7100	8300	35.0	23.2	0.462
6211	55	100	21	1.5	6400	7600	42.5	29.2	0.602
6212	60	110	22	1.5	6000	7000	52.5	36.0	0.789
6213	65	120	23	1.5	5500	6500	57.5	40.0	0.99
6214	70	125	24	1.5	5100	6000	62.0	44.0	1.084
6215	75	130	25	1.5	4800	5600	66.0	49.5	1.171
6216	80	140	26	2.0	4500	5300	72.5	53.0	1.448
6217	85	150	28	2.0	4200	5000	83.5	64.0	1.803
6218	90	160	30	2.0	4000	4700	96.0	71.5	2.172
6219	95	170	32	2.1	3700	4400	109.0	82.0	2.62
6220	100	180	34	2.1	3500	4200	122.0	93.0	3.189
6221	105	190	36	2.1	3400	4000	133.0	105.0	3.782
6222	110	200	38	2.1	3200	3800	144.0	117.0	4.421
6224	120	215	40	2.1	2900	3400	155.0	131.0	5.295
6226	130	230	40	3.0	2700	3100	167.0	146.0	6.120
