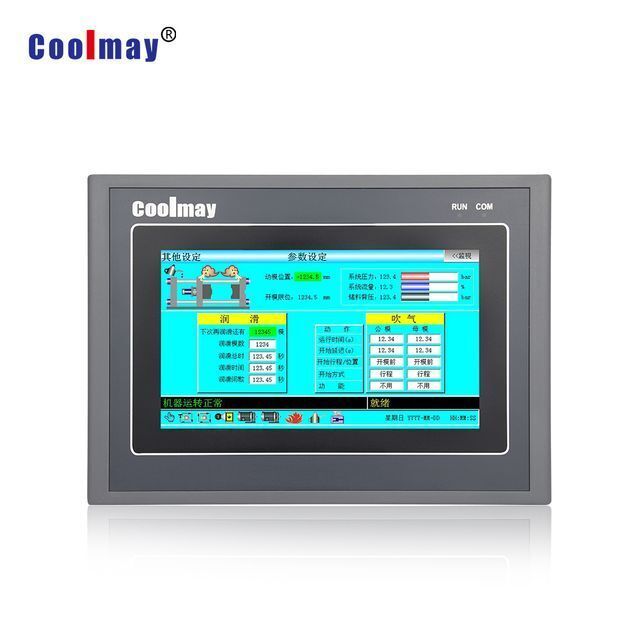

7 inch touch panel hmi integrated Packing machine plc controller

Supplier: Shenzhen Coolmay Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Joanna Huang
Price: $182.00 / 2 - 9 sets
$161.00 / >=10 sets
Min. Order: 2 sets

Click here to contact

Product details

Product name:	Injection molding machine plc controller;	DI/DO:	12di 12do;
Delivery time:	Within 3 Working Days;	Brand Name:	Coolmay;
Warranty:	18 Months;	Single package size:	25X19X7 cm;
Packaging Detail:	Packed by carton box.;	Place of Origin:	China;
Model Number:	EX3G-70KH-24MT-485P;	Output:	relay outputs;
Single gross weight:	1.500 KG;	Selling Units:	Single item;
Type:	Industrial controller;	Pakage:	Standard Pakage;
Payment term:	T.T Paypal WESTUNION;	MOQ:	1 Set;
Condition:	100% Original;	Package Preview:	;

7 inch touch panel hmi integrated injection molding machine plc controller

Product Description

EX3G Series Advantages

Compatible with FX3G/FX3U/FX3S
Highly integrated DI/ DO/ AI/ AO/ COM/ USB/ CAN/ Ethernet port
Max 30DI/ 30DO
Max 16AI/ 8AO
Support PID function
Support customized PNP input
Support high speed functions

Parameters

Model	EX3G-43HB-24M	EX3G-43(50) KH-24M	EX3G-70KH	EX3G-100HA
Dimension	13410230mm	1509332mm	22616335.6mm	27519436mm
Cutout size	119*93mm	143*86mm	218*153mm	261*180mm
Power Consumption	4-6W	4-6W/5-7W	6-7W	6-8W
Features	Support interrupt, linear arc interpolation, PID auto-tuning. 32K program capacity, 32K retentive register
HMI
Display	60K colors touch panel	60K colors touch panel; can be portrait display		60K colors touch panel
Display size	97*56mm	9756/10865mm	154*87mm	222*133mm
Resolution	480*272	43KH:480*272	70KH:800*480	1024*600
(pixels)		50KH:800*480
RAM	32MB	64MB		128MB
ROM	128MB
Operation system	Null	WINCE 5.0		WINCE 7.0
CPU	ARM9 216MHz	ARM9 400MHz		CORTEX A8 720MHz-1GHz
Default COM port	1 touch panel download port	1 touch panel download port,1 USB 2.0 port
Optional	1 RS232 port	1 RS232 port	1 RS485 or 1RS232 port
			Ethernet port (can not coexist with PLC Ethernet port)
Software	CoolMayHMI HMI programming software
PLC
I/O level	Input: Passive NPN, public terminal isolated
	Transistor output: Low level NPN, COM connect to negative;
	Relay output: Normally open dry contact
I/O	12DI/12DO		12DI/12DO or 20DI/18DO or 24DI/20DO
DO type	Relay(MR) or MOS(MT)		Relay(MR) or transistor(MT) or mixed(MRT)
	(Relay output: max load 5A/ MOS output: max load 2A)		(Relay output: max load 5A/ transistor output: max load 500mA)
High-speed counting	Single phase 6 channel 10KHz or 3 AB 10KHz or 2 ABZ+1 AB 10KHz	Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz,
		or 2 ABZ 60KHz + 1 AB phase 10 KHz
High-speed pulse	8 channel 10KHz	8 channels,Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.
		High-speed counting + high-speed pulse < 480KHz
Default COM port	1 Mini type B USB port, 1 Rs232 port		1 Mini type B USB port, 1 Rs232 port
Optional	2 RS485 ports		1 Rs485 or 2 Rs485 (one is changed from the default Rs232),
			CAN (2.0A/B), Ethernet port (can not coexist with HMI Ethernet port),
			WIFI (will occupy the default Rs232)
Analog I/O	4AI/2AO		16AI/8AO
(optional)
AI type (optional)	Type E/K/S/T/J thermocouple/		Type E/K/S/T/J thermocouple/
	PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/		PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/
	0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed		0~10V/ 0~5V/ -5V~5V/ -10V~10V/ 0~20mA/ 4~20mA/ mixed
AO type (optional)	0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/
	-5~5V/ -10~10V (2DA for 1 minus temperature)
Software	Compatible with Mitsubishi GX Developer8.86 and WORKS 2
Suggested models: EX3G-43HB/43KH/50KH/-24MT/24MR(-4AD2DA-485P/232H)
EX3G-70KH-24MR/44MT/MRT(-16AD8DA-485P/232H)
EX3G-100HA-24MR/44MT/44MRT(-5AD2DA-485P/232H)
Detailed info. refer to:EX3G HMI/PLC all in one programming manual EX3G HMI/PLC all in one user manual CoolmayHMI user manual

Product Specs

Programmable controller integrated hmi human machine interface 7 inch

Applications

Coolmay PLCs are widely used in different automation industries. Their multiple functions, excellent performance, easy installation, etc.. offers customers more conveniences.
