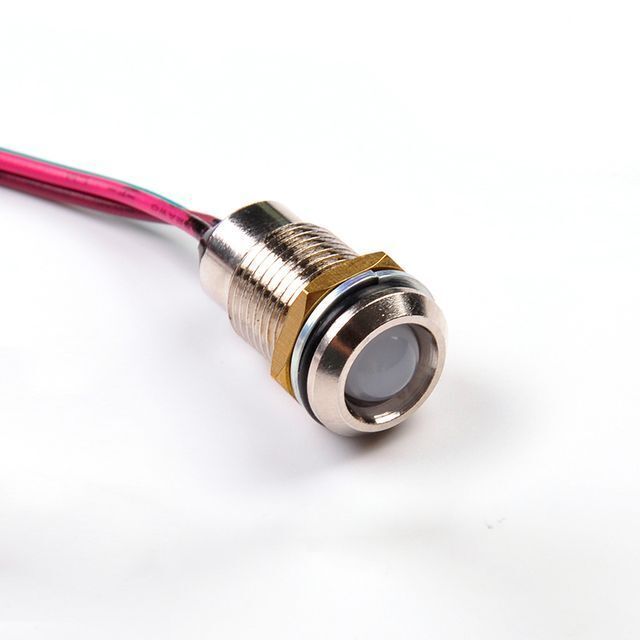

Toowei Metal led indicator light ip67 panel mount 12mm 6V 12V 24V 110V 220V Lamp Indicator Green

  • Supplier: Zhejiang Toowei Electronics Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Mr Ray Jin
  • Price: $1.10 / 100 - 2999 pieces
    $1.05 / 3000 - 4999 pieces
    $1.01 / 5000 - 9999 pieces
    $0.96 / >=10000 pieces
  • Min. Order: 100 pieces
Product details
Payment Terms:Western Union,T/T,PayPal;Mounting hole diameter:12mm;
Packaging Detail:500PCS/Carton;Package Preview:;
LED color:Green;Brand Name:Toowei;
Model Number:Z8121.92;Port:ningbo/shanghai;
Terminal type:Wire Leads;Body material:Metal;
Supply Ability:30 Cartons per Week;Wire length:200MM;
Place of Origin:Zhejiang;Led voltage:12/24/36V/48V/110V/220V;
Products Description
Brass alloy shell, surface electroplated bright nickel treatment, corrosion resistance, vibration resistance, impact resistance. High-brightness LED illumination, basic light color 5 (red, green, yellow, blue, white) other colors can be customized.Waterproof, oil-proof and dust-proof grade IP67 above the installation. Small size, exquisite appearance, economical andcost-effective. From the diameter of 6MM to 16MM specifications, rated voltage 2 ~ 220VDC, widely used in a variety ofelectronicand electrical equipment.

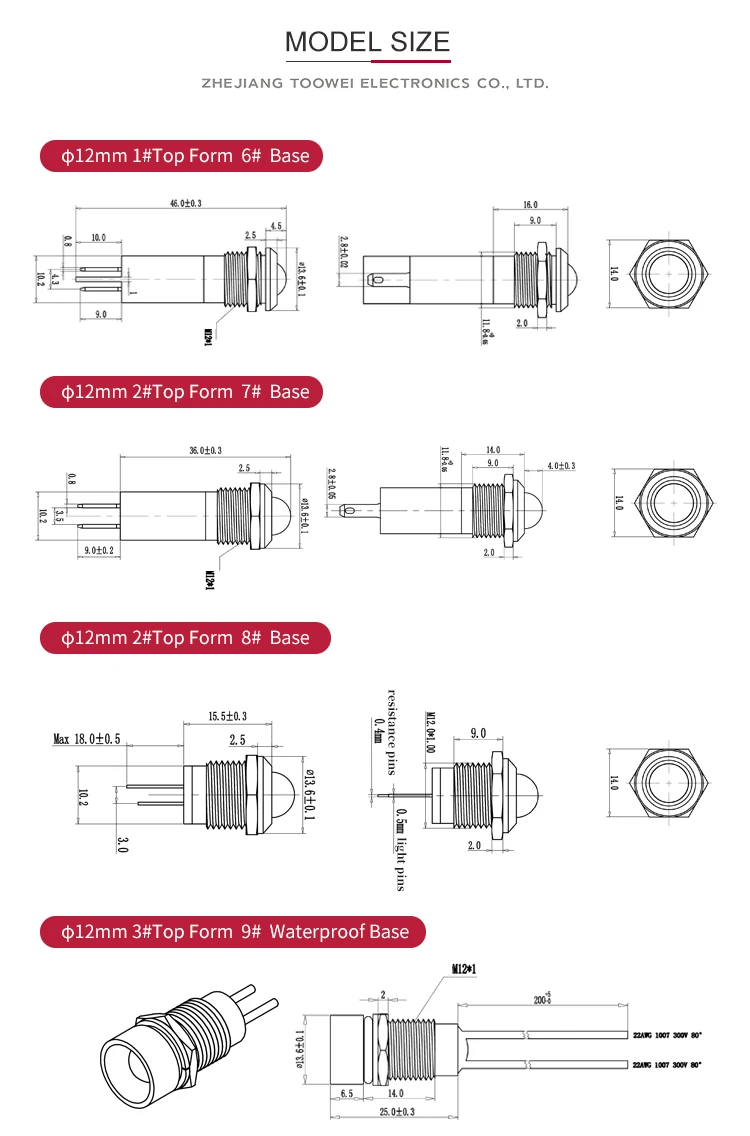

Part Number

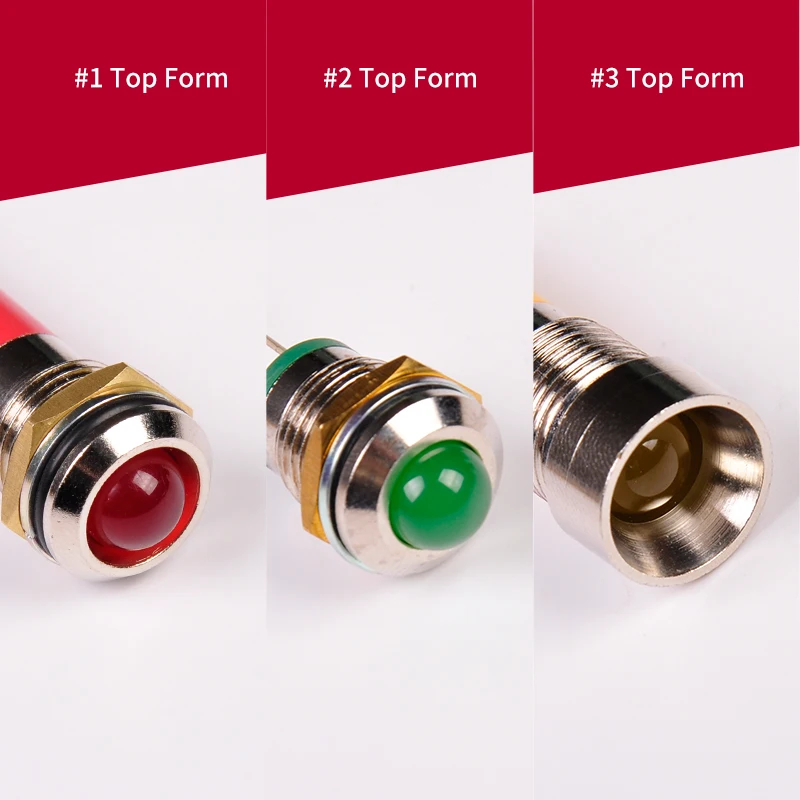

Top form
1# Top form

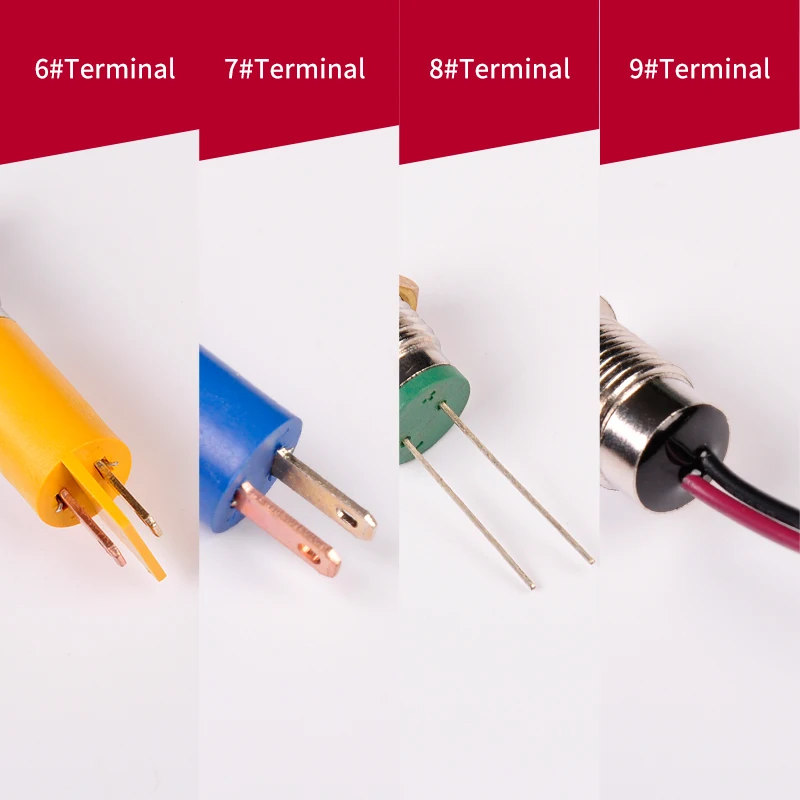

Base form
9# Base form
Colors can be selected
Red, Green, Yellow, Blue, White
Rated vpltage
Insulation resistance
100MΩ (Minimum value)
Dielectric strength
1000V RMS (Minimum value)
Base material
DuPont Nylon
Details Images

Technical Parameter
1. Rating Current:20mA ; Rating voltage: 2.4v-220v 2. 500VAC/Min between pins and housing . Insulation resistance ≥100M Ω 3. Withstand voltage: 1000-1500V 50/60Hz min Leakage current: 3mA 4. Bright nickel plating on the outer surface of the casing 5. Waterproof degree: IP67 6. Environment temperature: -25 ~ 85 ℃ 7. Light bulb: 8mm
Light colour: Green 8. Use life: ≥ 50,000 hours ( weeken by 30% after half a year of use ) 9.Wiring methode: Red line, green line represent red and green lights, black is public line (negative electrode) 10. Installation size: 12mm
