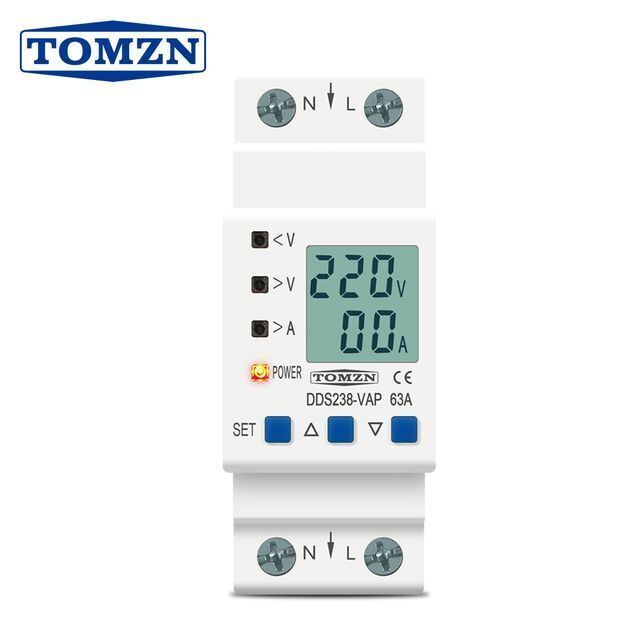

TOMZN 63A 80A 110V 230V Din rail adjustable over under voltage protective device current limit protection Voltmeter ammeter Kwh

Supplier: Zhejiang Tongzheng Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Arlen Chen
Price: $9.60 /piece
Min. Order: 1 piece

Click here to contact

Product details

Single package size:	10X7X4 cm;	Brand Name:	TOMZN;
Single gross weight:	0.220 KG;	BCD Curve:	NONE;
Rated Voltage:	110-240V,110V 230V;	Type:	Mini;
Place of Origin:	Zhejiang, China;	Poles Number:	2,NONE;
Selling Units:	Single item;	Rated Frequency:	NONE;
Model Number:	DDS238-VAP;

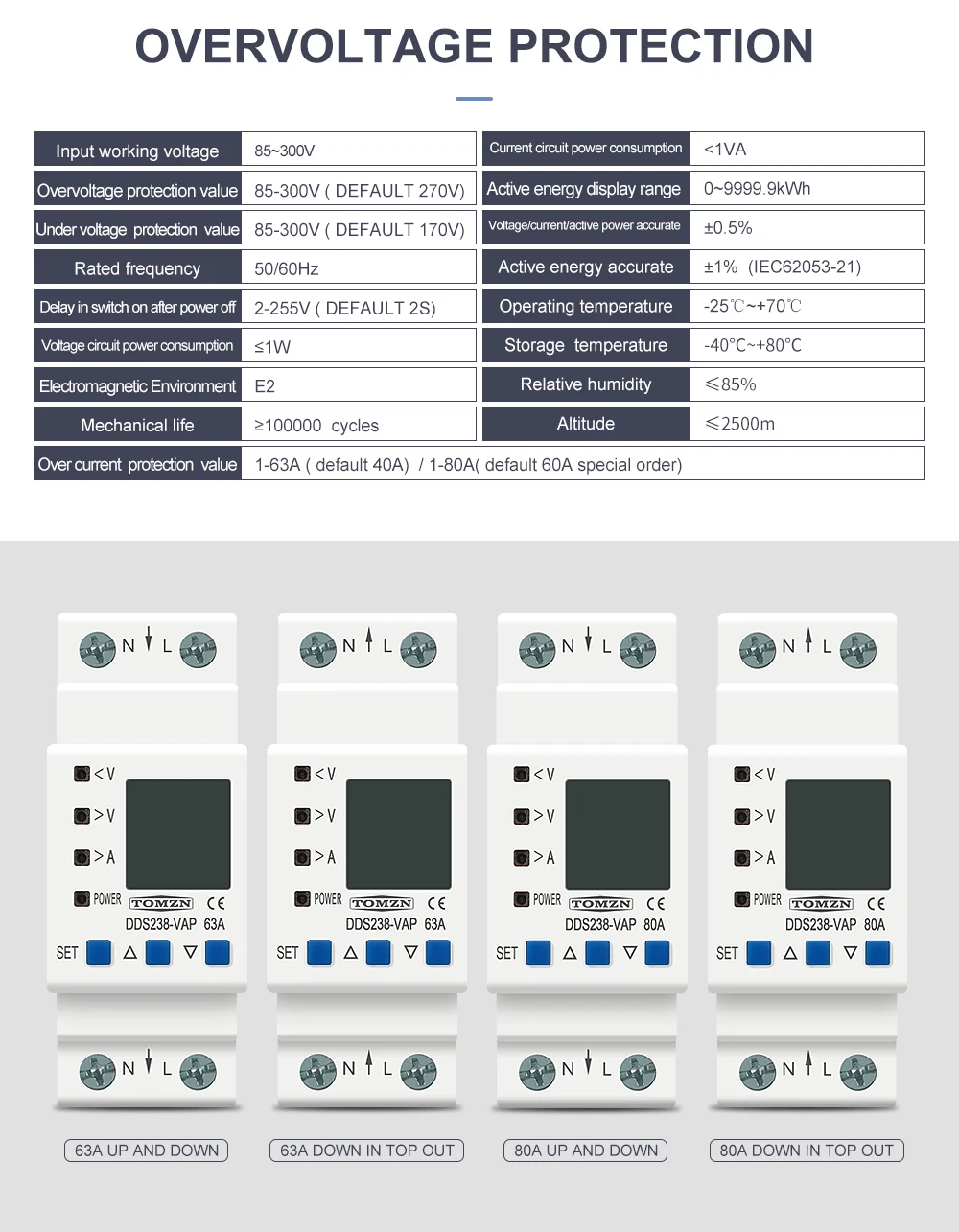

1. AC 85-300V 50/60HZ

2. Over current protection, over voltage protection, under voltage protection can disable one , two or three of them.

3. the device have lightning protection for itself.

4. Voltage and Current Accuracy 0.5%

5. Its own power consumption <0.5W

6. Can be manually and automatically reconnect.

7. Can set the delay on and delay off time

8. Can be used as a normal switch

9. Can be used as a cycle switch. Remarks The product does not have a battery. If the external power supply is out of power, the cycle time starts from 0.

10. Electricity metering accuracy Class 1

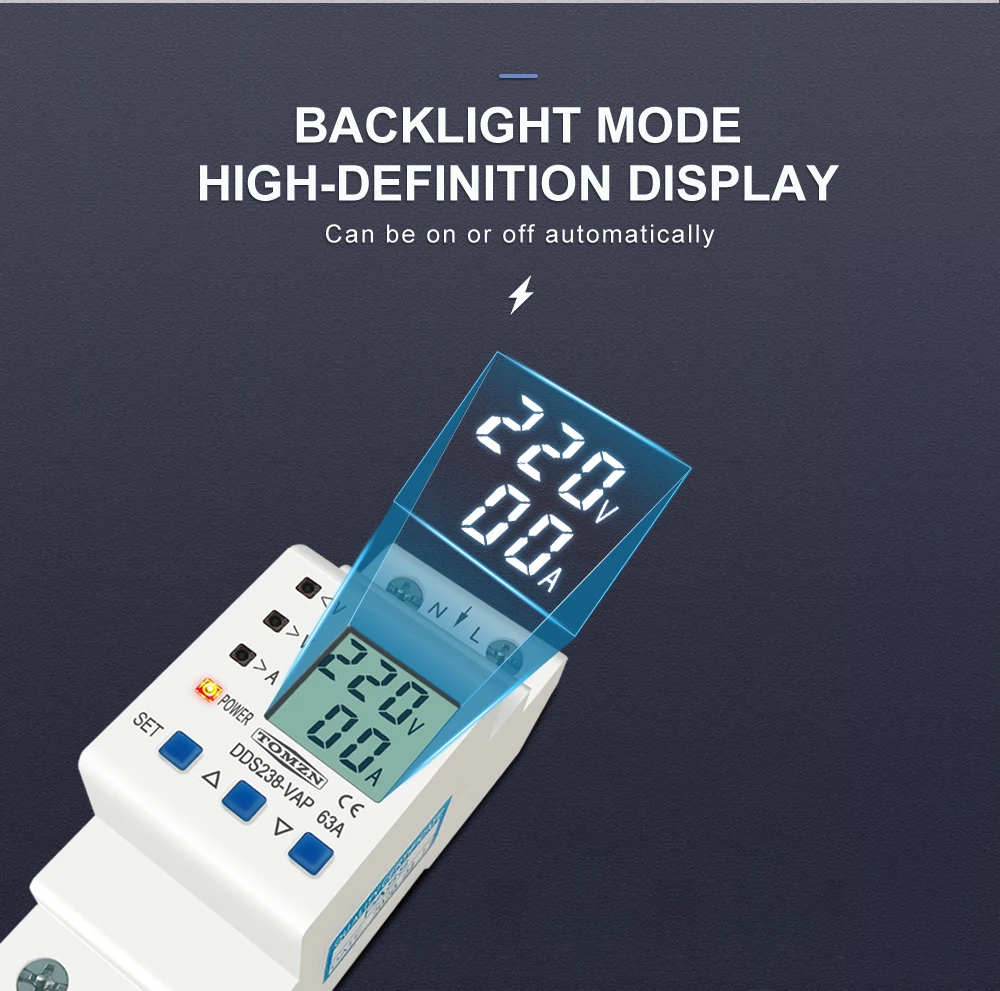

11. Backlight mode is optional, convenient for user scene selection

12. Malignant load identification limit (pure resistive load), for apartments Rental housing restrictions Fast heat Electromagnetic Kettle Electric rice cooker and other resistive high-power equipment.
