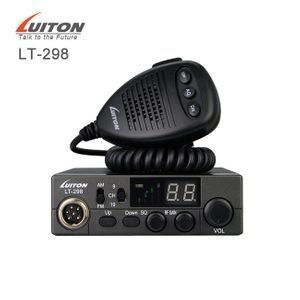

LUITON LT-298 high/low power car radio 12V/24V CB radio 27MHz
-
Supplier: Bond Telecommunication Co., Limited -
Region: Fujian, China -
Contact: Mr LouisBond Wu -
Price: $25.00 /piece -
Min. Order: 1 piece
Product details
| Power: | 4w; | Dimensions: | 115 x 38 x 150mm; |
| Place of Origin: | Fujian China (Mainland); | Version: | RU/EU/UK; |
| Frequency Range: | 26.960 - 27.400MHz; | System: | CPU controlled P.L.L. synthesizer; |
| Radio Type: | car radio CB radio; | Port: | Xiamen/Shenzhen/Shanghai; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal; | Warranty: | 1 Year; |
| Brand Name: | Luiton; | Mode: | AM/FM; |
| Name: | LT-298 12/24V CB Radio; | Type: | Vehicle Mouted; |
| Packaging Detail: | 1) each cb transceiver into one color box; 2) 20pcs cb transceiver into one export carton; 3) we accept clients' specific requirement;; | Voltage: | 12V/24V; |
| Supply Ability: | 50000 Piece/Pieces per Month; | Talk Range: | 5-10km; |
| Model Number: | LT-298; | Certificate: | CE/RED; |
| Storage Channel: | 240 channels; | Frequency control: | P.L.L.; |
LUITON LT-298 high/low power car radio 12V/24V CB radio 27MHz
Product Description
Main Features:
- Stable quality as LEGEND II;
- 4W or 10W RF power
- 40 AM/FM channels
- Channel 9 and channel 19 switch
- Mode AM/FM switch
- With adjustable ASQ
- RSSI indication (4-digit LED indication)
- 2 Digit channel indication
- RF gain control
- Volume with power ON/OFF control
- TX/RX LED indication
- Up/Down microphone
- Front microphone plug
- Jack for external speaker
- Manual Squelch
- ANT Connector
Technical Specifications of 12V/24V CB radio 27MHz
| GENERAL | |
| Channels | 40 AM/FM |
| Frequency range | 26.960-27.400MHz |
| Frequency control | P.L.L. |
| Operating temperature | -20°/+55°C |
| DC input voltage | 12V/24V |
| Size | 115 (L) x 38 (A) x 150 (P) mm |
| Weight | 0.8 kg |
| RECEIVER | |
| System | CPU controlled Double conversion super |
| IF | 1° 10.7 MHz / 2° 450 KHz |
| Sensitivity | -120dBm for 12dB SINAD (FM) |
| -107dBm for 12dB SINAD (AM) | |
| Audio output | @10% THD 2.5W at 8 ohm |
| Audio distortion | <8% at 1 KHz |
| Image rejection | 65dB |
| Adjacent channel | 85dB |
| Signal ise ratio | 45dB |
| Current drain | 220mA (stand-by) |
| TRANSMITTER | |
| System | CPU controlled P.L.L. synthesizer |
| Maximum RF power | 4W at 13.8Vdc |
| Modulation | 85% to 90% (AM) |
| 1.8 KHz ±0.2 KHz (FM) | |
| ANT impedance | 50 ohm unbalanced |
| Current drain | 1500mA (at no modulation) |

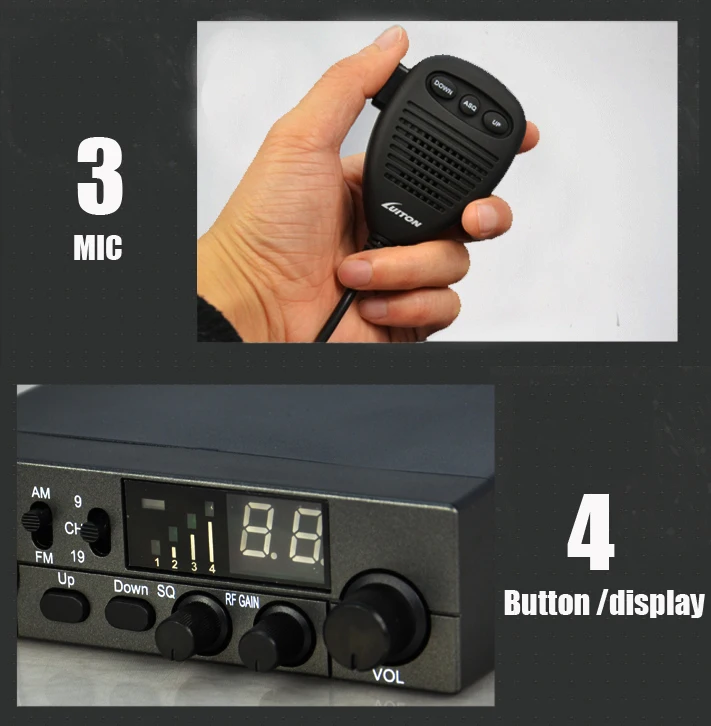

Photos of 12V/24V CB radio 27MHz
Packaging & Shipping
packing including:
- 1x LT-298 radio body
- 1x Mobile Mounting Bracket
- 1x DC Power Cable
- 1x Manual
Our Certificate
Our Exhibition
Company Information
FAQ
Q: When can you ship the items I choose?
A: We can send out the items in 3days;
Q: When can I find tracking information on internet?
A: Usually, you can find the information on internet in 2days after, we give you the tracking number;
Q: When can I get goods on hand?
A: For courier service 3-7days: 15days for Hongkong post ma
Q: Is transportation safe enough?
A: We pack the goods very well; you will get goods on hand with good condition
Q: What type of pins do you offer?
A: Please tell me in which country you are going to use our equipments, we will give you right plug:
We accept OEM/ODM, 100% we are your factory.
