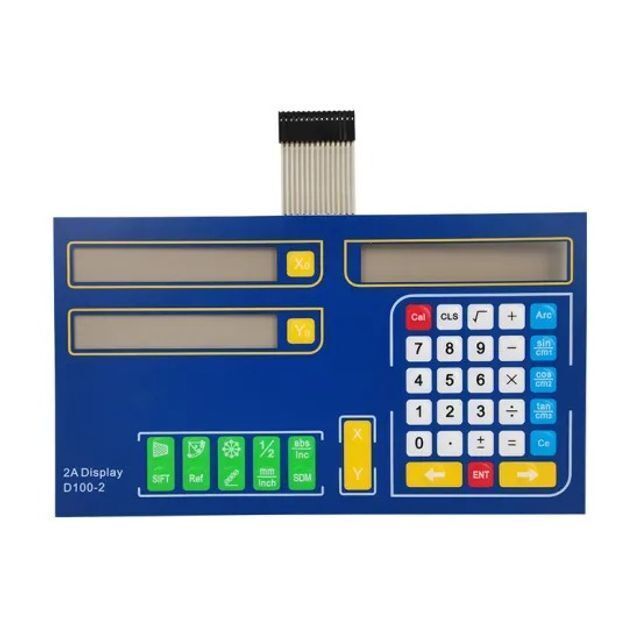

Manufacturer OEM service custom PET tactile metal dome membrane overlay keypads control panel membrane switch membrane keyboard

Supplier: Dongguan Top-Peaks Industrial Limited
Region: Guangdong, China
Contact: Mr kelvin chen
Price: $1.38 / 10 - 499 pieces
$1.19 / 500 - 999 pieces
$0.99 / 1000 - 2999 pieces
$0.84 / >=3000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Port:	ShenZhen;	Application:	Telecommunication Equipment;
Keypad Button Material:	PET PC PVC;	Operating temperature:	-20℃ ~ +90℃;
Adhesive:	3M55236/3M9448A/3M467/3M468/3M300LSE;	Circuit layer:	Potyester;
Service life:	>1 million times;	biggest size:	800*400mm;
Package Preview:	;	Type:	Membrane Switch,Membrane Switch;
Place of Origin:	Guangdong, China;	Packaging Detail:	polyster bag packed inside with strong carton package wrapped outside for Fashion Custom Adhesive Silk Screen Polycarbonate Labels;
Customizable layers:	3-8 layers;	Supply Ability:	50000 Pieces per Week;
Model Number:	control panel membrane keyboard;	Connector:	1.0/1.27/2.54mm;
Brand Name:	Top-Peaks;	Feature:	Water-proof.durable.Eco-friendly;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Printing:	Screen Printing;

Low Moq Custom Front Panel Metal Dome FPC Graphic Overlay Keypad Switch Membrane keyboard Membrane Switch Panel Membrane Switch

Why Choose Us

@ Low MOQ accepted 100 or 1000， it's the same for us ,don't hesitate beause of the quanity !
@ Free design service No drawing available ? Feel free to start with us ,our design team can provide design service.
@ Strict quality control Certificated by ISO system and SGS party and with ISO 9001 ,ISO 14001 certification.
@ Quick response: 7X24 online response service, qutoation within 30 minutes , production within one week!
@ Goog communication skills: 10 years experiences in trading with US and latino america , good at english end spanlish, whatsapp ,skype ,wechat ,email， whatever way you want!

Product Description

Membrane switch

Set key functions, indicating components, instrument panel.

A new type of electronic key operating system as one.

The membrane switch has a rigorous structure, beautiful appearance and good airtightness. It has the characteristics of moisture resistance and long service life. Widely used in electronic communication, electronic measuring instruments, industrial control, medical equipment, automobile industry, smart toys, household appliances and other fields

It is composed of six parts: panel, sandwich glue, upper circuit, isolation layer, lower circuit and back glue. Press the membrane switch, the contact of the upper circuit deforms downwards, and conducts with the pole plate of the lower circuit. After the finger is released, the upper The circuit contact bounces back, the circuit breaks, and the circuit triggers a signal.

Custom button

Metal dome of various specifications can be custom for your product needs

Metal dome function
1. With the help of metal conductivity, the two-pole contacts of the switch are turned on
2. With the rebound of the shrapnel, provide tactile feedback to the operator
3.Available specifications are 8.4, 10, 12, 14, 16mm.Generally, the size of 10-12mm shrapnel is recommended

Silver paste convex

Another type of membrane switch button, through the "embossing" process, the silver paste disc of the button on the circuit is pressed into a predetermined spherical crown with a mold, so that it has a guiding effect on the button position of the entire switch.

The convex size of the silver paste can be designed to be 5mm-11mm, and the size of 8-10mm is recommended. The size of the button will be more suitable for finger pressing.

Panel button embossing A variety of embossing styles make the buttons feel better, and at the same time make the product more design and three-dimensional.

Custom connectors

① 2.54 female connector With terminal shell (female pin)

② 2.54 male/male (Without terminal shell)

③ 2.54 female injection (Without terminal shell)

④ 2.54 without pin

⑤ 1.0 pitch

⑥ 1.27 No pins

---->>>Click for FREE SAMPLES

Our Company

Cooperation & Certificate

FAQ

•Sample available?

Yes, we have top-peaks Membrane Switch Demo as free sample for customers.
It takes about 7 working days for us to make a customized sample.
• How to make an order?
Please let us know your requirements on materials,logic circuit principle chart, application environment, size and design. And
better send us the design drawing or samples together.with other detailed data, then we’ll customize the membrane switch upon your requests.
• How long will my order take?
This depends on the size and complexity of your order. A delivery date will be provided upon placement of your order.For small
size order ( less than 1000 pcs ), it usually takes about 10~15 working days after sample approval.
• What art formats are suitable?
Files which can be read by Autocad, Coredraw and Adobe Illustrator are acceptable.
• How does Top-Peaks ship my goods ?
By FedEx, DHL, UPS, TNT or other ways specified.
• How to guarantee the after sales service ?
All the products are inspected and tested 100% before delivery.
We will track the production situation of the goods during the whole process,we promise the goods will be shipped to you smoothly.
If any problem happened, we will provide the best solution for you.
