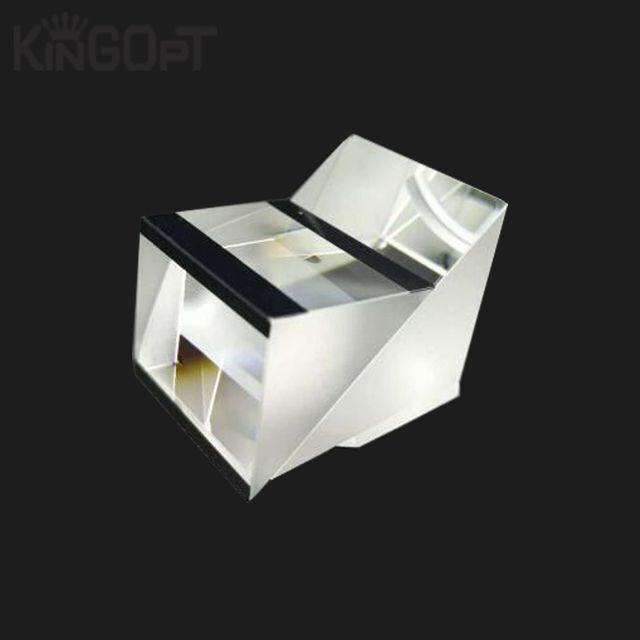

Kingopt Cemented Prism 0.65 inch dmd optical TIR prism for DLP projection,ODM PBS and X-cube optical glass prism

Product details
Port:shanghai;Customized support:OEM,ODM,OBM;
Dimension Tolerance:+/- 0.02mm;Supply Ability:20000 Pieces per Month;
Surface Quality:20/10;Flatness:Lambda/10;
Coated:AR coated;Certification:ISO9001;
Size Tolerance:±0.1mm;Package:Bliseter;
Payment Terms:Western Union,T/T,MoneyGram;Brand Name:KINGOPT;
Color:White glass;Coating:Yes, with the customize design;
Packaging Detail:standard export package or according to customers' requirement;Use:Projector;
Model Number:KP001;MOQ:1pcs;
Product name:TIR Prism;Angle Tolerance:+/-5";
Place of Origin:Henan, China;Warranty:as contract;
Material:BK7,optical glass;materials:high quality optical glass;

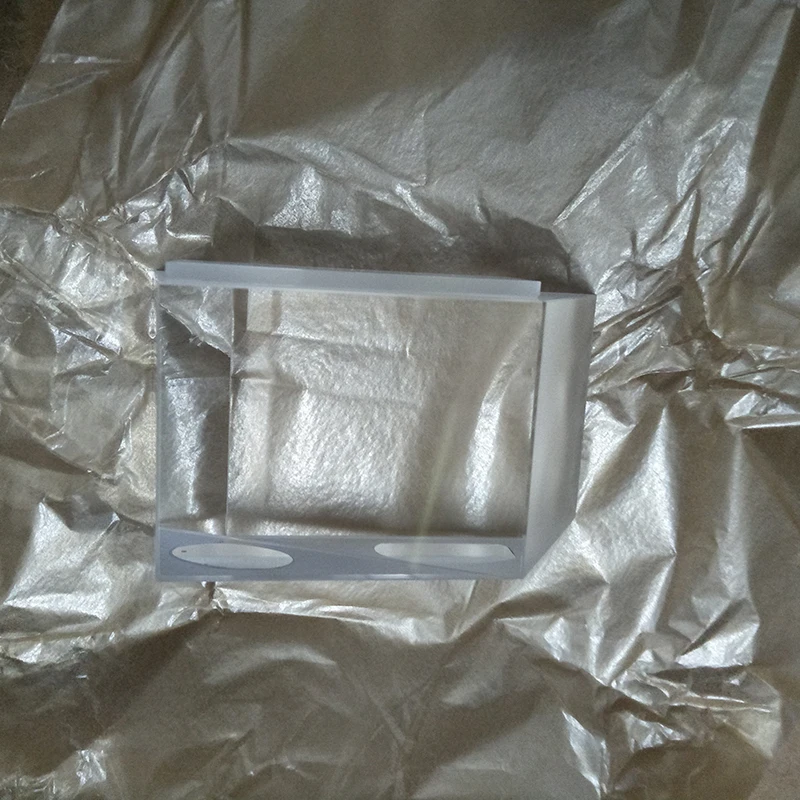

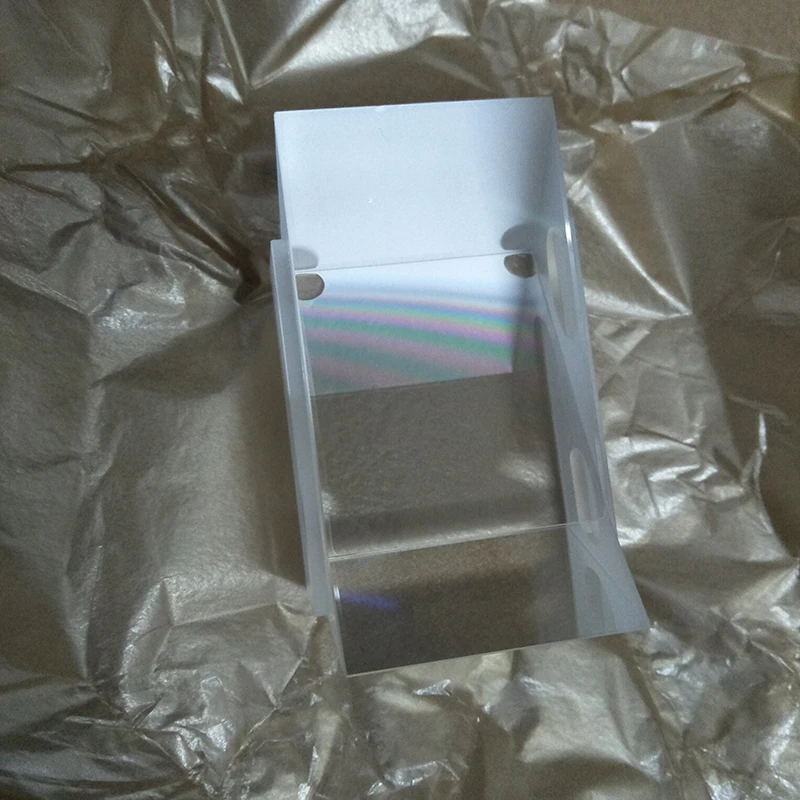

Kingopt Cemented Prism 0.65 inch dmd optical TIR prism for DLP projection,ODM PBS and XCUBE prism



SPECIFICAITON:

Material

N-BK7or H-K9L Grade optical glass, Fused silica, etc

Dimension Tolerance

±0.02mm

Angular Accuracy

±5"

Surface Quality

20/10-60/40

Surface Accuracy

λ/10

Coating

Upon request





 Application of optical prisms:



For the Prism we do many related area:
1,camera device: camera, cctv tv, dlh camera and etc optical device.
2,SIence area: binoculars,fingerprit prism,riflescope etc.
3,Medical Device: stomach machine etc laser curing etc
 We can customized all TIR and RTIR prism, with visual TIR prism (0.3 0.45 0.47 0.65 0.95 DMD prism) and  UV405 prism

Or if have any special need, feel free to leave the drawing sheet, we can customized all for you.
Looking forward your information.

Equipment

Qty

Made in

Processing machine

6sets

China

Out cutting machine

4sets

China

Milling machine

50sets

China, Korea

Grind machine

80sets

China, Korea

Polishing machine

260sets

China, Japan, Korea

Centering machine

80sets

China, Japan, Korea

coating machine

26sets

China, Korea

Ultrasonic cleaning machine

12sets

China

Painting machine

12sets

China, Japan

Inner cutting machine

22 sets

China

illumination machine

12 sets

China, Germany



+

Inspection equipments and toolings

Qty(set)

Made in

Interferometer

12

China, Japan

Spectrophotometer

6

China, Japan

Centering instrument

28

China, Japan

Goniometer

6

China

Spherometer

2

China

Coating film destruction inspection

1

China

Coating film hardness inspection

50

China, America

Micrometer

110

China, Japan

Collimator

4

China

Distinguishes

10

China, Korea

UV intensity instrument

2

Japan

UV Fluorescence

4

Japan

MIL Standard paper

10

America

The collimation instrument of the measurement instruments

8

China, Japan

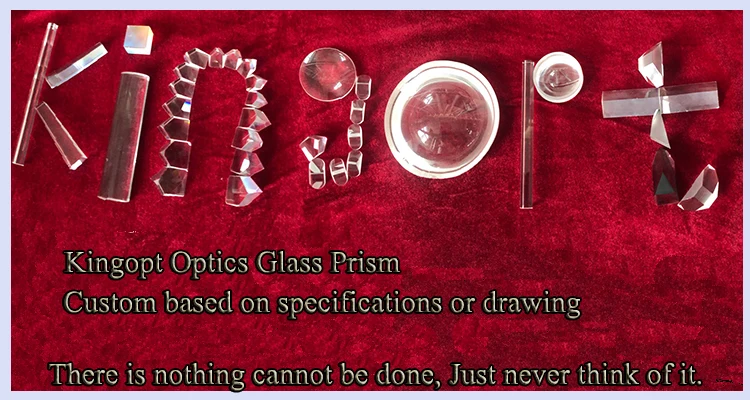

There is nothing cannot be done, Just never think of it.

                                        ---------------------Kingopt are good at the Optics Lens and Prism.





1>If your required with the high accurancy, pls provide the details with drawing.

2>If your required is the normal usage,without highly accurancy. then it is better with the specifications:

Material,diameter,Radius,Center thickness.....(it is better with more specifications)

3>If you only want to borrow from on-the-shelf models, feel free to leave with us your details and application.



If you require or want in the optics lines, We Kingopt all can met with your requirement.

We Factory are doing well in this area.

Thanks for inquirying.                                     -------------------------Shellman from Kingopt
