RB-6FP low price sock knitting machine for making manufacturing socks

Supplier: Shaoxing Rainbowe Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Ophelia Yeung
Price: $3280.00 / 1 - 2 sets
$3150.00 / 3 - 9 sets
$3050.00 / 10 - 18 sets
$2980.00 / >=19 sets
Min. Order: 1 set

Click here to contact

Product details

Marketing Type:	New Product 2020;	Payment Terms:	L/C,Western Union,T/T,MoneyGram,sock making machine;
Needle Count:	96N~168N, 200N;	Gross weight:	300kgs;
Voltage:	380v/220v;	Core Components:	Motor;
Cylinder diameter:	3.5 Inch;	Showroom Location:	None;
Place of Origin:	Zhejiang, China;	Brand name:	Rainbowe;
Dimension(LWH):	0.940.751.55 (package);	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Home Use,Retail,Socks Factory;
Product name:	RB-6FP Plain Sock Knitting Machine;	Package:	Plywood;
Packaging Detail:	plywood case 18 sets can be loaded in a 20ft container; 39 sets in a 40ft container;	Weight:	300;
Machinery Test Report:	Not Available;	Production Capacity:	about 300-400/24 hours;
Space required for installation:	11.42.4m for one machine;	Way of driving:	Servo Driving;
City:	Shaoxing;	Warranty:	1 Year;
Type:	Plain Knitting Machine;	Warranty of core components:	2 years;
Condition:	New;	Brand Name:	Rainbowe;
Video outgoing-inspection:	Provided;	Power:	controller: 0.8kw, servo driving & motor: 1.3kw;
Kinds of Sock:	Plain socks;	Supply Ability:	500 Sets per Month;
Port:	Ningbo, Yiwu, Shanghai, Lianyungang, Yiwu, etc;	Key Selling Points:	Easy to Operate;
Package Preview:	;

Product Description

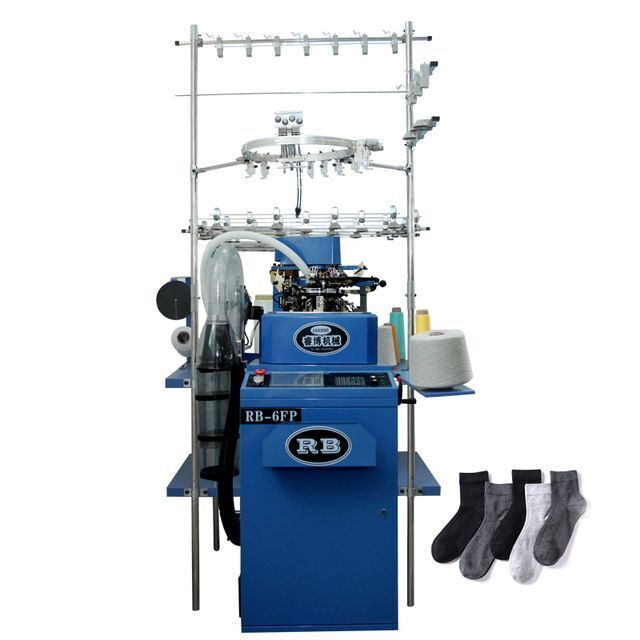

RB-6FP plain sock knitting machine

RB-6FP is comfortable to wear, which is co fluffy inside. Max. 16 colors can be knitted in one sock. Production Capacity is about 300-400pairs per 24 hours according to different sizes or crafts of socks.

96N 108N 120N - baby socks
132N - teenagers'socks
144N -ladies or man's socks
156N 168N 200N -man's socks

Model			RB-6FP
Diameter of cylinder			3.5"
Needle count			96N 108N 120N 132N 144N 156N 168N 200N
Electricity			380V/220V/415V
Gross weight			300KGS
Package			one machine in one plywood
Package size			0.940.751.55M
Design			new

RB-6FP can be made:

1) From ways of knitting: plain, jacquard, mesh, double welts

2)From knitting styles: business socks, casual socks etc

3) From functions: 3D socks, low cut socks, diabetic socks, left and right socks, big heel socks, small heel socks, high heel socks, and socks with two-color heel and toe, sock with bottom toe linking.

Quality of Spare Parts

Detailed Images

Servo driving & Motor

A important part in sock machines. Royaltec or Y.M.C, both of them are stable in performance and less repair rate.

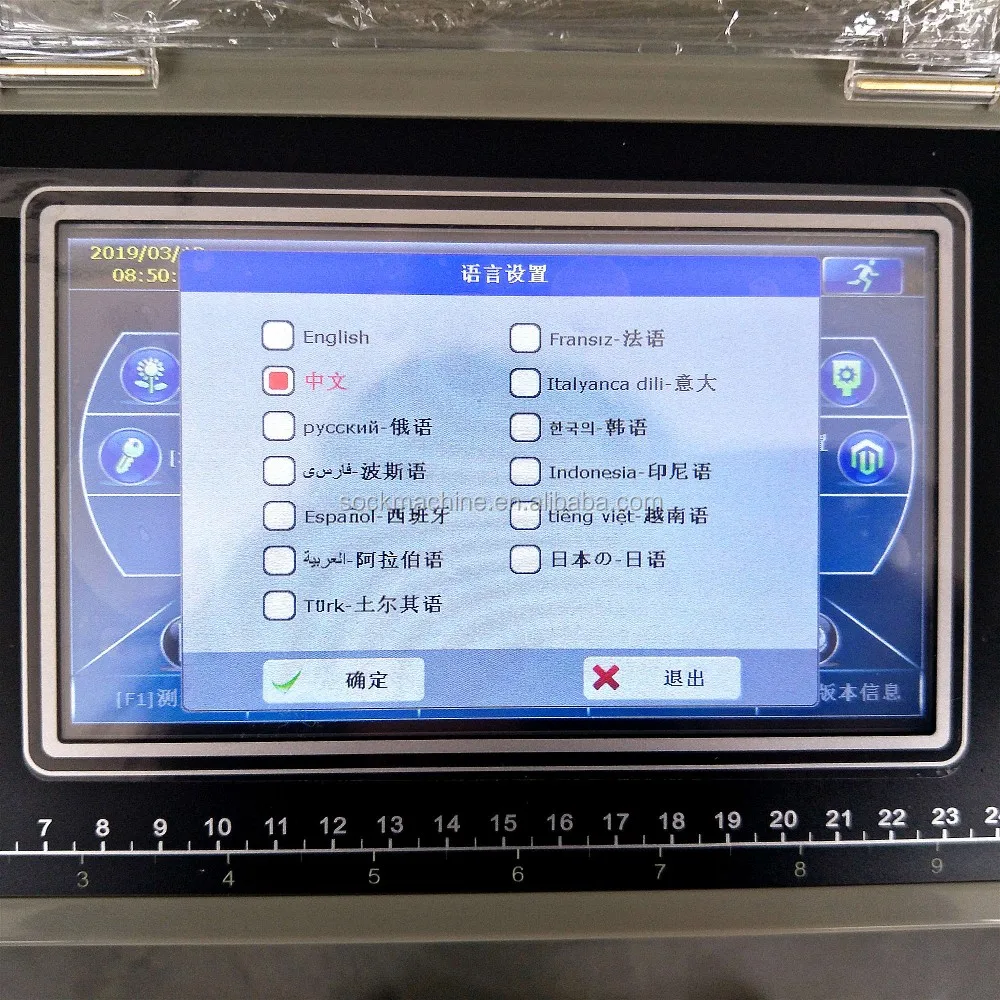

Language

There are 13 kinds language in the system:Ebglish, Chinese, Russian, Farsi, Spanish, Arabic, Turkish, French, Italian, Korean, Indonesian, Vietnamese, Japanese.

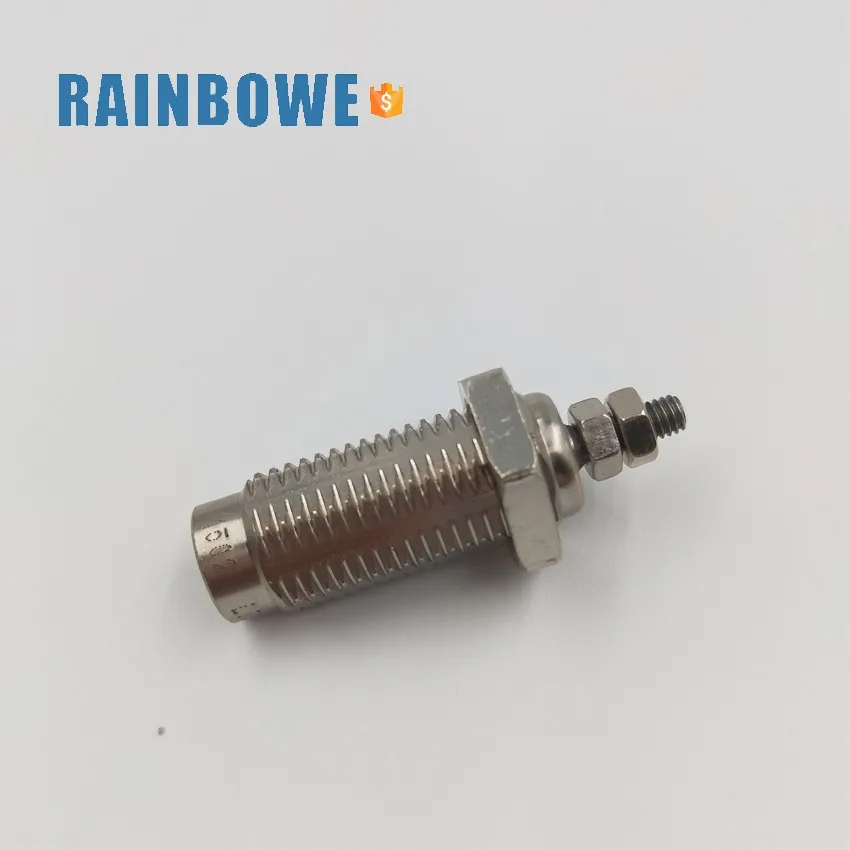

Pneumatic cylinder

LIDING, best brand in China.

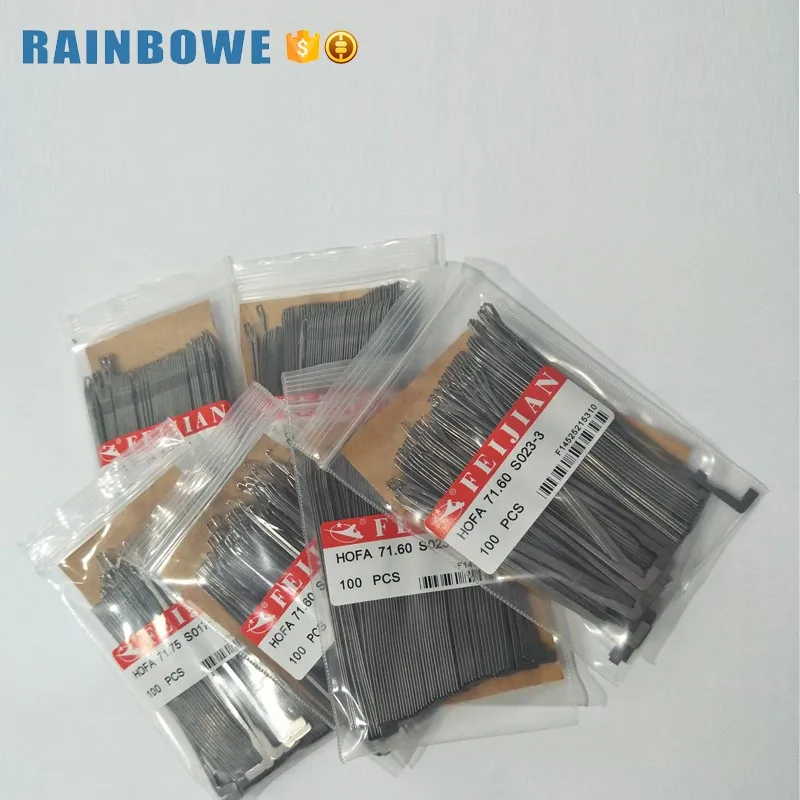

Sock knitting needles

Brand of needles are Feijian brand, which is the famous in China.

For each machine, needles are necessary. It maybe broken because of often used. The picture shows a part of needles, and there are other spare parts, such as sinker, jacquard needles, etc.

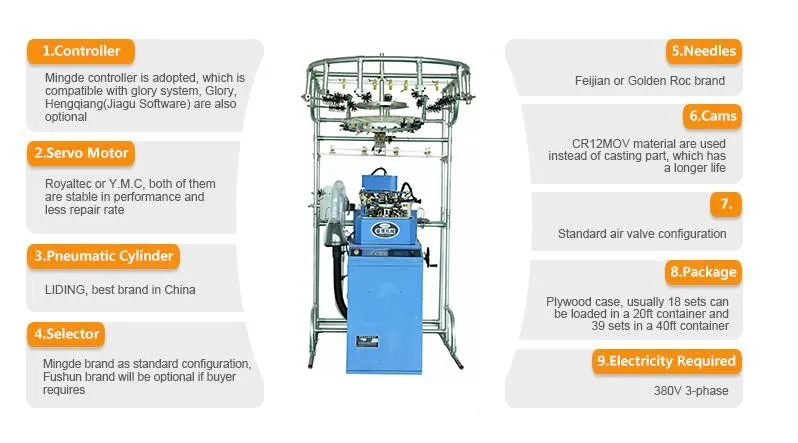

Main Function

1,Machine is with 8 main feeder and 5 groups of auxiliary feeders, 6 colors can be kitted in one horizontal line, and max. 16 colors can be knitted in the sock.

2,Double down pickers, up pickers are adopted, improving and increasing the toe/heel knitting speed, also can knit big or small sock heels, high heels.

3,High speed controlling system is adopted with muti-languages: English, Russian, Spanish, Arabic, etc. UPS function can keep the running program when electricity fails and continue the previous program when electricity is on again. And huge quantity of pattern files can be stored in the sock machine computer system.

4, Automatic lubrication system, making it easy for sock machine maintenance. Besides needle or yarn breakage, electronic error will be shown on the display automatically, lessen the sock defective rate, and needle consumption.

5, Easy pattern designing software, which can be installed and use on personal computer.

6, Branded pneumatic system is adopted for more accurate controlling, quicker movement, longer machine life.

7, Running cam are manufactured by our own CNC equipment, making sure the quality, stability and duration.

8,Quality cylinder is used preventing white oily socks.

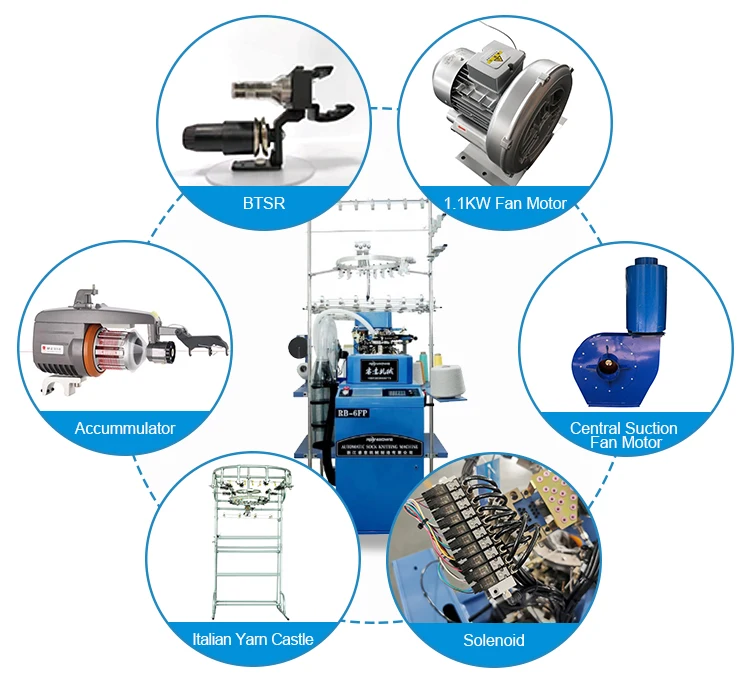

Optional Functions

1. Suction fan motor 1.1kw (for small quantity of sock machine, below 10 sets, individual suction fan motor is suggested, if over10 sets, central suction fan motor is better, which can help save electricity consumption greatly)

2. Solenoid on main feeders, sub-feeders, valve box socks producing making machine price in china
3. Double elastic motors, double elastic feeders
4. BTSR yarn break sensors socks producing making machine price in china
5. LGL or Chinese brand accumulators
6. Robert yarn creels
