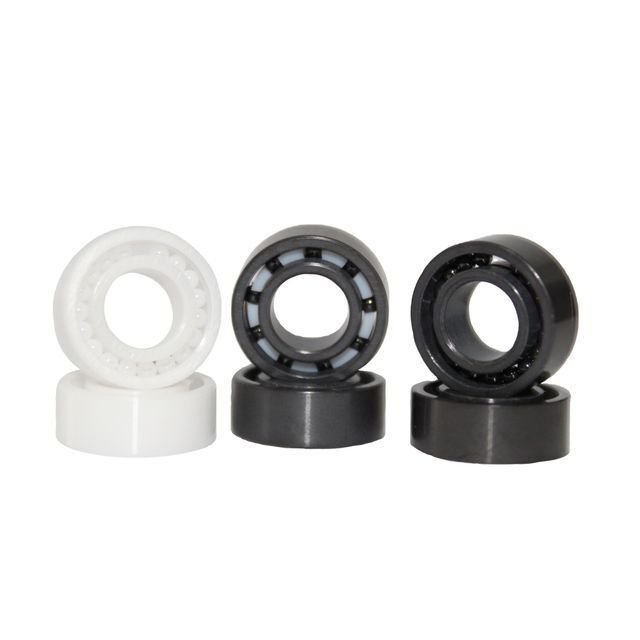

Wholesale price high quality ceramic ball bearing R188 full ceramic bearing for Fidget Spinner bearing

Supplier: Cixi Hoto Metallic Product Co., Ltd.
Region: Zhejiang, China
Contact: Ms Louise Wong
Price: $0.18 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

ID:	6.35mm;	Selling Units:	Single item;
Package:	Single Box Packing;	Place of Origin:	Zhejiang, China;
Packaging Detail:	Single packing + CNT +PALLETS or single Box;	Bearing Model:	CR188,SR188,R188;
Model Number:	R188;	Cage:	PTFE PEEK Nylon;
OD:	12.7mm;	Applicable Industries:	Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Home Use,Construction works ;
Brand Name:	HOSALE;	Wt:	4.763mm;
Single package size:	2X2X2 cm;	Feature:	Long Life High Speed;
Single gross weight:	0.030 KG;	Material:	Ceramic ZrO2 / Si3N4 Gcr15 Stainless Steel;
Type:	BALL BEARING,CERAMIC BALL;	Noise Level:	Z1/Z2/Z3/Z4;
Precision Rating:	P0;

Product Description

1. Grade: ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-9

2.OD Size: 3mm~200mm

3. ID Size: 0.5mm~180mm

4. Certification: ISO9001, SGS, CTI, ROHS

Product Name	DEEP GROOVE BALL BEARING
Material	Ceramic ,Chrome Steel ,Carbon steel,Stainless steel
Series	Series 6000,6200,6300,6400 ,6900,6800, etc.
Precision grade	P0,P6,P5,P4,P2 or ABEC-1,ABEC-3,ABEC-5,ABEC-7,ABEC-9
Reference Standard	DIN620(Germany), ANSI(America),ISO,INA, NTN, NSK,etc.
Delivery Date	Normally ready goods and stock within 7 days
Used	Electric machine, conveyor, cement mixer etc

Our Products

Full Ceramic Si3N4 Ball bearing

The ceramic ball bearings shown in the dimension table below have rings and balls made from silicon nitride (Si3N4). These silicon nitride bearings are available from stock in the Tarso company without a cage (full complement) or with cages made from PEEK. We can also offer our ceramic bearings with PTFE or 316 stainless steel cages.These are non magnetic, non-conductive and extremely corrosion resistant to most chemicals although not suitable for shock/impact loads due to the more brittle nature of the material. Silicon nitride full complement bearings can be used up to 800°C while bearings with a PEEK cage can cope with temperatures of up to 250°C. PTFE and 316 stainless steel cages are used for temperatures down to approximately -200°C. The standard radial play for our silicon nitride bearings is C3 but other options can be supplied on request.

Our silicon nitride ceramic bearings are available open or with PEEK seals. Some sizes may also be available flanged. Si3N4 ceramic bearings are generally used in specialist applications for their high temperature capabilities, excellent corrosion resistance or non-magnetic properties. Other sizes are available on request."

Full Ceramic ZrO2 Ball bearing

The full ceramic ball bearings listed below are supplied with rings and balls made from zirconium dioxide (ZrO2). These zirconia bearings are available as full complement (no cage) or with cages made from PTFE, PEEK or 316 stainless steel. These are non magnetic, non-conductive and highly corrosion resistant to most chemicals although ZrO2 bearings are not recommended for prolonged contact with steam. Full complement bearings or those with a 316 stainless cage can be used up to 400°C while bearings with a PEEK or PTFE cage can cope with temperatures of up to 250°C. For temperatures below -70°C, PTFE or 316 stainless steel cages are preferred. Standard radial clearance for full ceramic bearings is C0 but other clearances can be supplied to order. Our zirconia ceramic bearings are available from stock in the China open or with PTFE/PEEK seals. Some sizes may also be available flanged. ZrO2 ceramic bearings are generally used for their extreme temperature capabilities, excellent corrosion resistance or non-magnetic properties. Other sizes can be supplied on request.

Hybrid Ceramic Ball Bearing

The hybrid ceramic ball bearings shown in the dimension table below have stainless steel rings and ceramic balls. The rings are made from AISI440C, 304 or 316 stainless steel. The ceramic balls are made from ZrO2, Si3N4 or Sic.These hybrid ceramic bearings are available from stock in the Tarso company without a cage (full complement) or with cages made from PTFE. We can also offer our hybrid ceramic bearings with PEEK or 316 stainless steel cages. The hybrid ceramic bearing balls has the advantage of low density,low friction, high strength, electricity & magnet resistance and lubricant free. 1.5 times up high speed compare with stainless steel bearing. Life time increase 2 or 3 times compare with stainless steel bearing. Applicable for temperature up to 220℃. Our hybrid ceramic bearings are available open or with PEEK seals. Some sizes may also be available flanged.

Products Shows

Full Ceramic ZrO2 bearing

Full ZrO2 with PTFE cage

Full Ceramic Si3N4 Bearing

Full Si3N4 with Nylon cage

Full ball Hybrid Ceramic bearing

Staniless ring+ Si3N4 Ball

Our Company

Factory

Our Factory

Warehouse

Our Warehouse

Testing Machine

Our Test

Workshop

Our worshop

Packing & Delivery

Packing Details : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 3-30 days after order of Solid bicycle tire tubes

1. Carton packaging

2. Carton packaging

3. Carton packaging

4. Single package

5. Tube & Single package

6. Palltes package

Our Certifications

Exhibition Photo

FAQ

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
