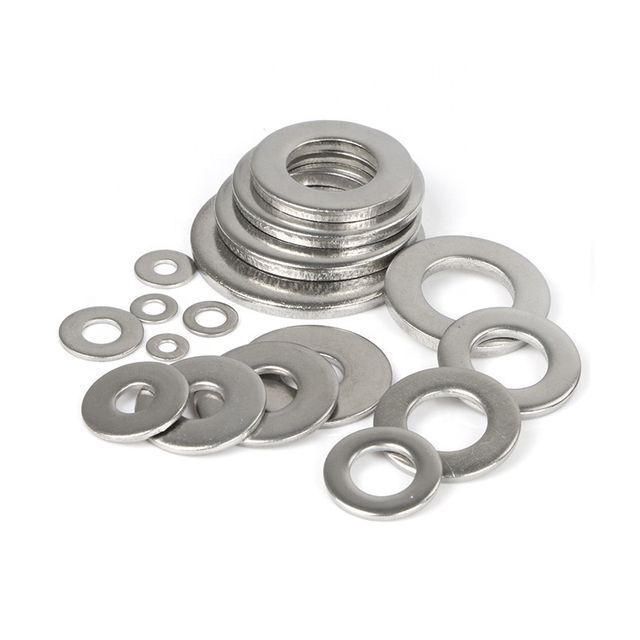

SHIM Washers Ring Washers A2 Stainless Steel Din 988 Various Sizes M3 - M70
- 0.01 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Port: | All the ports in China; | Brand Name: | Dechuang; |
| Packaging Detail: | 1. Packing in Plastic bags, then in cartons, and in crate or pallet finally 2. OEM package; | Hardness: | 200HV-300HV; |
| Material: | Stainless Steel; | Place of Origin: | China; |
| Product name: | SHIM Washers Ring Washers A2 Stainless Steel Din 988 Various Sizes; | Type: | Precision Nonstandard Parts(OEM Service); |
| OEM/ODM Service: | Acceptable; | Standard: | DIN; |
| Surface Treatment: | Polishing; | Model Number: | WA-OR3S; |
| Supply Ability: | 10000000 Pieces per Month; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Size: | Custom Size; | Production Technology: | Stamping; |
| Application: | Mechanical industry; |

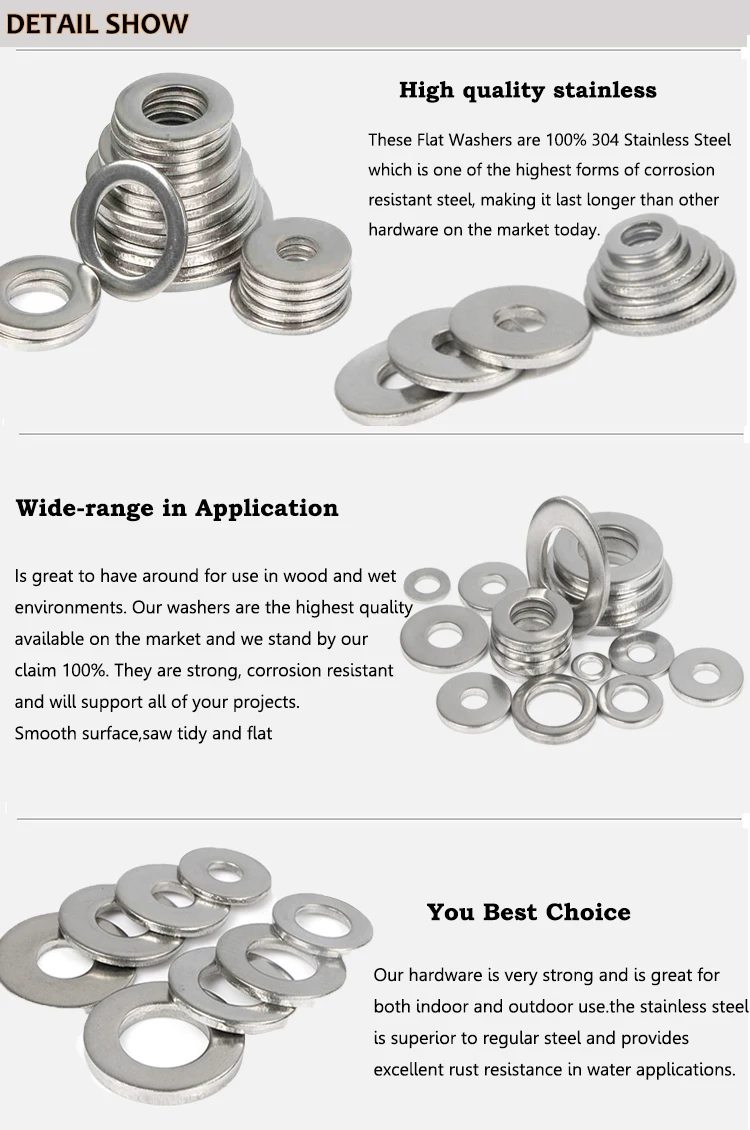

DETAIL SHOW

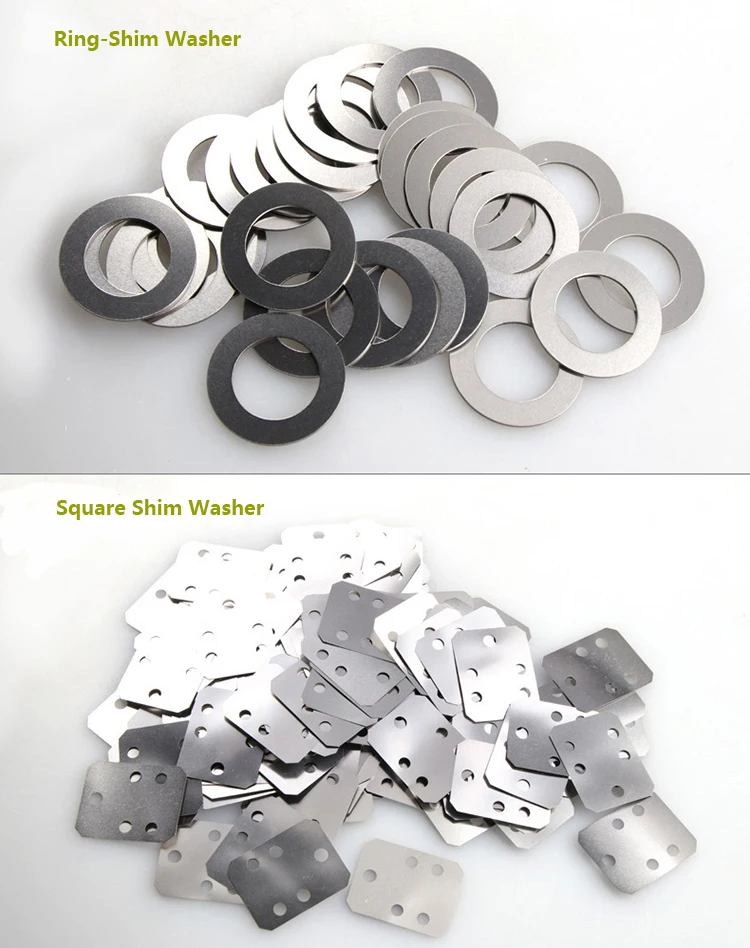

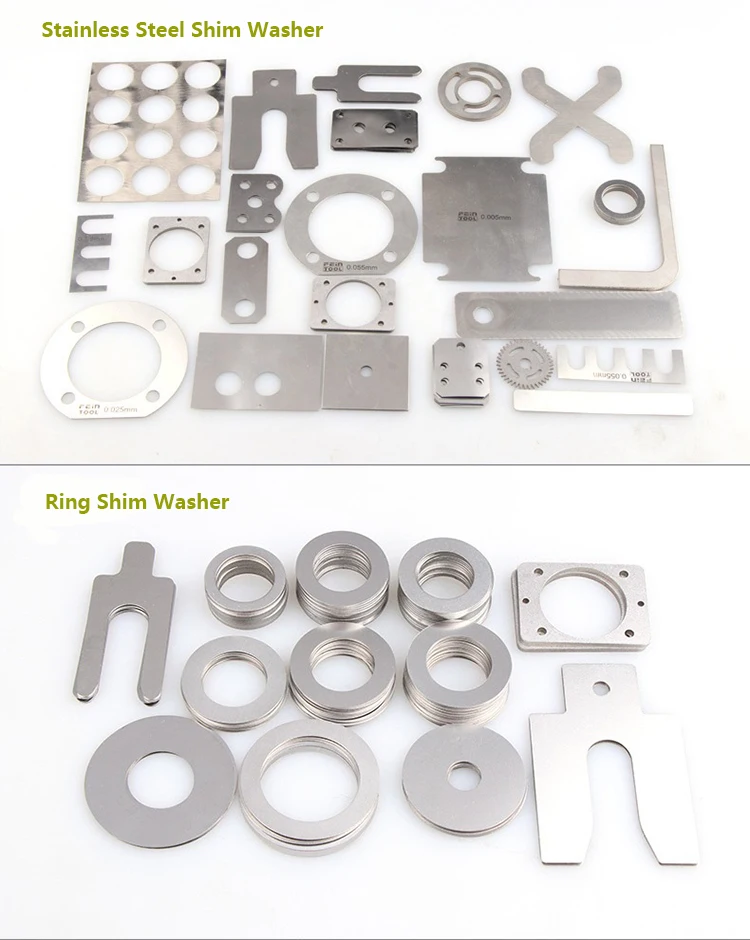

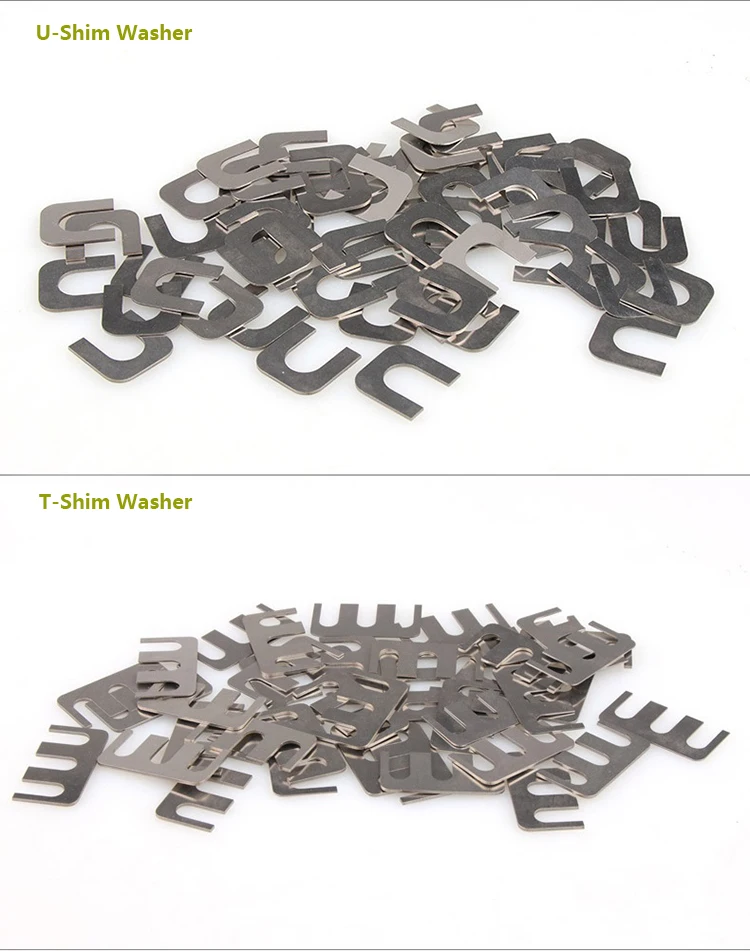

Real Take
Relevant Property

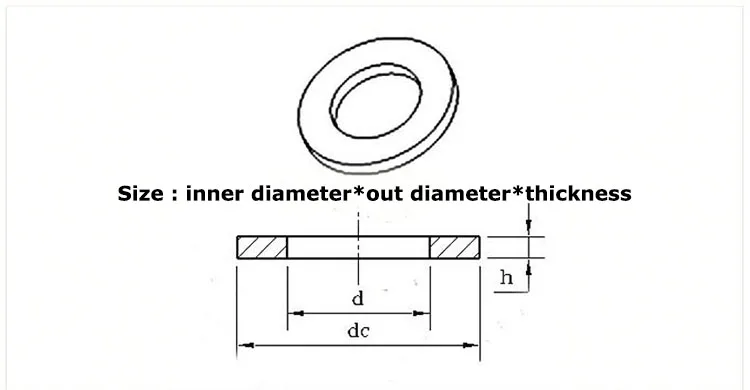

| Apply thread specification | d | dc | h | |||||
| Nominal Diameter | Max | Min | Max | Min | Nominal | Max | Min | |
| M2.5 | 2.7 | 2.84 | m1n | 8 | 7.64 | 0.8 | 0.9 | 0.7 |
| M3 | 3.2 | 3.38 | 3.2 | 9 | 8.64 | 0.8 | 0.9 | 0.7 |
| M3.5 | 3.7 | 3.88 | 3.7 | 11 | 10.57 | 0.8 | 0.9 | 0.7 |
| M4 | 4.3 | 4.48 | 4.3 | 12 | 11.57 | 1 | 1.1 | 0.9 |
| M5 | 5.3 | 5.48 | 5.3 | 15 | 14.57 | 1.2 | 1.4 | 1 |
| M6 | 6.4 | 6.62 | 6.4 | 18 | 17.57 | 1.6 | 1.8 | 1.4 |
| M7 | 7.4 | 7.62 | 7.4 | 22 | 21.48 | 2 | 2.2 | 1.8 |
| M8 | 8.4 | 8.62 | 8.4 | 24 | 23.48 | 2 | 2.2 | 1.8 |
| M10 | 10.5 | 10.77 | 10.5 | 30 | 29.48 | 2.5 | 2.7 | 2.3 |
| M12 | 13 | 13.27 | 13 | 37 | 36.38 | 3 | 3.3 | 2.7 |
| M14 | 15 | 15.27 | 15 | 44 | 43.38 | 3 | 3.3 | 2.7 |
| M16 | 17 | 17.27 | 17 | 50 | 49.38 | 3 | 3.3 | 2.7 |
| M18 | 20 | 20.52 | 20 | 56 | 54.1 | 4 | 4.6 | 3.4 |
| M20 | 22 | 22.52 | 22 | 60 | 58.1 | 4 | 4.6 | 3.4 |
| M24 | 26 | 26.84 | 26 | 72 | 70.1 | 5 | 6 | 4 |
| M30 | 33 | 34 | 33 | 92 | 89.8 | 6 | 7 | 5 |
| M36 | 39 | 40 | 39 | 110 | 107.8 | 8 | 9.2 | 6.8 |
