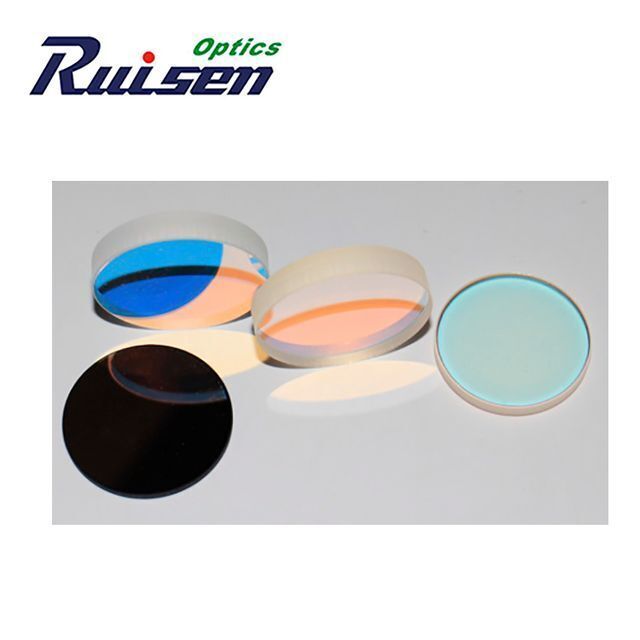

Infrared 4260nm Narrow Bandpass Filter Tpeak>85% Silicon Glass
- 15.00 10 - 999 pieces
- 10.00 1000 - 9999 pieces
- 5.00 >=10000 pieces
| Tolerance: | +/-0.1mm; | Port: | shagnhai port; |
| Type: | Cut-off Filter/band pass filter; | Surface Quality: | 80/50; |
| Material: | Optical IR glass filter; | Packaging Detail: | carton; |
| Model Number: | HWB; | Customized support: | OEM,OBM; |
| Payment Terms: | Western Union,T/T,paypal; | Transmittance: | >90%; |
| Wavelength: | HWB800 HWB830 HWB850..; | Brand Name: | Ruisen; |
| Package Preview: | ; | Place of Origin: | Jiangsu, China; |
| Supply Ability: | 100000 Pieces per Month; | Warranty: | 3 years; |
| Use: | optical and photographic; | Certification: | ISO; |
Product introduction:
The infrared band of the infrared filter includes a wide range of wavelengths, ranging from 780 nm to 14 um, including near infrared, mid-infrared and far-infrared. Near infrared (code IR-A, wavelength 780-1500 nm, NIR), mid-infrared (IR-B, 1500-6000 nm, MIR) and far infrared (IR-C, 6000-14000 nm, FIR) bands.
According to the optical characteristics, there are long wave pass filter and bandpass filter.
Application:
√ Microscopic instruments
√ Optical metrological instrumentsLaser protective windows
√ Optical instruments of surveying and mapping
√ Machine vision devices
√ Optical detection instruments
√ The popular science optical
√ A digital opticalOptical test instruments
√ Fiber optic instruments
√ Laser Instruments
√ Electro-optic displays
√ Medical opticalInfrared thermography
√ Observation instrument measuring instrument andphotography
Type | Thickness | λtj | λ0 | Tλ0 | K | Bubble | Stripe | Stress |
mm | nm | nm | nm | |||||
HWB760 | 3 | 760±10 | 850 | ≥83.6 | ≥0.6 | C-B | 3C | 3 |
HWB780 | 3 | 780±10 | 900 | ≥83.6 | ≥0.5 | C-B | 3C | 3 |
HWB800 | 3 | 800±10 | 900 | ≥83.6 | ≥0.5 | C-B | 3C | 3 |
HWB830 | 3 | 830±10 | 930 | ≥83.6 | ≥0.5 | C-B | 3C | 3 |
HWB850 | 3 | 850±10 | 950 | ≥80.0 | ≥0.5 | C-B | 4 | 3 |
HWB900 | 6 | 900±15 | 1050 | ≥80.0 | ≥0.2 | C | 3C | 3 |
HWB930 | 6 | 930±15 | 1050 | ≥80.0 | ≥0.2 | C | 3C | 3 |
Q:What's the way of shipping and cost?
1,We accept DHL, Fedex,TNT, UPS,EMS,SF and etc.
2,If you have your own express number, it's great.
3,Freight=USD35(the first weight )+USD12/kg
Q:How to pay?
You can choose T/T,Paypal and Assurance payment on Alibaba and etc.
Q:What's the deliver time?
1,For inventory: the delivery time is 3 days.
2,For customized products: the delivery time is 5-25 workdays.According to the quantity.
Contact:Kitty Wang
T:+86-513-88799898
E: sales @ rsgx.net
G.M.: Jason Wang
E: jason @ rsgx.net
ADD:No55,Shuanggong Road, Qutang Town, Hai'an, Jiangsu Province, China
W: www.rsgx.net or http://rsgx.en.alibaba.com
