Uninterruptible power supply 3kVA 3000VA 3 kVA UPS power with in-built batteries

Supplier: Shenzhen Pocasa Electronic Co., Ltd.
Region: Guangdong, China
Contact: Ms Scarlett Hwang
Price: $208.69 / 10 - 99 units
$199.21 / >=100 units
Min. Order: 10 units

Click here to contact

Product details

Inverter efficiency:	88%;	Surge ratio:	3:1;
Transfer technology:	high frequency;	Supply Ability:	3000 Units per Week;
Phase:	Single Phase;	Application:	Networking;
Rated power:	3000VA\|2700W;	Model Number:	H3kS;
Packaging Detail:	Carton;	AC output voltage:	220\|230\|240Vac±1%;
Battery type:	6 pcs*12V\|7AH sealed lead acid;	Protection:	Lightning;
Charging current:	1A;	Warranty:	12 months;
Port:	ShenZhen, HongKong;	Type:	On-line;
Place of Origin:	Guangdong, China;	Transfer time:	0 ms;
Output waveform:	pure sine wave, THD<3%;	AC input voltage:	110-300Vac;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Brand Name:	POCASA\|OEM;
Weight:	24 kG;	Package Preview:	;

Uninterruptible power supply 3kVA 3000VA 3 kVA UPS power with in-built batteries

Product Description

Key features:

H series on-line UPS is an advanced true double conversion on-line topology, the H series isolated gate bipolar transistors (IGBT) for true isolation from AC input. Ideal for data centers in network and industrial applications. Features scalable battery packs for those critical business systems that require long run times. With the H series wide in-put voltage range and near zero tolerance on frequency and voltage variance on the put-put the H series is perfect for the most demanding and delicate of applications.

a).Sine-wave output
True sie-wave output with less than 3% THD

b).Double conversion design
Zero transfer/complete isolation of input AC

c).UPS monitoring software
Powerful true RS232 communication via the enclosed software manages and safely shutdown operating systems.

d).Network RJ45/11 protection

Completed powerful network and phone line surge protection

e).AC surge suppressor
Powerful multi-stage surge components exceed IEEE requirements.

f).SNMP slot option
Allows for remote monitoring and control via www

g).Sleep mode
Worry free battery management. The unit turns itself off after ten seconds to conserve battery power when no power needs are detected.

h).Battery level indicators
LED's indicate battery levels

i).Load sensing
The incorporated LED load indicators allow IT professionals to manage backup time and balance power loads.

j).Low battery indicators
The low battery level indicator will warn of eminent UPS shutdown two full minutes before unit shuts down.

k).Replace battery indicators
A preventative measure that indicates when batteries must be replaced to prevent server crashes.

Tech Specification

Model		H1kS	H2kS	H3kS
Rated power	VA/W	1kVA/0.9kW	2KVA/1.8kW	3KVA/2.7kW
Input	Nominal voltage	220VAC
	Voltage range	115~300VAC
	Frequency range	46~54Hz(default), user adjustable within 40~60Hz
	Power factor	0.97
	Connection	IEC320-10A inlet		IEC320-16A inlet
Output	Voltage	220VAC±2%
	Frequency	46~54Hz or 50Hz±0.2(line mode) 50Hz±0.2Hz(battery mode)
	Waveform	Pure sine wave
	Distortion	3%	4%
	Overload capability	108%~150% for 30 sec., 150% for 300ms
	Current crest ratio	3:1
	Connection	IEC320*4	IEC320*6	IEC320*3 and terminal block

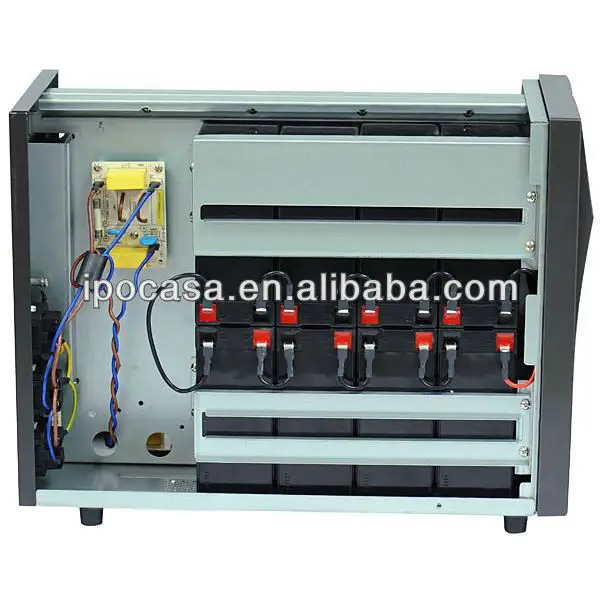

Battery	Type	Sealed, maintenance free, lead-acid
	Quantity	2 pieces	4 pieces	6 pieces
	Back-up time(full load)	12.6 min	12.6 min	12.6 min
	Recharge time	5 hrs to 90% of capacity after full load discharge
Bypass	Automatic transfer	On overload and UPS failure
	Before UPS power-on	Default “NO”, user adjustable to “YES”
	Voltage range	80~264VAC(default), user adjustable within 80~286VAC
Transfer time		0 ms; less than 4ms from inverter to bypass and vice versa
LED indicators	Status	Load level/battery level, battery , utility power, inverter, bypass, overload, fault
Audible alarm		Bypass, on battery mode, battery low, overload, fault
Acoustic noise	At 1 meter distance	45 dB	50 dB
Communication	DB-9 port	RS-232 serial interface
	Intelligent slot	Options: Webpower, AS400 card or Winpower CMC
Network surge protection		RJ45 I/O port available for network or fax/modem
Environmental	Operating temperature	0~40°C
	Operating humidity	20~90% non-condensing
Weight	Net(Kg)	10	20	25
Dimension	WxDxH(mm)	372x264x352	484x320x456

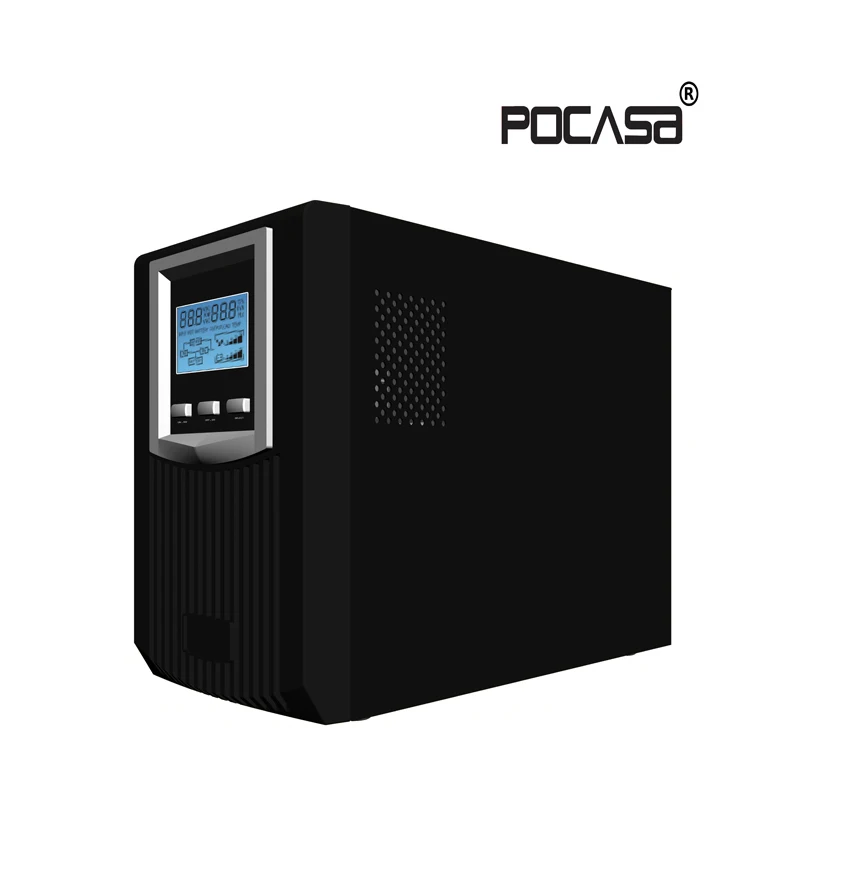

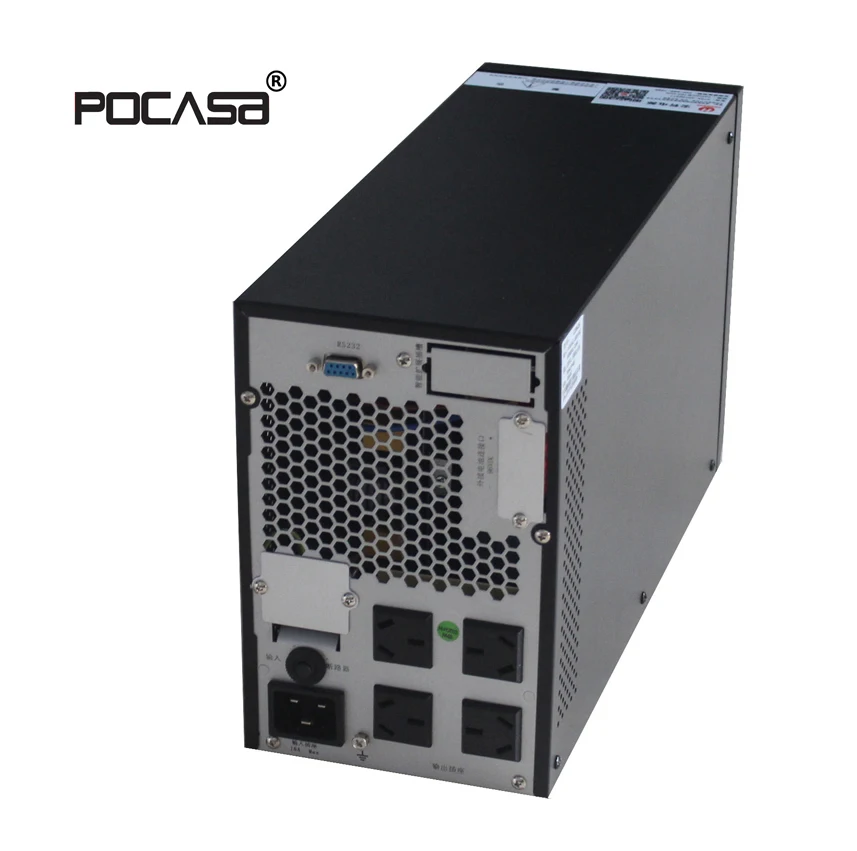

Product Pictures

OEM Polocies

1. Price terms:

We always offer best prices to our clients, base on differenct quantity, you'll get special extra discount as well.

2. MOQ terms:

MOQ is not strictly required, minimum 1unit also welcome. The larger quantity, the better prices you'll get.

3. Brand terms;

We're practical in engineer, welcome to custom your own brand/logo, or use our brand POCASA.

4. Payment terms:

Usually accept T/T, 30% deposit and balance 70% before shipment.

5. Lead time:

7-14 days for samples, 15-21 work days for bulk orders.

6. Month Capacity:

It depends on which model, small capacity models reach to 20000pcs and big capacity near 3000pcs.

7. Warranty polocy:

Standard warranty 1 year, 2-5 years optional, prices will different.

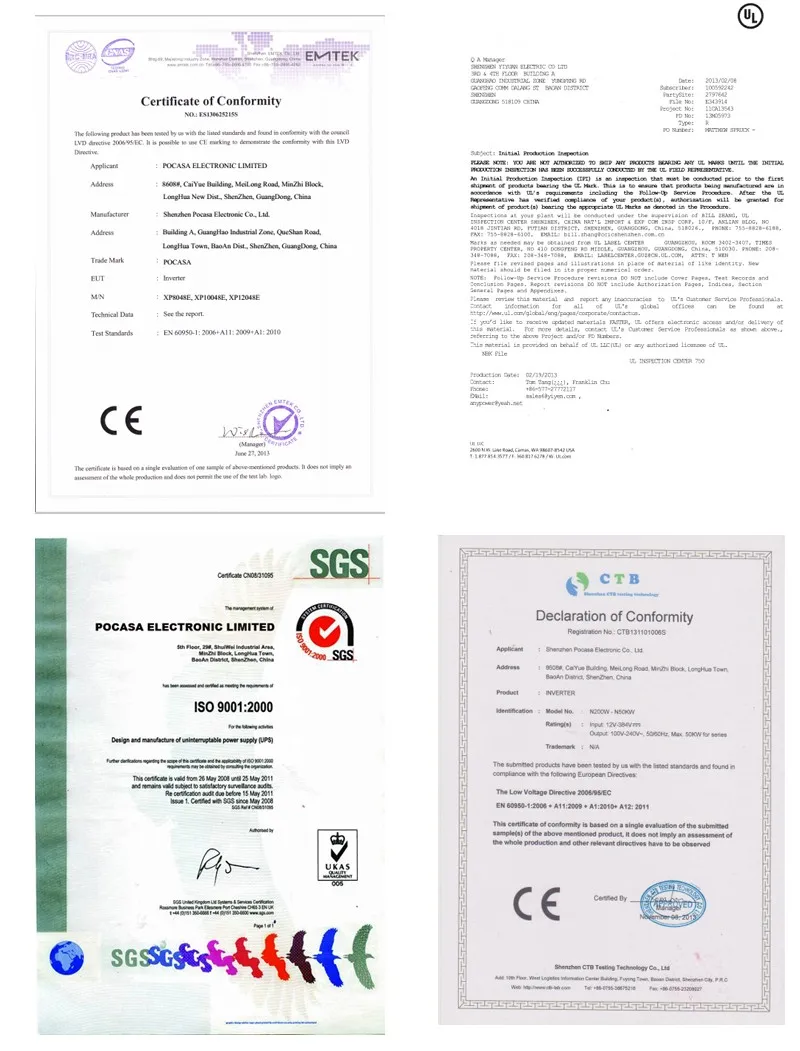

8. Certification:

Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, GOST, UL(pending) .

9. Shipment:

Small quantity usually send by Express like DHL/FedEx/UPS, hundreds weight send by Air, bulk orders send by sea.
