2021 POPULAR HDG 12 x 6 Hydraulic Three Ways Tipper Trailer ATM 3500KG

Supplier: Hunan Ct Industries Co., Ltd.
Region: Hunan, China
Contact: Mr Milo Zhou
Price: $1800.00 / >=5 sets
Min. Order: 5 sets

Click here to contact

Product details

OE NO.:	126HTT;	Internal Trailer Dimensions:	3600mm (L) x 1830mm (W);
Package Preview:	;	Payment Terms:	T/T;
Supply Ability:	1000 Sets per Month;	Port:	CHANGSHA;
Tare weight:	1250KG;	Packaging Detail:	Flat Packed, Iron Pallet, or Customized;
Size:	12FT*6FT;	ATM:	3500KG;
Place of Origin:	Hunan, China;	Brand Name:	CT OR OEM;
Finish:	Hot Dipped Galvanized;	Deck Size:	3680mm (L) x 1835mm (W);
Max Payload:	2250KG;	Drawbar:	1800MM Ultra-long Draw Bar;

Different Size For Hydraulic Tipper Trailer

SIZE (ft)	ATM (kg)	CHASSIS (mm)	INTERNAL TRAILER SIZE (mm)	SPRING	WHEEL
8×5	3500	2480×1535	2400×1530	7 Leaf 7mm Rocker Roller Spring	195 R15C
10×5	3500	3080×1535	3000×1530	7 Leaf 7mm Rocker Roller Spring	195 R15C
10×6	3500	3080×1835	3000×1830	7 Leaf 7mm Rocker Roller Spring	195 R15C
12×6	3500	3680×1835	3600×1830	7 Leaf 7mm Rocker Roller Spring	195 R15C

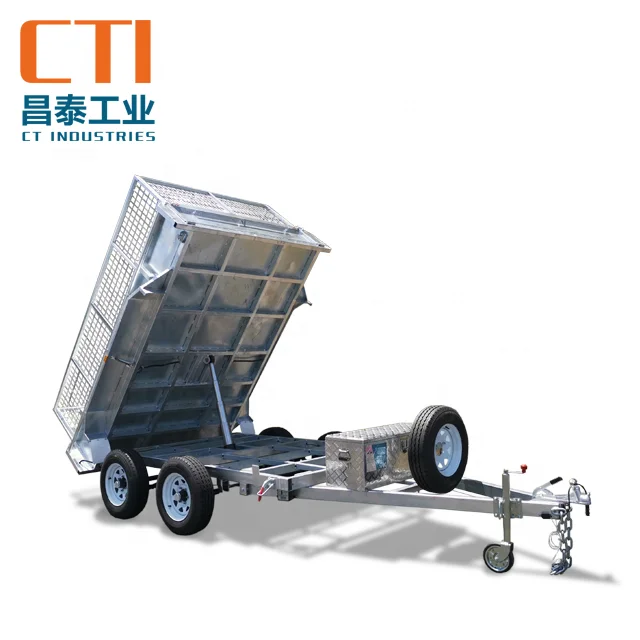

Hot Dipped Galvanised 12x6 Hydraulic Tipper Trailer ATM 3500KG

Product Description

• Technical Specifications

ATM:3500KG

Payload: 2250KG

1900mm Ultra Long Draw Bar makes reverse parking easy
Fully Welded Frame and Chassis
Chassis: 3680mm x 1835mm
Internal Trailer Size: 3600mm x 1830mm
Side: 425mm High Fully Welded
Drawbar: 1800MM Ultra-long Draw Bar for Easy Reversing
Finish: Hot Dipped Galvanized
Body: Drop Down Front/Rear Panel
Flooring: Checker Plate Floor
Lights: LED
Lights Plug: Round or Flat 7 Pin Plug
Axle: Dual 50mm Solid Round Axles
Brake: 12 Inch Electric Drum Brake With Dexter Bearing
Spring: 7 Leaf 7mm Rocker Roller Spring
Wheel: Brand New 195 R15C Wheels(Tyres&Rims)
Jockey Wheel: 8 Inch 1500lbs Swing Up
Coupler: 50mm 3500KG Coupling For Electric Brake
5-Stage Hydraulic Tipping Ram with 4600KG Loading Capacity
12V Automotive Battery comes with Hydraulic System
Electric Brake-away Unit Fitted
