Product details
Main vibration form:Platform vibration;Applicable Industries:Building Material Shops,Manufacturing Plant,Construction works ;
Supply Ability:5000 Sets per Year qt4-25a automatic block making machine;Brick Raw Material:Cement;
Weight:3.5T;Pallet size:900/850*550x25mm;
Processing:Brick Molding Machine;Voltage:Local Voltage;
Dimension(L*W*H):6400*1500*2700mm;Key Selling Points:Easy to Operate;
Rated pressure:21Mpa;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Port:Qingdao port shandong China;Weight (KG):2600 kg;
Condition:New;Warranty of core components:1.5 years;
Vibration frequency:2800-4500r/min;Brand Name:SHIYUE;
Video outgoing-inspection:Provided;Molding cycle:25S;
Worker:3-5;Packaging Detail:nude package or according to you need qt4-25a automatic block making machine;
Automatic:Yes;Block Type:Concrete blocks, hollowblocks, interlocking blocks ,colored pavers;
Method:Mechanical;Core Components:PLC,Pressure vessel,Motor,Pump;
Place of Origin:China;Production Capacity (Pieces/8 hours):3600pcs/day(8h);
Machinery Test Report:Provided;Brick size:400*100*200 mm,400*120*200 mm,200*100*60 mm,400*150*200 mm,240*115*90 mm,200*200*60 mm,400*200*200 mm,230*220*115 mm;
Type:Hollow Block Making Machine,Paving Block Making Machine,Curbstone Block Machine;Showroom Location:Egypt,United States,Pakistan,India,Mexico,Russia,Morocco,Kenya,Argentina,Colombia,Bangladesh,Nigeria,Malaysia;
Material:Crushed stone, sand , cement, dust, and fly ash, gravel, slag;Marketing Type:Hot Product 2019;
Product Name:qt4-25a automatic block making machine;Warranty:2 years;

qt4-25a automatic block making machine

Product Description



QT4-25 Block Machine Parameters
Overall size(L*W*H) 6400*1500*2700mm
Total mass 3500kg
Cycle 25S
Capacity 3600 Pcs/day(8h)
Pallet size 900/850*550mm
Operating staff

1-2 staff

Power  28KW
Rated pressure 21Mpa
Applied products

Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.

Raw material

Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material , etc.

Introduction of QT4-25 block mahcine

1. QT4-25 block machine is a kind of automatic product developed by our company newly with high density and high efficiency.

2. Best welding technology and the best steel in our country.

3. The blocks are High strength, the compactness of uniform.

4. Exchangeable moulds.

5. Competitive price and good quality.

6. Electro-mechanical integration.

7. Simple operation and high productivity.

+

Productivity of QT4-25 hollow block machine

Size(L*W*H)mm Pcs/mould Pcs/hour Pcs/day(8h)
400*250*200mm 3 360 2880
400*200*200mm 4 450 3600
400*150*200mm 5 600 4800
400*100*200mm 7 840 6720
225*112.5*60mm 12 960 7680

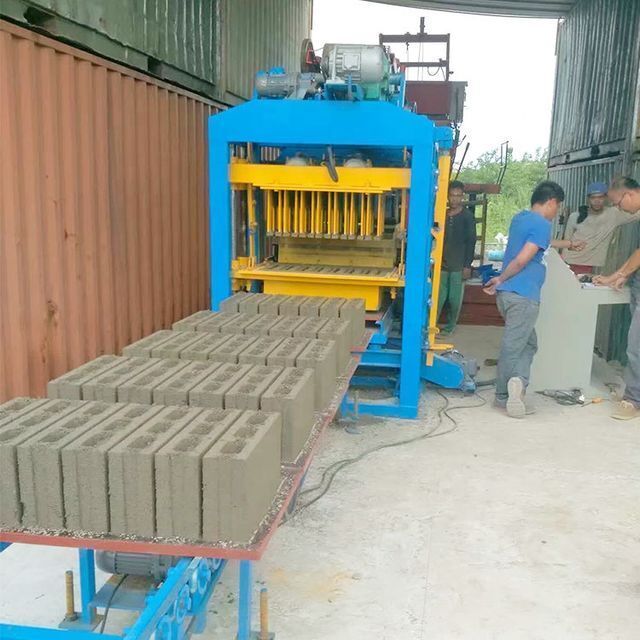

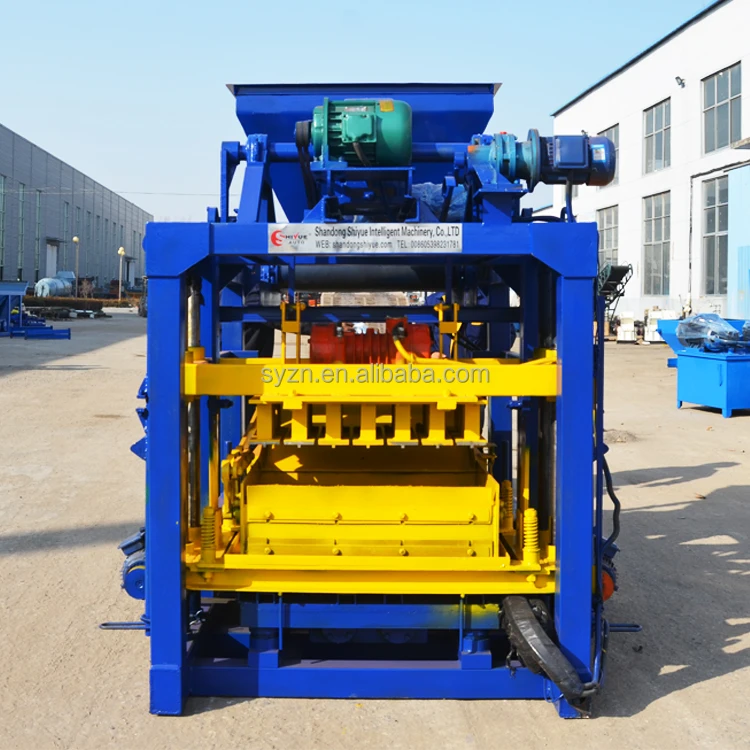

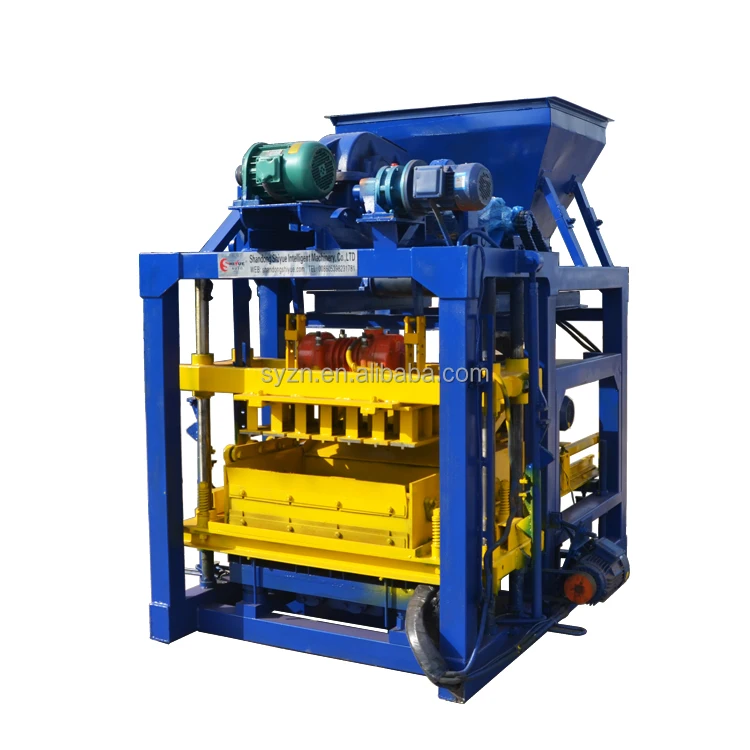

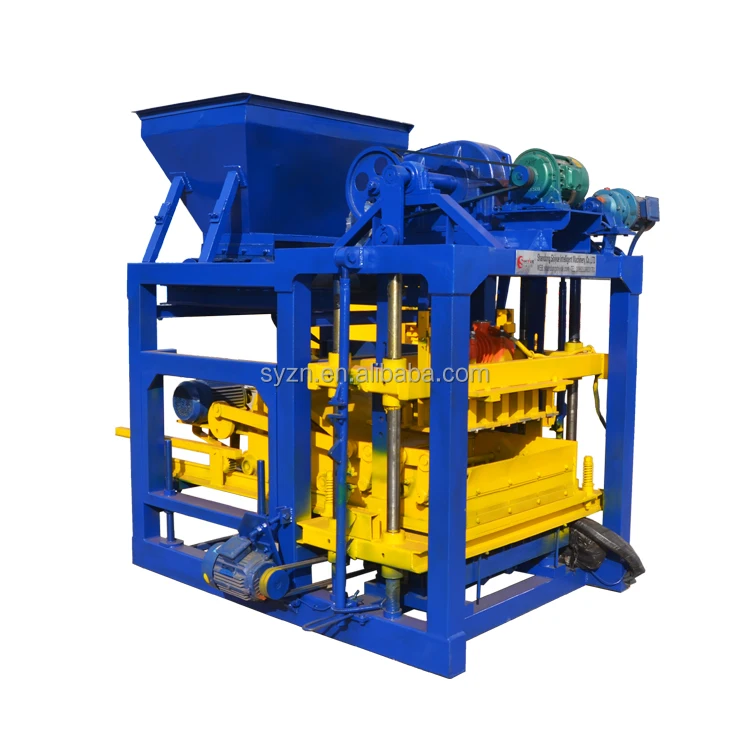

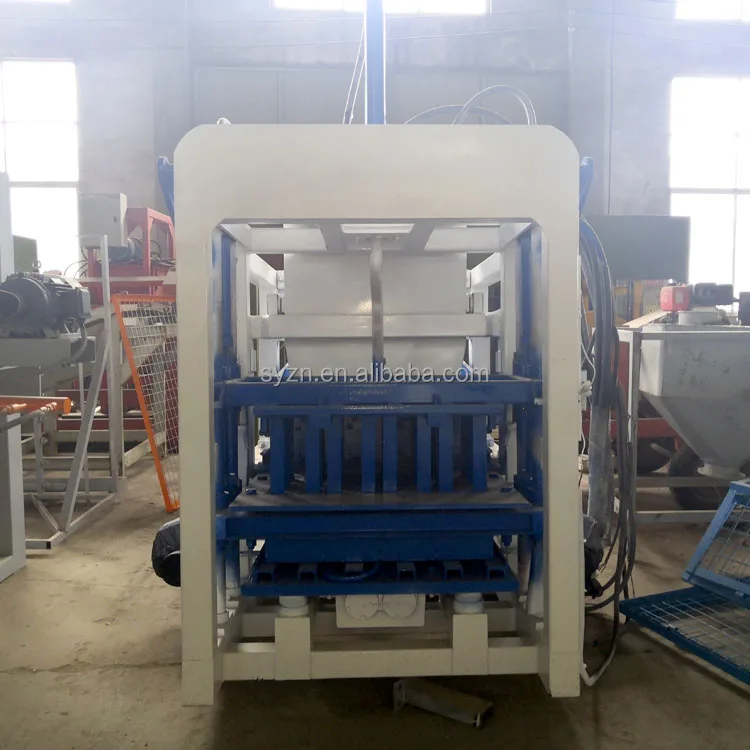

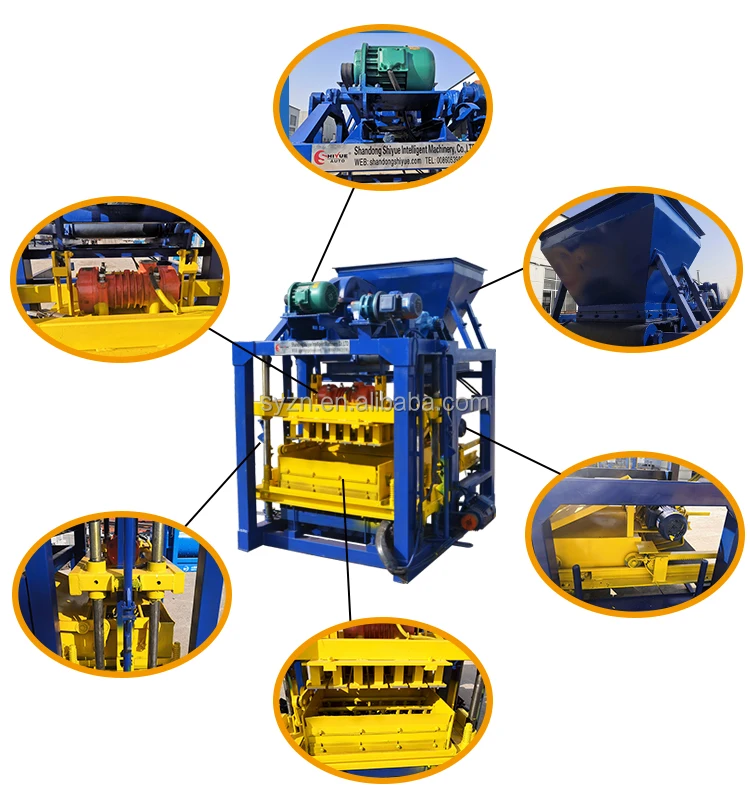

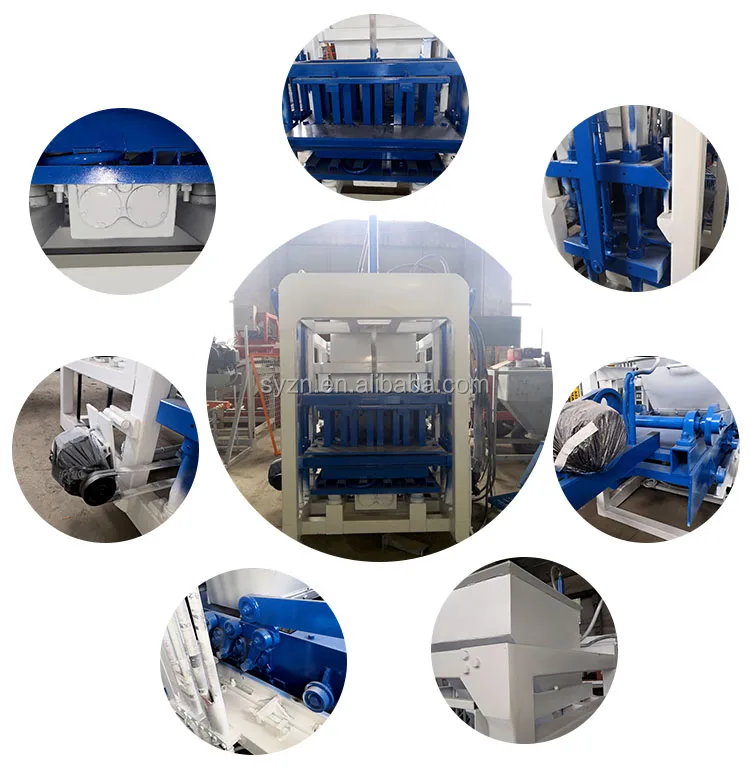

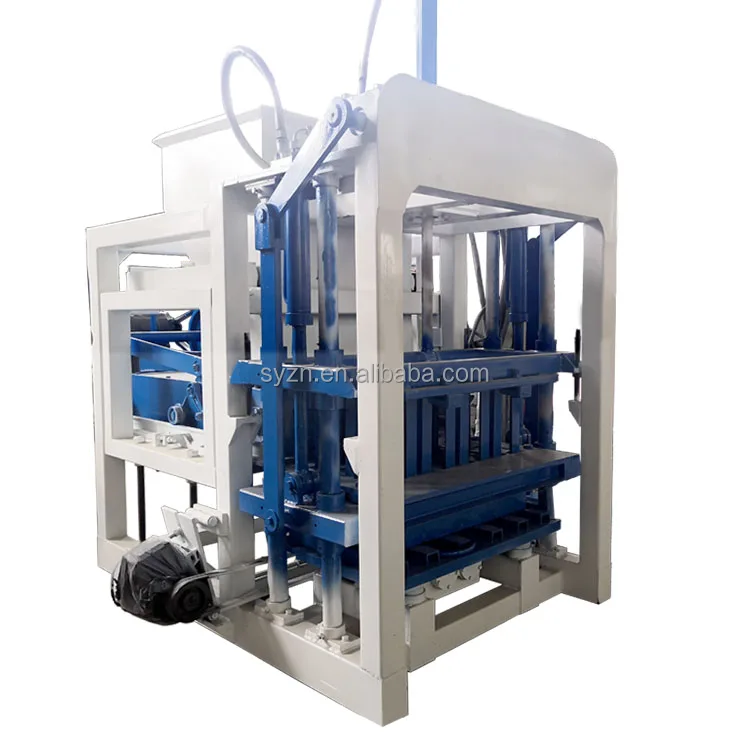

Pictures of QT4-25 block making machine

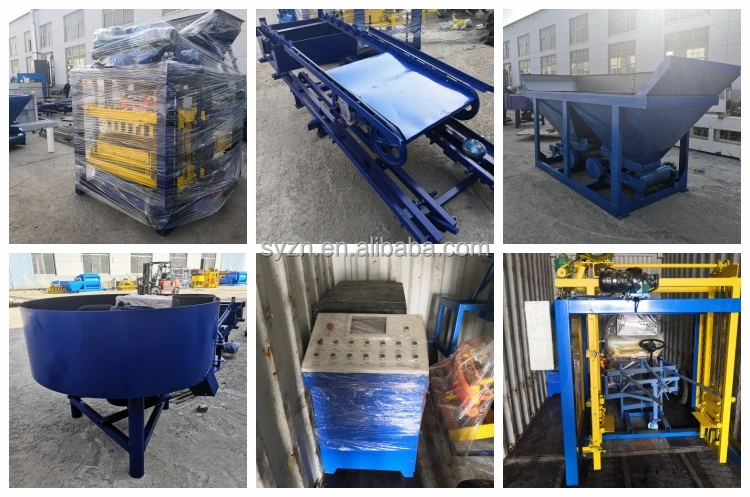

Packaging & Shipping



Block samples



Our Services



+
Installation service
Machine installation and operation training will be supported by our engineers in buyer’s place

about one week. The buyer should support following:

1. USD50/day for our engineers (total 2)
2. Accommodation and Round-trip tickets.
After sale service
During the 1st year, we will supply followings for free:
1. spare parts of machine and equipment (except quick-wear parts)
2. repair for equipment’s broken (design, work process and production)
FAQ
Q1: What is the Warranty for the machine?

A1:  For the machine,we have 1 years warranty(except the wearing part ).If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What kinds of payment methods can be accept?
A2: Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery
Q3:  Who will pay the delivery cost?

A3: Because block machine need to be delivery by sea or road,so customers will in charge of the

delivery cost.

Q4: what's the motor voltage?

A4: Our local voltage is 380v, 3phase, 50HZ, motor voltage could be customized to fit your local voltage.

Q5: Do you have Operation  Instruction Manual
A5: Yes.We will send the Operation Instruction Manual to you after you purchase the machine.

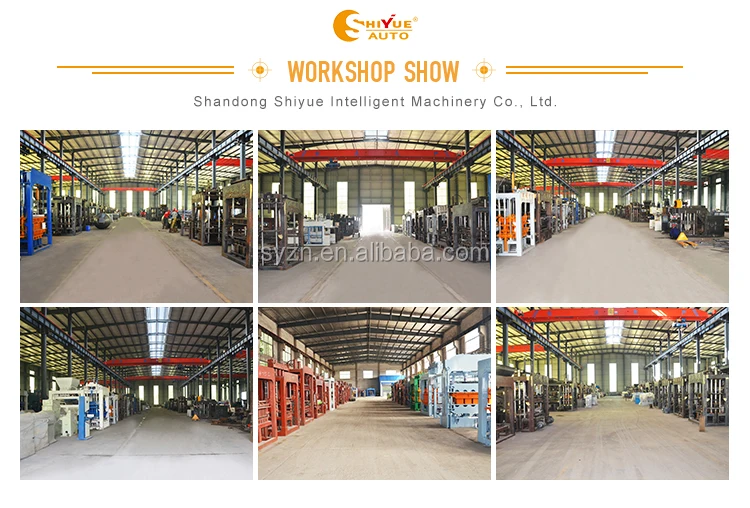

Company Information



Our customers

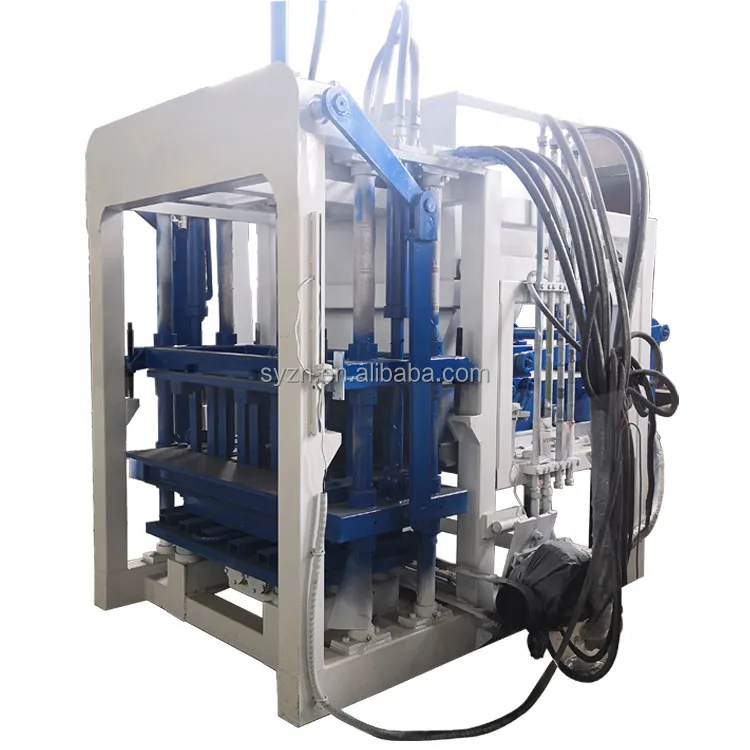

Similar products
